Technical Specifications
-
Nominal Diameter (Throat): 25.4 mm (1 in)
-
Rated Impedance: 8 Ω
-
Minimum Impedance: 5.2 Ω
-
DC Resistance: 4.3 Ω
-
AES Power Capacity: 70 W above 1.5 kHz
-
Program Power: 140 W above 1.5 kHz
-
Sensitivity: 107 dB (1W/1m, coupled to TD-250)
-
Frequency Range: 0.8 – 20 kHz
-
Recommended Crossover: 1.2 kHz or higher (12 dB/oct min.)
-
Voice Coil Diameter: 44.4 mm (1.75 in)
-
Magnetic Assembly Weight: 3.0 kg (6.6 lb)
-
Flux Density: 2 T
-
Bl Factor: 7 N/A
Dimensions & Mounting
-
Overall Diameter: 146 mm (5.7 in)
-
Depth: 69 mm (2.7 in)
-

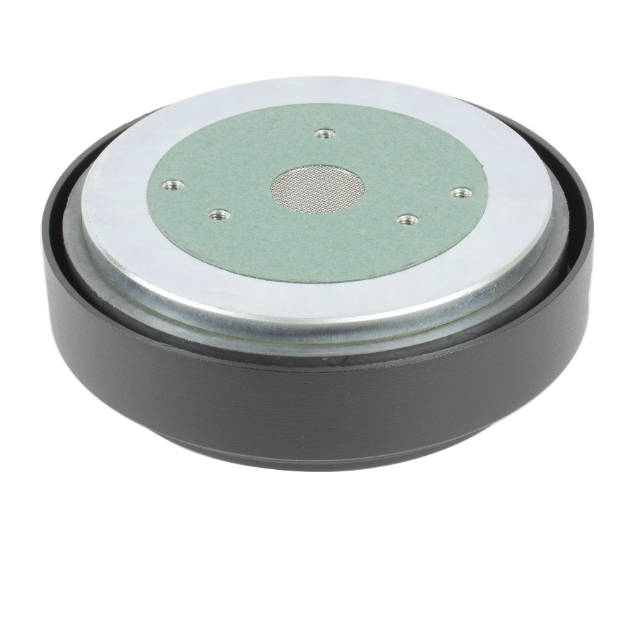

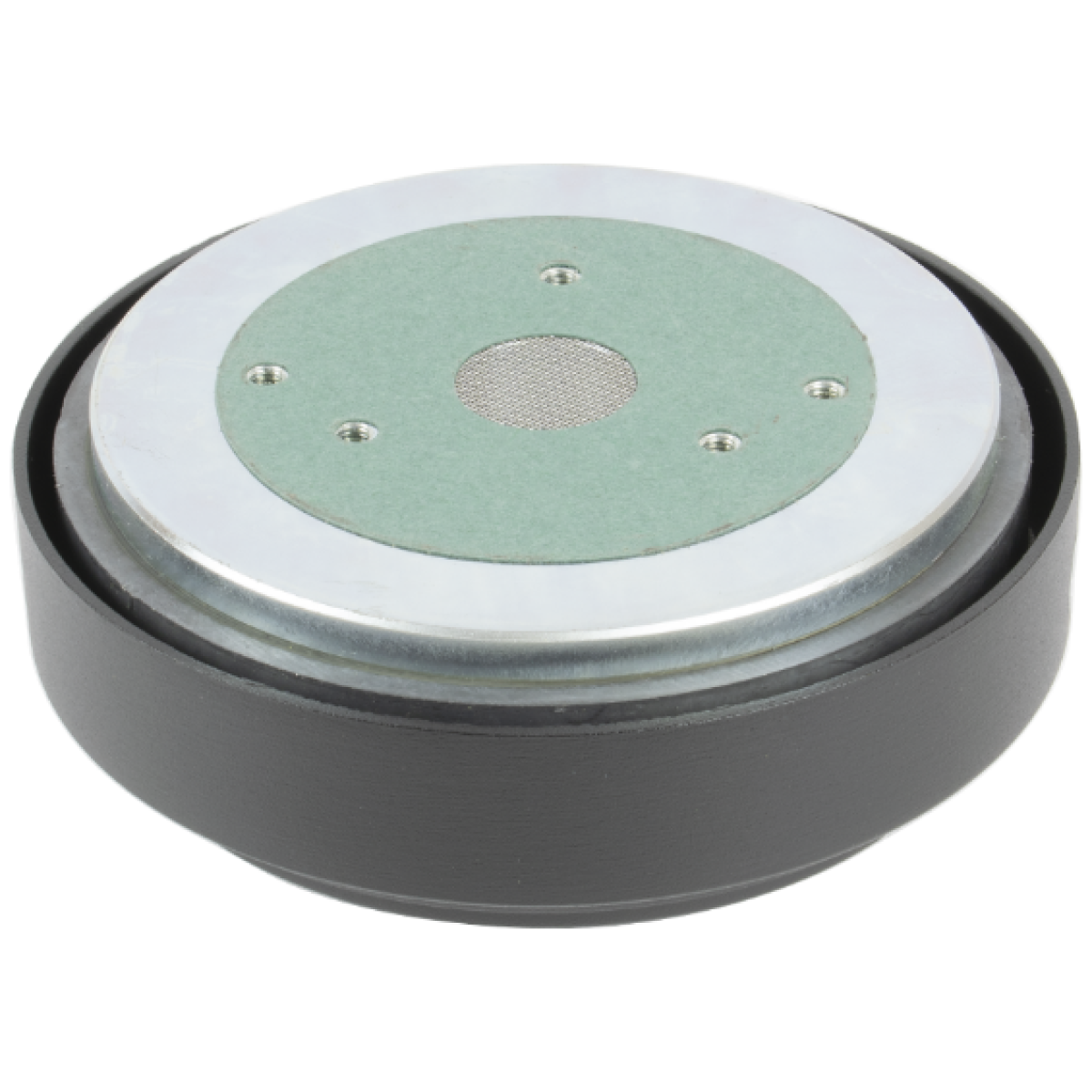

Mounting Options:
-
3 × M5 threaded holes, 120° apart on 57 mm (2.24 in) bolt circle
-
2 × M5 threaded holes, 180° apart on 76.2 mm (3 in) bolt circle
-
-
Net Weight: 3.2 kg (7.2 lb)
-
Shipping Weight: 3.4 kg (7.5 lb)
