Technical Specifications
-
Nominal Diameter (Throat): 50.8 mm (2 in)
-
Rated Impedance: 8 Ω
-
Minimum Impedance: 7.7 Ω
-
DC Resistance: 5.5 Ω
-
AES Power Capacity:
-
70 W above 0.8 kHz
-
90 W above 1.5 kHz
-
-
Program Power:
-
140 W above 0.8 kHz
-
180 W above 1.5 kHz
-
-
Sensitivity: 110 dB (1W/1m, with TD-460N horn)
-
Frequency Range: 0.6 – 20 kHz
-
Recommended Crossover: 0.8 kHz or higher (12 dB/oct min.)
-
Voice Coil Diameter: 72.2 mm (2.8 in)
-
Magnetic Assembly Weight: 6.5 kg (14.3 lb)
-
Flux Density: 1.9 T
-
Bl Factor: 10 N/A
Dimensions & Mounting
-
Overall Diameter: 192 mm (7.6 in)
-
Depth: 88 mm (3.4 in)
-

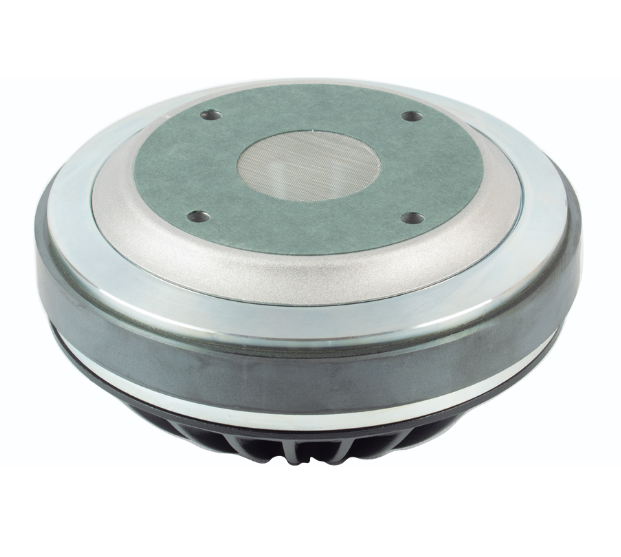

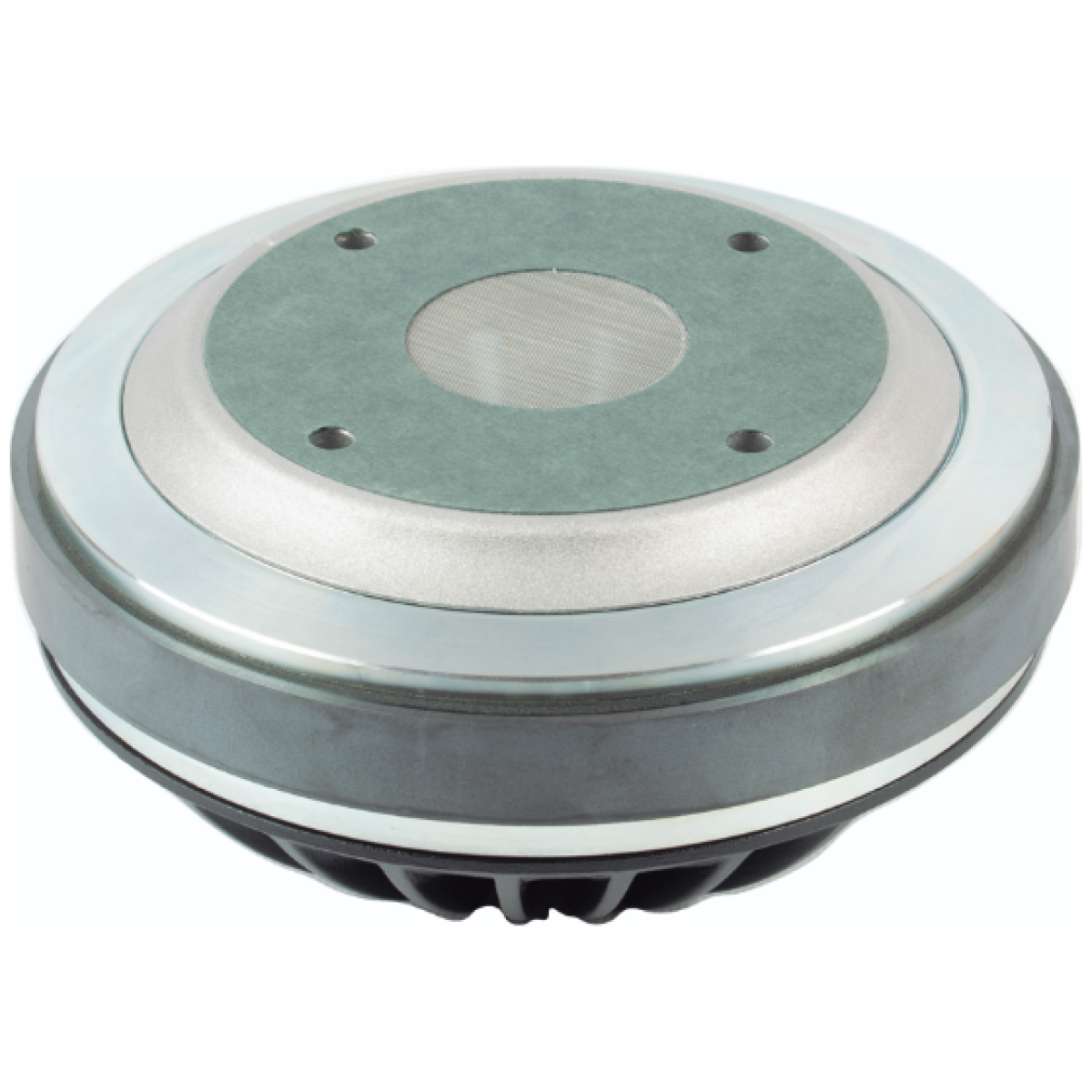

Mounting: 4 × M6 threaded holes, 90° apart, on 101.6 mm (4 in) bolt circle
-
Net Weight: 7.0 kg (15.5 lb)
-
Shipping Weight: 7.3 kg (16 lb)
