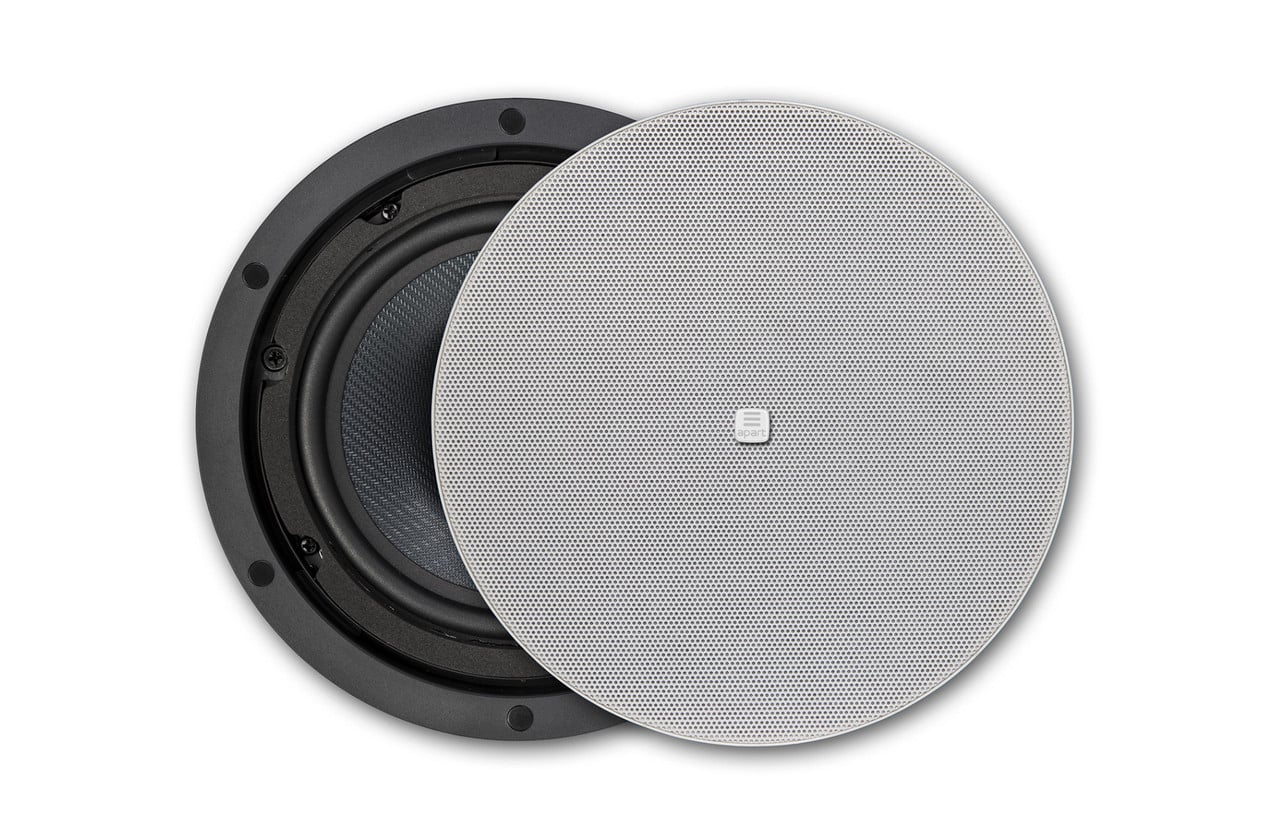

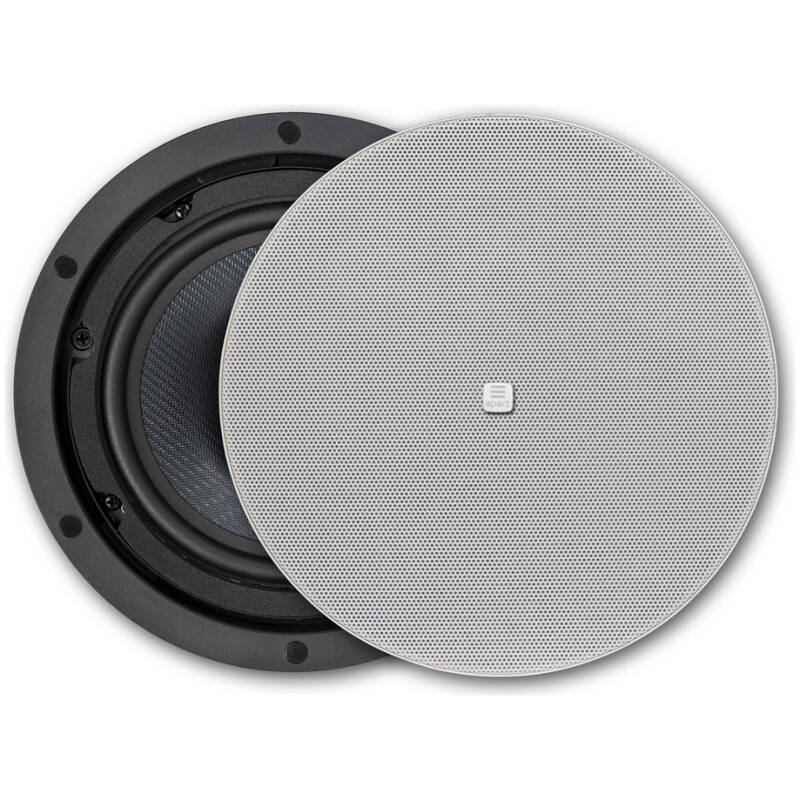

Biamp CM20DT 6.5-Inch 2-Way Ceiling Speaker

The Biamp CM20DT 6.5-Inch Thin Edge 2-Way Ceiling Speaker can be used in 16 ohms or 70/100 volt modes. The high-quality 70/100 volt transformer is equipped with an easy tapping sticker with clear colour indication. The transformer colours are aligned with the cables connecting the Apart Quick Fit connector, a handy installer connector via push terminal. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. The paintable thin edge grille makes CM20DT the ultimate loudspeaker for design interior integration.

Biamp CM20DT 6.5-Inch Thin Edge 2-Way Ceiling Speaker Features

– Two-way built-in loudspeaker
– Can be used in 16 ohms or 70/100 volt modes
– High-quality 70/100 volt transformer equipped with an easy tapping sticker with clear colour indication
– Paintable thin edge grille
– Connect up to 4 loudspeakers in parallel on each channel in 16ohms use

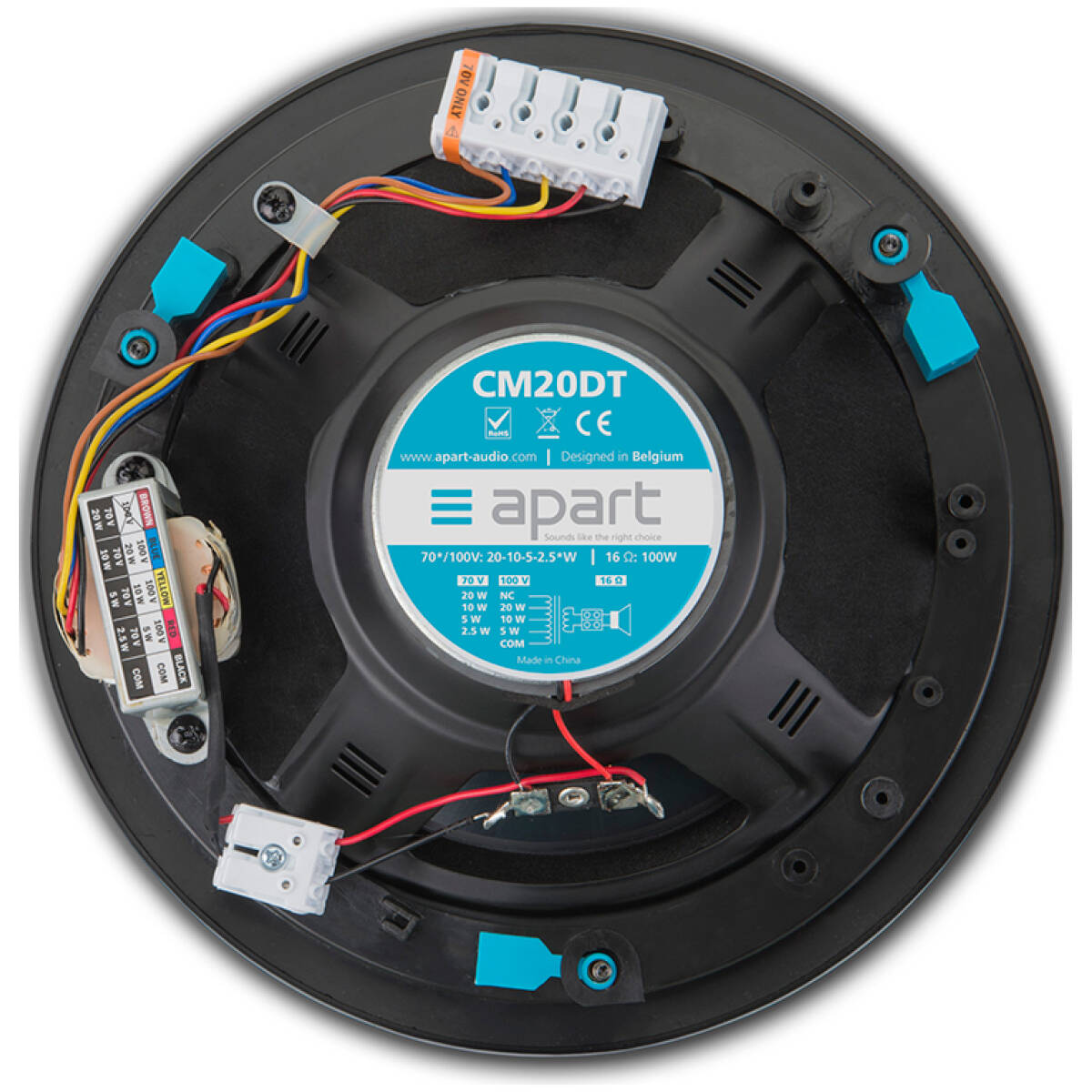

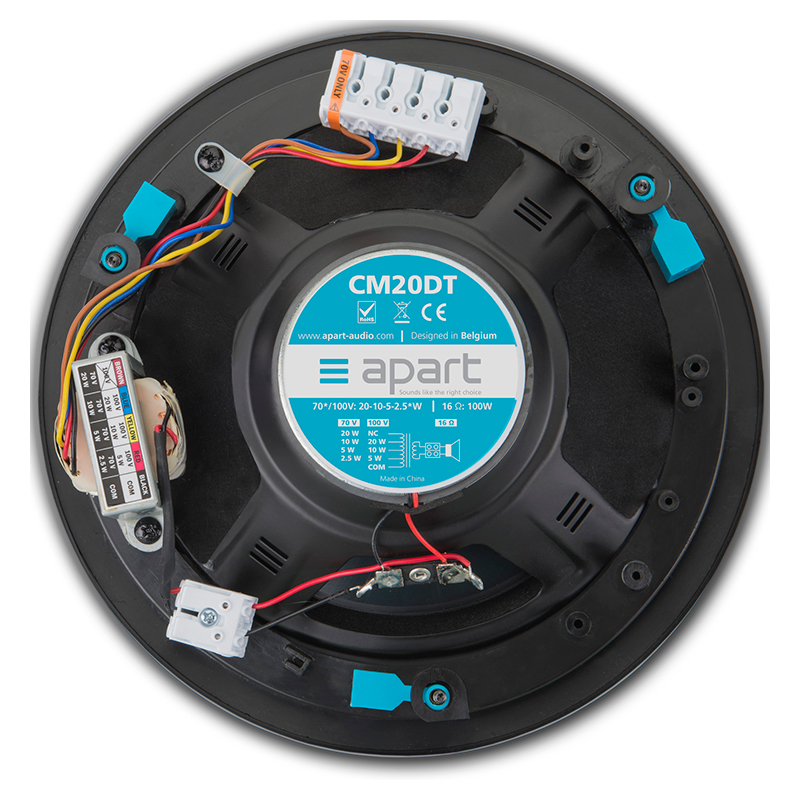

– Transformer colours are aligned with the cables connecting the Apart Quick Fit connector

Biamp CM20DT 6.5-Inch Thin Edge 2-Way Ceiling Speaker Specifications

– Loudspeaker system: 2-way
– Woofer size: 6.5-inch
– Woofer cone material: Polypropylene
– Tweeter size: 1-inch
– Mounting system: 3 screws
– 100V transformer power taps: 20 – 10 – 5watts
– 70V transformer power taps: 20 – 10 – 5 – 2.5watts
– Impedance: 16 Ω
– Low impedance dynamic power: 60 watts
– Low impedance RMS power: 30 watts
– SPL 1W/1m: 86 dB
– Max SPL 1m: 104 dB
– Frequency response: 60 – 20K/Hz
– Main construction material: ABS plastic
– Grille main material: Steel
– IP rating: 50
– Applicable low impedance: Yes
– Applicable in 100V: Yes
– Vertical dispersion angle 1000 Hz: 180°

Physical:
– Dimensions (W x H x D): 210 x 80 x 210 mm
– Cutout: 186 mm
– Weight: 1.24 kg
