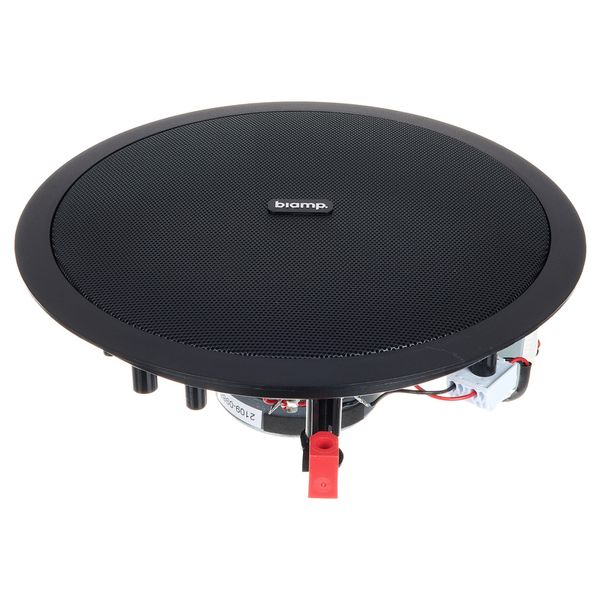

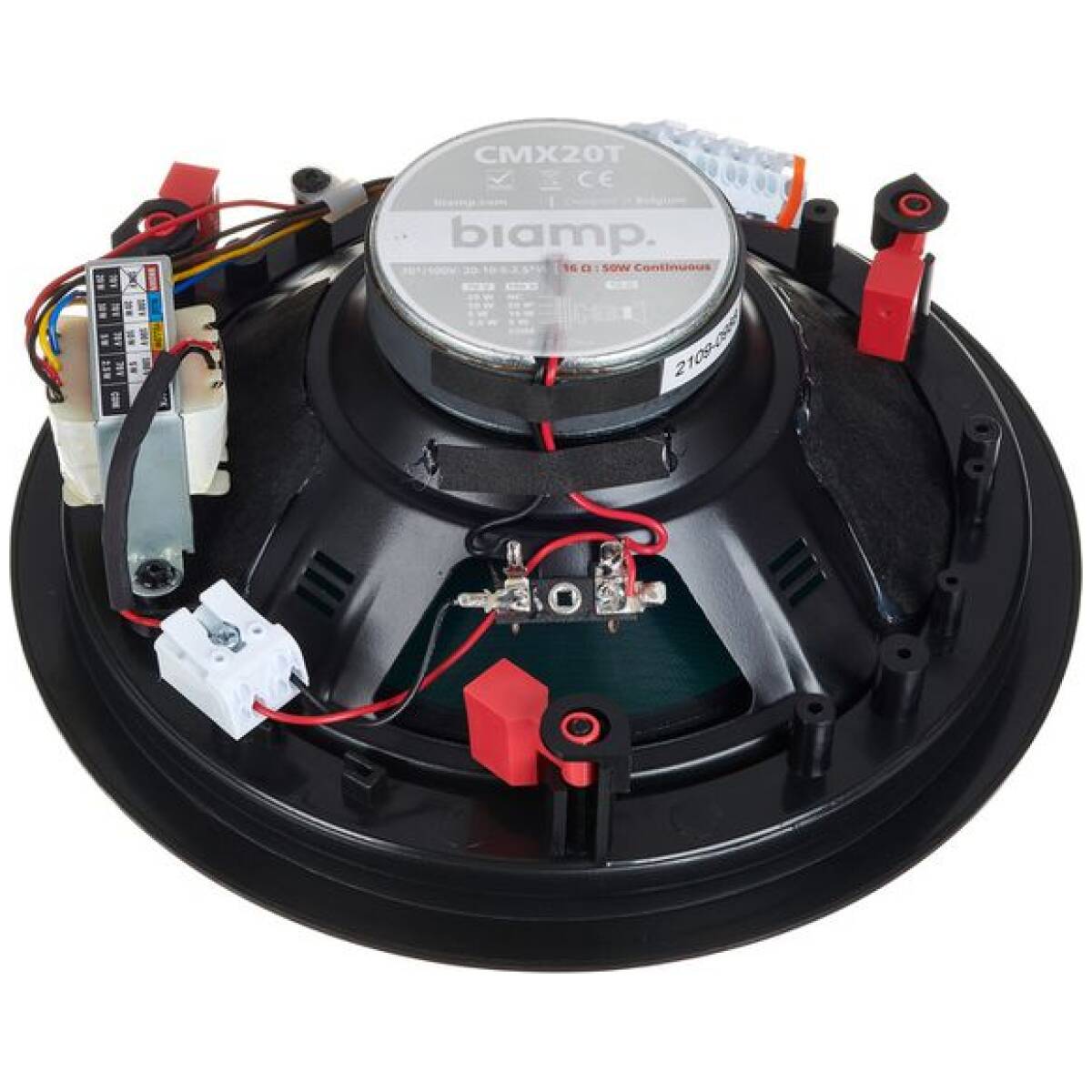

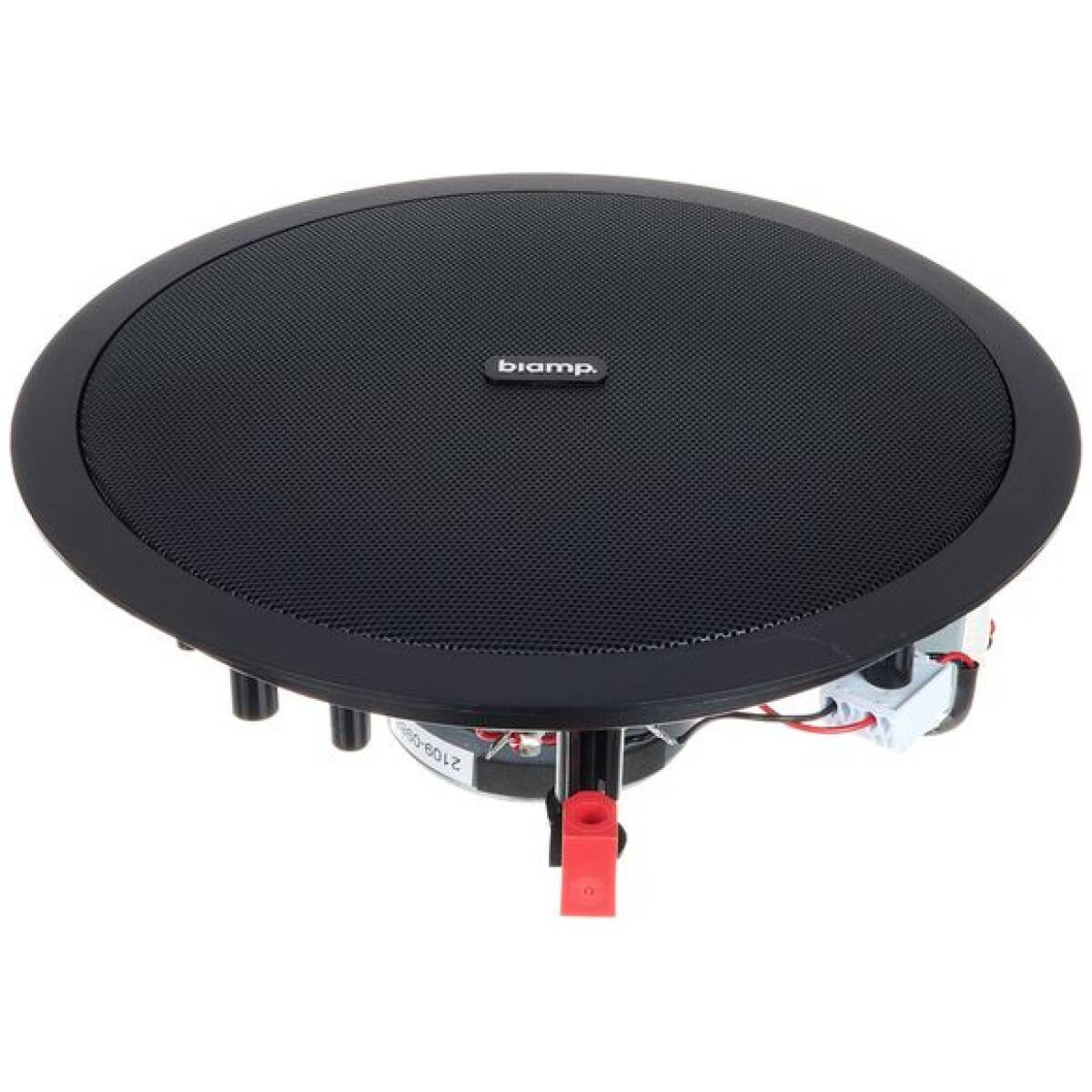

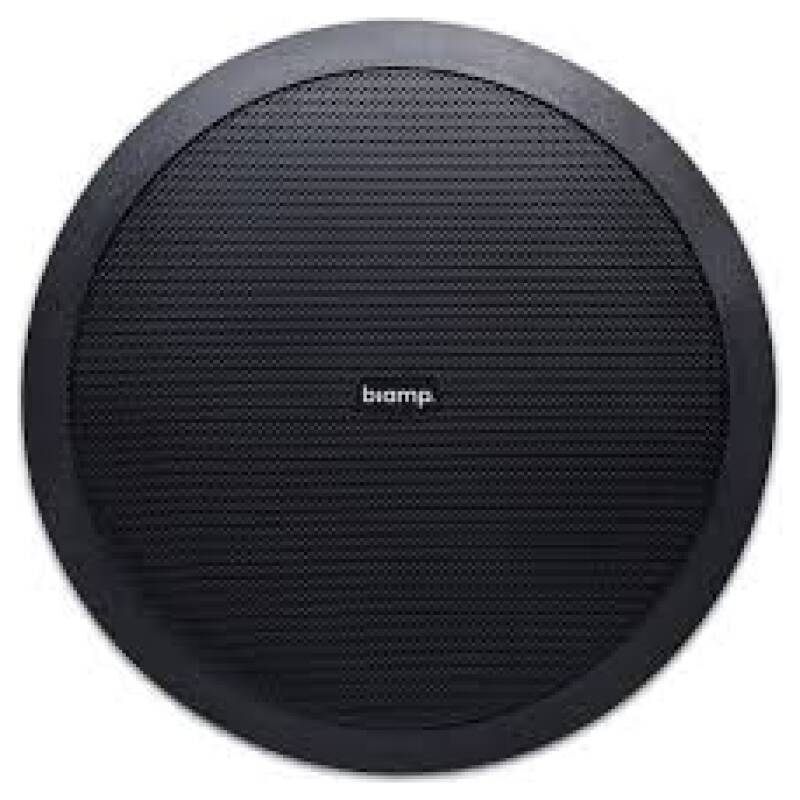

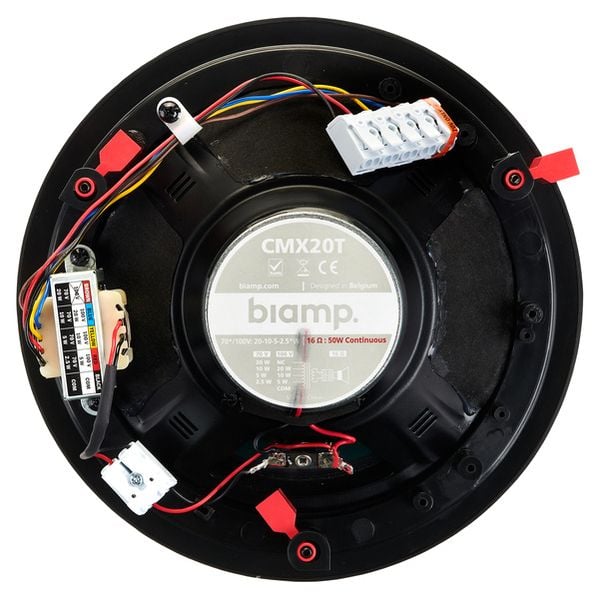

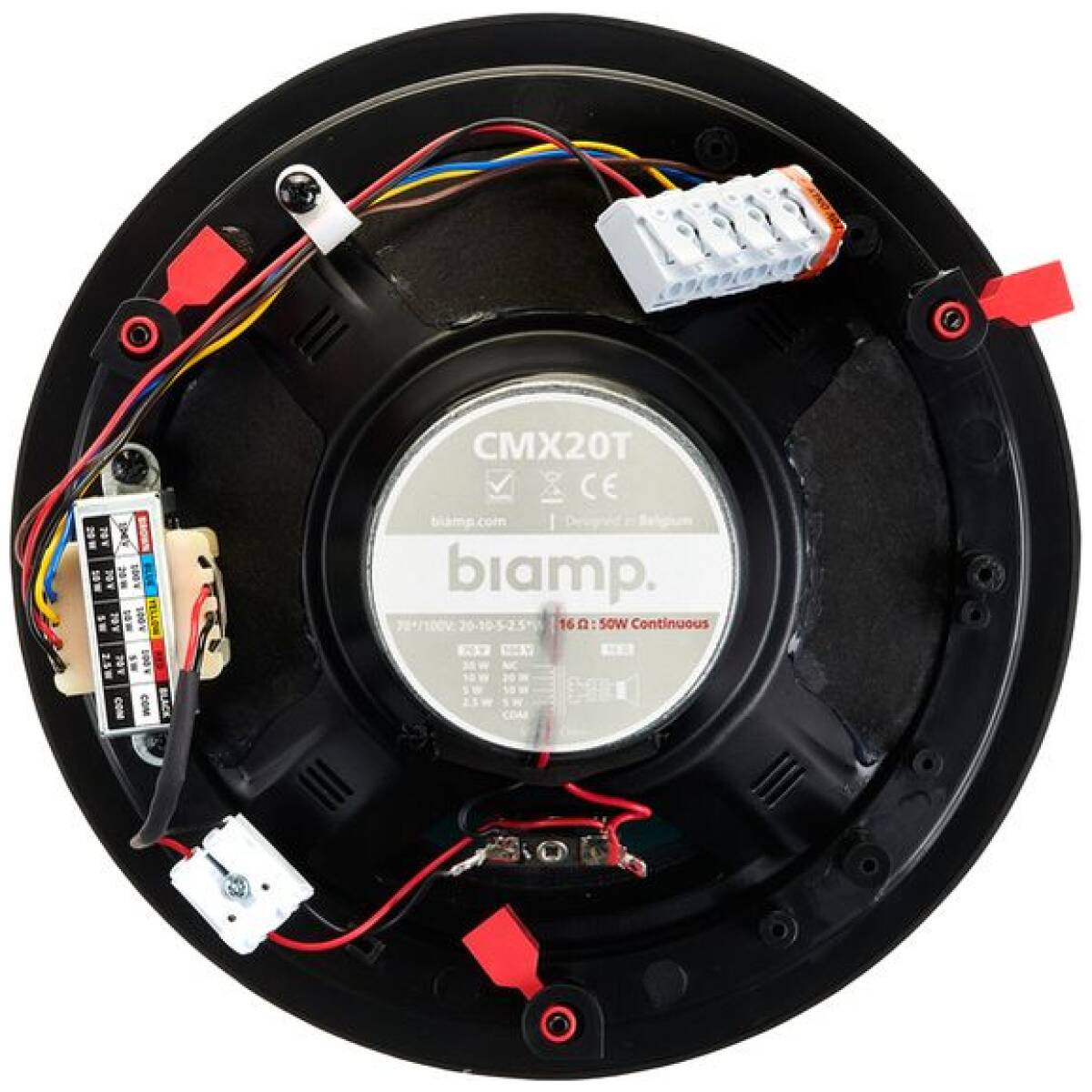

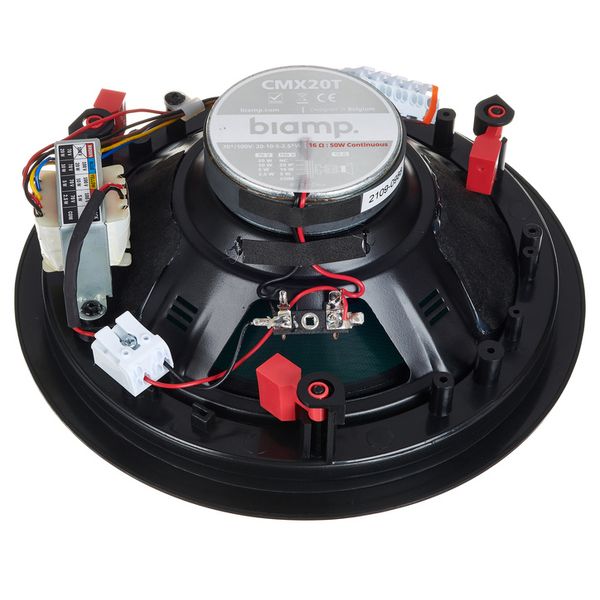

Biamp CMX20T Black 8″ Two-Way Ceiling Loudspeaker

The Biamp CMX20T is an 8″ two-way ceiling loudspeaker that produces warm and deep sound ideal for speech and music applications. The CMX20T loudspeaker has an 8” enforced polypropylene woofer and 1” tweeter.

This 8″ ceiling speaker is moisture-proof (IP54 Rated) perfect for use in kitchens, bathrooms, and environments alike. The stylish ceiling speaker now updated with a new Quick Fix connector and transformer tapping sticker for an even faster and easier installation.

In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. For 100 volt use, the CMX20T is equipped with a high-quality 20 watts 100 volt transformer with several power tappings (20 – 10 – 5 – 2.5 watts).

Biamp CMX20T Specifications

• Outside Diameter: 244 mm
• Depth: 87 mm
• Cutout: 223 mm
• Installation Grip Range: 4 – 25 mm
• Loudspeaker System: 2-way
• Woofer Size: 8 inch
• Woofer Cone Material: polypropylene
• Tweeter Size: 1 inch
• Mounting System: 3 screws
• 100V Transformer Power Taps: 20 – 10 – 5 watts
• 70V Transformer Power Taps:20 – 10 – 5 – 2.5 watts
• Impedance: 16 ohms
• Low Impedance Dynamic Power: 100 watts
• Low Impedance RMS Power: 50 watts
• SPL 1W/1m: 88 dB
• Max SPL 1m: 108 dB
• Frequency Response: 50 – 20K Hz
• Main Construction Material: ABS plastic
• Grille Main Material: aluminium
• IP rating: 54
• Applicable Low Impedance: yes
• Applicable in 100V: yes
• Vertical Dispersion Angle 1000 Hz: 180°
