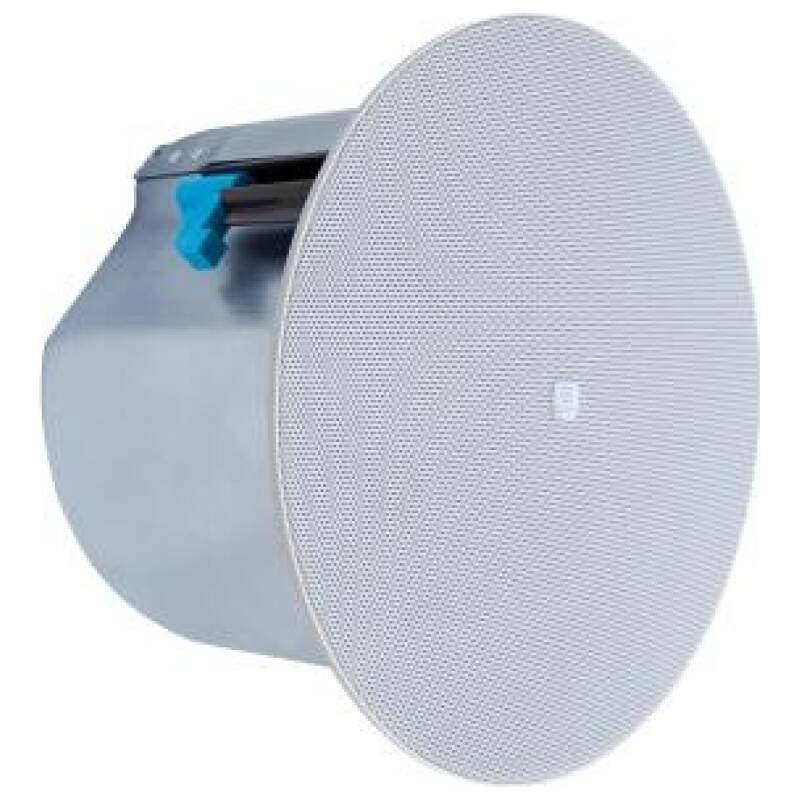

Biamp Desono CM60DTD Two-Way 6.5-Inch Ceiling Loudspeaker

The Desono CM60DTD two-way 6.5″
ceiling loudspeaker delivers crystal clear
audio for all your public address and
background music needs. Its 6.5” coated
paper woofer and 1” tweeter results in a
high SPL and extremely low distortion,
ensuring exceptional clarity over the entire
frequency spectrum.
The CM60DTD utilizes a 5-position
switchable transformer ranging from
3.75W to 60W with low-impedance
bypass for constant-voltage operation,
making it an excellent choice for large
areas of BGM.
Designed with the installer in mind, they
can be blind-mounted from below the

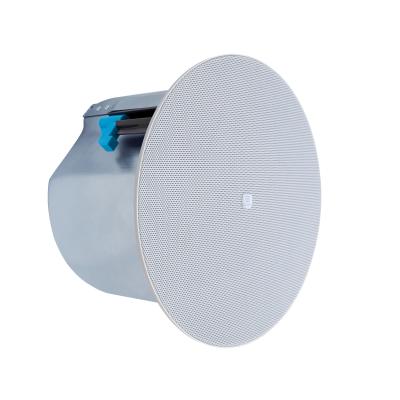

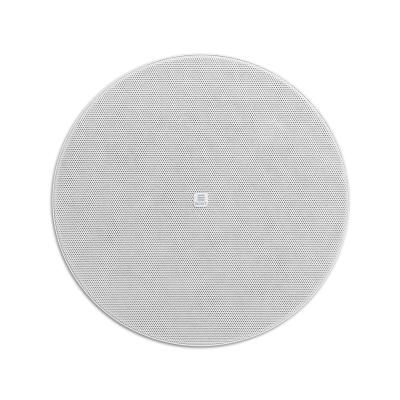

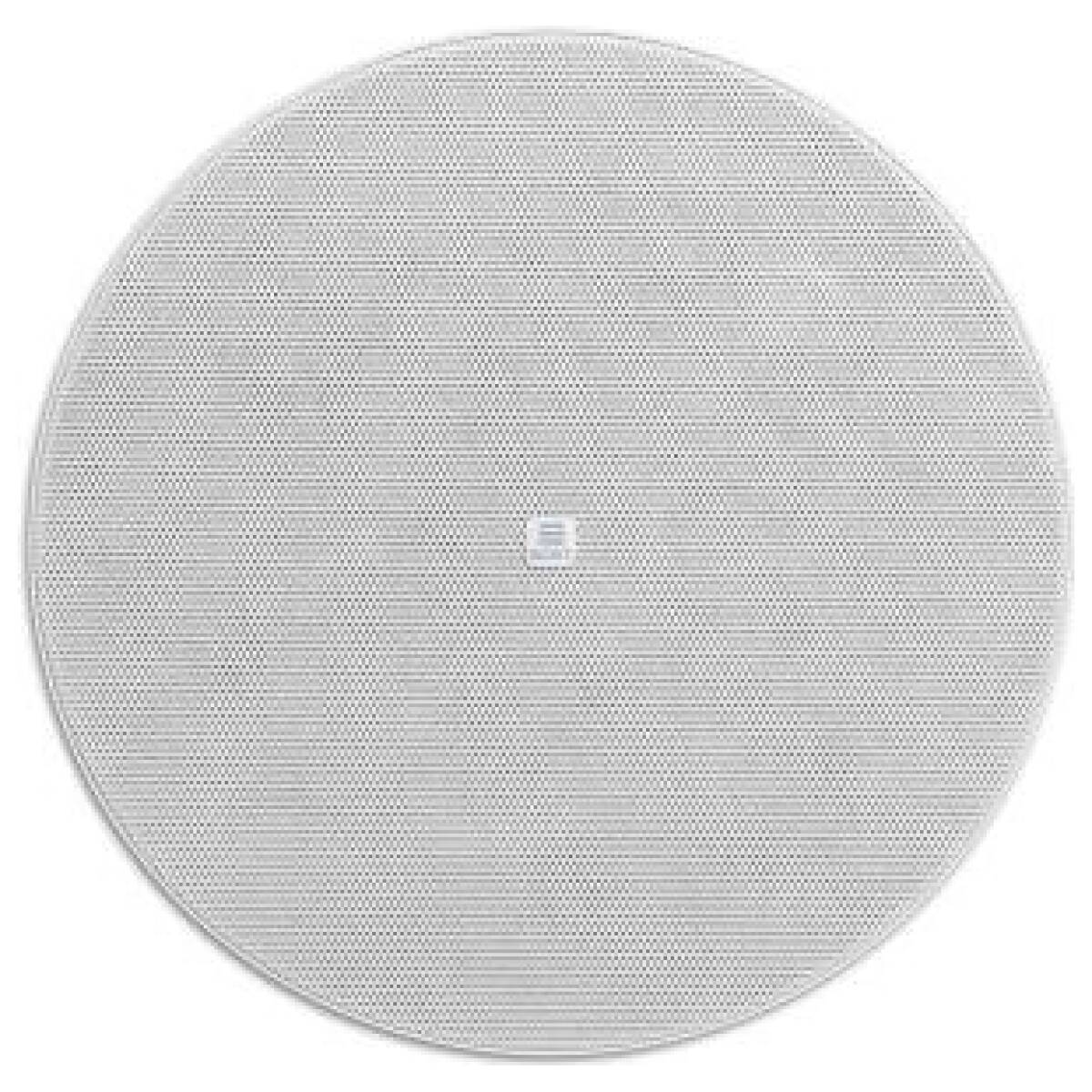

ceiling, and feature a magnetic grille for
easy toolless installation and removal
that can also be painted to match the

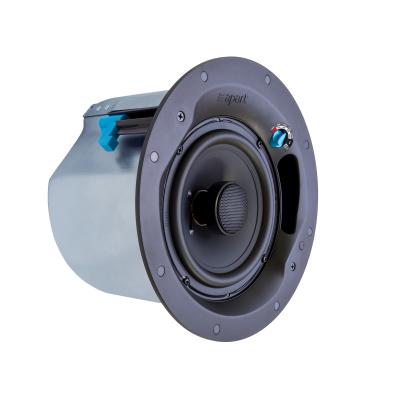

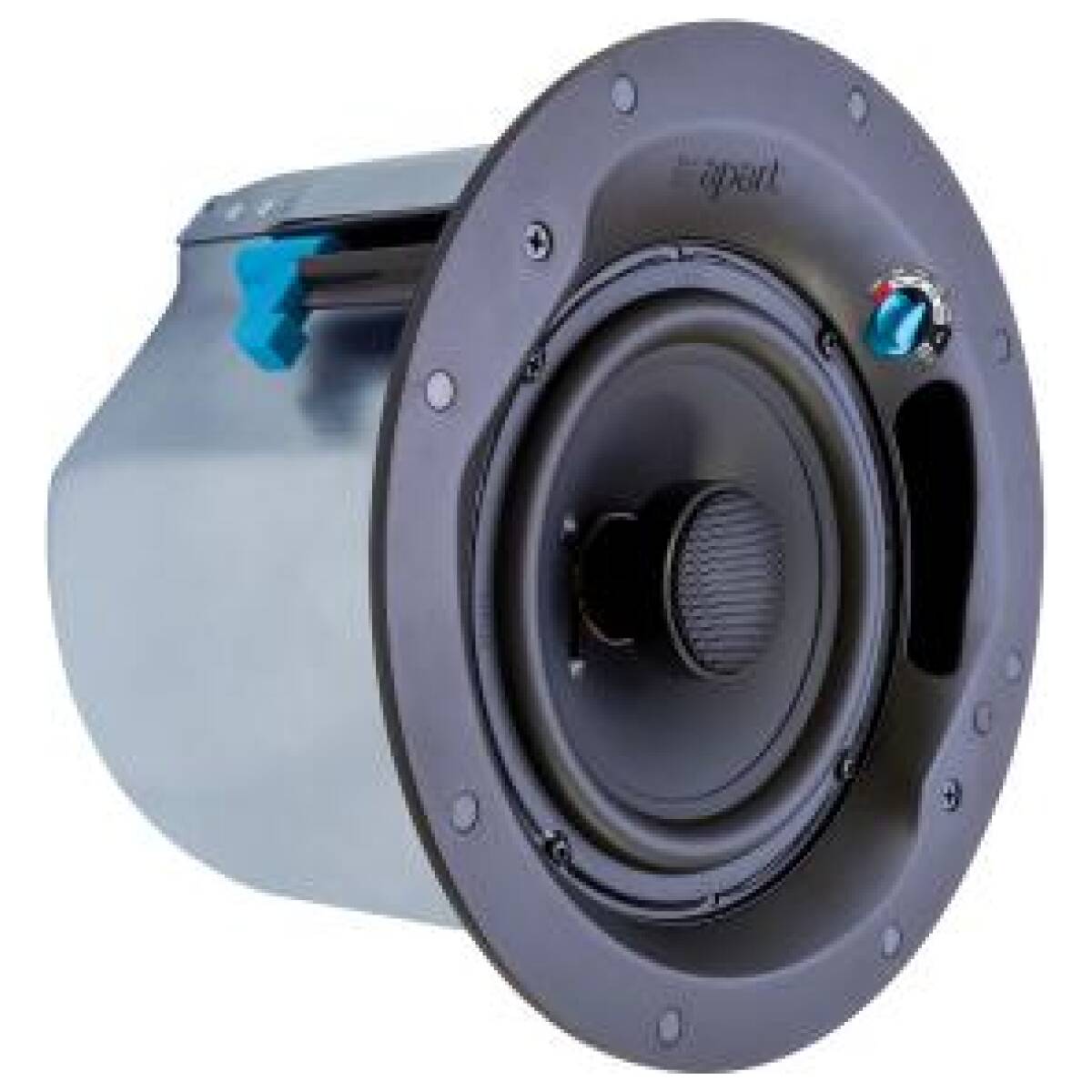

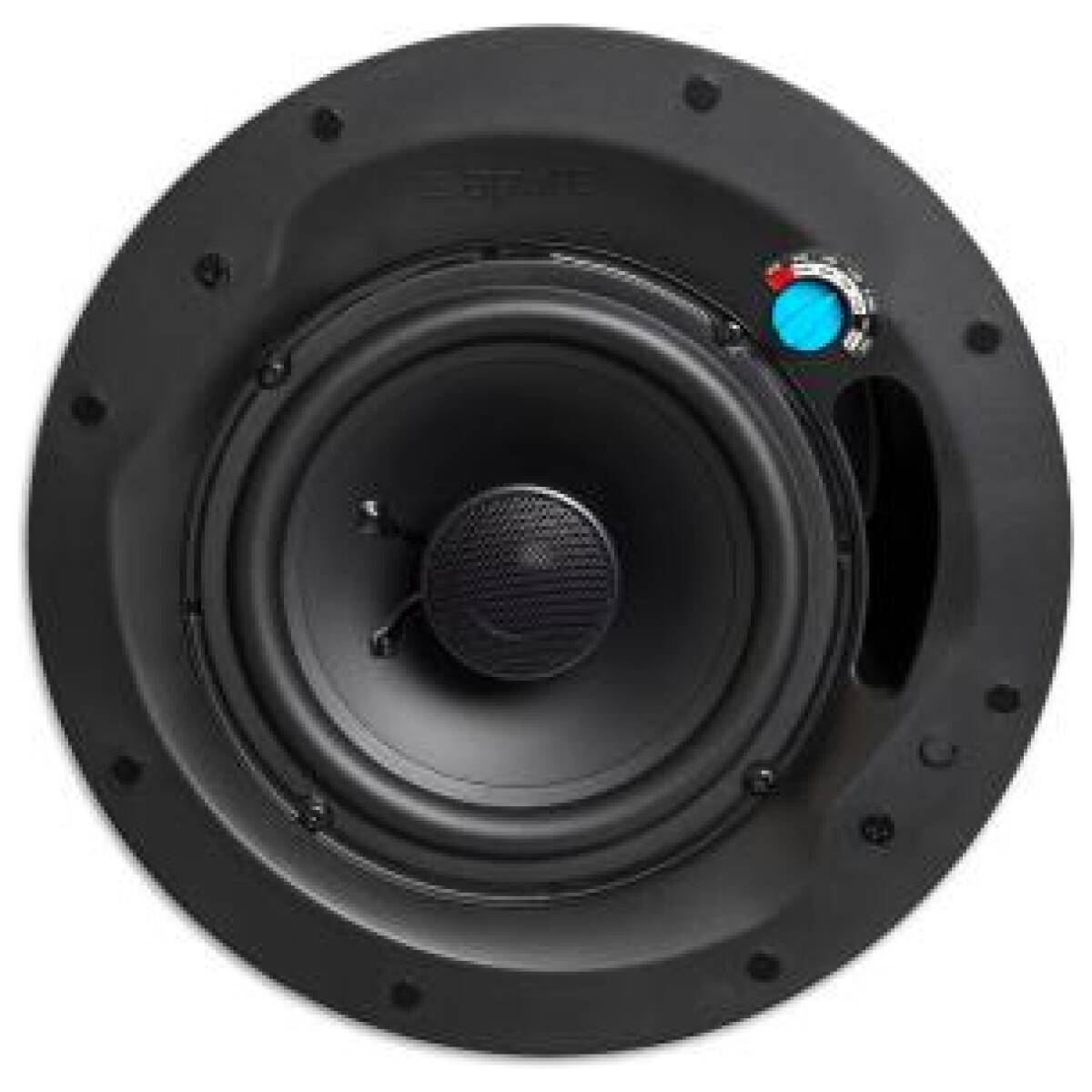

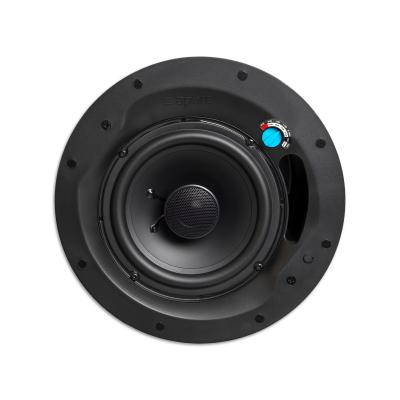

room decor. Additionally, the tap switch
is located on the face of the loudspeaker,
so adjustments can be made without
requiring ceiling access.
Desono CM60DTD loudspeakers are
an ideal choice for a multitude of
environments that demand superior
speech intelligibility and full range music
reproduction.

FEATURES
• Zoom Certified
• Requires only 6.2″ (157 mm) mounting depth
• High speech intelligibility coupled with full-range music reproduction
• Thin-edge, magnetically attached grille
• Tap switch allows for 70V/100V or 16Ω low impedance operation
• Tuned bass reflex port for optimized low frequency performance
• Loudspeaker overload protection for 24/7 failsafe operation
• ETL listed to conform with UL Std 1480A and UL 2043; Certified to CSA C22.2#62368-1

TECHNICAL SPECIFICATIONS
Operating Mode Passive
Operating Environment Indoor
Operating Range (-10dB) 75 Hz to 22 kHz
Nominal Beamwidth (H x V) 150° conical
Transducers LF 1 x 6.5″ (165 mm) coated paper cone
HF 1 x 1″ (25 mm) soft dome
Continuous Power Handling
@ Nominal Impedance 31V 60W @ 16Ω (240W peak)
Nominal Sensitivity @ 1m @ 1W
86 dB
@ 2.83V
83 dB
Nominal Maximum SPL @ 1m Peak
110 dB
Continuous
104 dB
Transformer 70V: 60W, 30W, 15W, 7.5W, 3.75W
100V: 60W, 30W, 15W, 7.5W
Protection 3-step self-resetting protection
Recommended Amplifiers 60W – 120W @ 16Ω (31V – 44V)
PHYSICAL
Input Connection (1) 4-way Euroblock connector with permanent pass-through
Mounting Provisions
2 mounting clamps with grip range of 0.2″ – 2.6″ (3 – 65 mm);
Cover plate with 0.75″ (22 mm) NPT knockout for conduit
connectors
Safety Features 2 hang points
Compliance
ETL listed to comply with UL 1480A and UL 2043;
Certified to CSA C22.2#62368-1;
Suitable for use in air handling spaces per NFPA 70, NFPA 90
Conforms with City of Chicago Codes
Dimensions H x Dia. 6.2″ x 10.2″ (157 mm x 258 mm)
Cutout Diameter 9.1″ (232 mm)
Weight 8.8 lbs (4.0 kg)
Finish Refer to the Technical Drawings (page 3)
Accessories (included) Tile rails; tile rail spacers; cutout template
