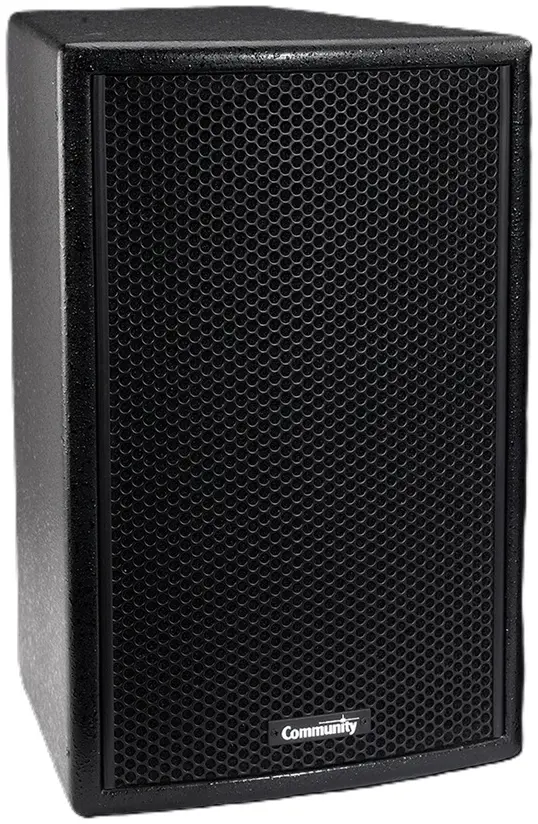

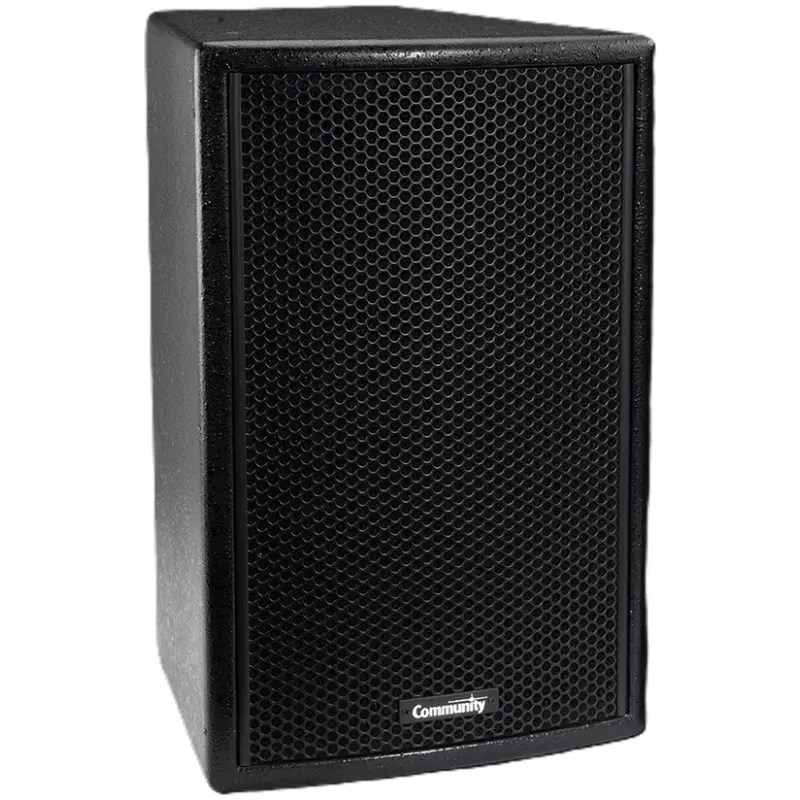

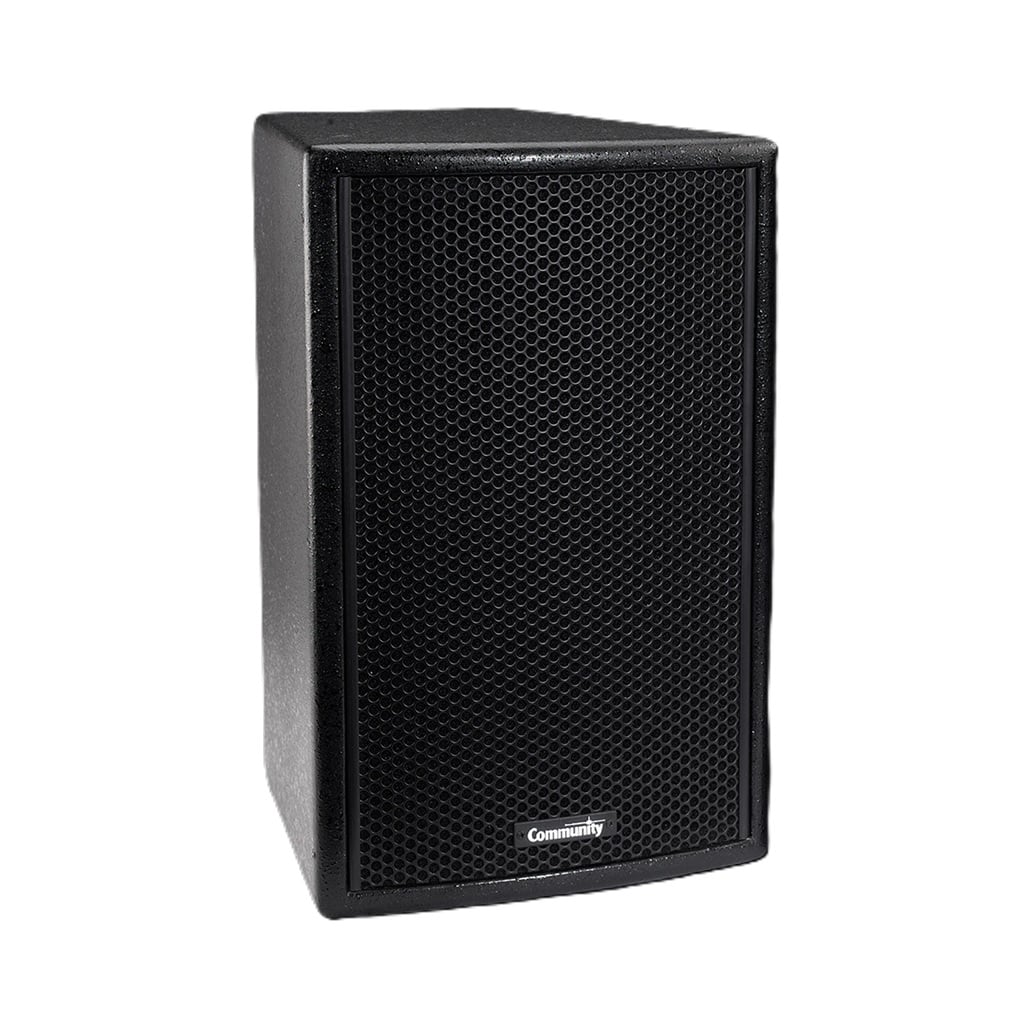

Biamp V2-28 Black Dual 8″ 2-Way Full-Range Speaker

The V2-8 is a two-way, full-range loudspeaker system suitable
for use in a wide variety of fixed installations. Compact but
powerful, it is ideal for distributed systems such as those found
in cafés, restaurants, shopping centers and airports. When
paired with a subwoofer such as the V2-210S, a V2-8 system
will produce high-fidelity, broad spectrum sound that belies its
modest size. The V2-8 is also an excellent choice for ancillary
delay applications. When used to augment a front-of-house
system in such venues as auditoria, theaters and houses of
worship, delay loudspeakers can significantly even out the
difference in sound pressure level from the front of the room to
the rear of the room. Units may be positioned for underbalcony
fill, overbalcony fill, or simply placed towards the rear of the
seating areas. By deploying V2-8 loudspeakers in such a
manner, the system designer will have far greater control over
relative levels and relative tonal response when commissioning
and equalizing the installation. The V2-8 may be mounted to a
wall or ceiling surface using its included yoke bracket,
suspended from its M6 threaded rigging points, or installed
using a third-party mounting device. It includes a rotatable horn
design that allows optimal dispersion in either vertical or
horizontal mounting positions.
An optional model with a built-in 100W autoformer with taps at
100W, 50W, 25W and 12.5W (model V2-8T) is also available
from the factory.

FEATURES
• DYNA-TECH™ driver protection circuitry
• Ferrofluid-treated HF driver for improved heat dissipation
• Carbon Ring Cone Technology provides 30% more piston
area with increased excursion capability
• Constant-directivity rotatable square horn
• Terminal strip and NL4-compatible connectors
• Available in standard black or white finishes
• Mounting yoke included with 10° and 20° vertical standoffs
• Optional V2-8T autoformer model for 70V/100V applications

SPECIFICATIONS

Loudspeaker Type: Compact two-way, full-range, trapezoidal,
vented bass, user rotatable horn
Operating Range: 70 Hz to 18 kHz (-10 dB)
Frequency Response: 100 Hz to 16 kHz (±3 dB)
Max Input Ratings: 150W continuous, 375W program
34.6 volts RMS, 69.2 volts momentary peak
Sensitivity (1W/1m): 92 dB (100 Hz to 12.5 kHz) free space
Maximum Output: 114 dB SPL / 120 dB SPL (peak)
Nominal Impedance: 8 ohms
Minimum Impedance: 6.1 ohms @ 180 Hz
Nominal –6dB
Beamwidth: 90° H x 70° V (in vertical position)
Crossover Frequency: 1.3 kHz
Recommended Signal
Processing:
90 Hz, 24 dB/octave Butterworth
high pass filter
Drivers: LF 1 x 8-inch cone
HF 1 x 1-inch
Driver Protection: DYNA-TECH protection circuitry
Input Connection: NL4-compatible locking connector with
terminal strip in parallel
Controls: None
Enclosure: Trapezoidal (22.5° included angle)
18mm, 11-ply cross-laminated birch
Mounting/Rigging
Provisions:
9 x M6 threaded rigging fittings
4 x M6 threaded fittings for
third-party suspension products
Finish: Catalyzed polyester two-part paint,
black or white
Grille: Powder coated steel, black or white finish
Required Accessories: None
Supplied Accessories:
Yoke-style mounting bracket with optional
10° and 20° standoffs that allow a 10° or 20°
downward or upward vertical tilt

Optional Accessories:
CMKIT ceiling mount kit
VB-TILT tilting bracket
VB-VY8 vertical yoke bracket
M6EYBLTKIT 6mm eyebolt kit

Dimensions—

Height:17 inches (433 mm)
Width:11.3 inches (287 mm)
Depth:11.7 inches (298 mm)
Weight (incl. bracket): 25.3 lbs (11.5 kg)
27.3 lbs (12.5 kg) with autoformer

Model Options:
V2-8B (low impedance, black finish)
V2-8W (low impedance, white finish)
V2-8BT (built-in autofomer for 70V100V
applications, black finish)
V2-8WT (built-in autofomer for 70V100V
applications, white finish)
