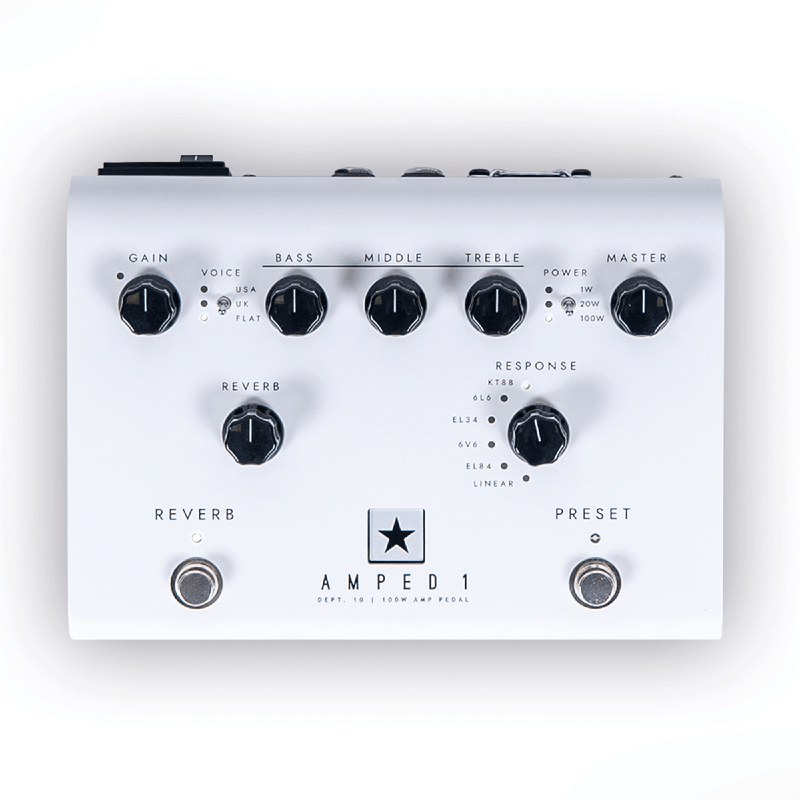

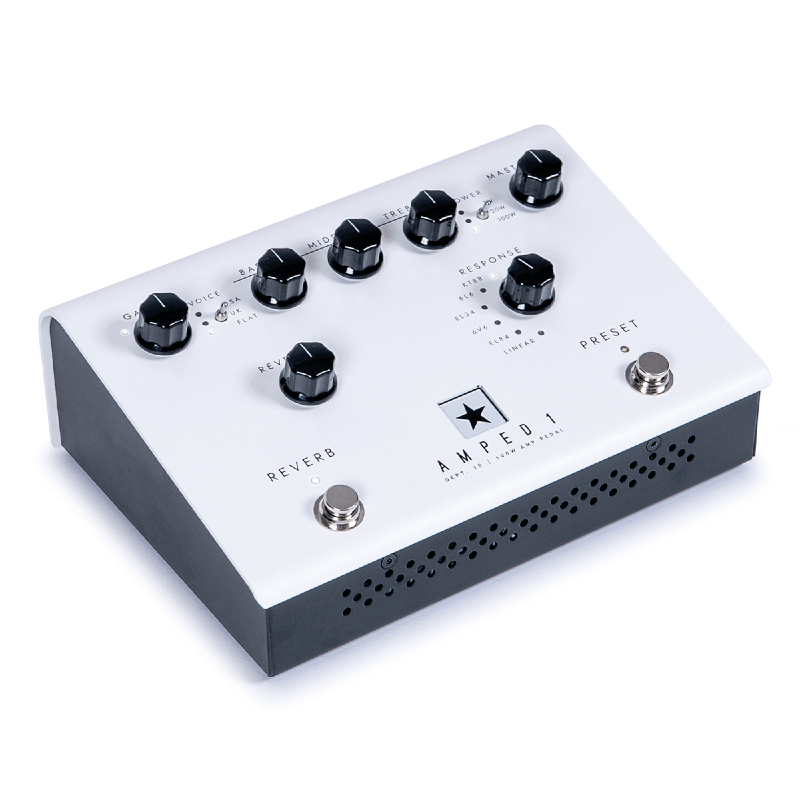

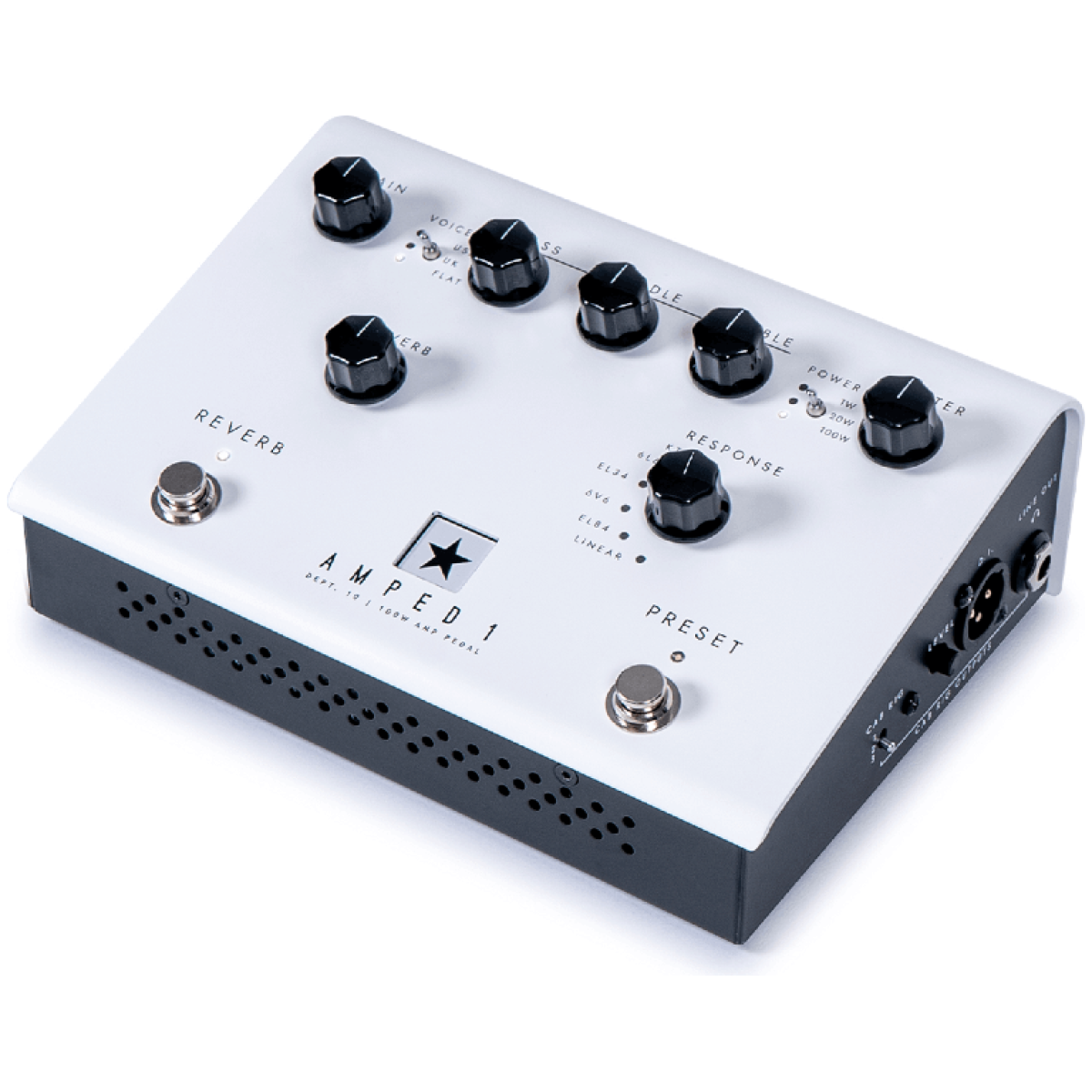

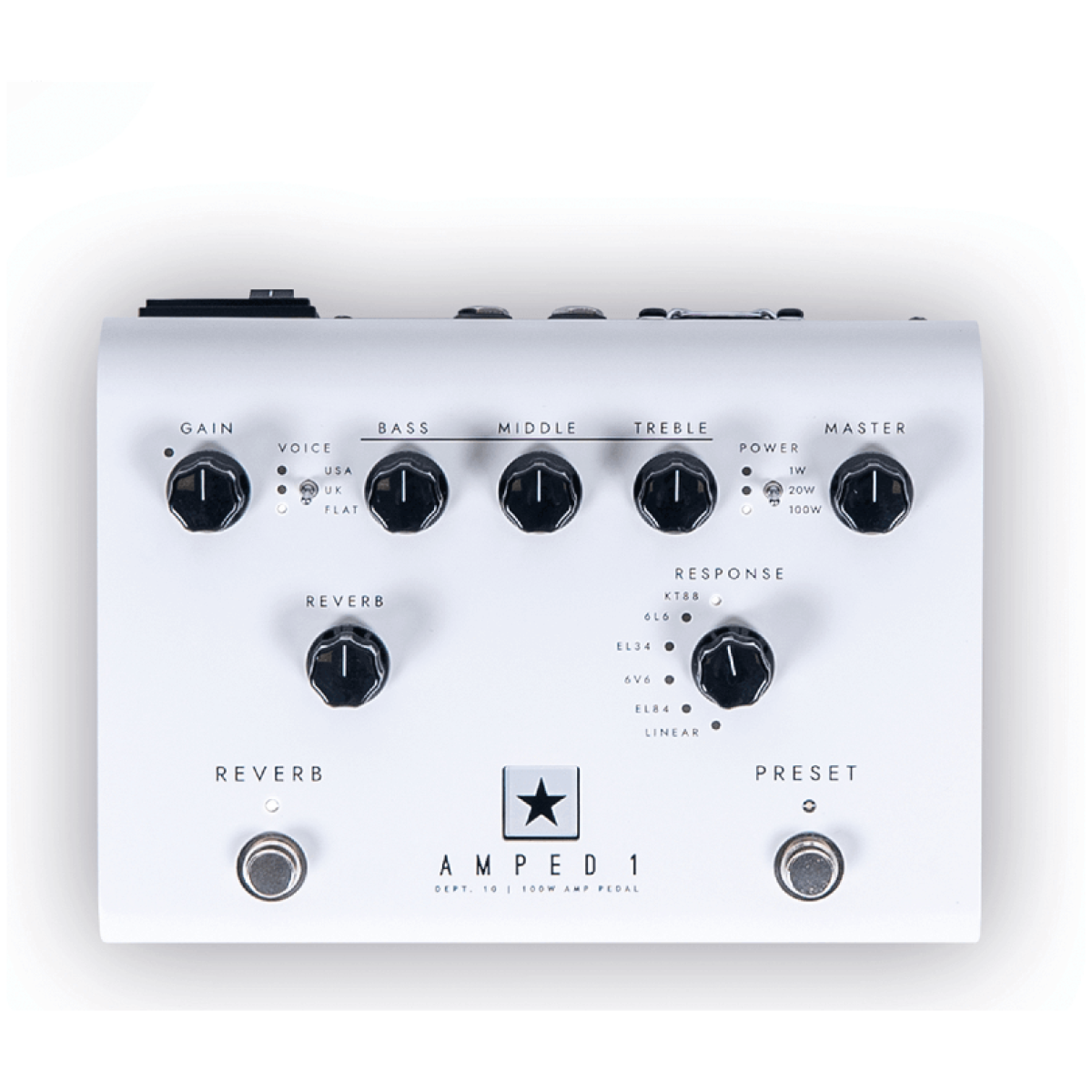

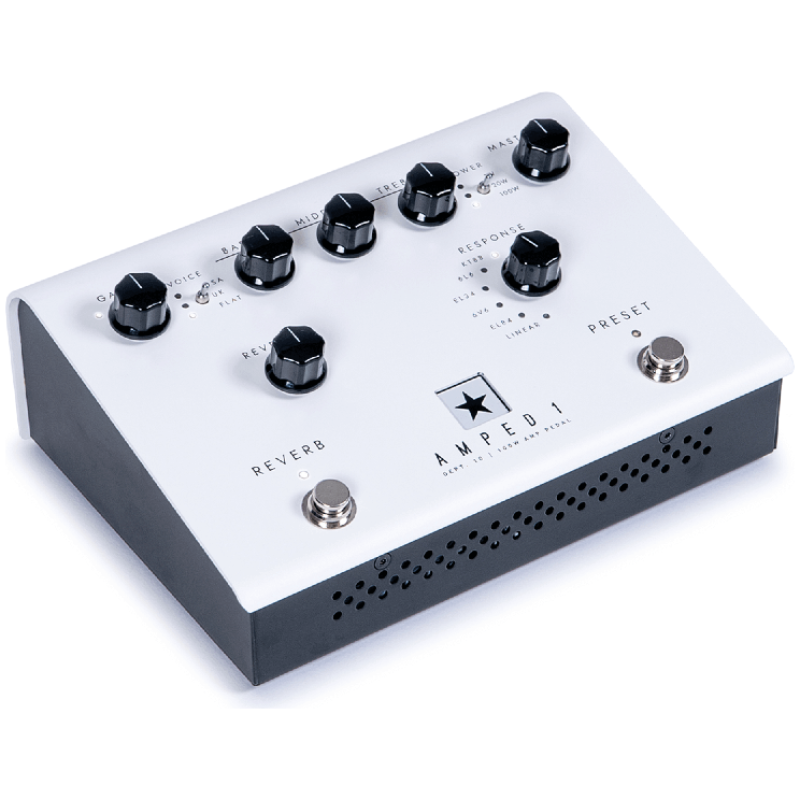

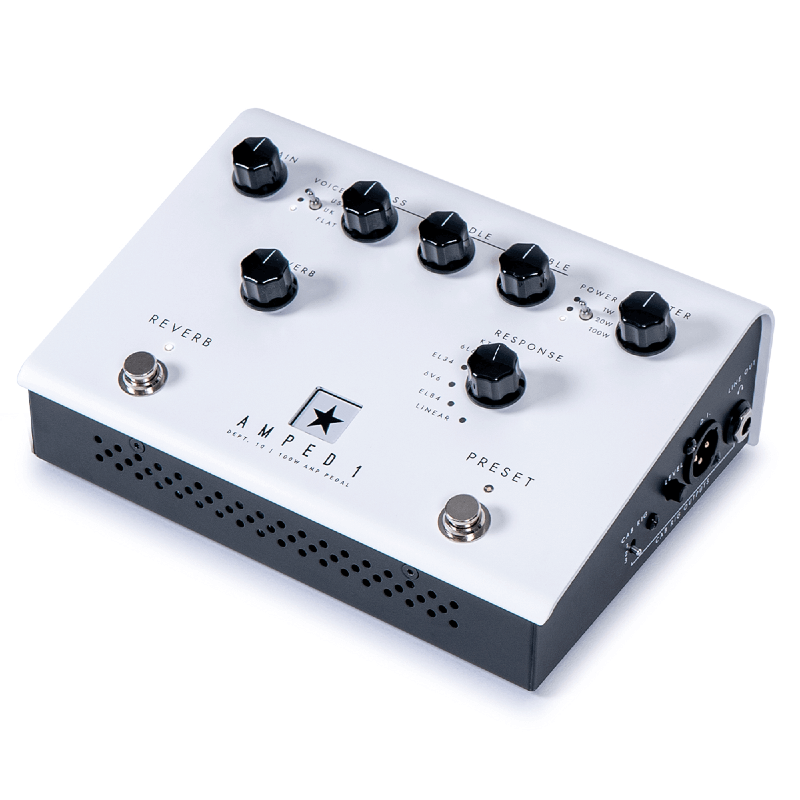

Blackstar Dept. 10 AMPED 1 Power Amp

100-watt, 4-channel Amplifier Pedal with 3-band EQ, Cab Sim XLR Output, Universal Voltage, USB Recording, TRS MIDI Input, Reverb, Series and Parallel Effects, Power Reduction, 3 User-programmable Cab Rig Presets, 3 Preamp Voicing Modes, and 6 Response Models

FEATURES:

• 100 watts of true Blackstar amplifier sonics in a lightweight, ergonomically designed pedal
• Engineered by Dept. 10 – Blackstar’s R&D division – implementing cutting-edge research
• Power reduction modes can freely toggle between 100-, 20-, and 1-watt modes without compromising output quality
• Patented TVP technology delivers reliable valved responses for a robust suite of sound design choices
• Variable preamp voicing modes include USA, UK, and Flat, for standalone use to external sound modeling
• 3-band EQ and foot-switchable reverb are easily accessed with ergonomic formfactor
• CabRig DSP uses state-of-the-art technology for over 250 mic/cab combinations to overcome the limits of IR snapshots
• Free Architect software ensures deep control and customization options for cab simulations, with 3 slots for user presets available on the pedal

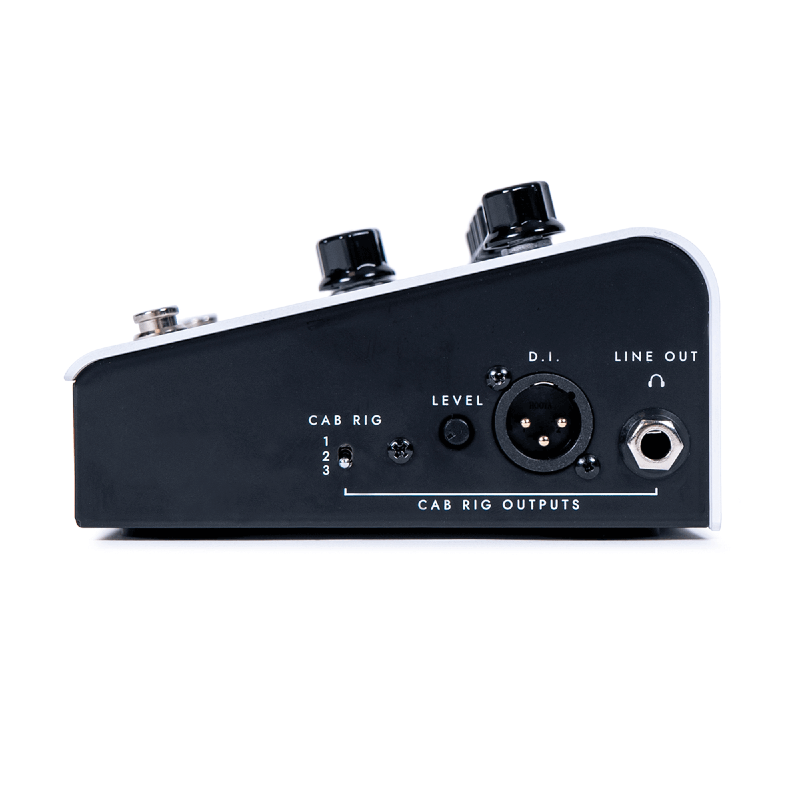

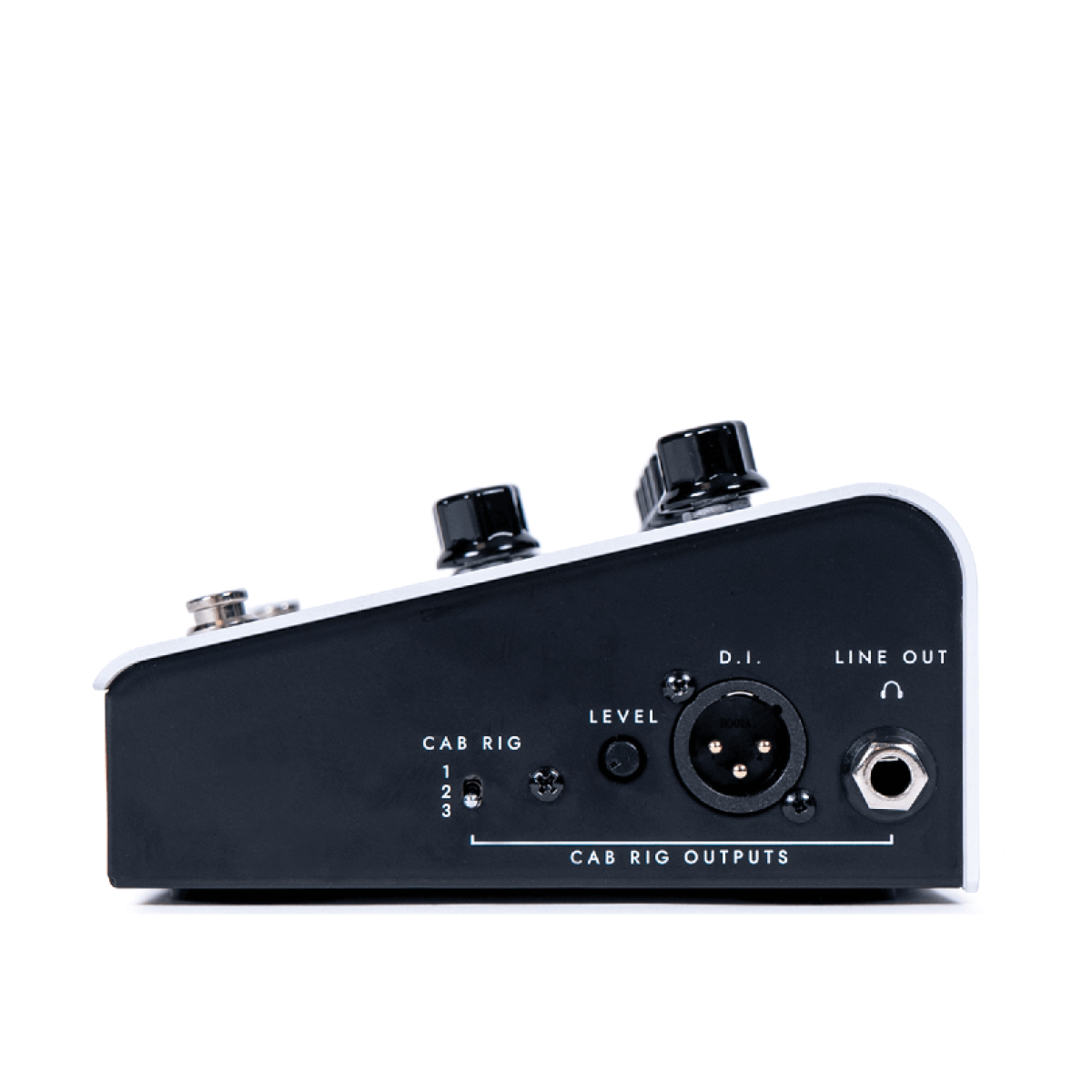

• CabRig outputs include dedicated line out and D.I. XLR
• Dedicated outputs let you choose between 8- and 16-ohm speaker configurations
• Universal voltage design promises worry-free use worldwide
• TRS MIDI input enables customizable control schemes for external use of pedal functions
• USB-C port means low-latency 4-channel audio for streamlined recording and studio use
• FX can be run in series or parallel (via Architect)

SPECIFICATIONS:

Pedal Type | Power Amp & Multi-FX
Total Power| 100W
Effects | Reverb
Inputs | 1 x 1/4″
Outputs | 1 x XLR (cab sim out), 2 x 1/4″ (8 ohm, 16 ohm)
Headphones| 1 x 1/4″ (line out/headphone)
MIDI I/O| 1 x 1/8″ (in)
USB| 1 x USB-C
Computer Connectivity | USB
Channel Voices| USA, UK, Flat
EQ | Bass, Middle, Treble
Power Reduction | 20W, 1W
Response| KT88, 6L6, EL34, 6V6, EL84, LINEAR
Construction Material| Aluminum Housing
Software| Architect Software

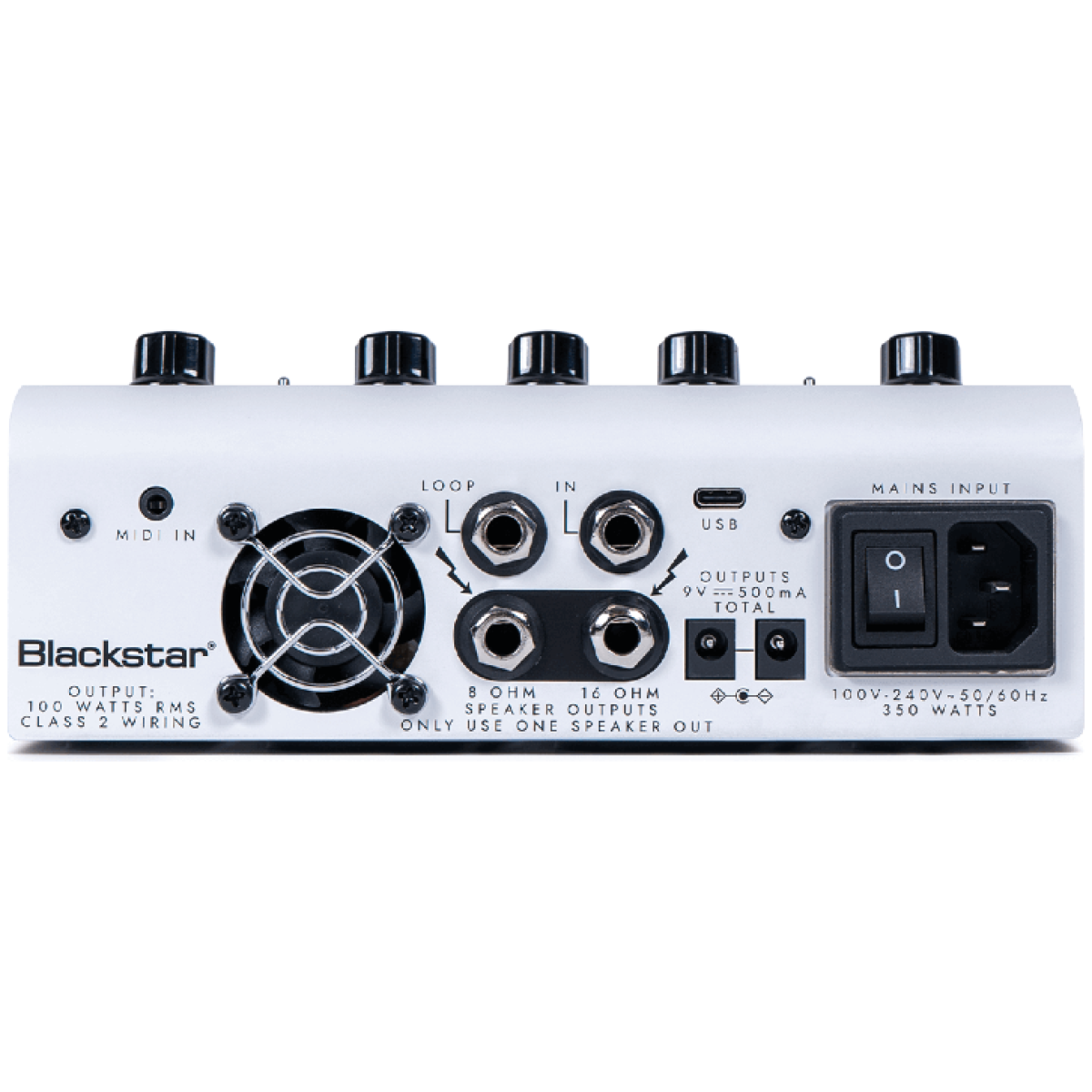

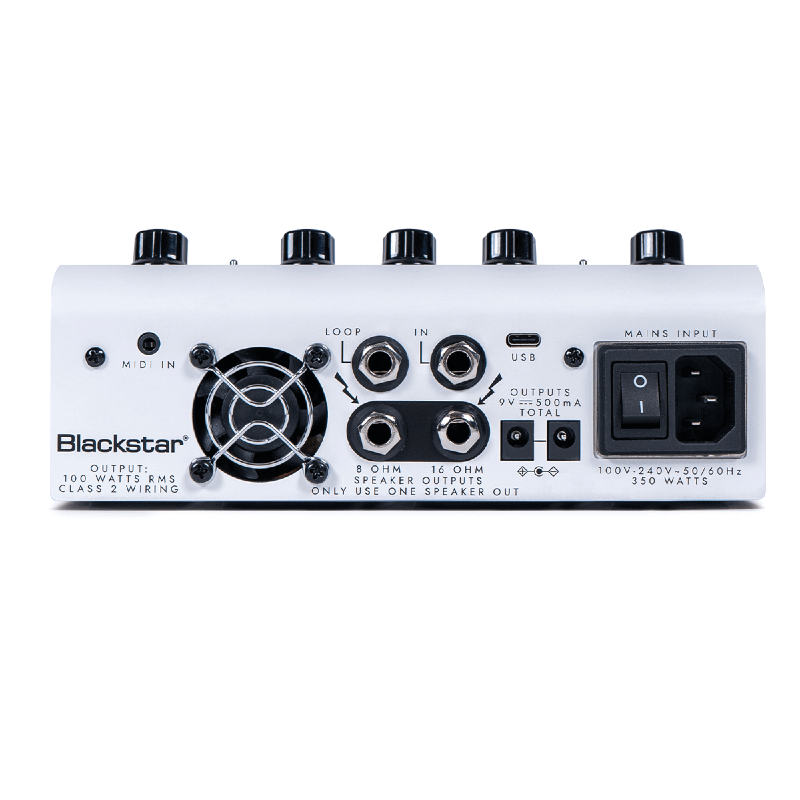

Power Source | Standard IEC
Effects Loop | Series or Parallel selectable in Architect
Speaker Outputs | 8 Ohm, 16 Ohm
9V DC Output| 2 (maximum combined current 500mA)
Voltage| 100V to 240V ~ 50/60Hz
Accessories Included | TRS MIDI to USB-C cable 5 pin MIDI adaptor
