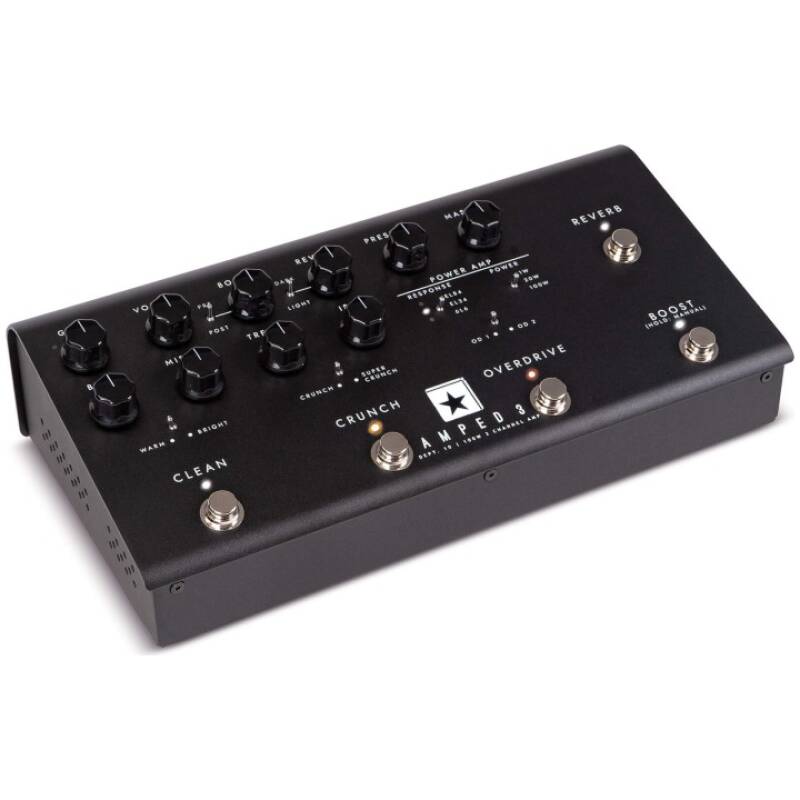

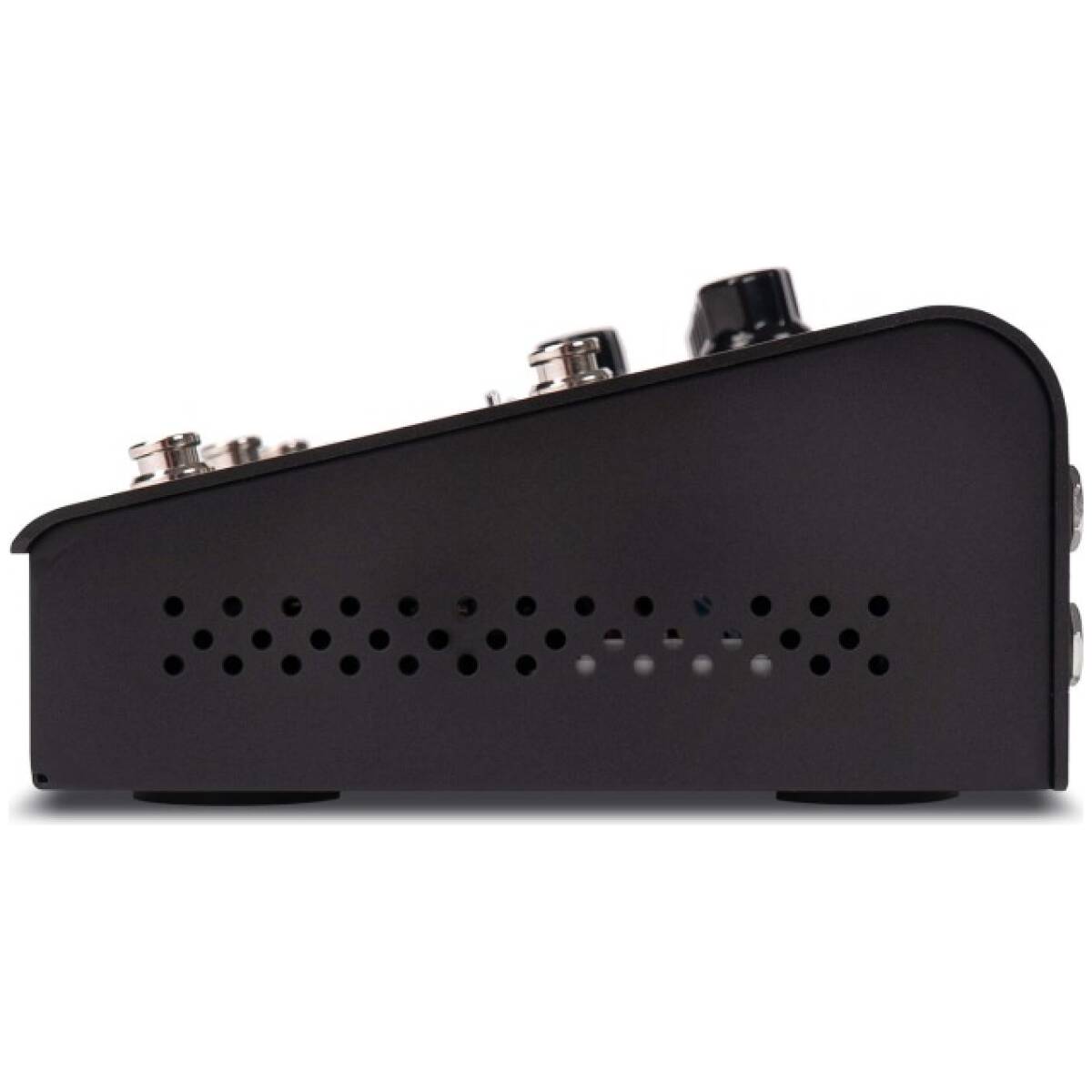

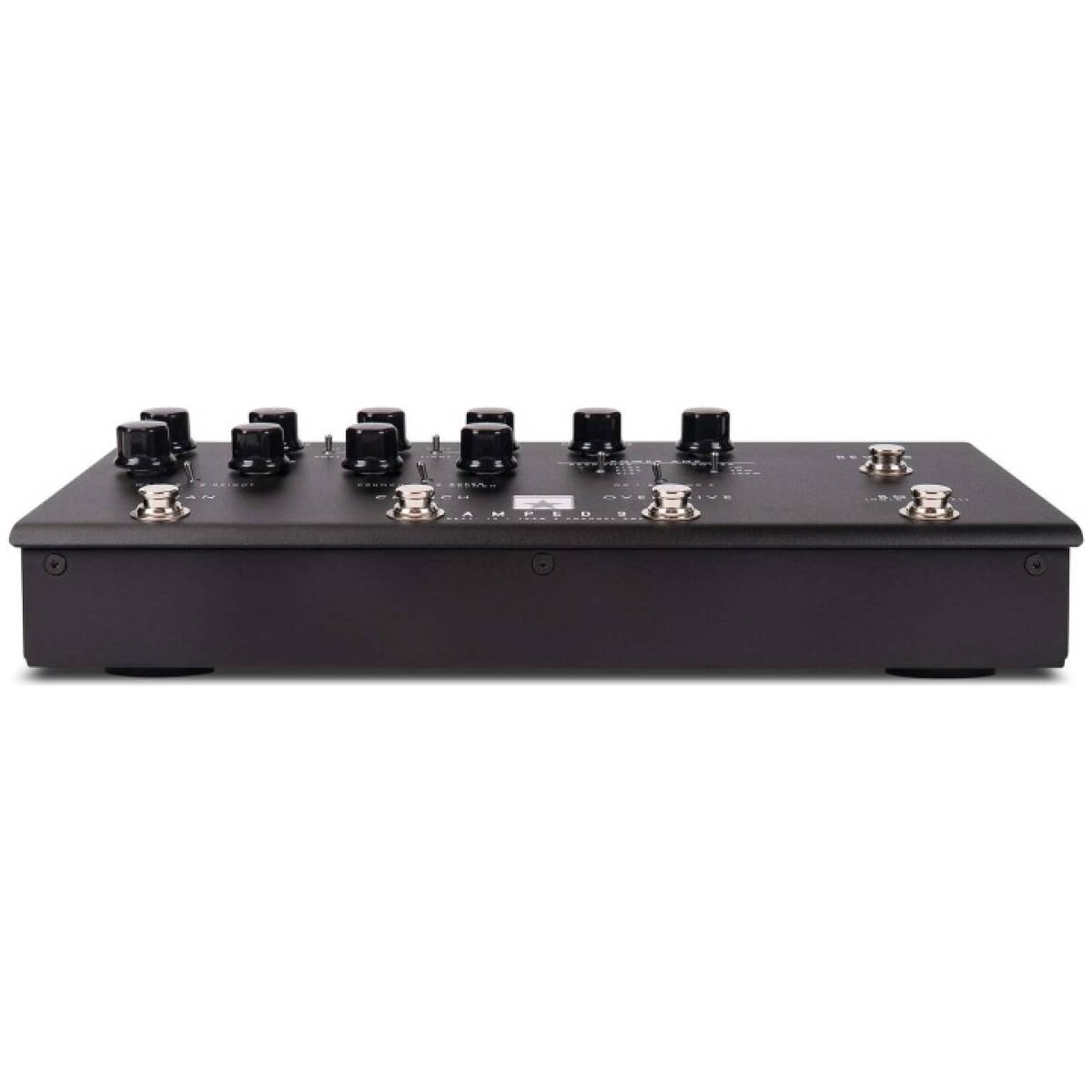

Blackstar Dept. 10 AMPED 3 Power Amp

100-watt, 4-channel Amplifier Pedal with 3-band EQ, Cab Sim XLR Output, Universal Voltage, USB Recording, TRS MIDI In/Thru, Reverb, Series and Parallel Effects, Power Reduction, 3 User-programmable Cab Rig Presets, 3 Preamp Voicing Modes, and 3 Response Models

FEATURES:

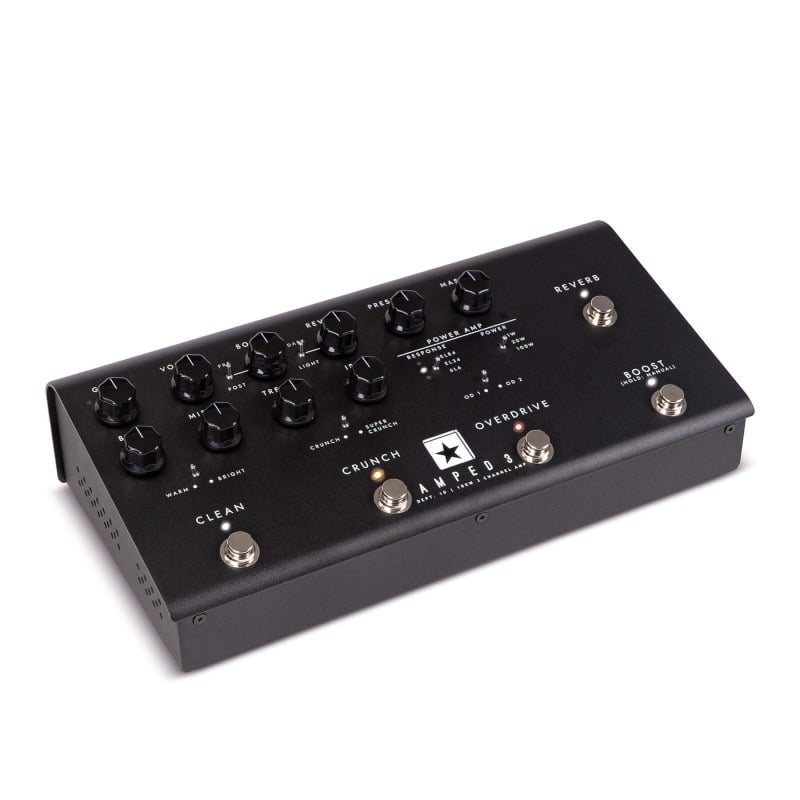

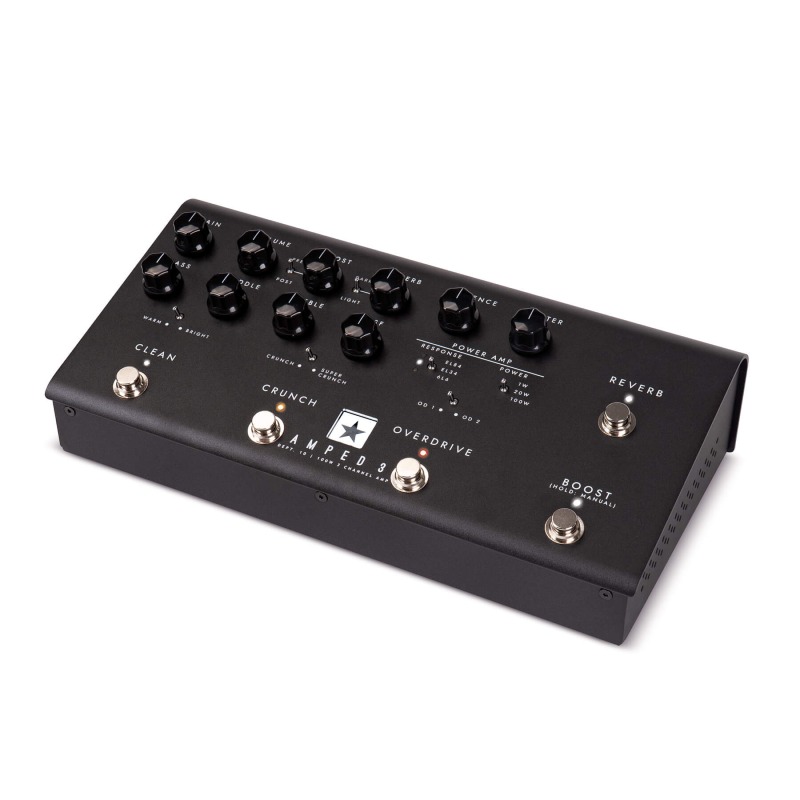

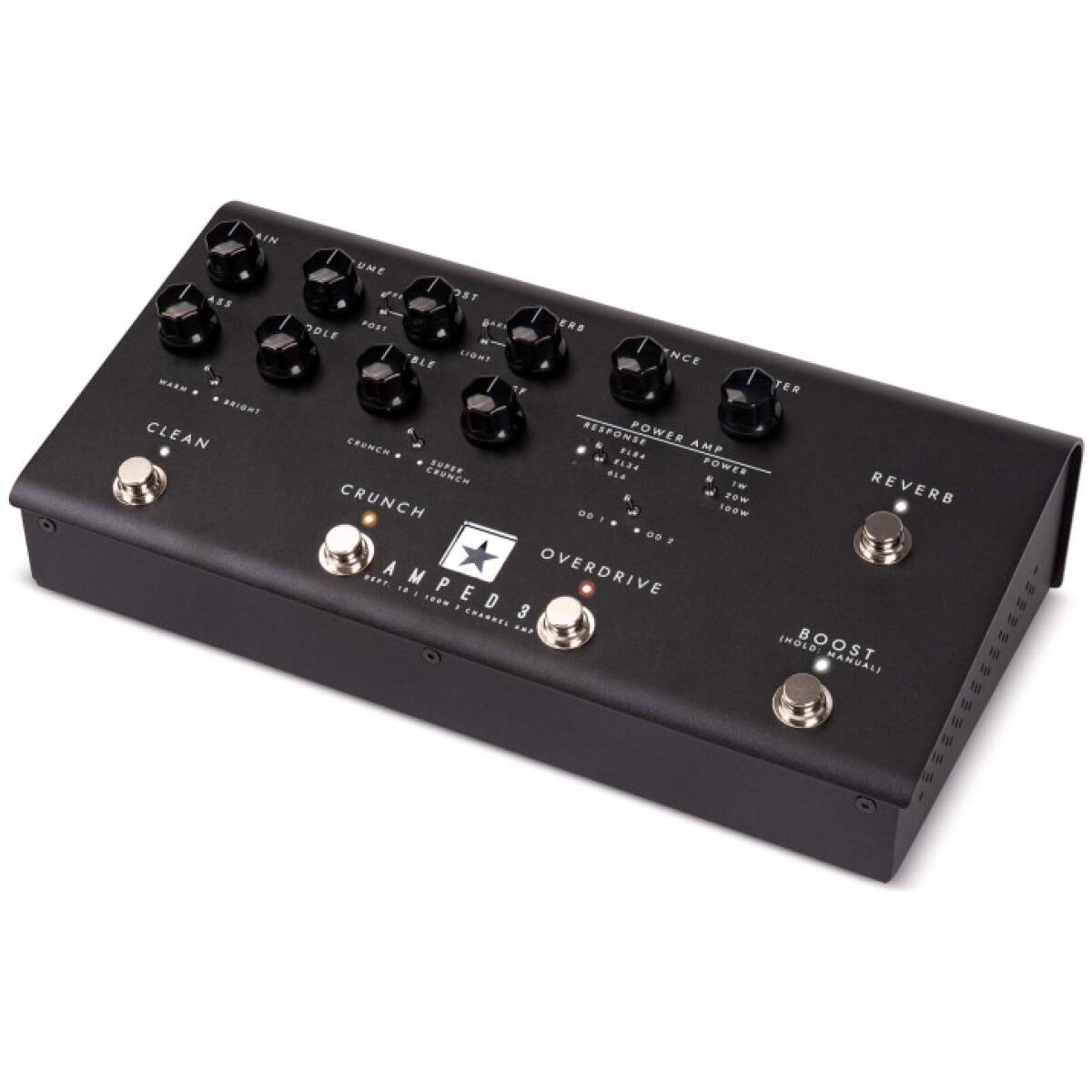

• Gain, Bass, Middle, Treble, ISF, and Master knobs give you ample sound-shaping options
• 3 channels (Clean, Crunch, and Overdrive) range from high-headroom clean to uber-saturated distortion
• 3-way Response switch tailors the feel of the power amp with EL84, EL34, and 6L6 characteristics
• 3-way Power switch selects between 100W, 20W, and 1W
• Footswitchable Boost can be positioned before or after the preamp
• Reverb with 2-way Dark/Light character switch
• Cab Rig speaker simulation re-creates a speaker, cabinet, mic, and room with zero latency or phase mismatches
• Architect software allows you to deep dive into Cab Rig’s features

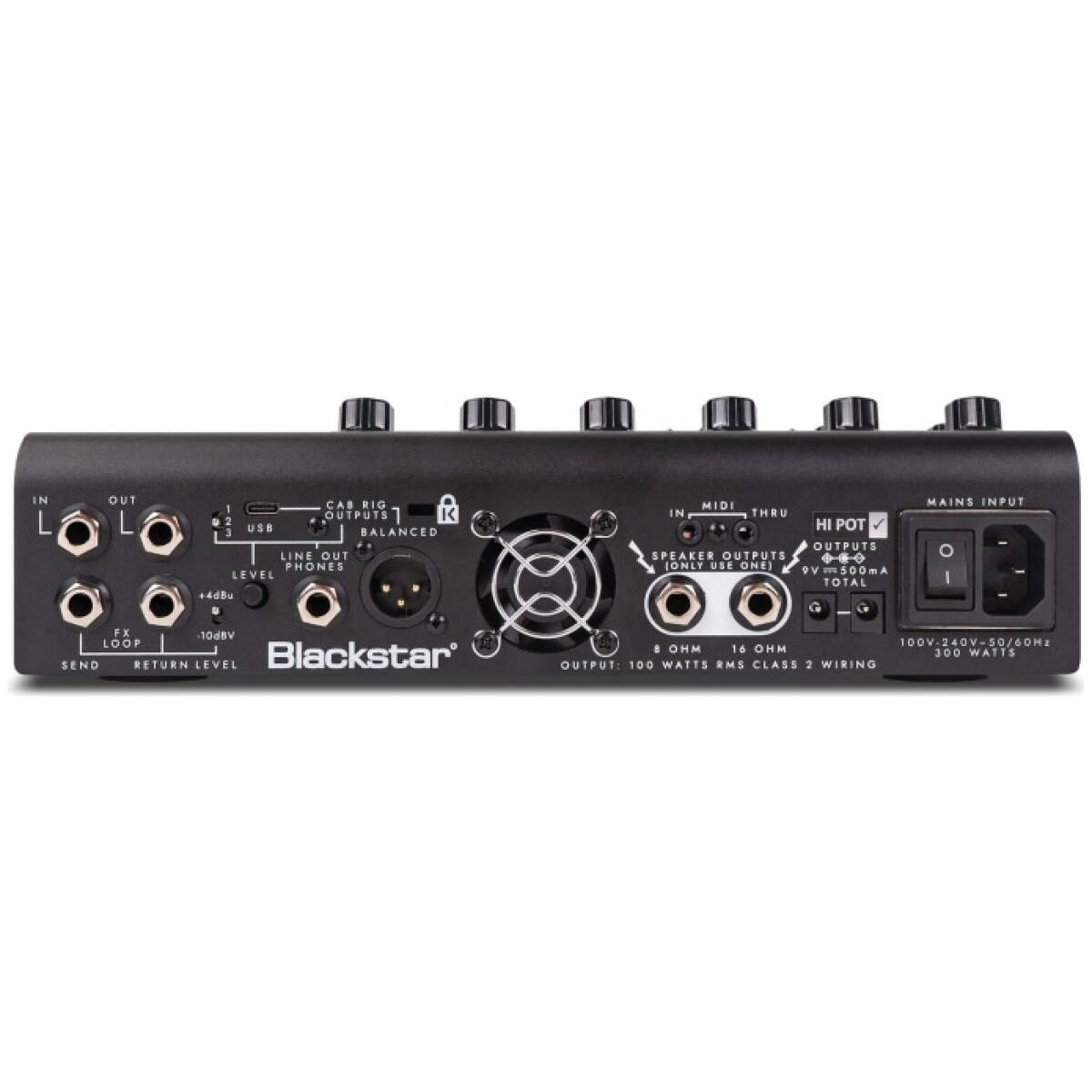

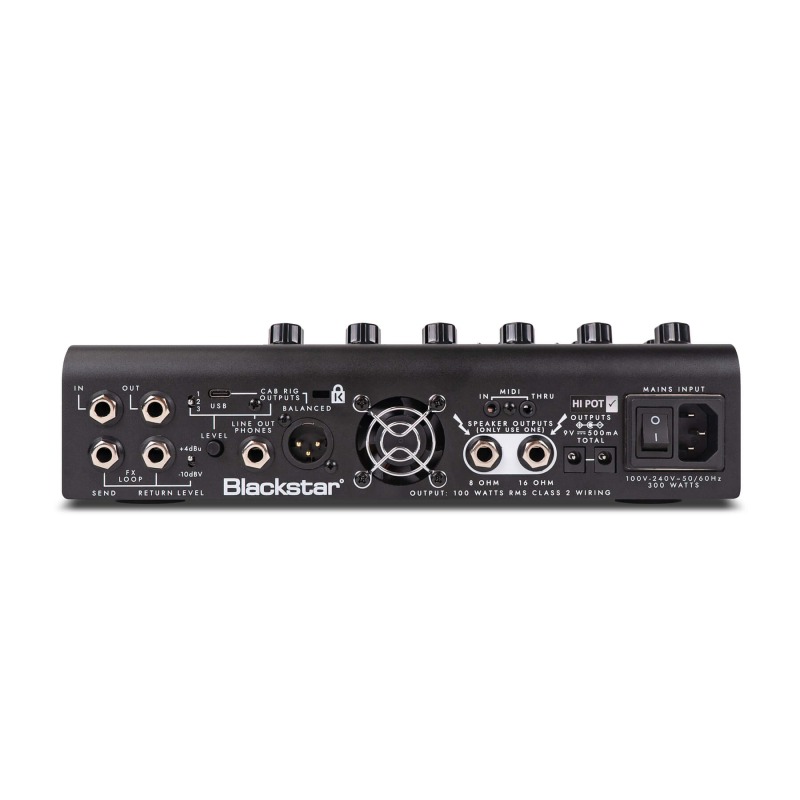

• Balanced mono XLR output, stereo TRS headphones output, and built-in 4-in/2-out USB-C audio interface
• 3-way Cab Rig selector switch and Level knob offer even more flexibility
• 2 x 9V DC outputs allow powering external pedals up to a combined 500mA
• 8- and 16-ohm speaker cabinet outputs
• Effects loop for integrating your pedalboard and rackmount gear
• MIDI I/O for sending and receiving MIDI CC messages
• Settings can be stored as an easily recallable patch

SPECIFICATIONS:

Pedal Type | Power Amp & Multi-FX
Total Power| 100W
Reverb | Yes
Inputs | 1 x 1/4″
Outputs | 1 x XLR (direct out), 1 x 1/4″ (16 ohm), 1 x 1/4″ (8 ohm)
Headphones | 1 x 1/4″ (line out/headphone)
MIDI I/O | 1 x 1/8″ (in), 1 x 1/8″ (Thru),
USB| 1 x USB-C
Computer Connectivity | USB
EQ | Bass, Middle, Treble
Power Reduction | 20W, 1W
Response | 6L6, EL34, EL84
Software | Architect Software
Power Source | Standard IEC
Effects Loop | Series or Parallel selectable in Architect
Speaker Outputs | 8 Ohm, 16 Ohm
9V DC Output | 2 (maximum combined current 500mA)
Voltage | 100V to 240V ~ 50/60Hz
Accessories Included | 2 x TRS MIDI to USB-C cable 5 pin MIDI adaptor
