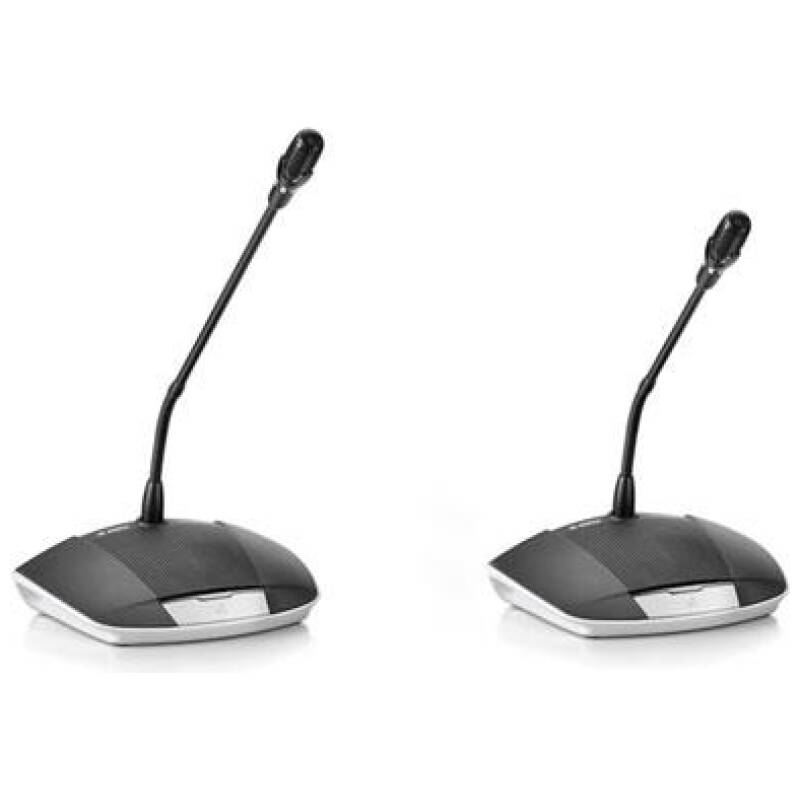

Bosch CCS 1000 D Digital Device (Short Microphone)

Key Features

• Discussion device with fixed short microphone

• Configurable as participant or chairperson unit

• Possible-to-speak and request-to-speak LED indicators

• Built-in loudspeaker for meeting audio

• 3.5 mm headphone output with local volume control

• Plug-and-play digital connection

• Immunity to mobile phone interference

Microphone

• Type: Fixed flexible stem

• Length: 310 mm

• Polar pattern: Cardioid

Controls & Indicators

• Microphone on/off button

• LED status indicators (possible-to-speak, request-to-speak, active)

• Rotary control for headphone volume

Connections

• Loop-through digital system connector

• Integrated system cable (2 m)

• 3.5 mm stereo headphone socket

Technical Overview

• Power consumption: 1.3 W

• Built-in loudspeaker output for monitoring

• Designed for clear speech reproduction

Mechanical

• Mounting: Tabletop (portable or fixed)

• Dimensions (without microphone): 64 × 203 × 146 mm

• Height with microphone (horizontal): 130 mm

• Weight: Approx. 1 kg

• Colour: Black top with light grey base

Applications

• Boardrooms

• Council chambers

• Conference rooms

• Government and corporate meeting spaces
