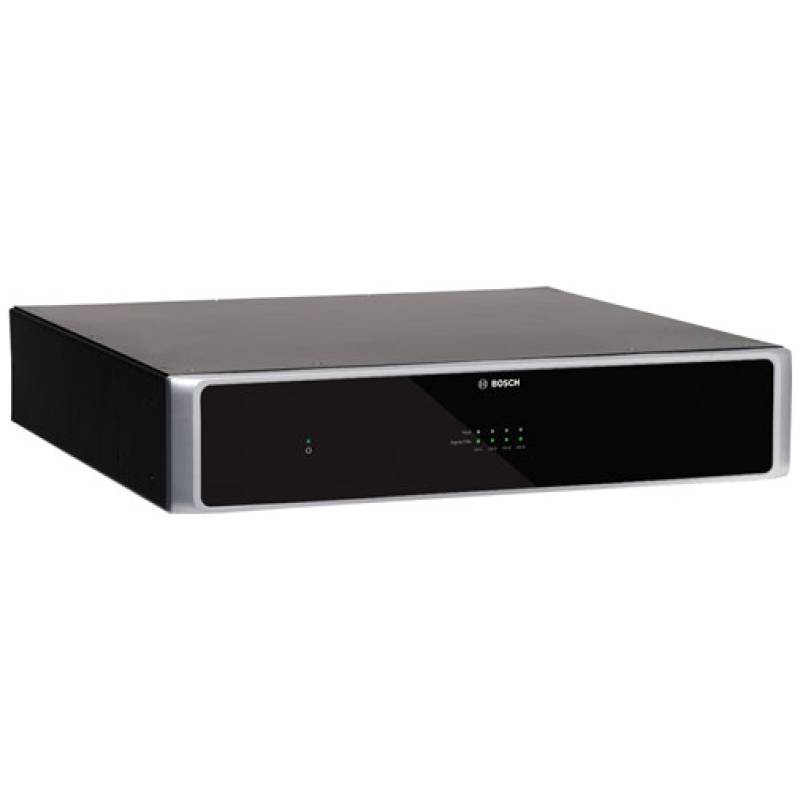

Bosch PLM-4P220 Power Amplifier – PLENA Matrix DSP Series

Key Features

• 4-channel Class D amplifier with 100V, 70V, 8Ω, and 4Ω outputs

• Available in 125W (PLM-4P125) and 220W (PLM-4P220) models

• Integrated DSP processor with input mixing, EQ, crossover, delay & compressor

• Amp Link for easy connection with Bosch PLM-8M8 DSP Matrix Mixer

• Dynamic Bass Enhancement for full sound even at low volumes

• Auto standby mode saves up to 80% of running costs when idle

• Remote control and monitoring via PC GUI and iOS app

• Flexible input options: XLR, TRS jack, Phoenix, and Amp Link (RJ45)

• Bridging support for higher output power (up to 445W)

Specifications

• Power per channel: 125W (PLM-4P125) / 220W (PLM-4P220)

• Bridged power: up to 445W

• Frequency response: 65Hz – 20kHz

• THD+N: as low as 0.03%

• Dynamic range: >101 dB

• Dimensions: 90 x 440 x 417 mm (2U rackmount)

• Weight: ~15 kg (PLM-4P125) / ~18 kg (PLM-4P220)

• Color: Traffic black (RAL 9017) / Silver (RAL 9006)

Included in the Box

• PLM-4P125 or PLM-4P220 Amplifier

• Power cord

• 19” rack mounting brackets

• Shielded CAT 5 cable (1 m)

• Safety documentation
