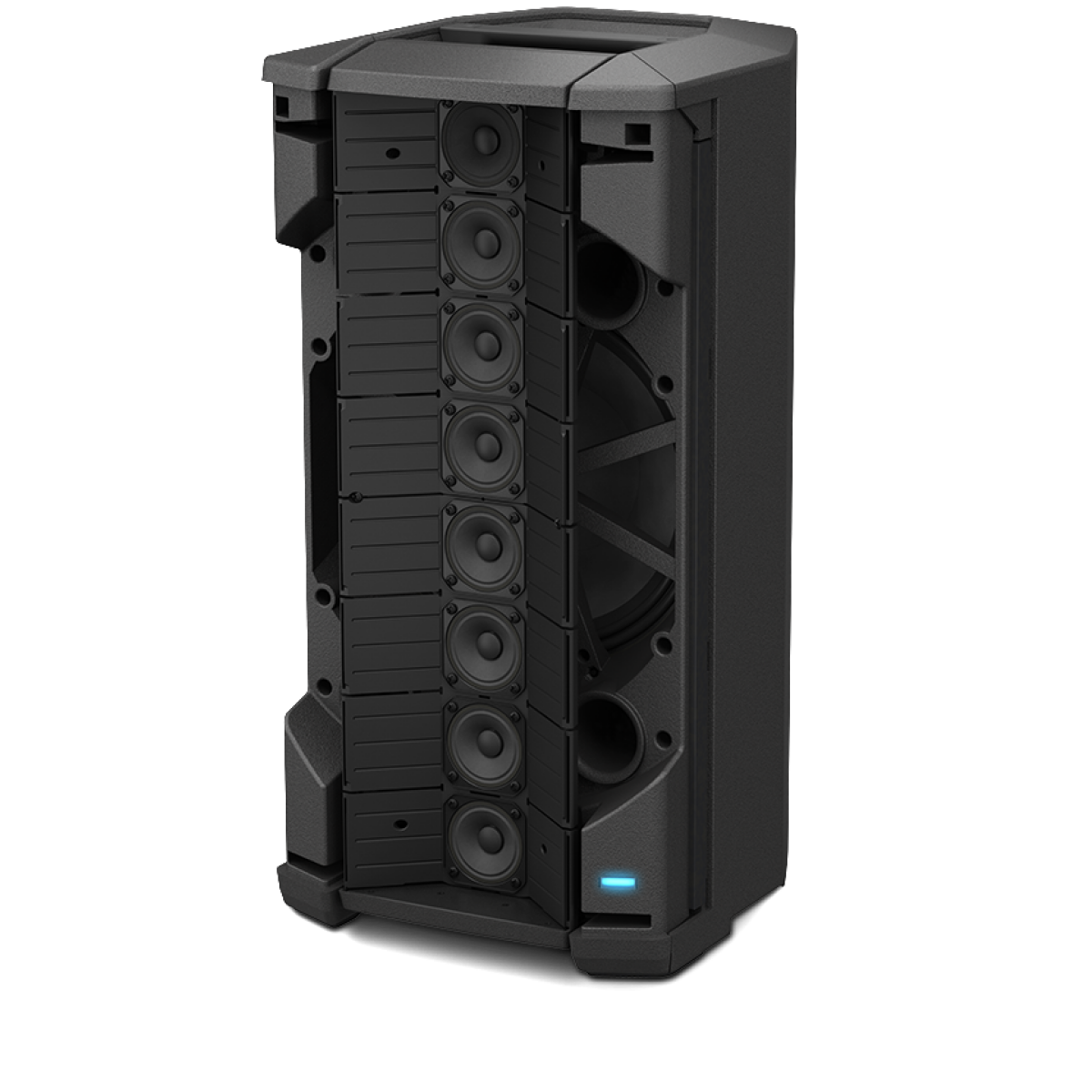

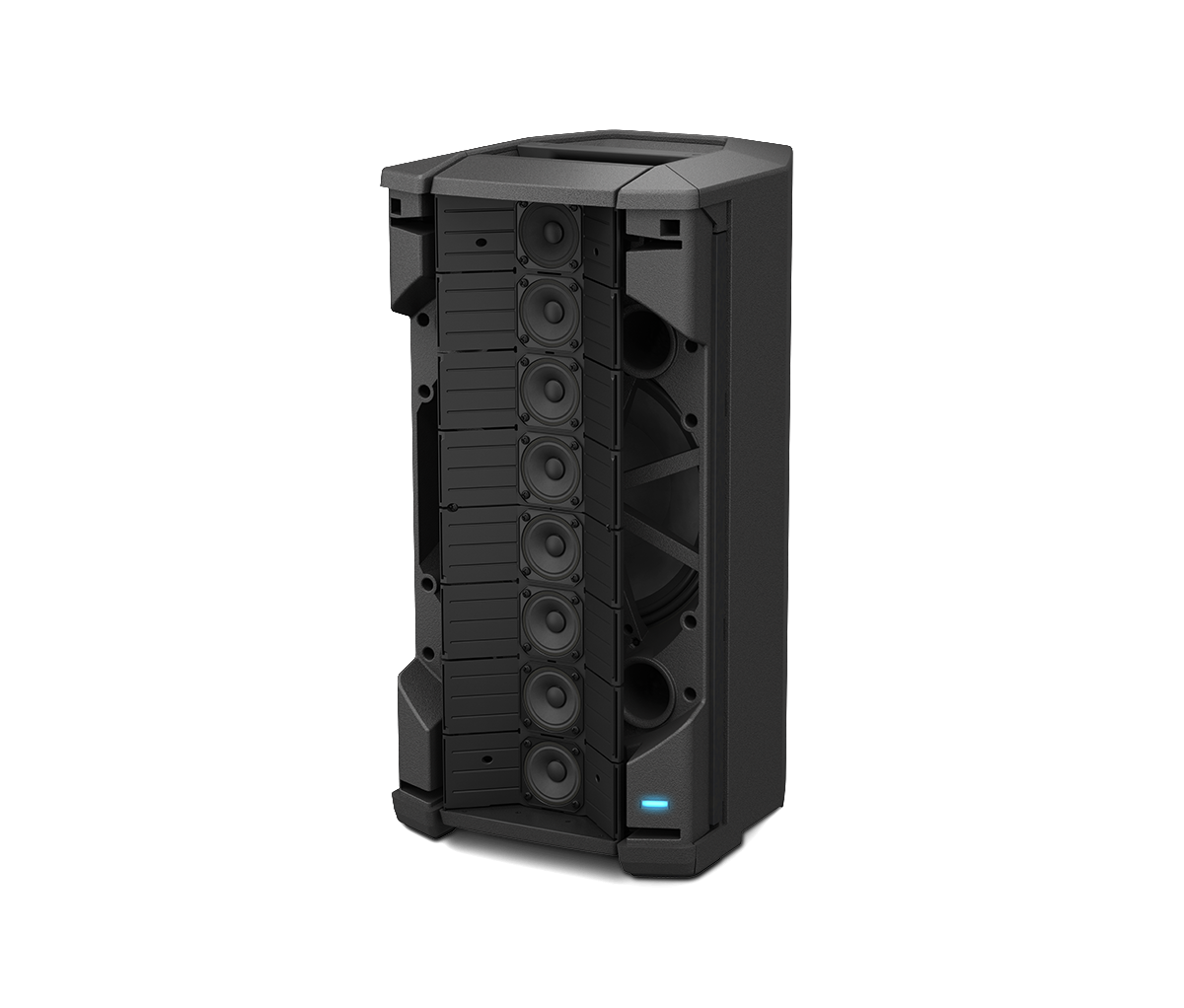

Powerful, standalone sound that flexes to meet your coverage needs — the Bose F1 Model 812 is a 1000-watt, full-range loudspeaker featuring Bose Flexible Array technology. At the heart of the F1 is a 12-inch woofer nested behind an array of eight high-output drivers. These nine speakers are supported by a lower crossover point than conventional loudspeakers — to give full voice to your sound and deliver clearer, more natural vocals and midrange clarity, even at high volumes. And you control the vertical coverage pattern. So, wherever you’re playing, you can adapt the PA to match the room. With the Bose F1 Model 812, your sound stands alone.
SPECS
Technical Specification
AMPLIFICATION
- Number of Channels
- 2
- Power Class
- Class D
- THD+N
- 0.1% maximum (30 Hz – 15 kHz)
AUDIO INPUTS, ANALOG
- Input Channels
- 2
- Connectors
- (1) XLR-1/4-in combo, (1) RCA stereo pair, (1) 1/4-in TS/TRS
- Sensitivity Options
- -Infinity to +34 dB, line / -Infinity to +54 dB, mic, -Infinity to +26 dB, RCA / -Infinity to +20 dB, 1/4-in
- Phantom Power
- No
ELECTRICAL
- AC Power Connector
- IEC
- AC Power Input
- 100-240 V, 50/60 Hz
GENERAL
- Software Applications
- No
INDICATORS AND CONTROLS

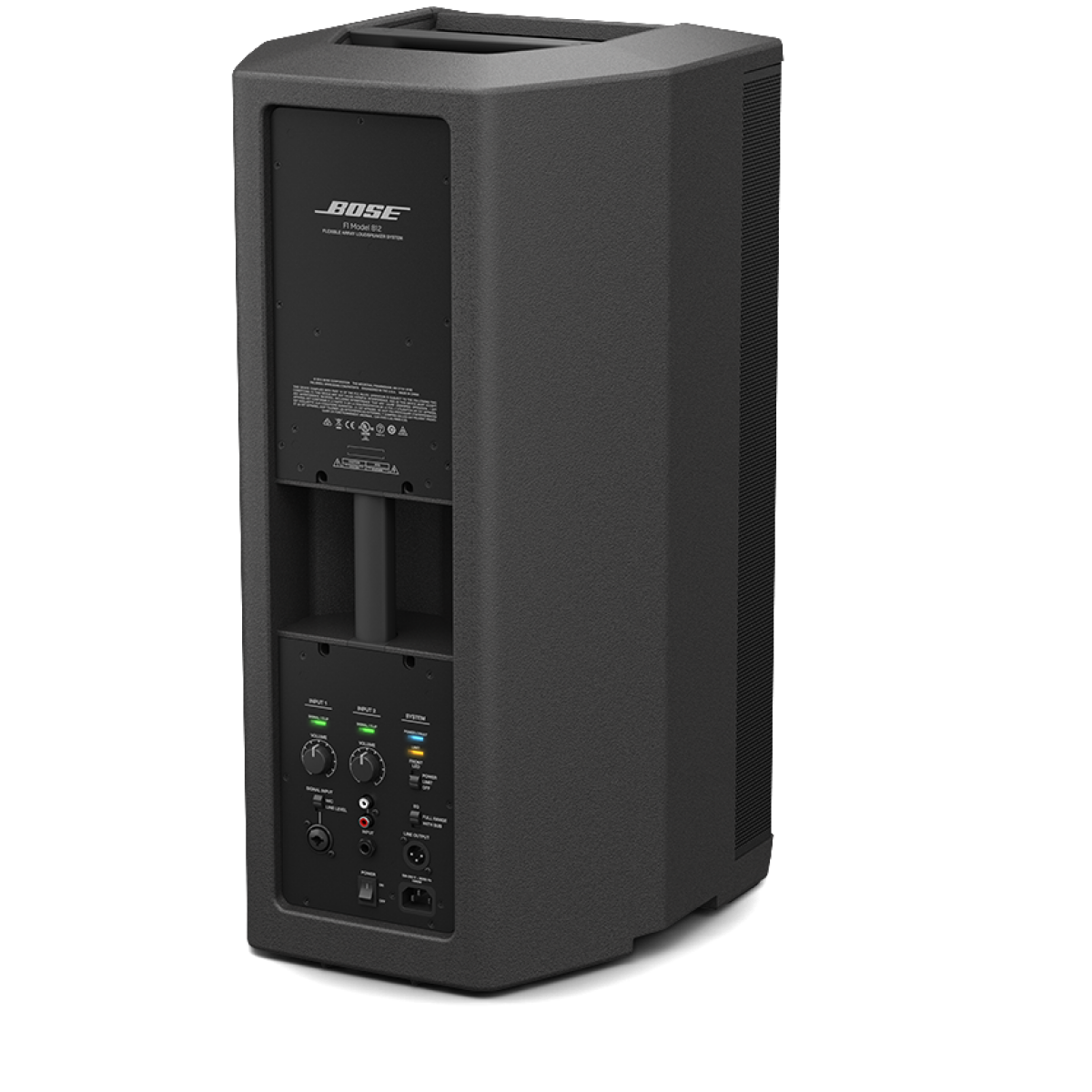

- Controls, Rear Panel
- Volume level, Signal input select, Front LED function select, EQ V
- LED Status Indicators
- (1) power/fault LED, (2) signal/clip LEDs, (1) limit LED, (1) configurable front-panel LED
INTEGRATED DSP
- DSP-Enabled
- Yes
- Processing Functions
- Output EQ, limiter
PHYSICAL
- Colors
- Black
- Enclosure Material
- High impact composite materials
- Grille
- Steel, powder-coated finish
- Operating Temperature Range
- 0 °C to 50 °C (32 °F to 122 °F)
- Product Dimensions (H×W×D)
- 26.1 in × 14.6 in × 13.1 in (663 mm × 371 mm × 333 mm)
- Net Weight
- 44.5 lb / 20.2 kg
- Shipping Dimensions (H×W×D)
- 32.5 in × 20.0 in × 18.5 in (826 mm × 508 mm × 470 mm)
- Storage Temperature
- -30 °C to 70 °C (-22 °F to 158 °F)
- Shipping Weight
- 55.0 lb (24.9 kg)
PERFORMANCE
- Frequency Range (-10 dB)
- 43 Hz – 20 kHz
- Coverage, Horizontal
- 100°
- Calculated Maximum SPL @ 1 m
- 132 dB
- Power Handling, Peak
- 1000 W
- Coverage, Vertical
- 40°
TRANSDUCERS
- Crossover
- 600 Hz, 4th-order Butterworth
- Driver Protection
- Dynamic limiter
- High-Frequency
- 8 × 2.25 in (57 mm) mid-high-frequency drivers
- Low-Frequency
- 1 × 12 in (305 mm) low-frequency driver
Mechanical Diagrams
front-view
right-view
top-view
Product codes
- 731419-1110
- F1 MODEL 812 FLEX ARRAY LDSPKR 120V US
- 731419-2110
- F1 MODEL 812 FLEX ARRAY LDSPKR 230V EU
- 731419-3110
- F1 MODEL 812 FLEX ARRAY LDSPKR 100V JP
- 731419-4110
- F1 MODEL 812 FLEX ARRAY LDSPKR 230V UK
- 731419-5110
- F1 MODEL 812 FLEX ARRAY LDSPKR 240V AU
Warranty Period
- 2 years
