FEATURES
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
- Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further
- Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety — EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

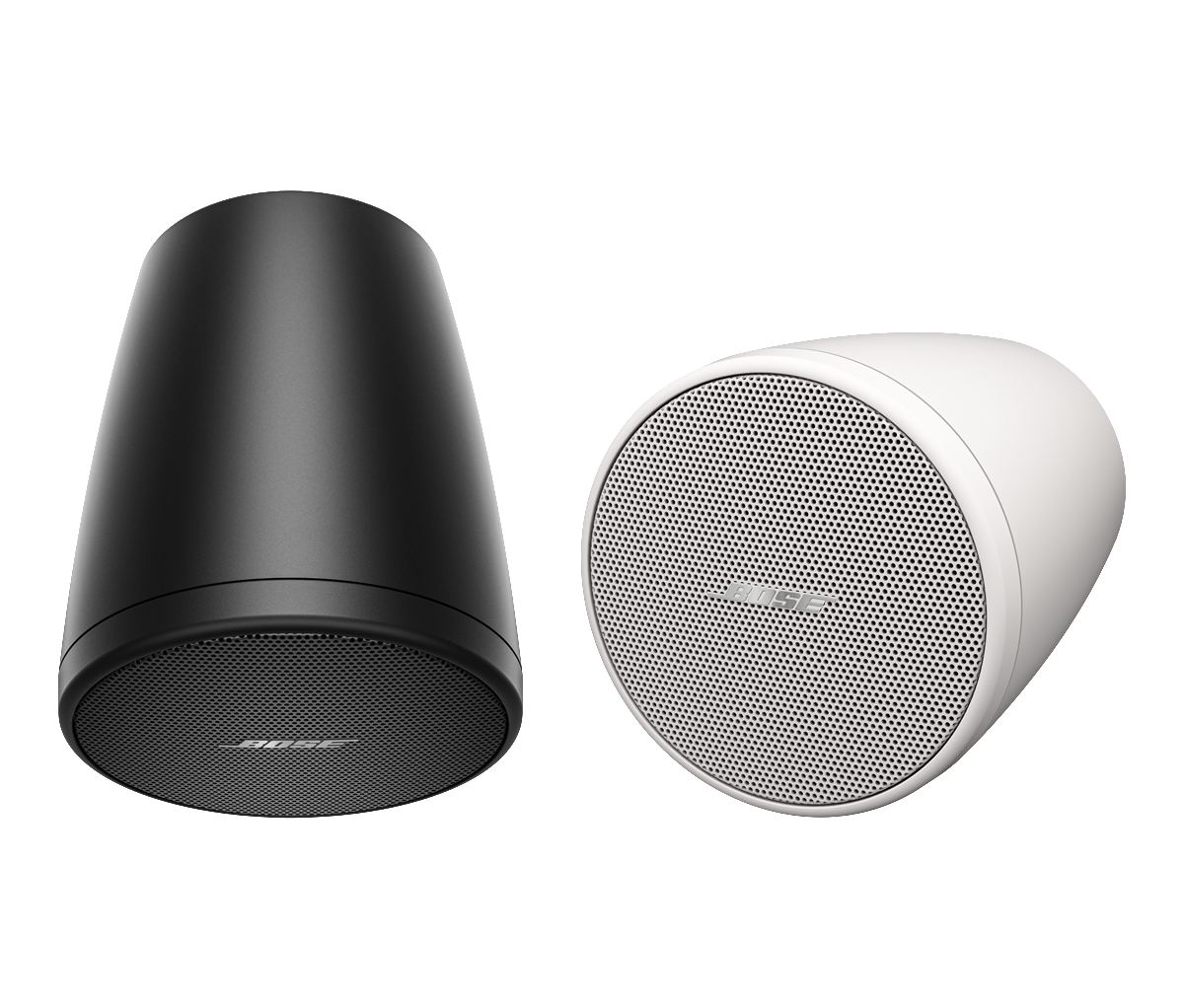

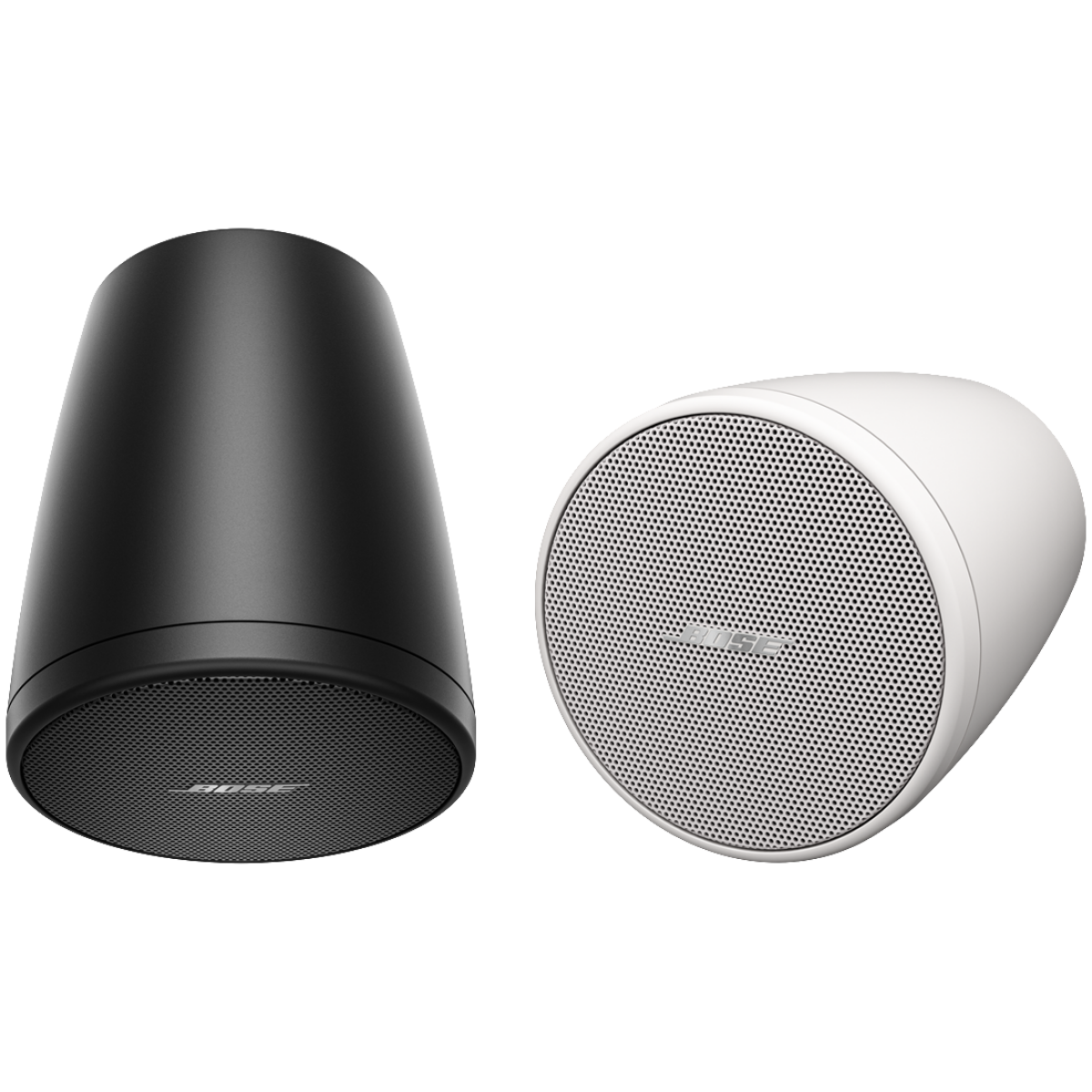

- Stylish pendant enclosure with single-point suspension, perfect for open-ceiling applications or any installation requiring the aesthetic and performance capabilities of a pendant design
SPECS
Technical Specification
COMPLIANCE
- EN 54-24 Certified
- Yes
- Safety Agency Ratings
- EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
PHYSICAL
- Colors
- Black (similar to RAL 9005), white (similar to RAL 9003)
- Enclosure Material
- Engineered plastics
- Environmental
- Indoor only
- Grille
- Perforated steel, powder-coated finish
- Logo
- Removable
- Suspension/Mounting
- 1 suspension attachment point, 1 safety cable attachment point
- Operating Temperature Range
- 0 °C to 50 °C (32 °F to 122 °F)
- Product Dimensions (H×W×D)
- 5.9 in × 7.2 in (149 mm × 183 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter
- Net Weight
- 3.3 lb (1.5 kg), loudspeaker with grille (single)
- Shipping Weight
- 9.0 lb (4.1 kg), pair
PERFORMANCE
- Frequency Range (-10 dB)
- 83 – 19,000 Hz
- Coverage, Horizontal
- 140°
- Calculated Maximum SPL @ 1 m
- 99 dB
- Nominal Impedance
- 16 Ω (transformer bypass)
- Power Handling, long-term continuous
- 16 W
- Power Handling, Peak
- 64 W
- Sensitivity (SPL/1 W at 1 m)
- 87 dB
- Transformer Taps, 100V
- 2, 4, 8, 16 W, bypass
- Transformer Taps, 70V
- 1 W, 2 W, 4 W, 8 W, 16 W, bypass
- Coverage, Vertical
- 140°
TRANSDUCERS
- Driver Protection
- Recommended high-pass protection 85 Hz with minimum 24-dB/octave filter
- Low-Frequency
- 1 × 2.25 in (57 mm) woofer
Included in Packaging
- (4) cable ties
- (2) suspension cables, 4.5 m (15.0 ft) each
- (2) input covers
