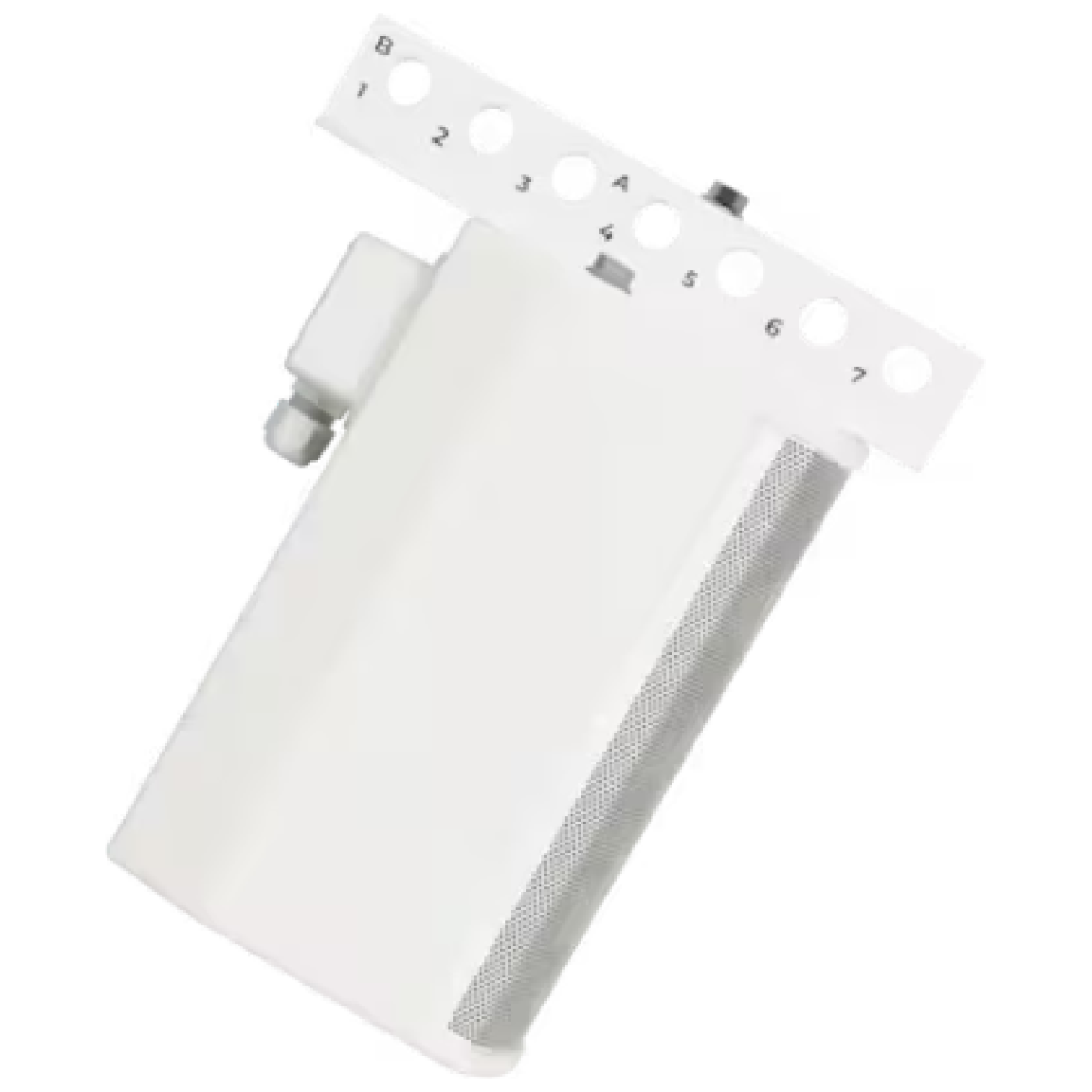

The Bose Professional AMU105W is the most compact model in the ArenaMatch Utility series, designed to deliver high-quality sound in both indoor and outdoor permanent installations. Featuring a 5.25-inch woofer and 1-inch compression driver, it provides clear, reliable audio for under-balcony, zone-fill, or distributed systems. The IP55-rated enclosure ensures durability in all-weather environments, while the white finish allows it to blend seamlessly into lighter architectural spaces.
Key Features

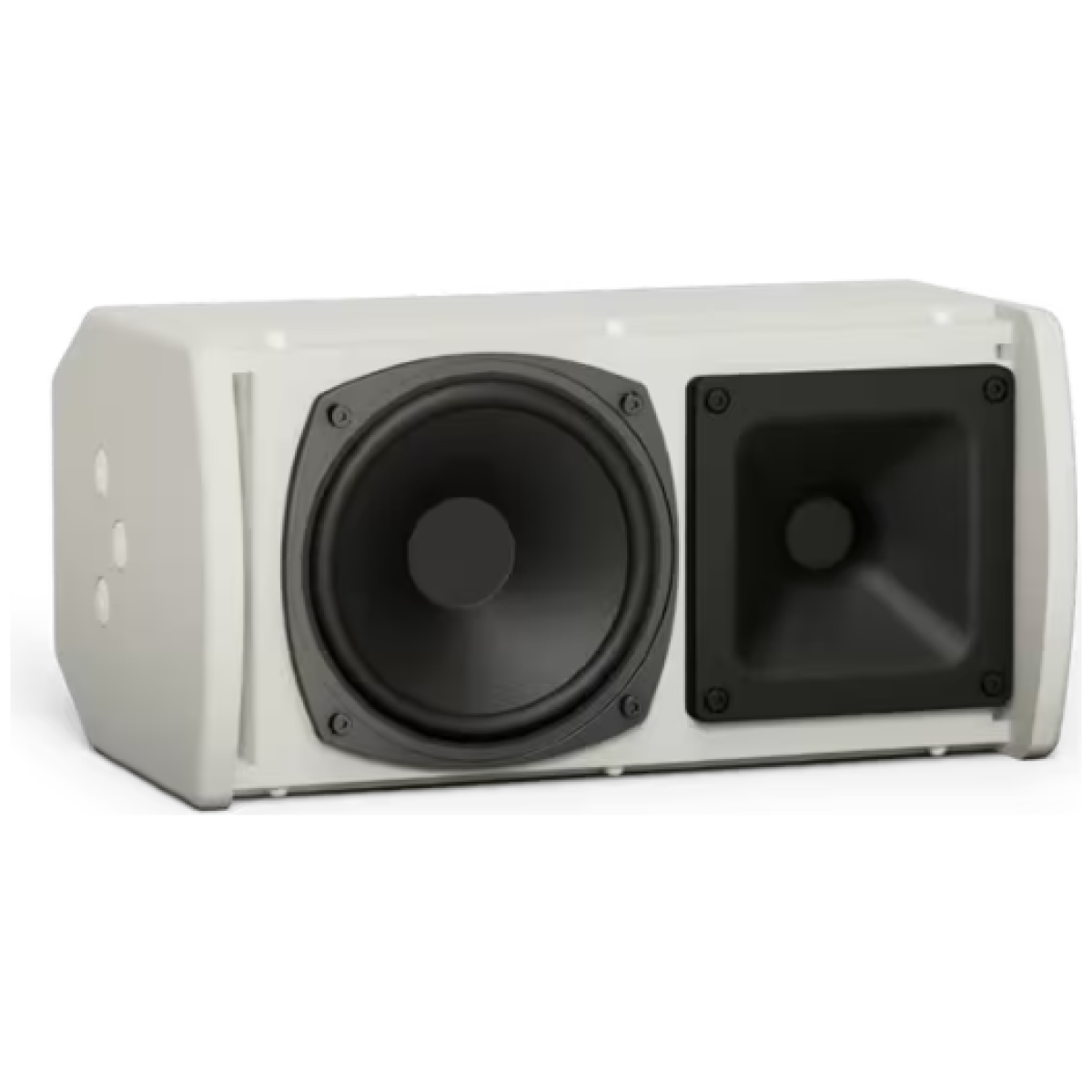

- 5.25″ (133 mm) woofer and 1″ compression driver
- Constant-directivity 100° × 100° horn for wide, even coverage
- Compact design for short-throw and fill applications
- IP55 weather-resistant enclosure for outdoor use
- Frequency response: 90 Hz – 16 kHz (-10 dB)
- Power handling: 125 W continuous / 500 W peak
- Transformer taps for 70/100V distributed audio systems
- Rugged Baltic birch plywood cabinet with durable white coating

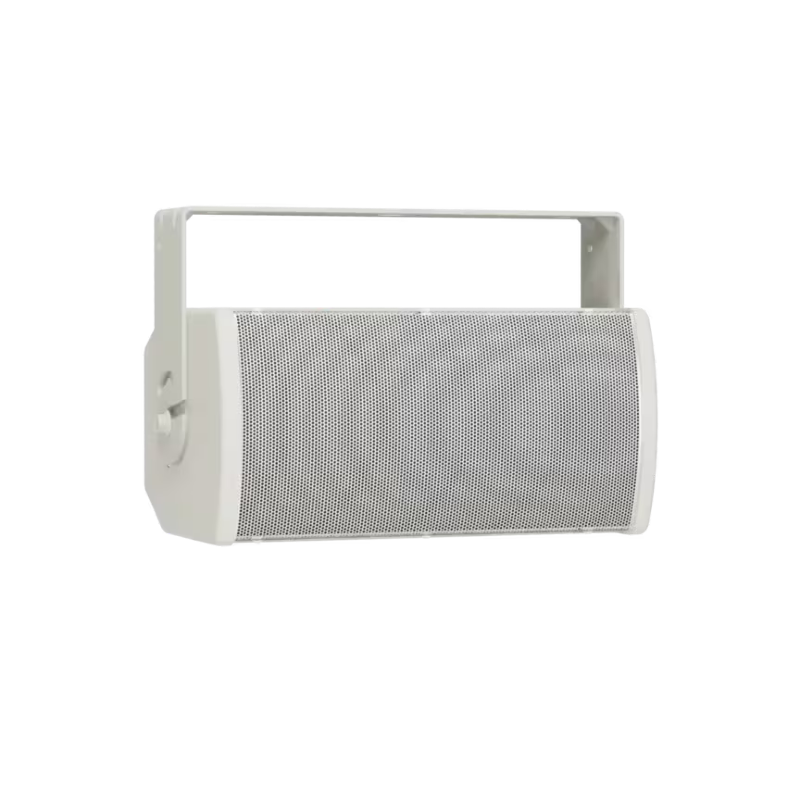

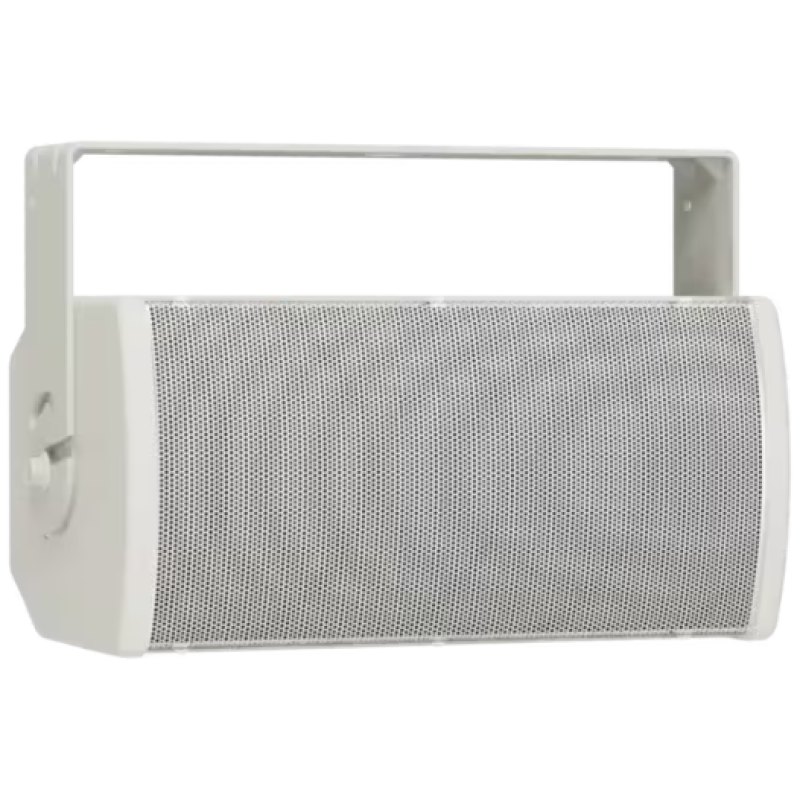

- Compatible with Bose mounting accessories (U-brackets, yokes, etc.)
Specifications
- Frequency Range (-10 dB): 90 Hz – 16 kHz
- Coverage Pattern: 100° horizontal × 100° vertical
- Maximum SPL (Continuous): ~111 dB
- Nominal Impedance: 8 ohms

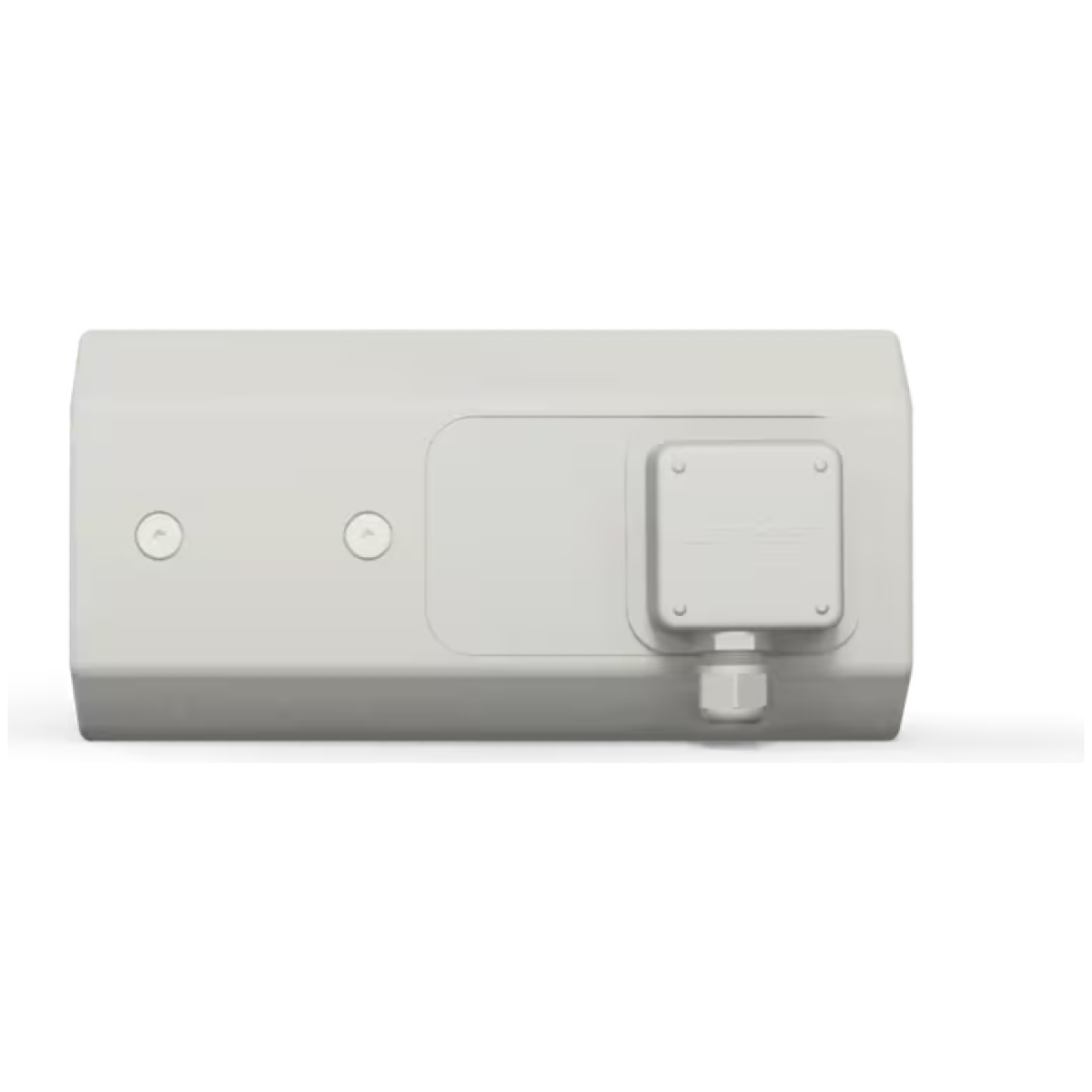

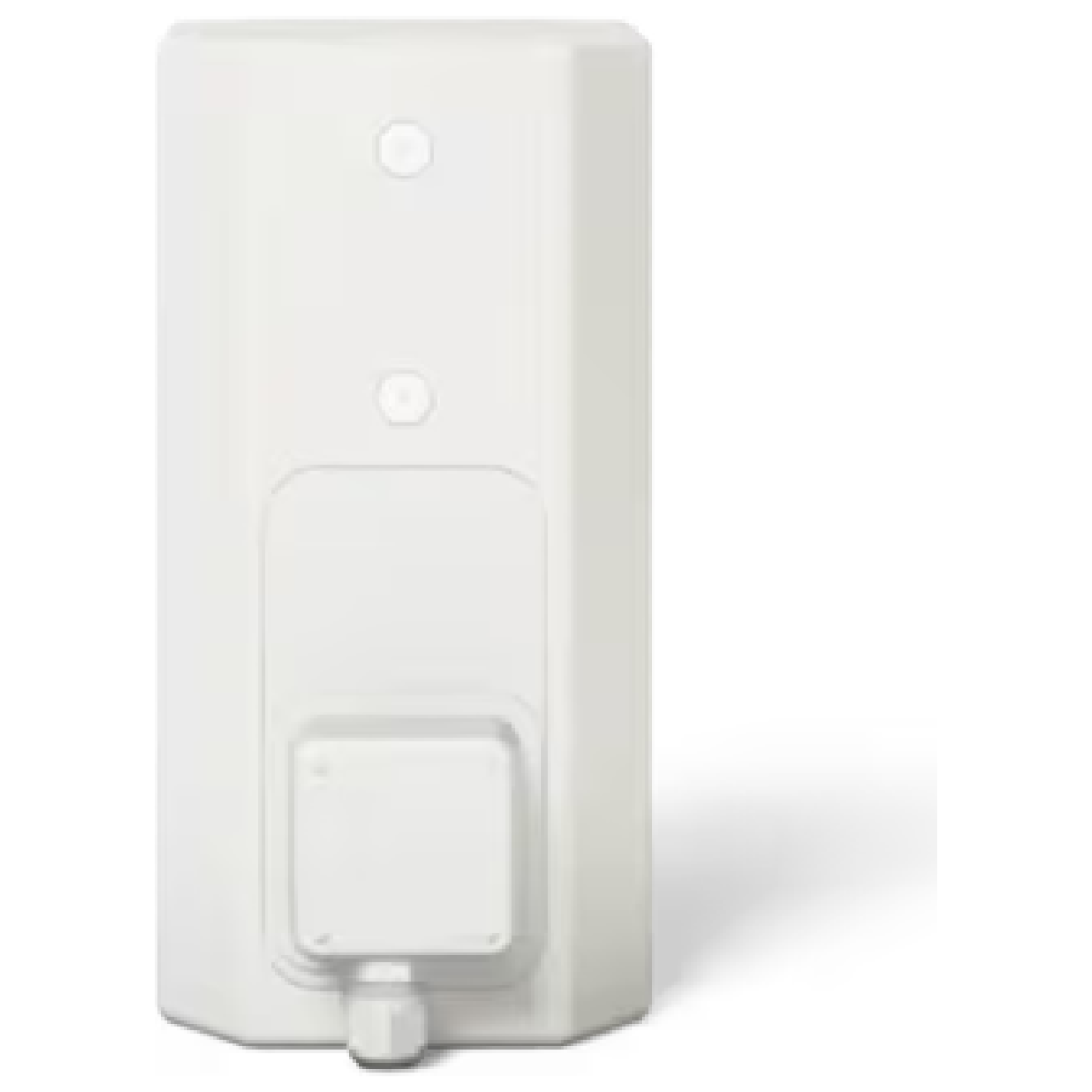

- Inputs/Outputs: NL4 and barrier strip connectors
- Color: White
