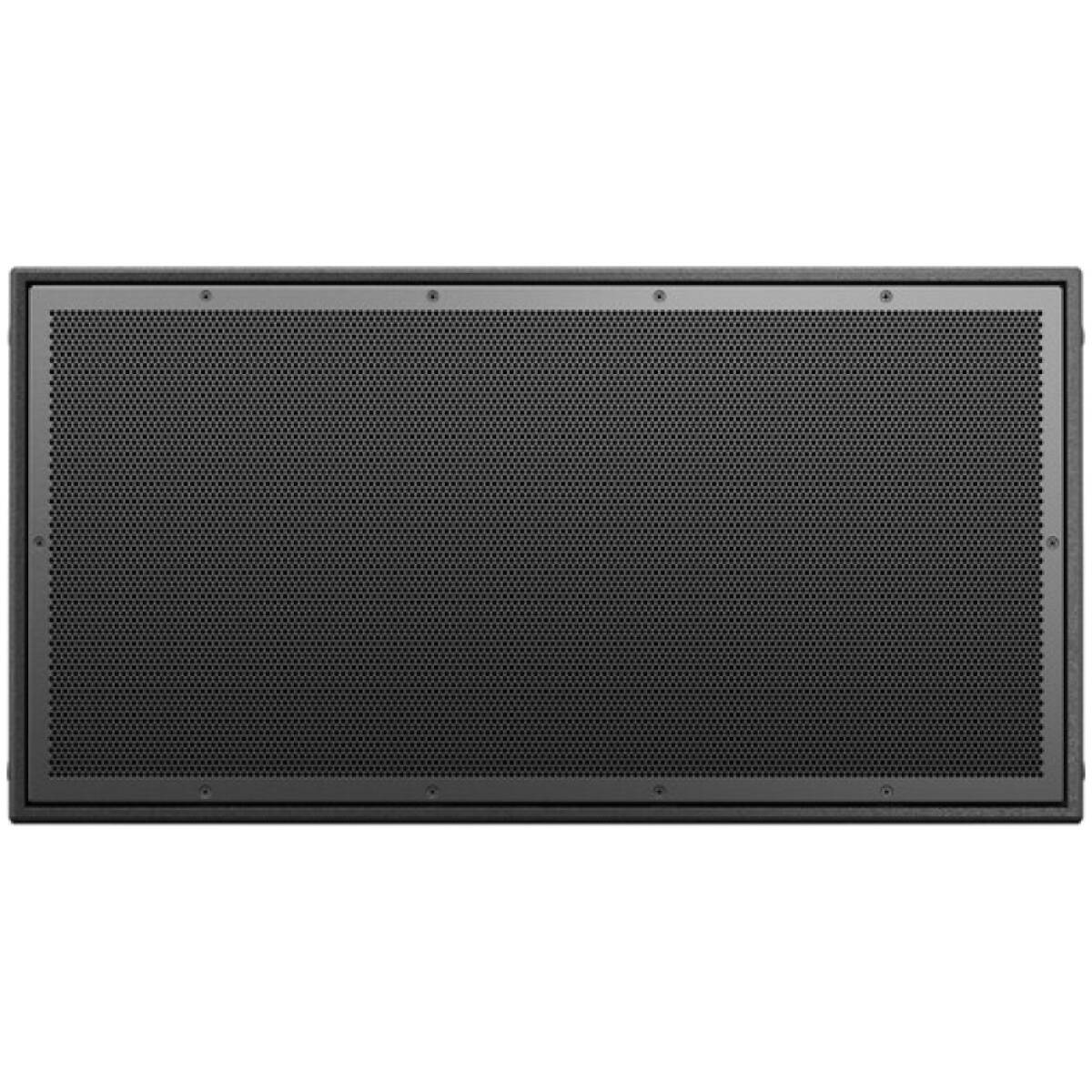

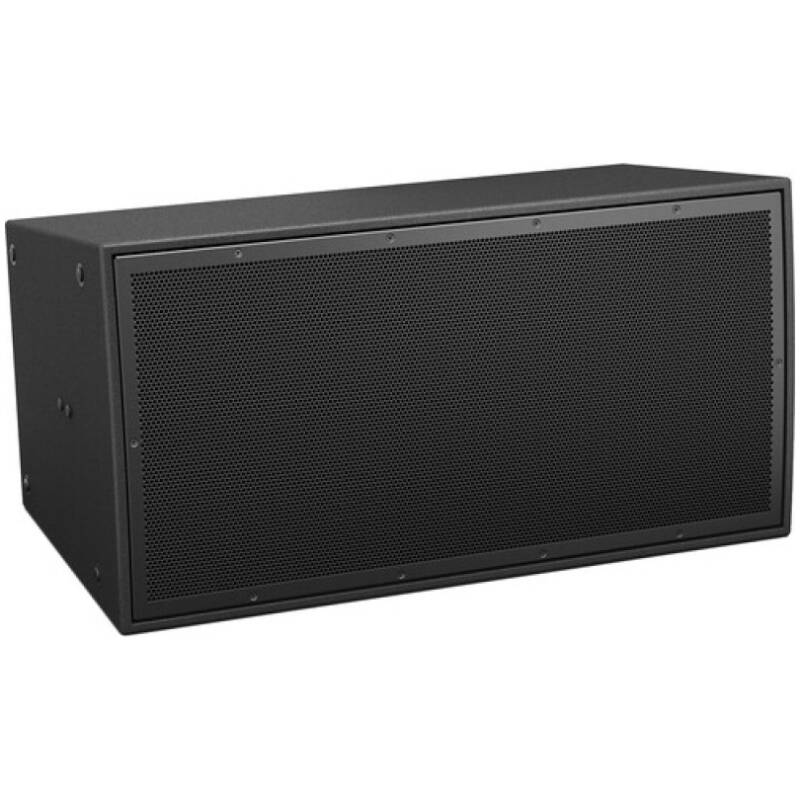

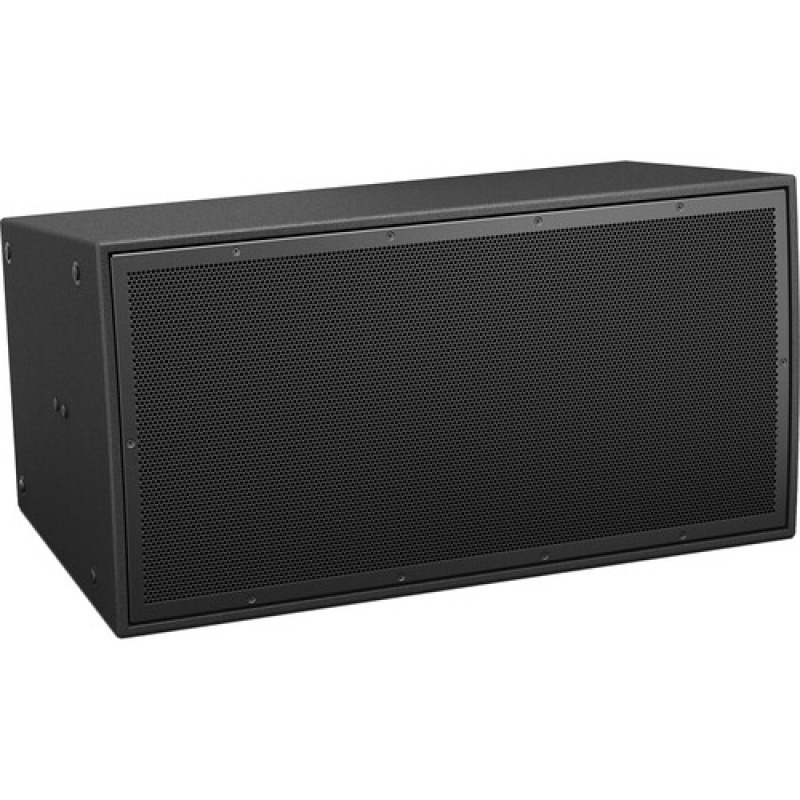

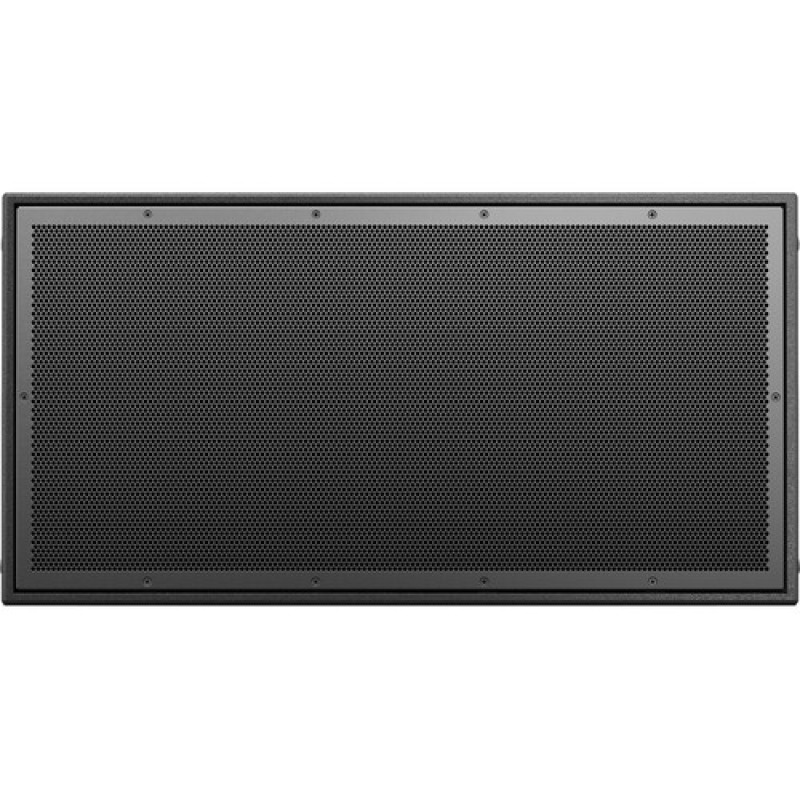

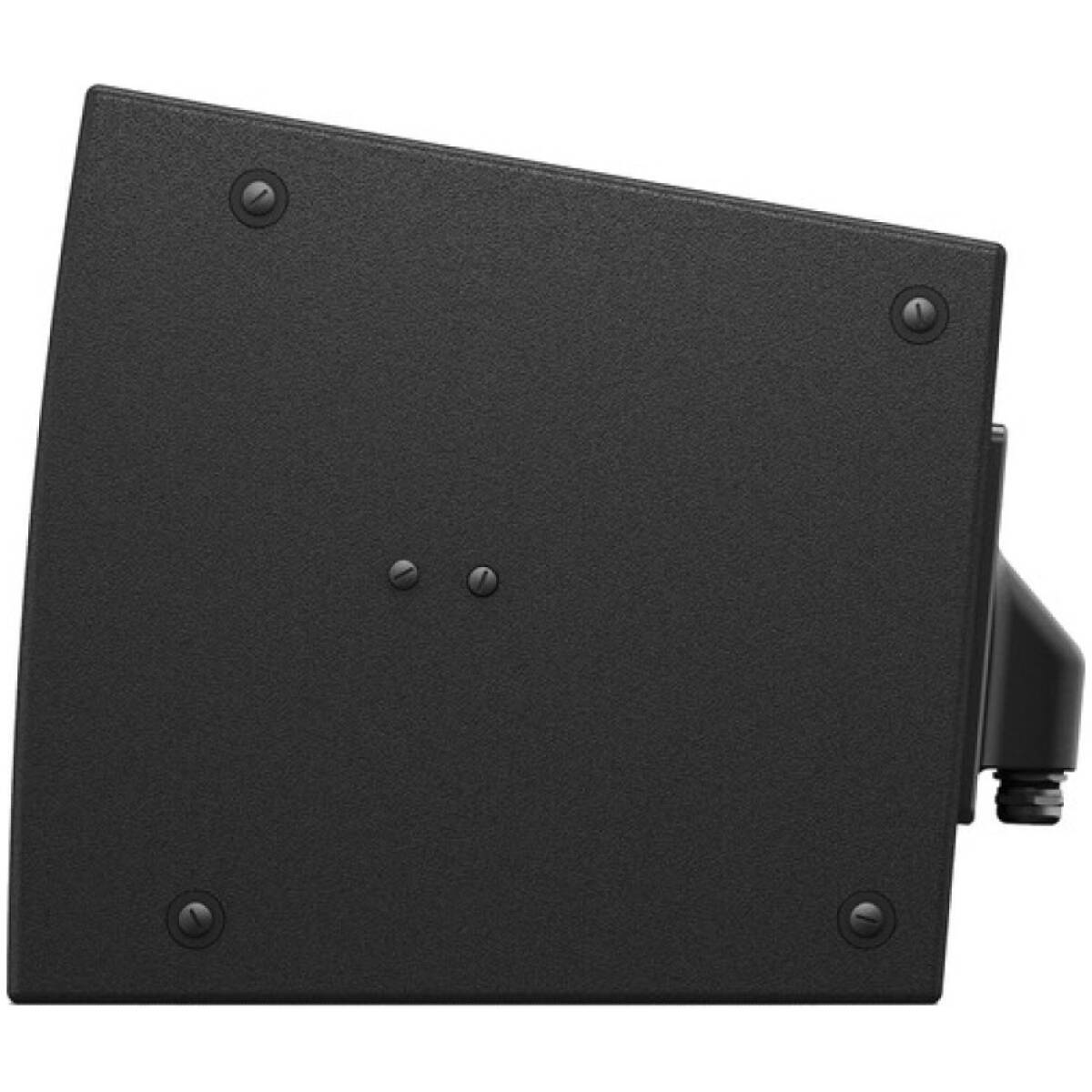

The ArenaMatch AM10/100 is a DeltaQ array module designed for outdoor-rated, high-output installations such as stadiums, arenas, and large outdoor venues. It features a 100° horizontal waveguide and 10° vertical coverage, providing wide yet consistent sound dispersion with excellent clarity.
Key Specifications
• Frequency Response (-3 dB): 65 Hz – 16 kHz
• Frequency Range (-10 dB): 55 Hz – 18 kHz
• Nominal Coverage Pattern: 100° × 10°
• Recommended High-Pass Filter: 60 Hz, 12 dB/octave minimum
• Crossover: 950 Hz; internal passive or external when bi-amped
• Transformer Taps: 70 V (100 W, 200 W, 400 W), 100 V (200 W, 400 W)
Power and Performance
• Long-term Power Handling (RMS): 750 W
• Peak Power Handling: 3,000 W
• Sensitivity (1 W @ 1 m): ~98 dB
• Maximum SPL: ~127 dB peak
Physical and Mechanical
• Dimensions (H × W × D): 409 × 783 × 420 mm (16.1 × 30.8 × 16.5 in)
• Net Weight: 36.3 kg (80 lb)
• Shipping Weight: 43.5 kg (96 lb)
• Enclosure: Exterior-grade birch plywood with two-part polyurea coating, black finish
• Grille: Powder-coated stainless steel with acoustic foam and stainless steel mesh, three-layer weather protection
• Environmental Rating: IP55 for general outdoor use, IP33C under EN54-24 for voice alarm and fire-system applications
