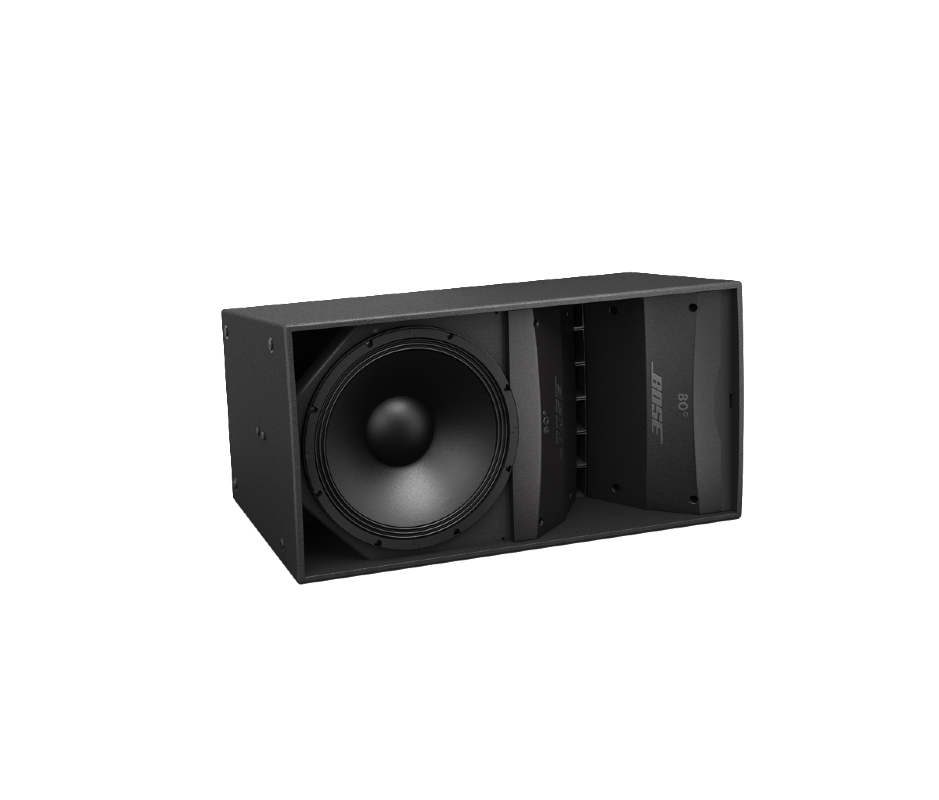

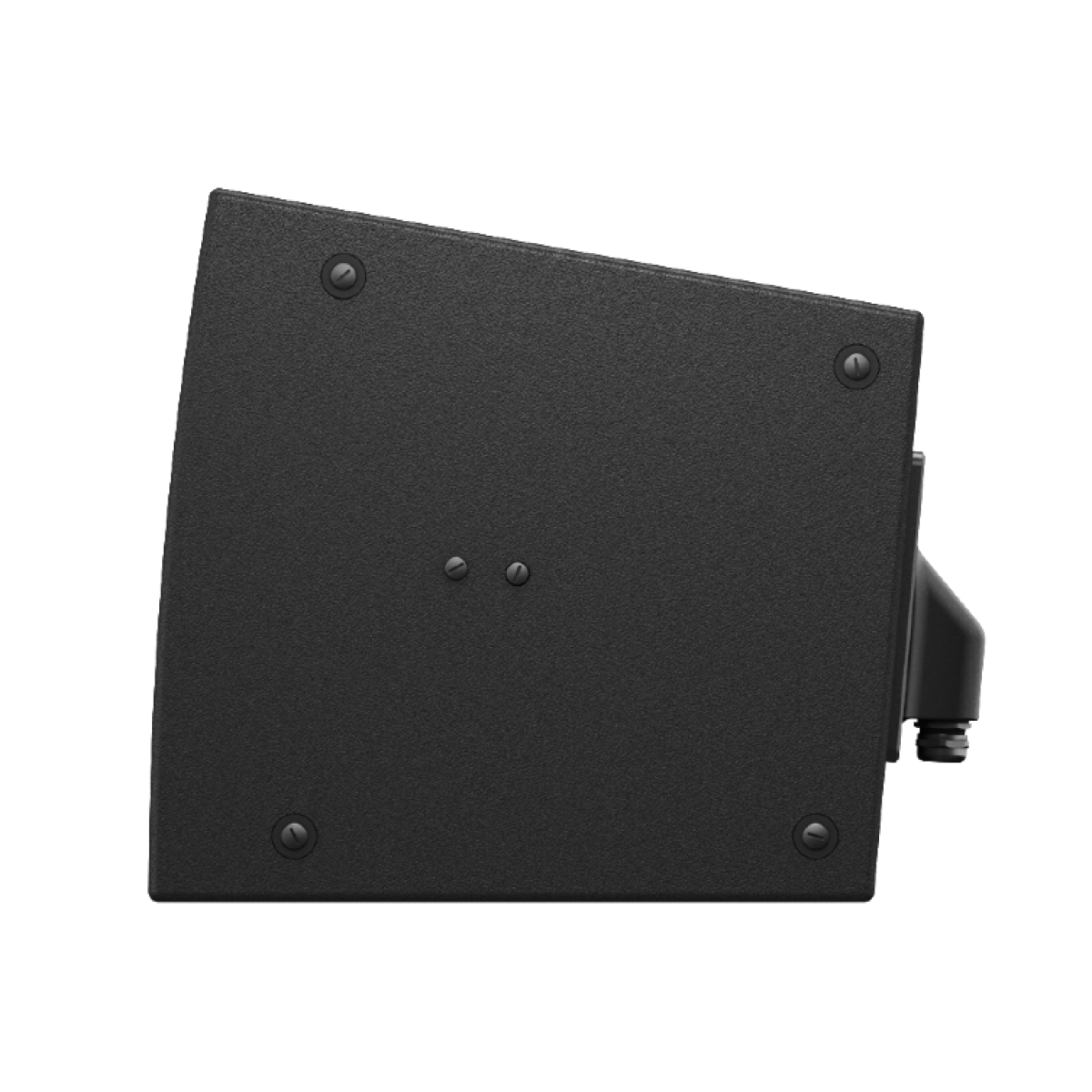

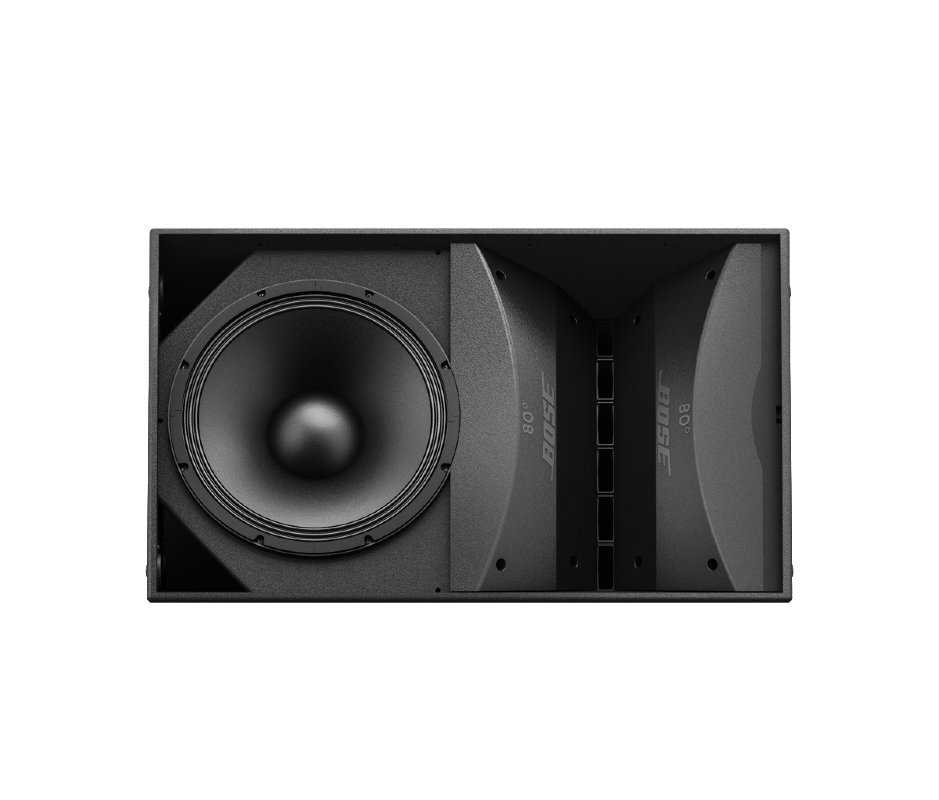

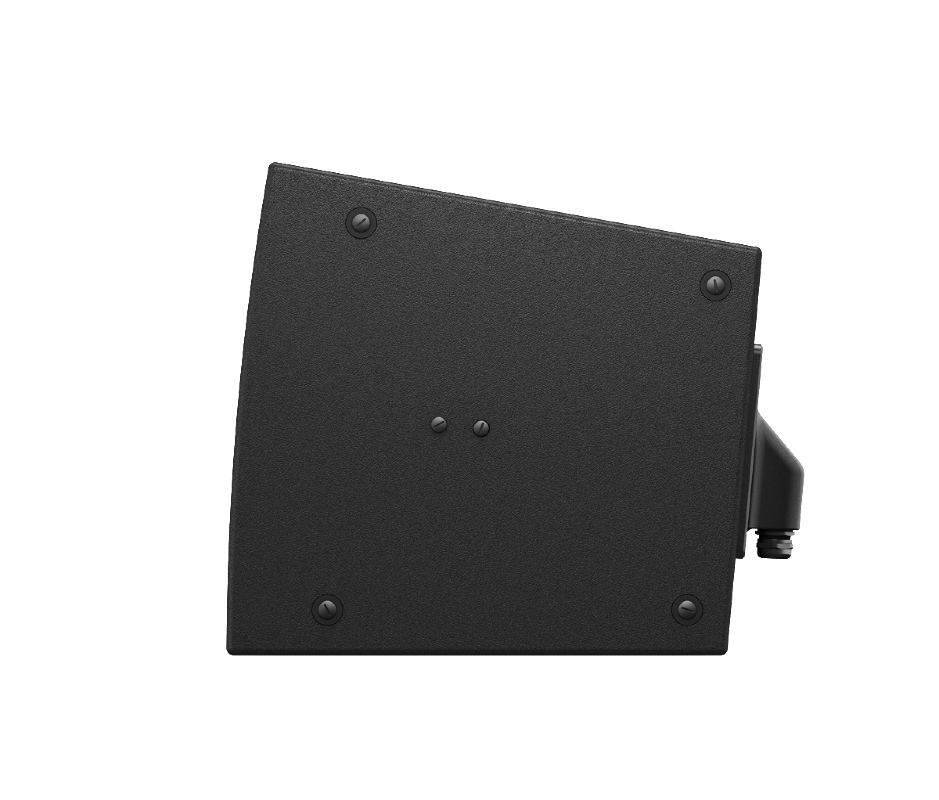

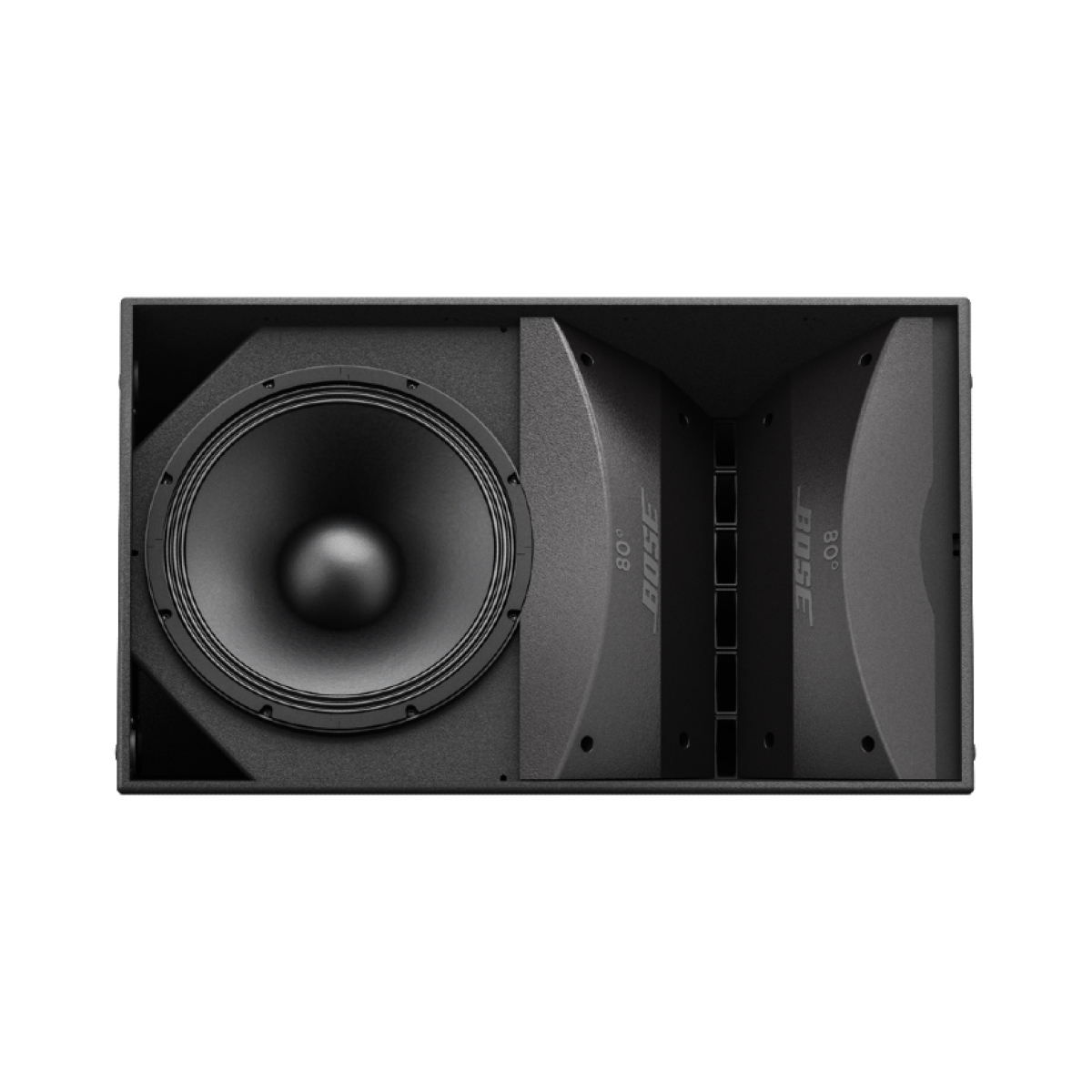

Bose Professional ArenaMatch AM10/60 DeltaQ Array Loudspeaker

The ArenaMatch AM10/60 is a DeltaQ full-range array module designed for high-SPL, outdoor-rated installations such as stadiums, arenas, and large outdoor venues. Featuring a 60° horizontal waveguide and 10° vertical coverage, it delivers consistent sound performance across large spaces.

Key Specifications
• Frequency Response (-3 dB): 65 Hz – 16 kHz
• Frequency Range (-10 dB): 55 Hz – 18 kHz
• Coverage: 60° × 10°
• Recommended High-pass Filter: 60 Hz, 12 dB/octave minimum
• Crossover: 950 Hz; internal passive or external when bi-amped
• Transformer Taps: 70 V (100 W, 200 W, 400 W), 100 V (200 W, 400 W)
• Power Handling (RMS): 750 W
• Power Handling (Peak): 3,000 W
• Sensitivity: ~94 dB (1 W @ 1 m)
• Maximum SPL: ~129 dB peak

Physical / Mechanical
• Dimensions (H × W × D): 409 × 783 × 420 mm (16.1 × 30.8 × 16.5 in)
• Net Weight: 36.3 kg (80 lb)
• Shipping Weight: 43.5 kg (96 lb)
• Enclosure: Exterior-grade birch plywood with two-part polyurea coating (black)

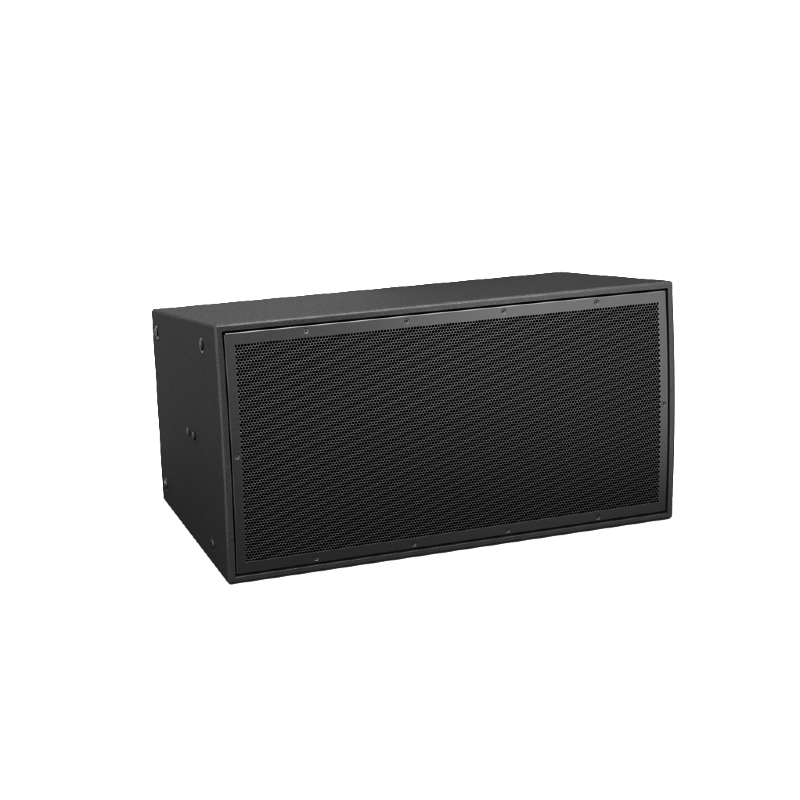

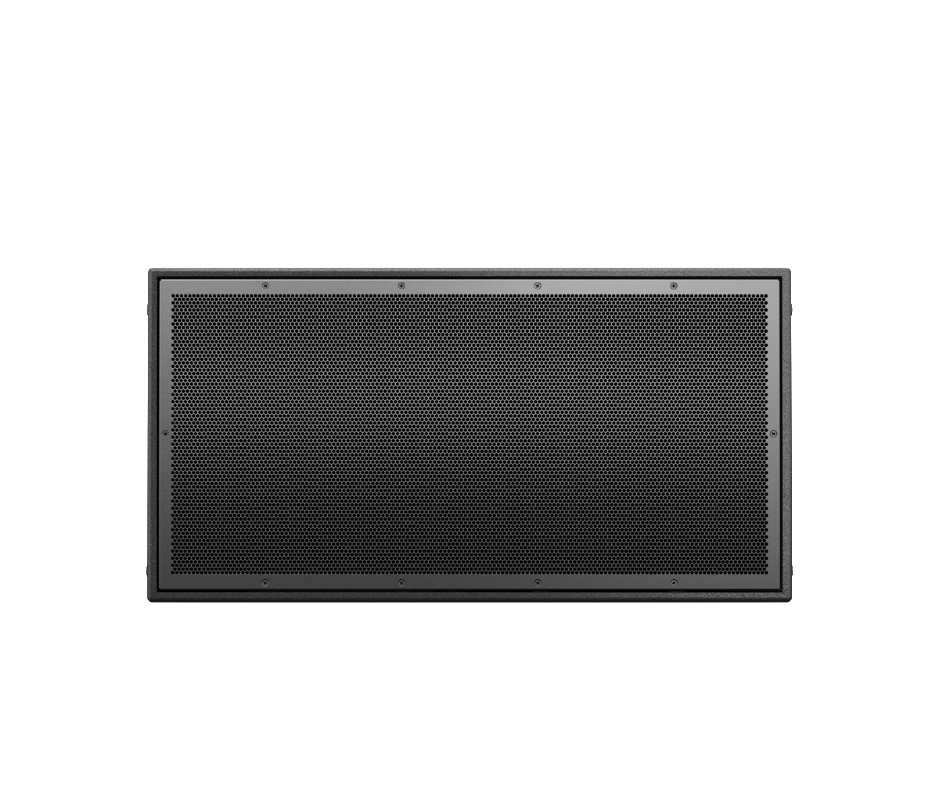

• Grille: Powder-coated stainless steel with acoustic foam and mesh, 3-layer weather protection
• Environmental Rating: IP55 (general outdoor use), IP33C (EN 54-24 for voice alarm/fire systems)
