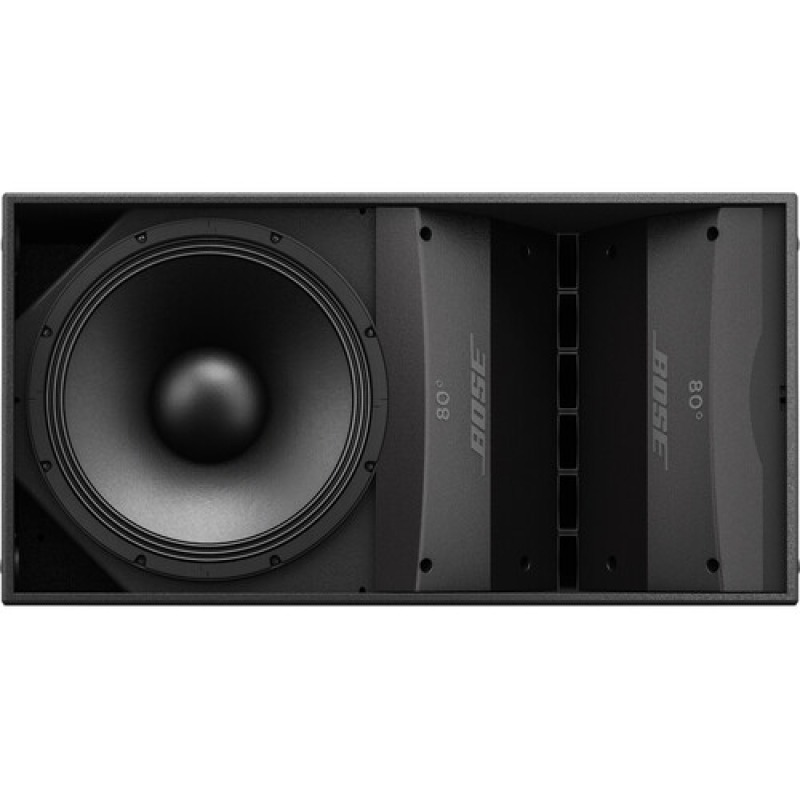

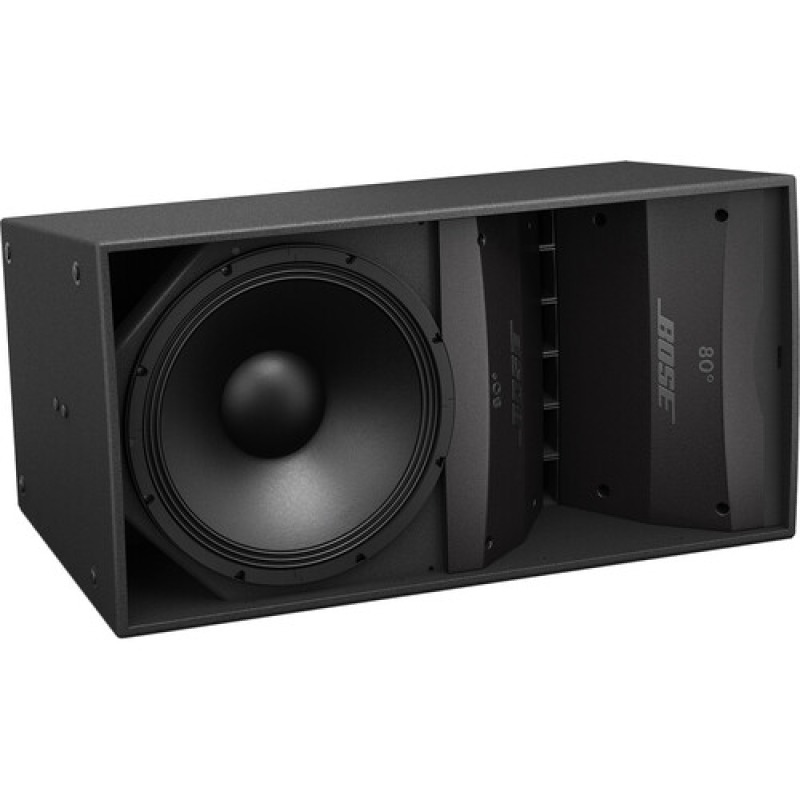

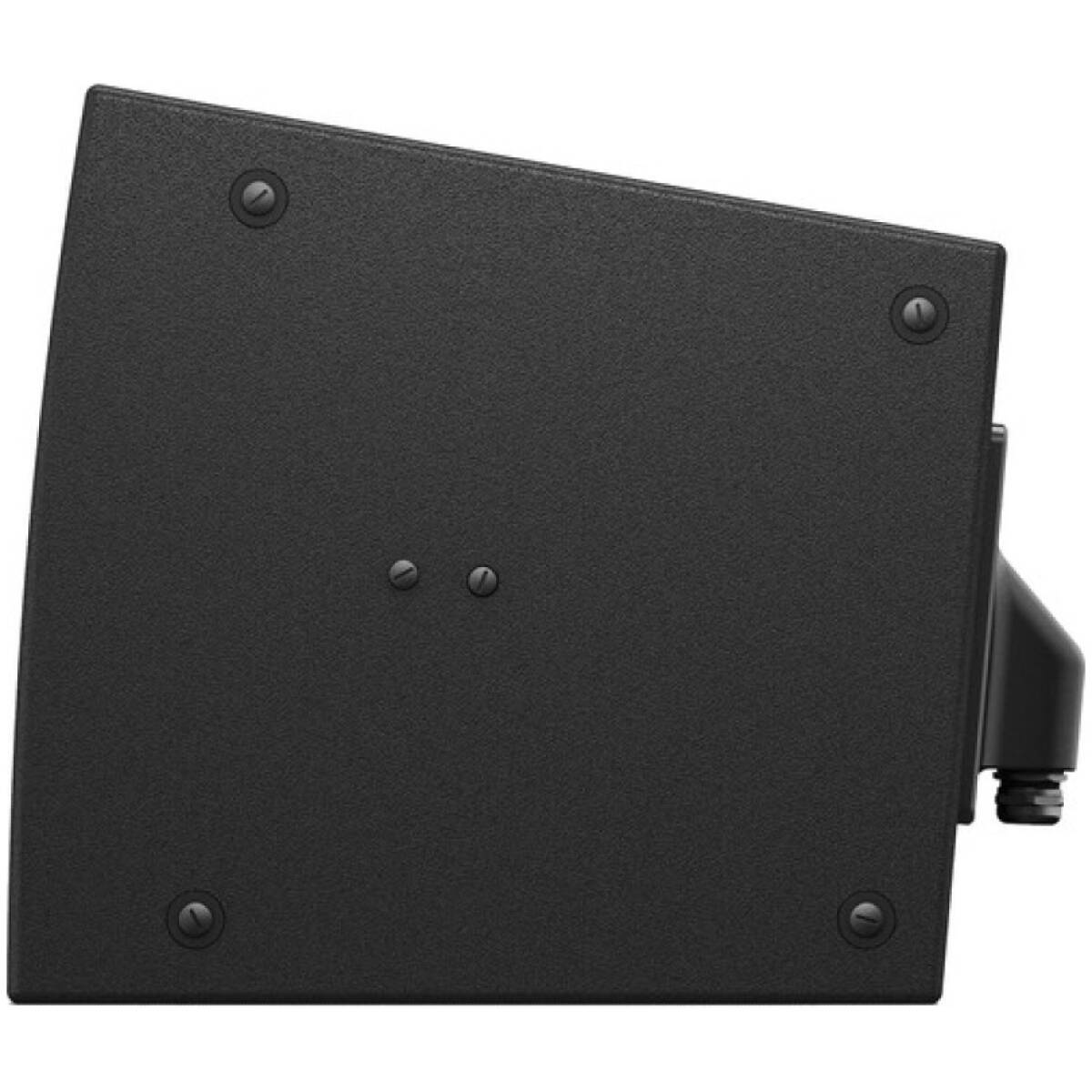

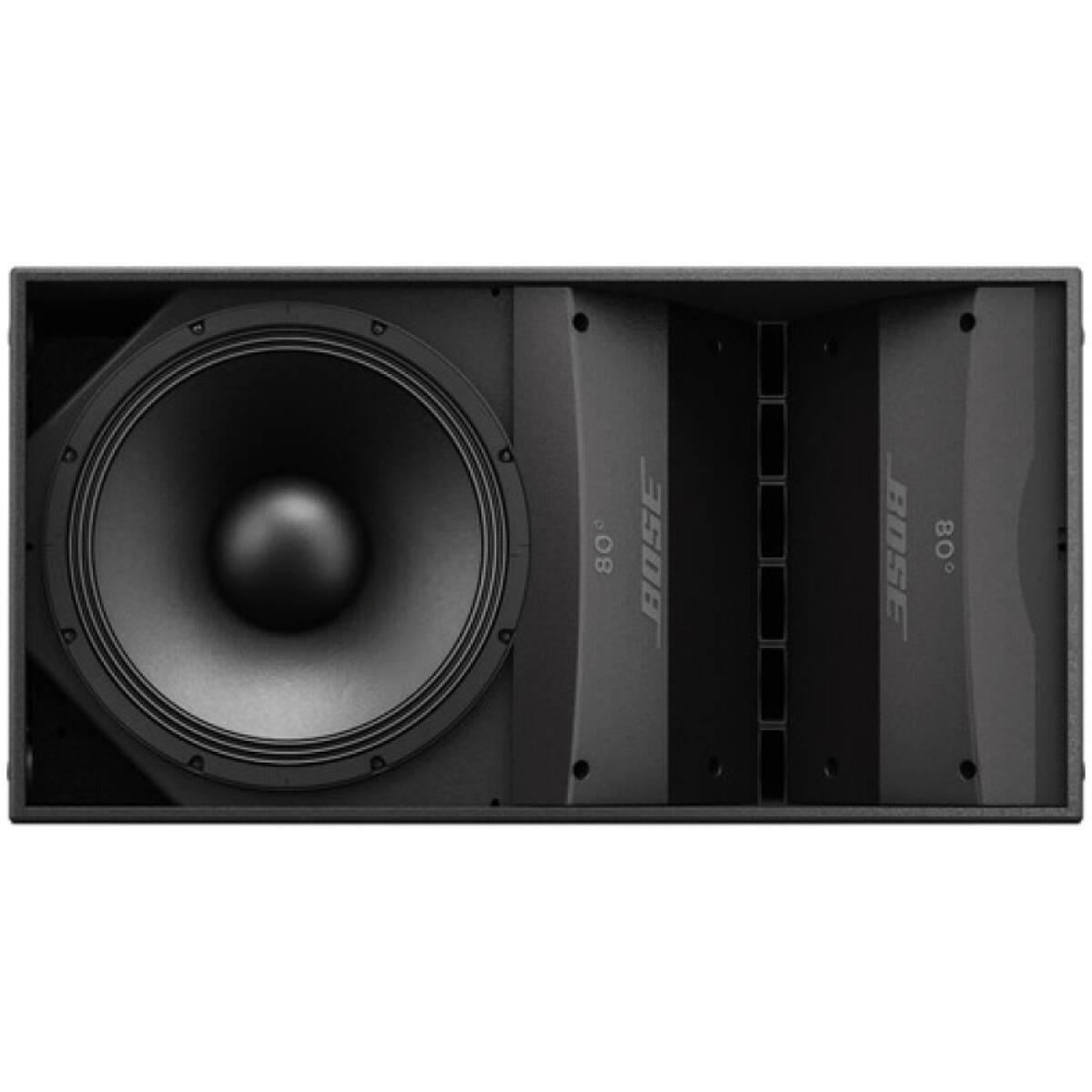

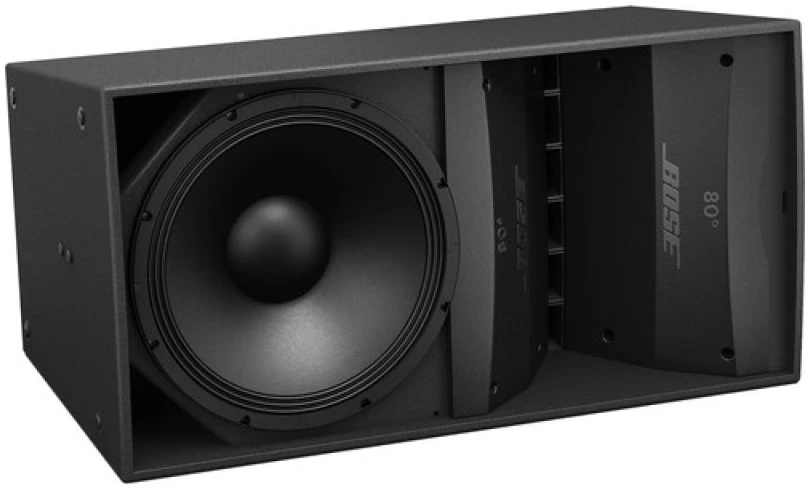

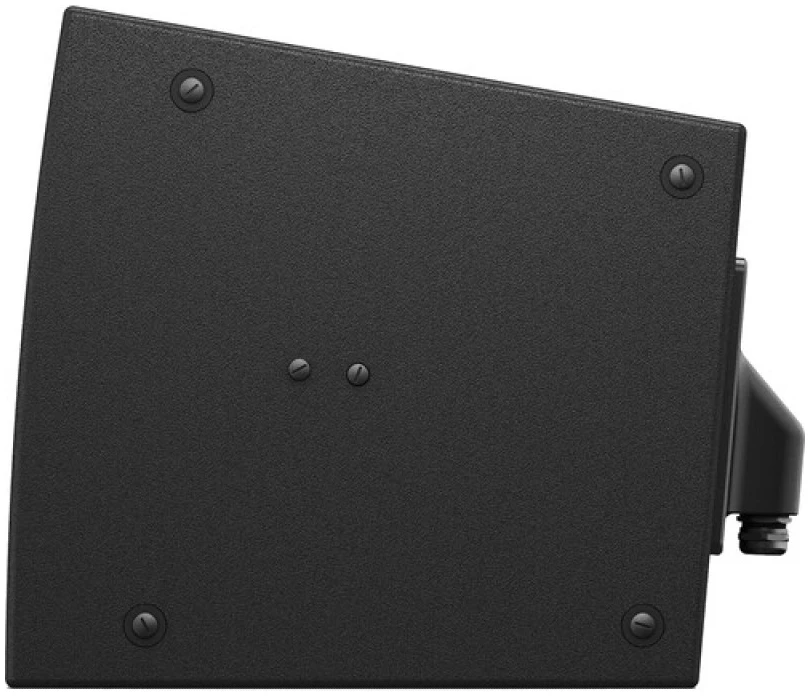

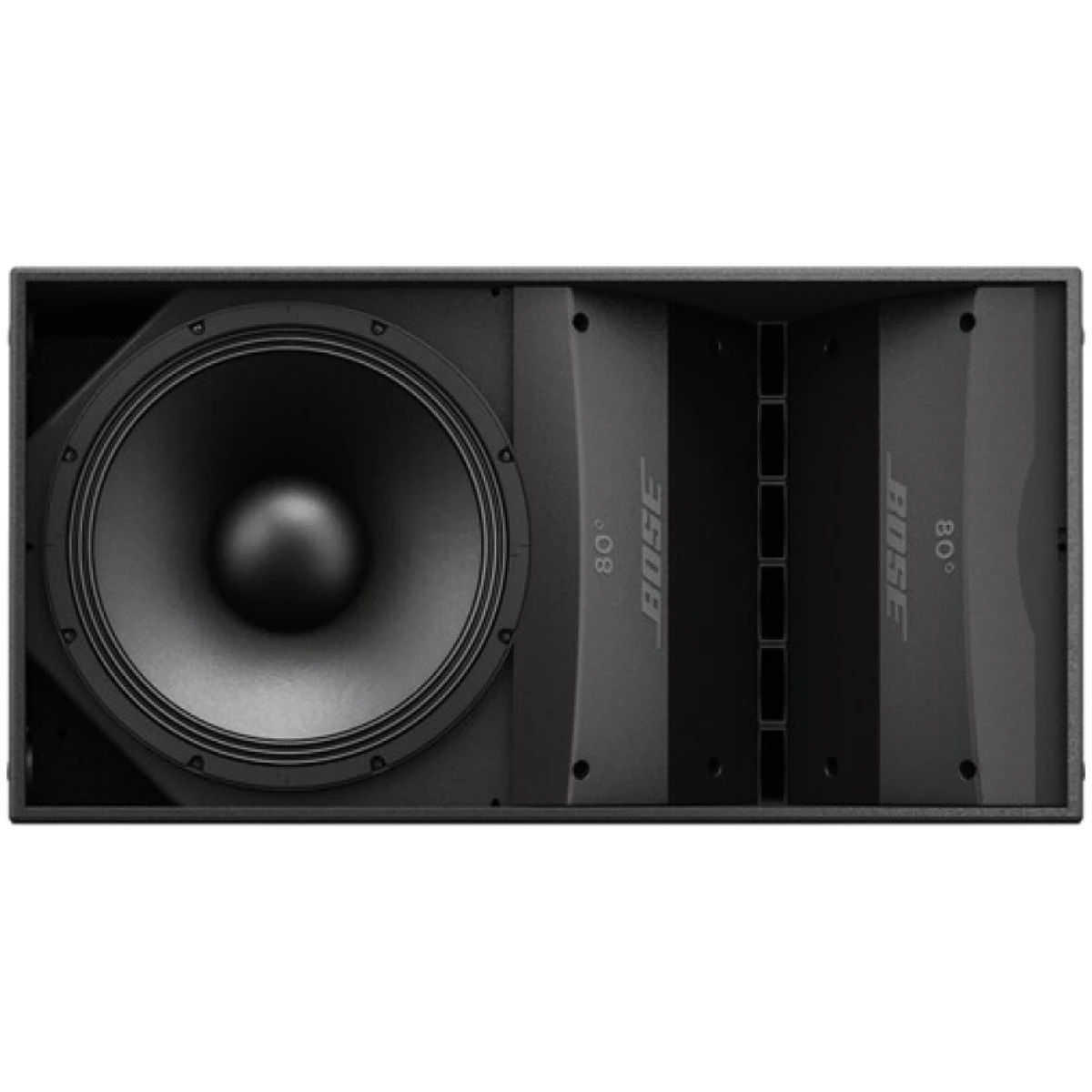

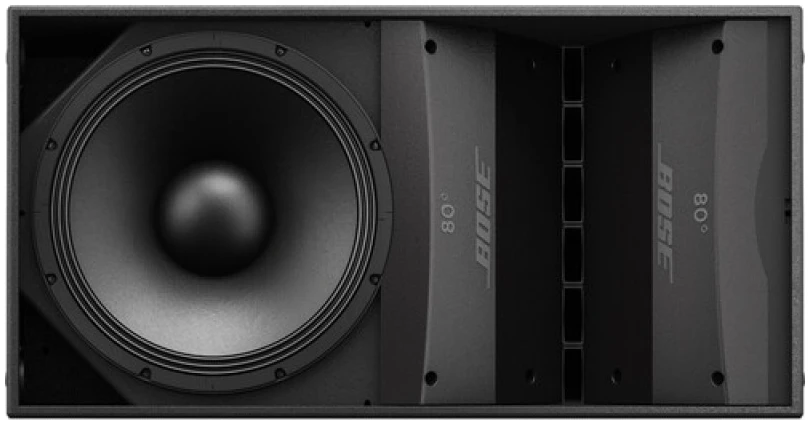

Designed for high-output, outdoor, large-venue applications such as stadiums, arenas, and outdoor entertainment venues, the AM10/80 is a DeltaQ array module that offers wide yet focused horizontal sound coverage (80°) paired with a narrow vertical (10°), enabling consistent coverage and high intelligibility across long throws.
Key Specifications
- Frequency Response (-3 dB): 65 Hz – 16 kHz
- Frequency Range (-10 dB): 55 Hz – 18 kHz
- Coverage Pattern (Horizontal × Vertical): 80° × 10°
- Recommended High-pass Filter: 60 Hz, minimum 12 dB/octave
- Crossover Frequency: 950 Hz; internal passive or external when bi-amped
- Transformer / Multitap Options (70 V / 100 V):
• 70 V taps: 100 W, 200 W, 400 W
• 100 V taps: 200 W, 400 W
Power & Performance
- Long-term (continuous) power handling: 750 W RMS (passive low-impedance mode)
- Peak power handling: 3,000 W
- Sensitivity (1 W @ 1 m): ~106 dB (HF component) / ~≤100 dB depending on mode
- Maximum SPL (1 m, peak): ~127-129 dB depending on configuration
Physical & Environmental
- Dimensions (H × W × D): 409 × 783 × 420 mm (≈ 16.1 × 30.8 × 16.5 in)
- Net Weight: 36.3 kg (≈ 80 lb)
- Shipping Weight: 43.5 kg (≈ 96 lb)
- Enclosure Materials & Finish: Exterior-grade birch plywood with two-part polyurea coating (black)

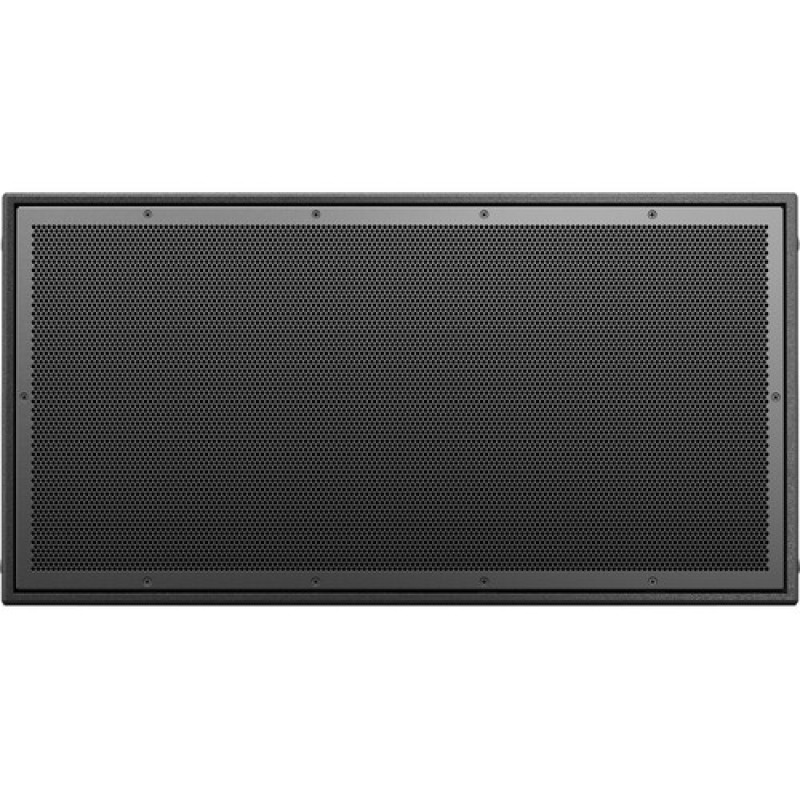

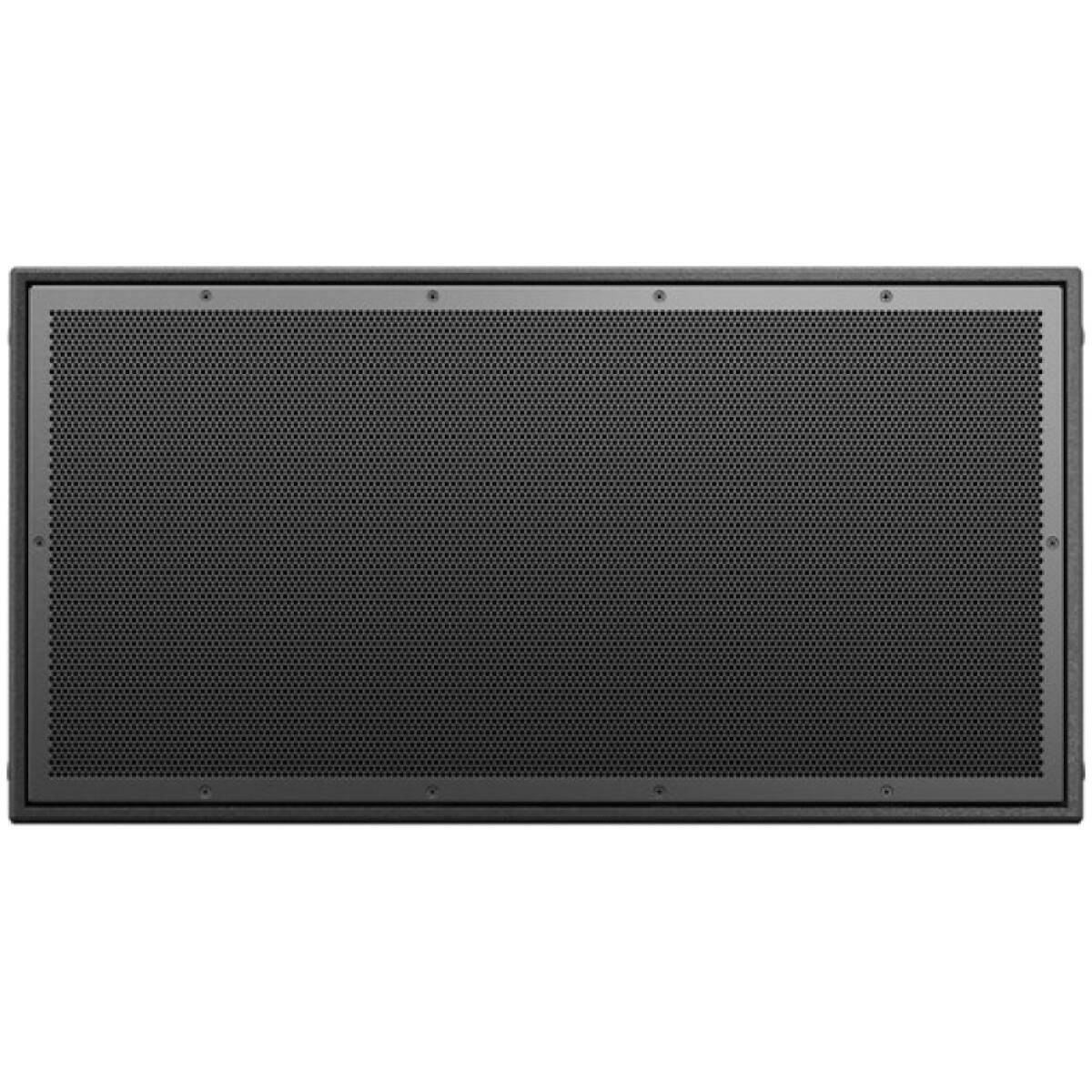

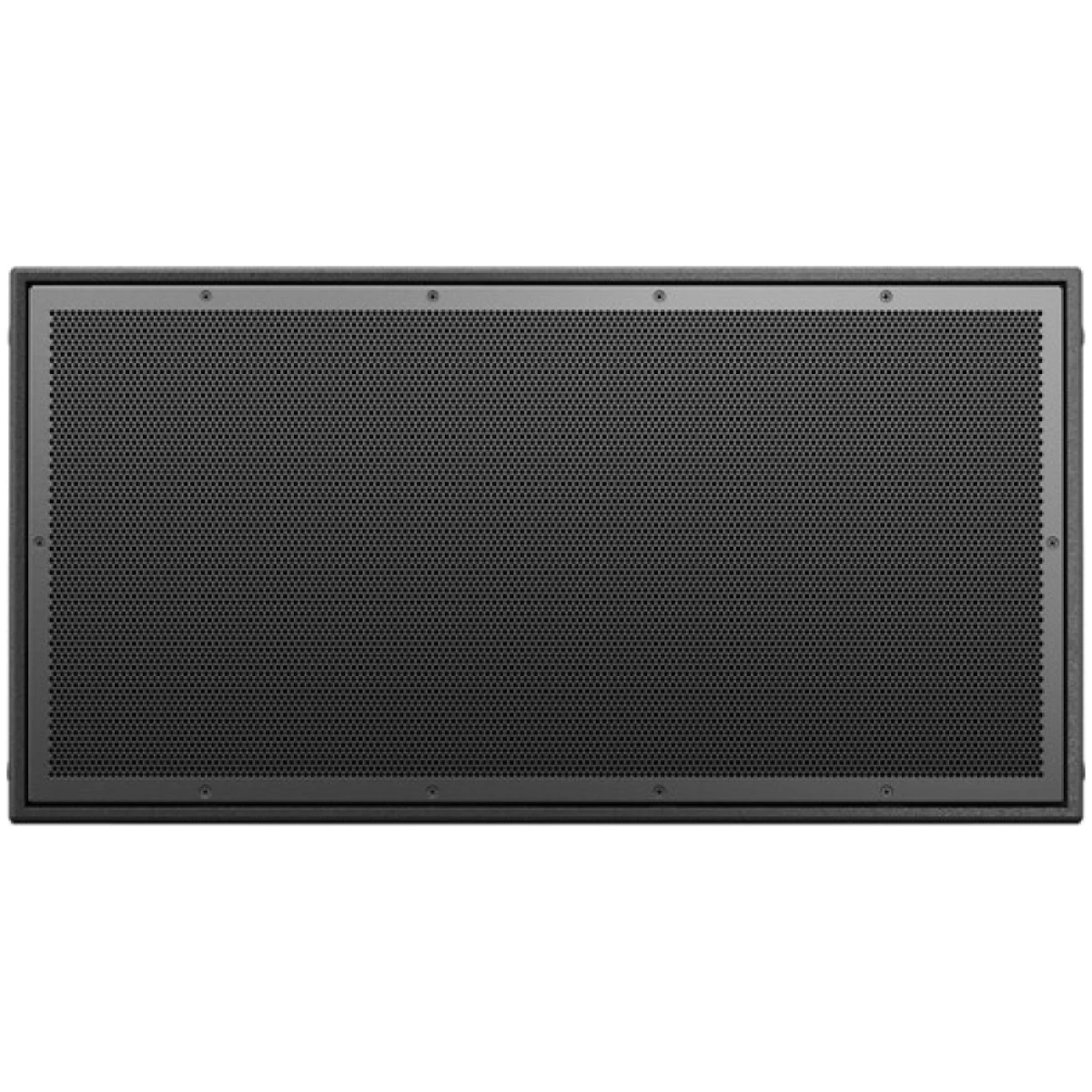

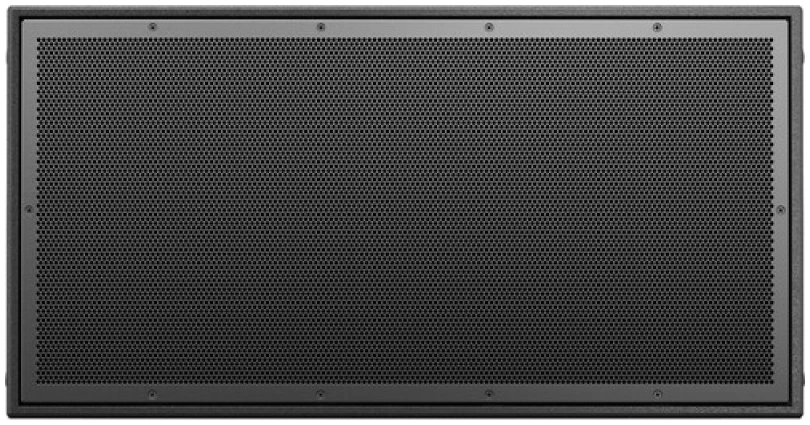

- Grille: Powder-coated perforated stainless steel with acoustic foam & stainless steel mesh, designed for weather protection
- Environmental Rating: IP55 (outdoor/dust & water resistance) per EN60529; IP33C under EN54-24 for voice alarm/fire-system usage
