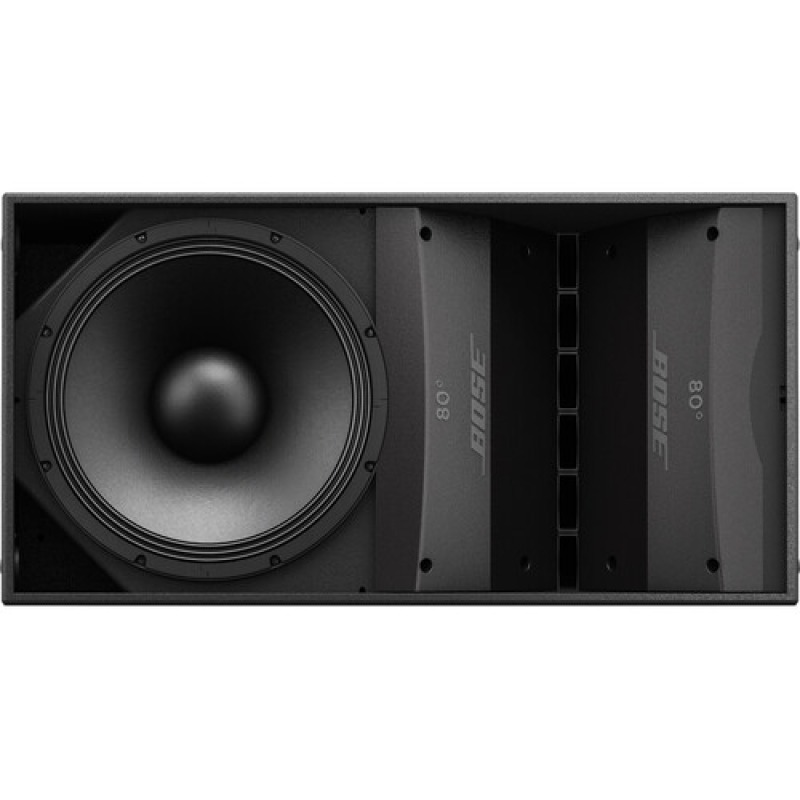

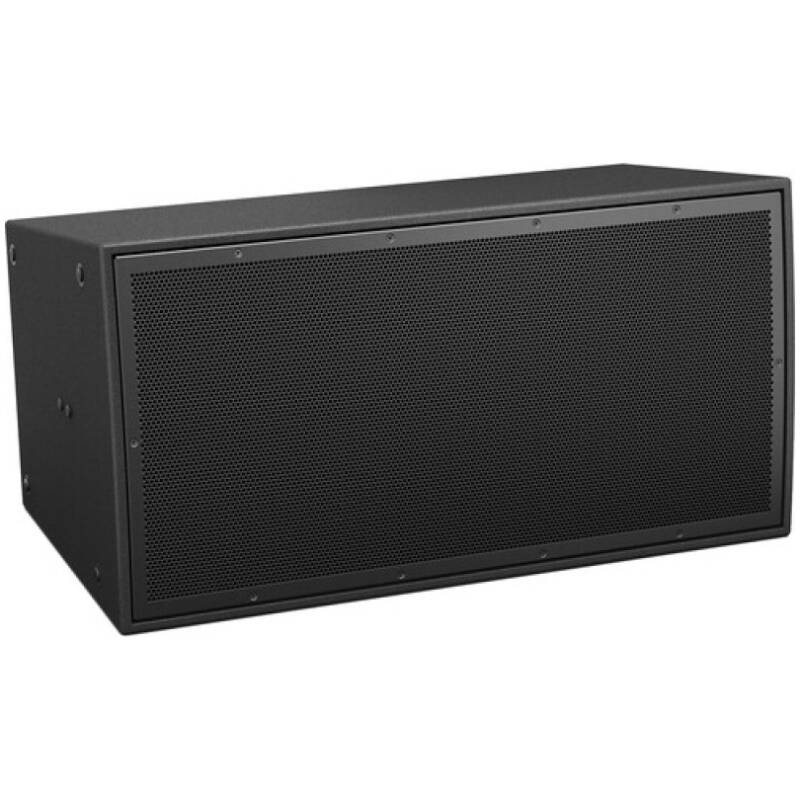

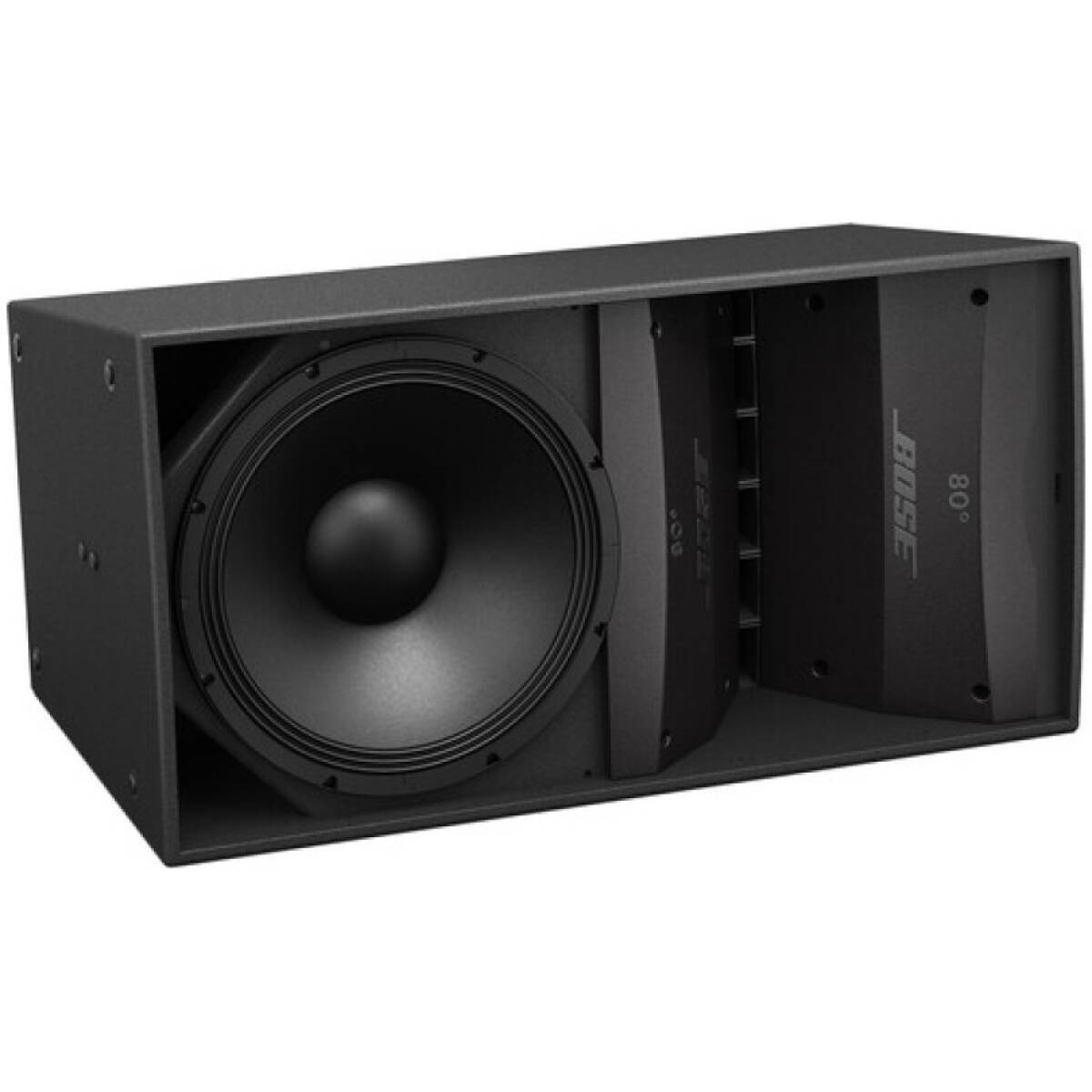

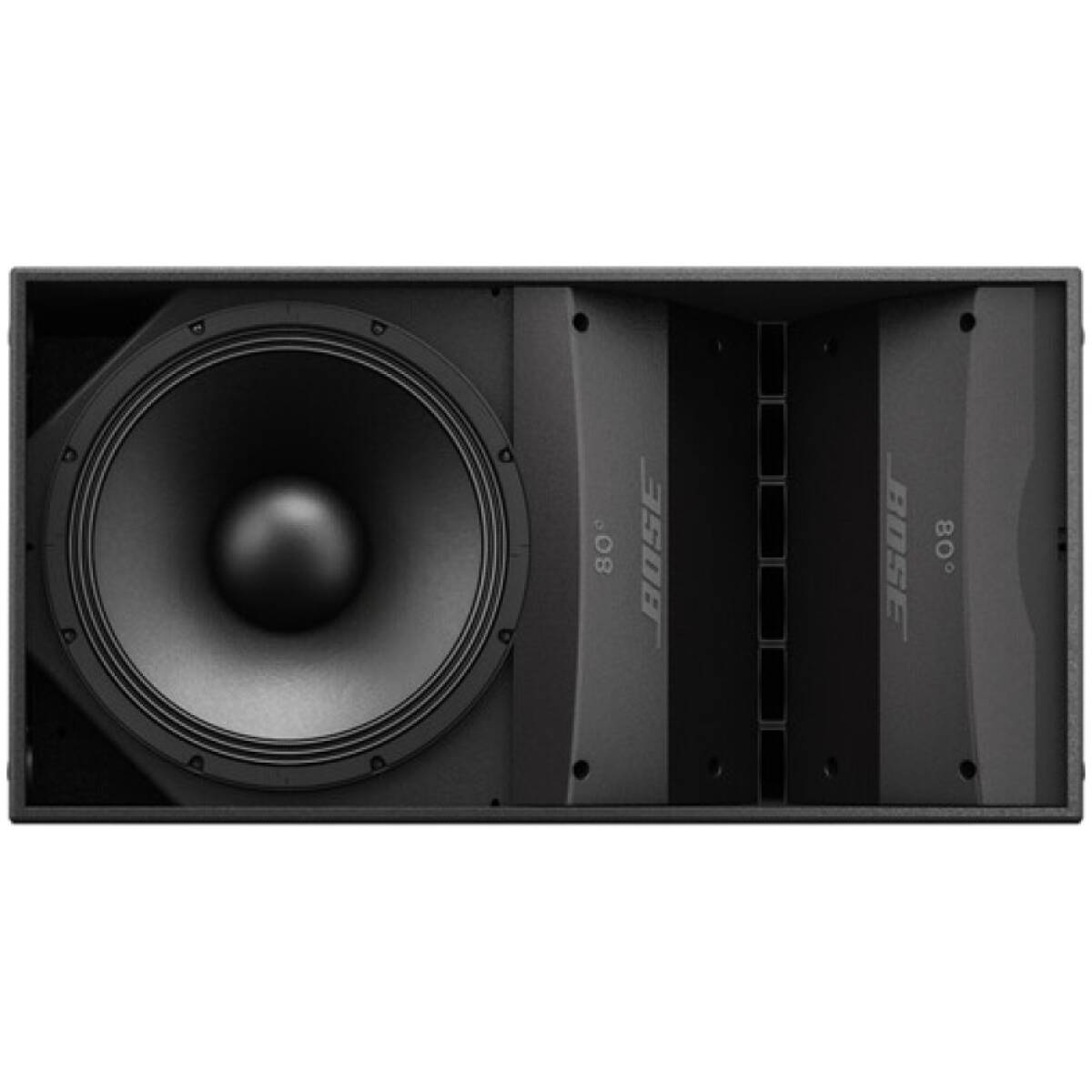

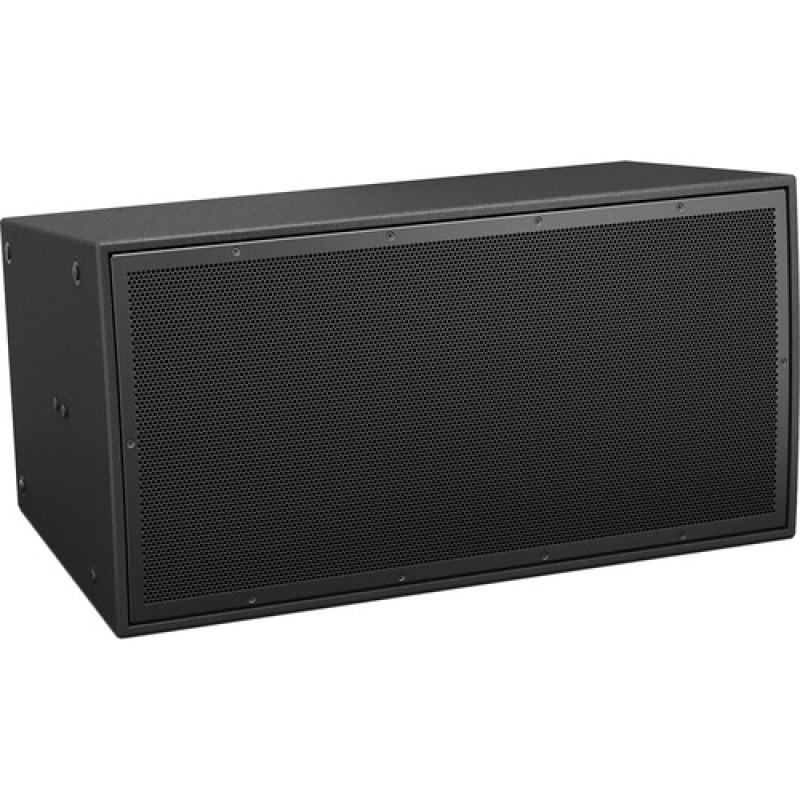

The ArenaMatch AM20/80 is a DeltaQ array module designed for outdoor-rated, medium- to long-throw sound reinforcement in stadiums, arenas, and other large venues. With an 80° horizontal waveguide and 20° vertical coverage, it delivers a wider horizontal dispersion than the AM20/60, reducing the number of arrays needed while maintaining consistent clarity and projection.
Key Specifications
• Frequency Response (-3 dB): 75 Hz – 16 kHz
• Frequency Range (-10 dB): 65 Hz – 18 kHz
• Nominal Coverage Pattern: 80° × 20°
• Recommended High-Pass Filter: 70 Hz, 12 dB/octave minimum
• Crossover: 850 Hz; internal passive or external when bi-amped
• Transformer Taps: 70 V (100 W, 200 W, 400 W), 100 V (200 W, 400 W)
Power and Performance
• Long-term Power Handling (RMS): 900 W
• Peak Power Handling: 3,600 W
• Sensitivity (1 W @ 1 m): ~98 dB
• Maximum SPL: ~128–129 dB peak
Physical and Mechanical
• Dimensions (H × W × D): 778 × 783 × 420 mm (30.6 × 30.8 × 16.5 in)
• Net Weight: 52.2 kg (115 lb)
• Shipping Weight: ~59 kg (130 lb)

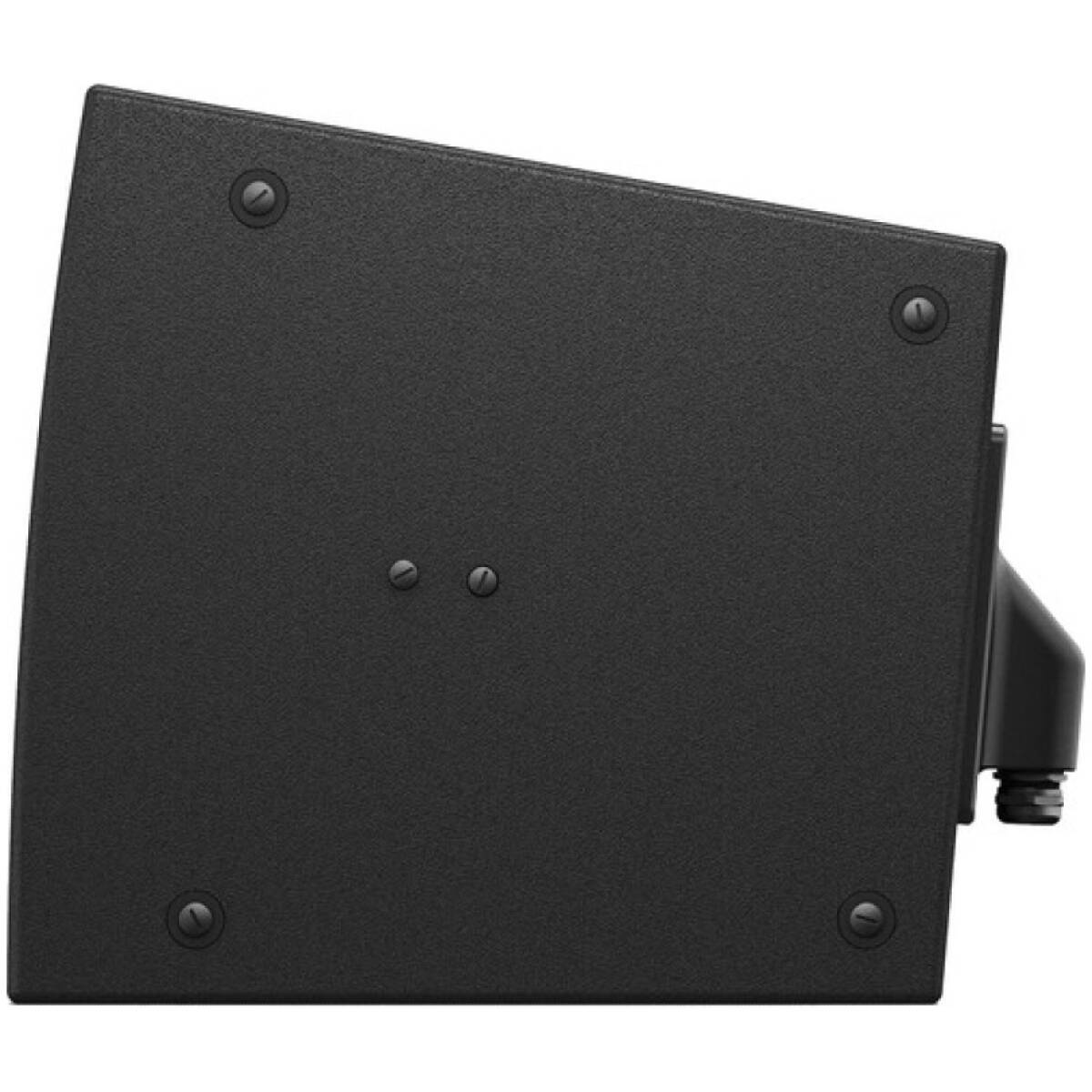

• Enclosure: Exterior-grade birch plywood with two-part polyurea coating, black finish

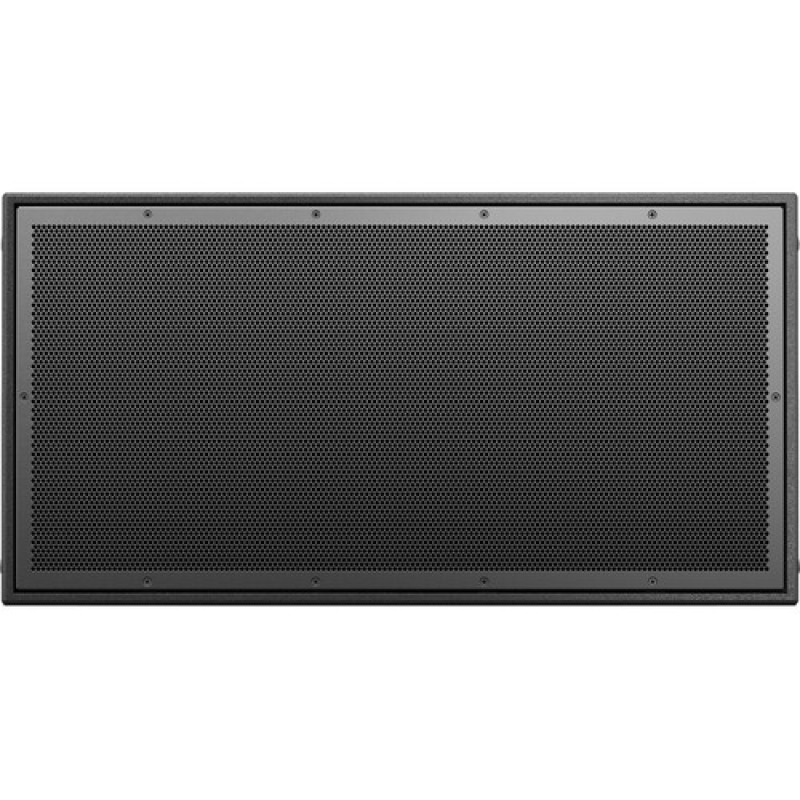

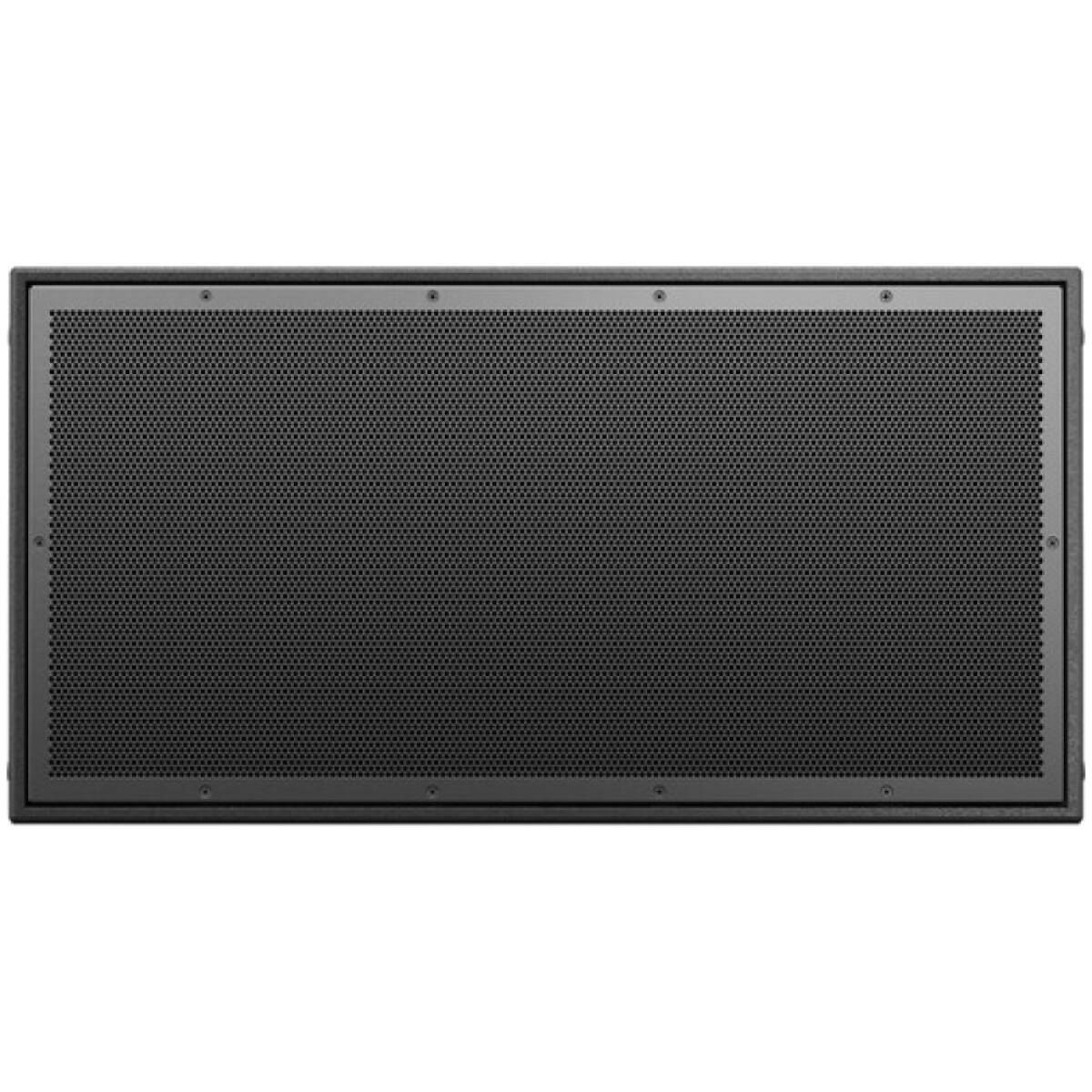

• Grille: Powder-coated stainless steel with acoustic foam and stainless steel mesh, three-layer weather protection
• Environmental Rating: IP55 for outdoor use, IP33C under EN54-24 for voice alarm and fire-system applications
