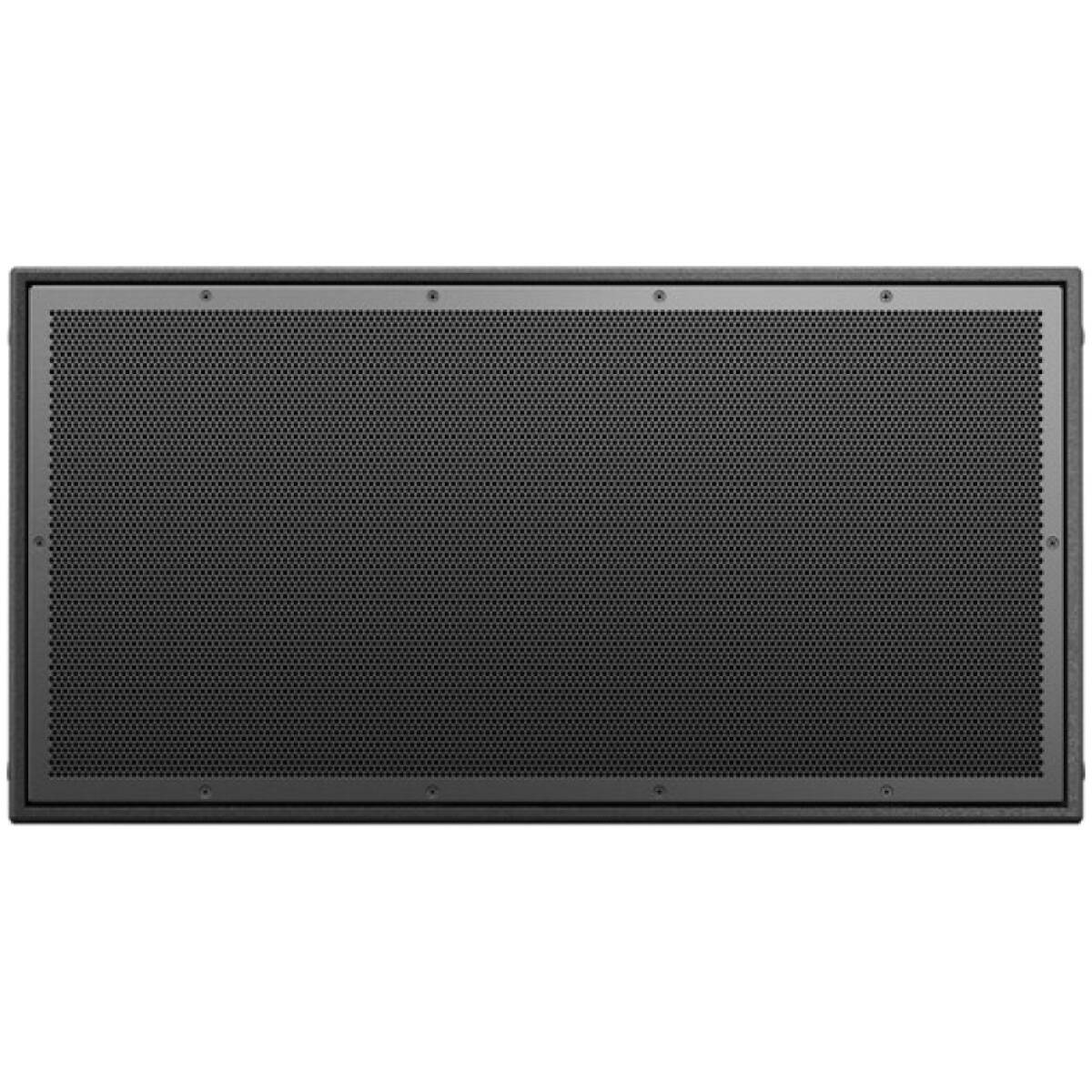

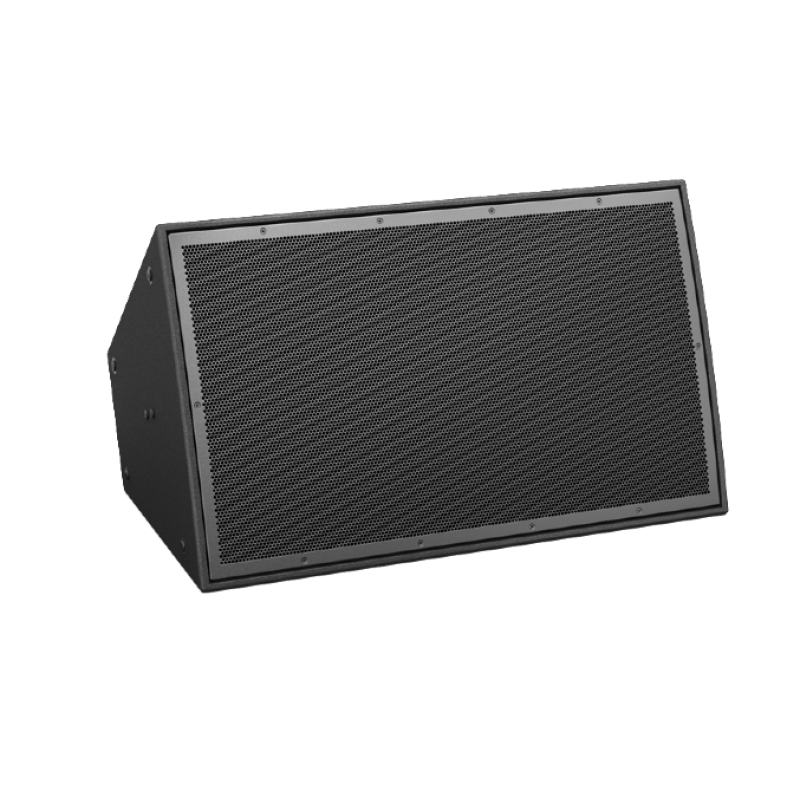

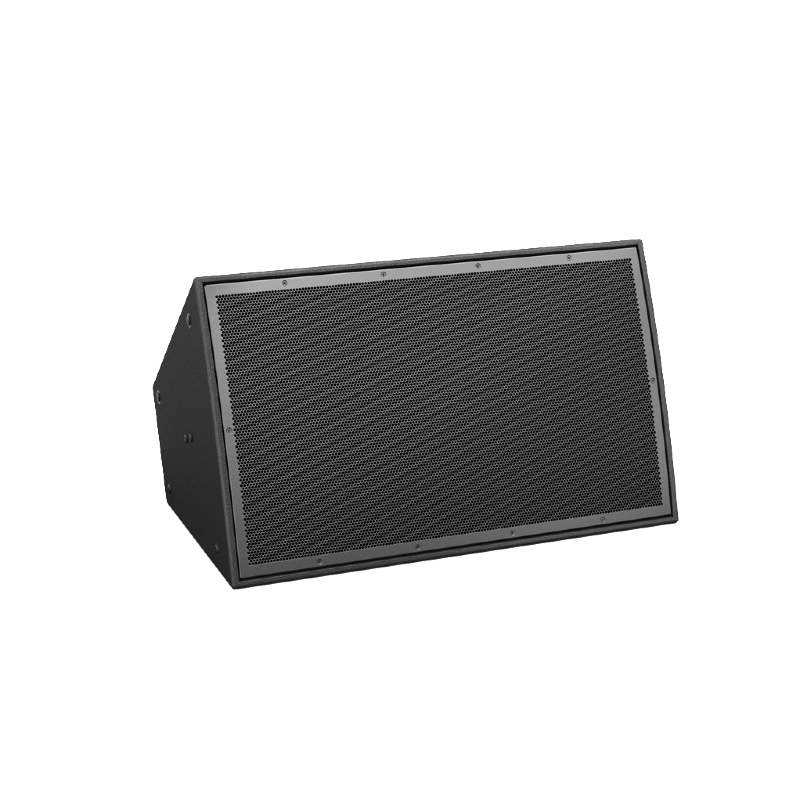

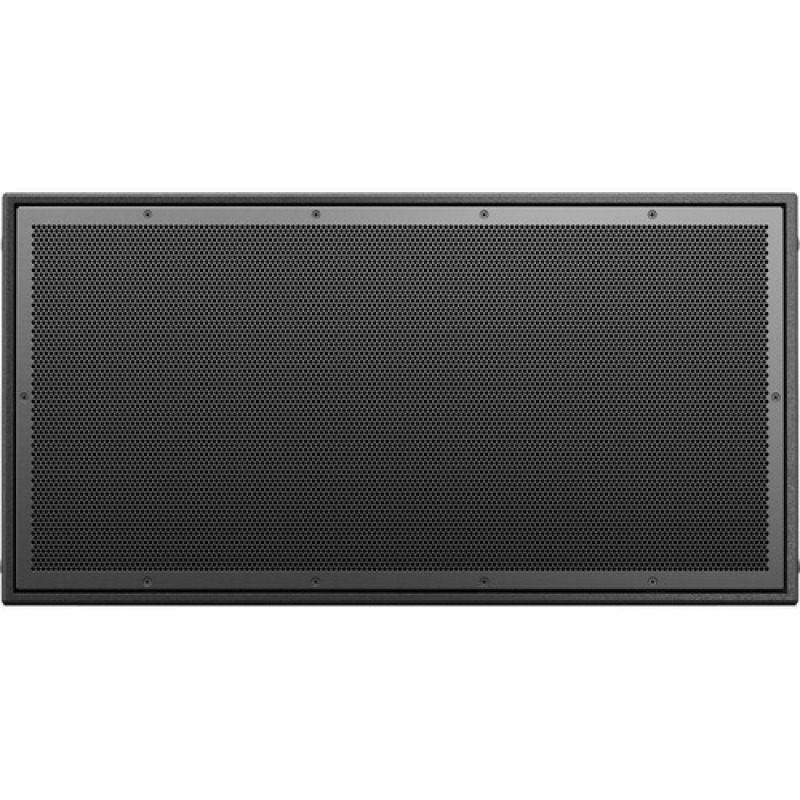

The ArenaMatch AM40/100 is the widest-coverage model in the AM40 family, designed for long-throw, high-SPL applications in stadiums, arenas, and other large outdoor venues. With a 100° horizontal waveguide and 40° vertical coverage, it delivers the broadest horizontal dispersion, ensuring powerful, consistent sound across very wide audience areas while minimizing the number of modules required.
Key Specifications
• Frequency Response (-3 dB): 80 Hz – 16 kHz
• Frequency Range (-10 dB): 70 Hz – 18 kHz
• Nominal Coverage Pattern: 100° × 40°
• Recommended High-Pass Filter: 80 Hz, 12 dB/octave minimum
• Crossover: 800 Hz; internal passive or external when bi-amped
• Transformer Taps: 70 V (100 W, 200 W, 400 W), 100 V (200 W, 400 W)
Power and Performance
• Long-term Power Handling (RMS): 1,200 W
• Peak Power Handling: 4,800 W
• Sensitivity (1 W @ 1 m): ~97 dB
• Maximum SPL: ~130 dB peak
Physical and Mechanical
• Dimensions (H × W × D): 1,147 × 783 × 420 mm (45.2 × 30.8 × 16.5 in)
• Net Weight: 68.5 kg (151 lb)
• Shipping Weight: ~75 kg (165 lb)
• Enclosure: Exterior-grade birch plywood with two-part polyurea coating, black finish
• Grille: Powder-coated stainless steel with acoustic foam and stainless steel mesh, three-layer weather protection
• Environmental Rating: IP55 for outdoor use, IP33C under EN54-24 for voice alarm and fire-system applications
