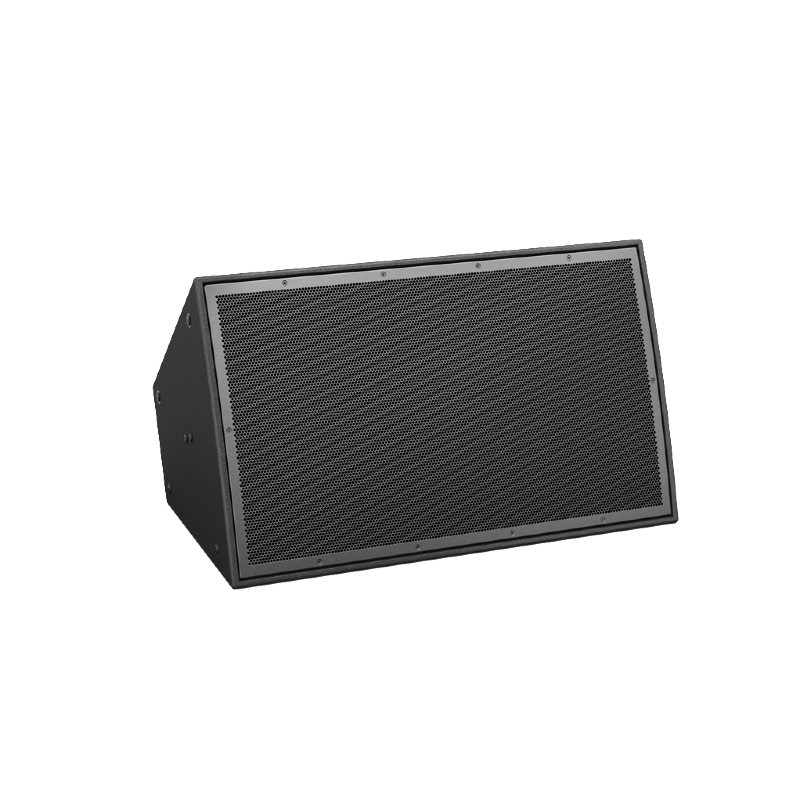

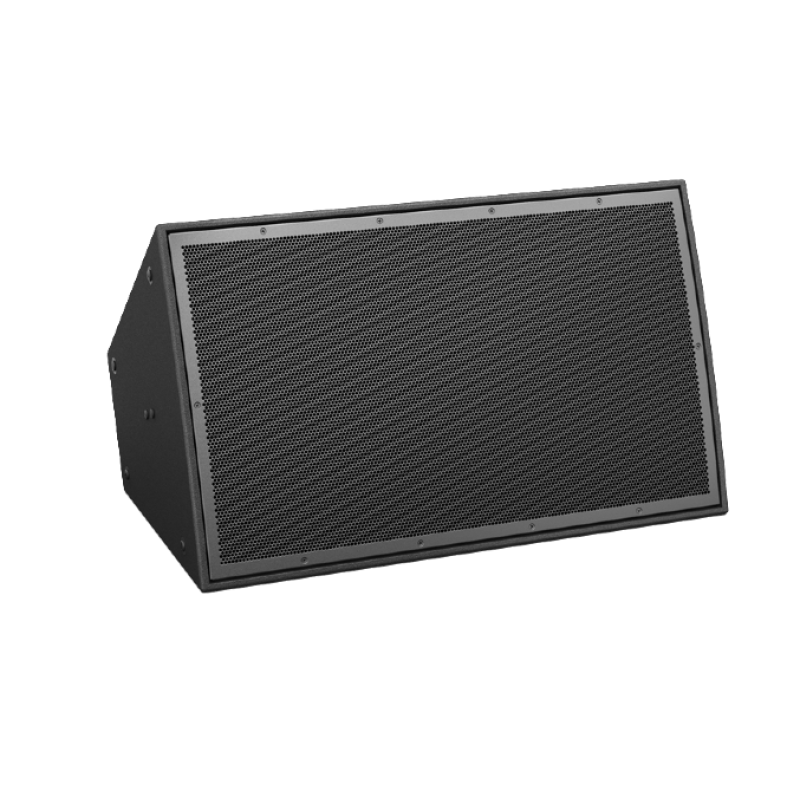

The ArenaMatch AM40/60 is the largest full-range module in the ArenaMatch family, designed for long-throw, high-SPL applications in stadiums, arenas, and outdoor performance venues. Featuring a 60° horizontal waveguide and 40° vertical coverage, the AM40/60 is ideal where greater vertical dispersion is required, reducing the number of modules needed per array while maintaining powerful, consistent coverage.
Key Specifications
• Frequency Response (-3 dB): 80 Hz – 16 kHz
• Frequency Range (-10 dB): 70 Hz – 18 kHz
• Nominal Coverage Pattern: 60° × 40°
• Recommended High-Pass Filter: 80 Hz, 12 dB/octave minimum
• Crossover: 800 Hz; internal passive or external when bi-amped
• Transformer Taps: 70 V (100 W, 200 W, 400 W), 100 V (200 W, 400 W)
Power and Performance
• Long-term Power Handling (RMS): 1,200 W
• Peak Power Handling: 4,800 W
• Sensitivity (1 W @ 1 m): ~98 dB
• Maximum SPL: ~131 dB peak
Physical and Mechanical
• Dimensions (H × W × D): 1,147 × 783 × 420 mm (45.2 × 30.8 × 16.5 in)
• Net Weight: 68.5 kg (151 lb)
• Shipping Weight: ~75 kg (165 lb)

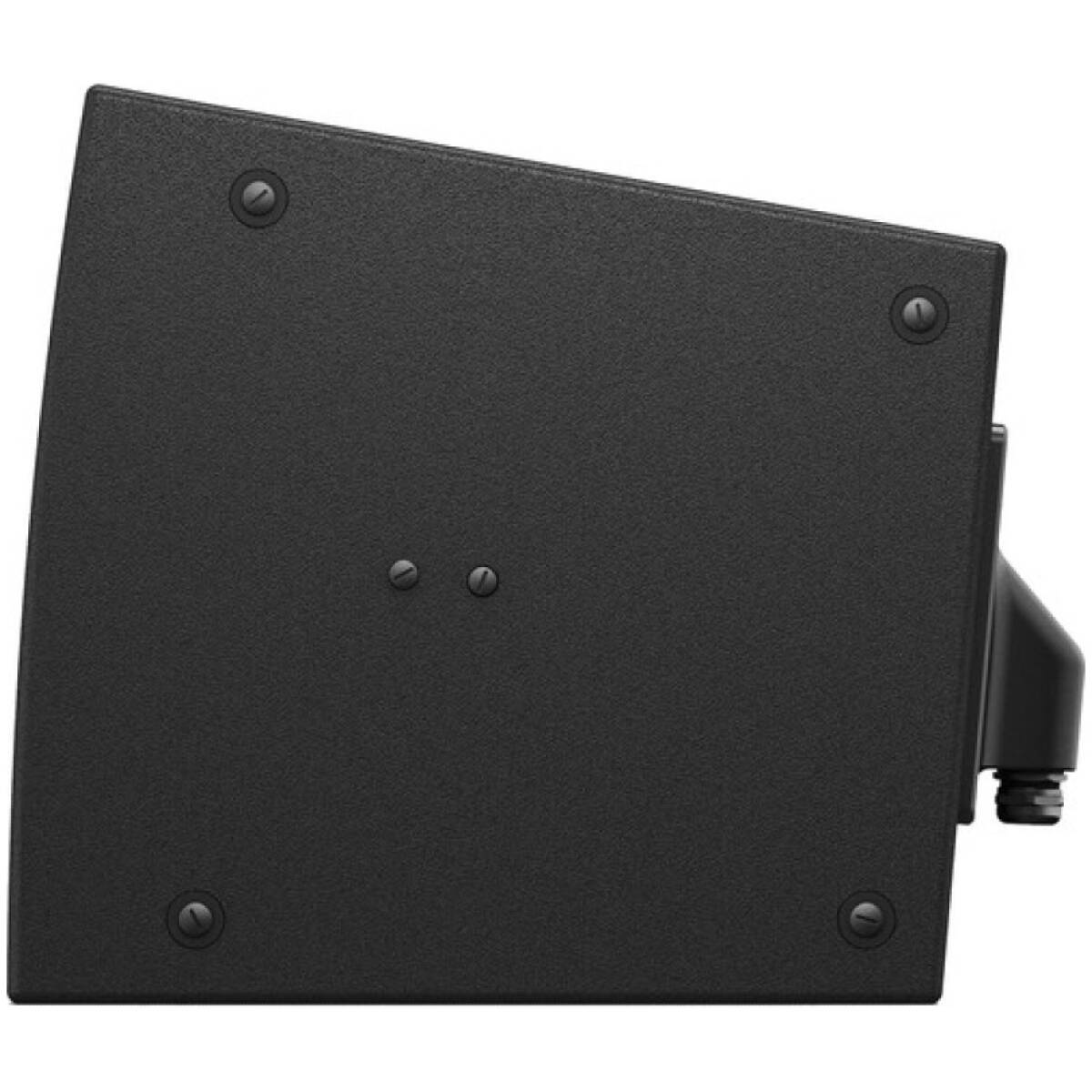

• Enclosure: Exterior-grade birch plywood with two-part polyurea coating, black finish

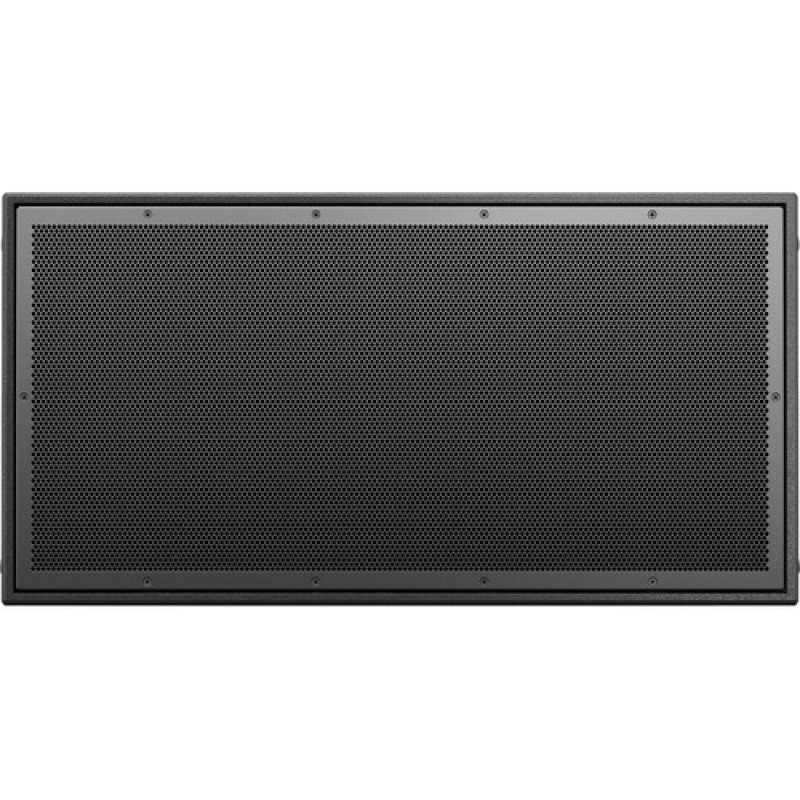

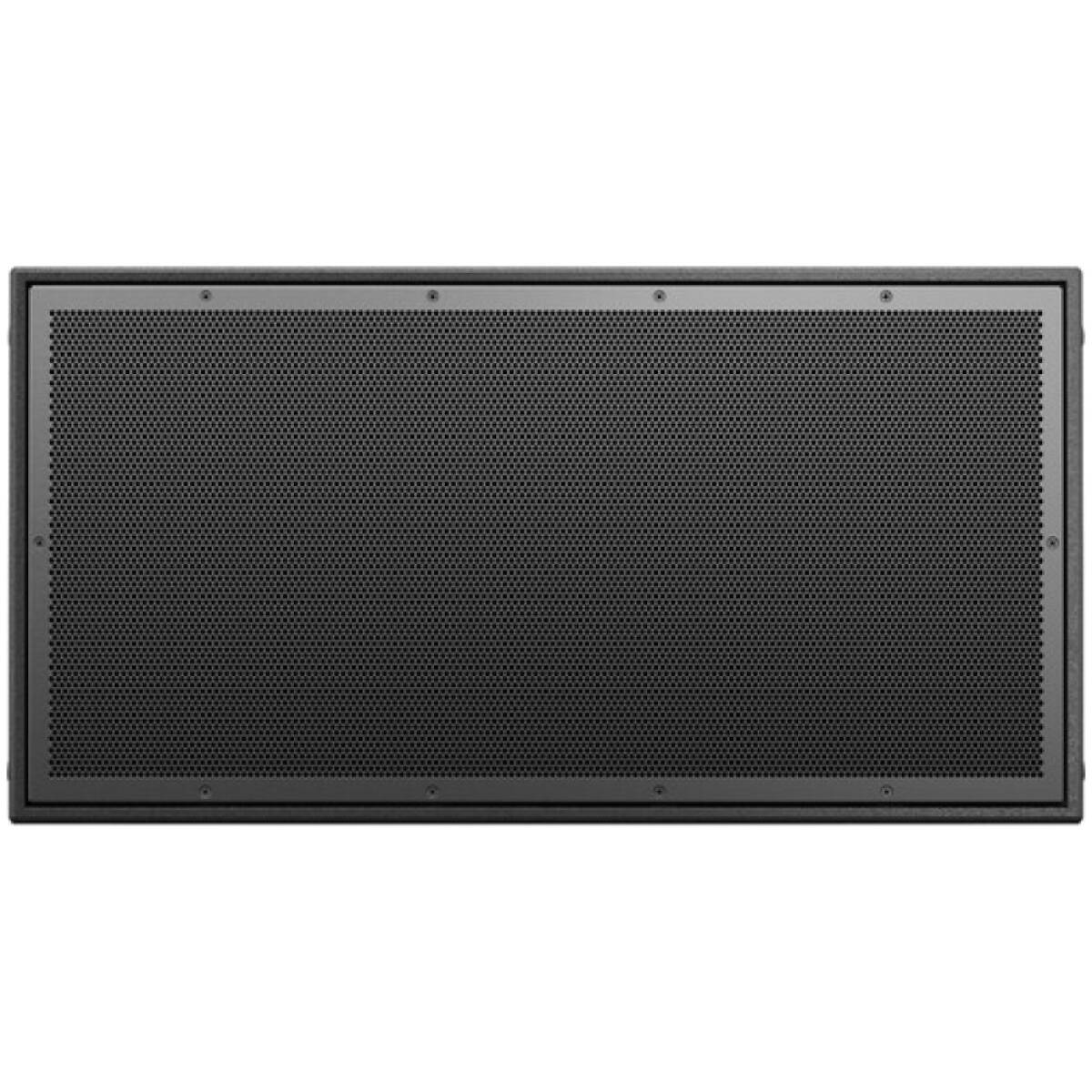

• Grille: Powder-coated stainless steel with acoustic foam and stainless steel mesh, three-layer weather protection
• Environmental Rating: IP55 for outdoor use, IP33C under EN54-24 for voice alarm and fire-system applications
