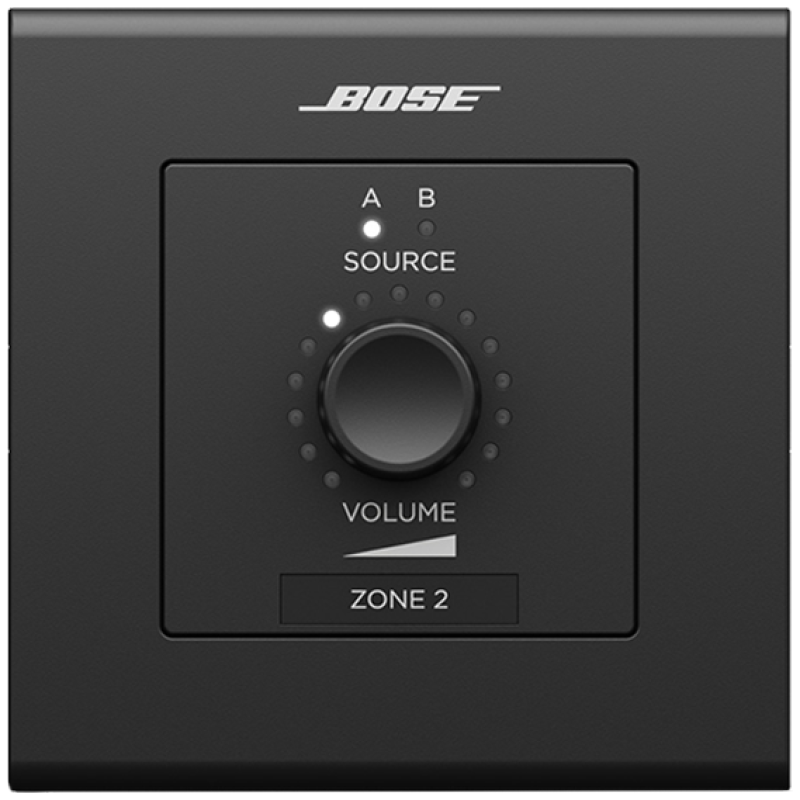

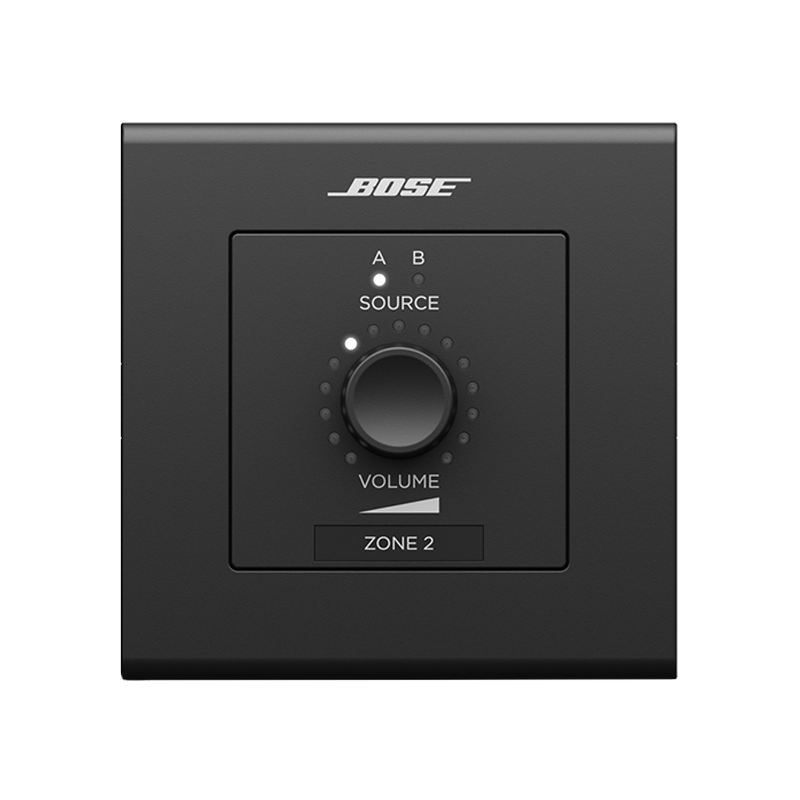

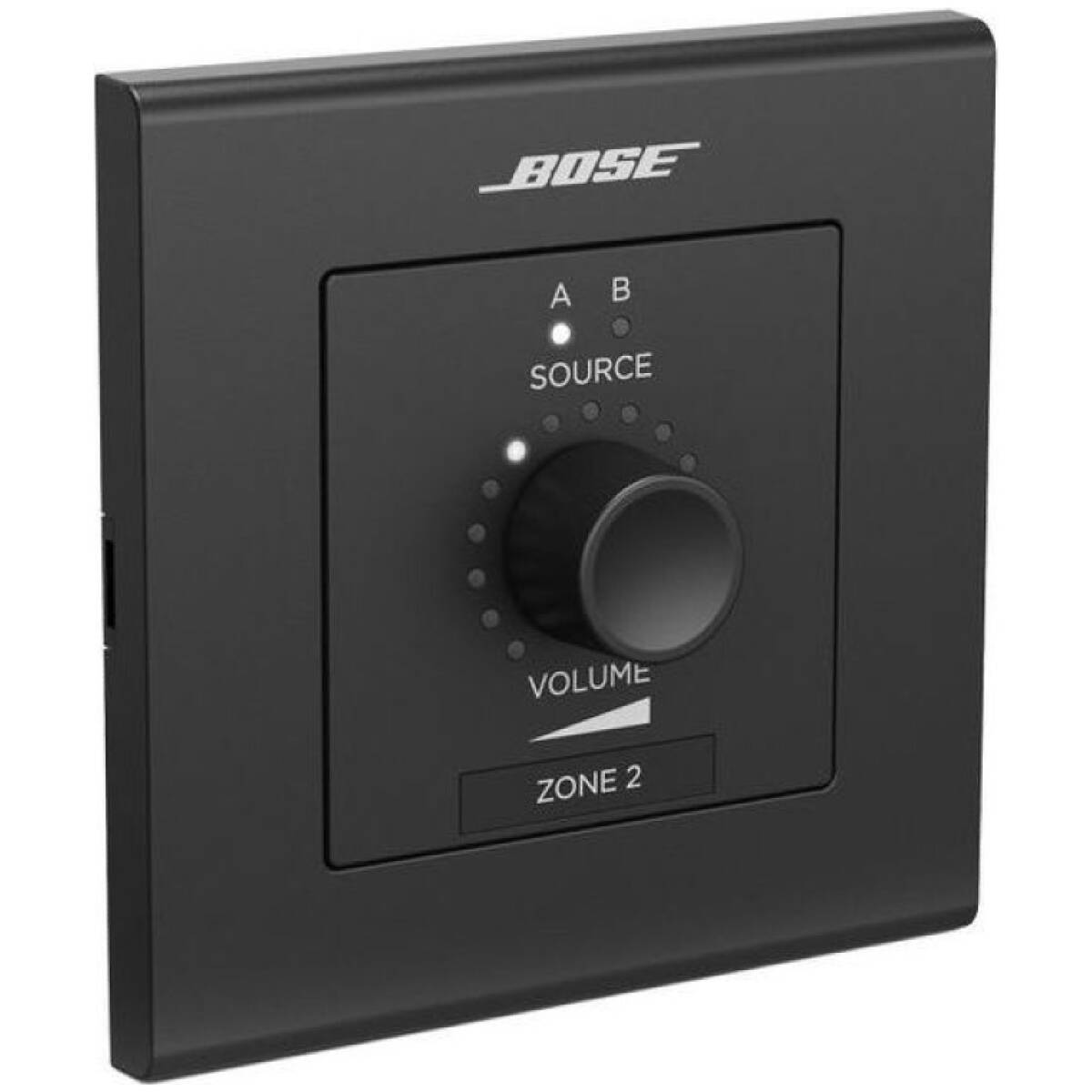

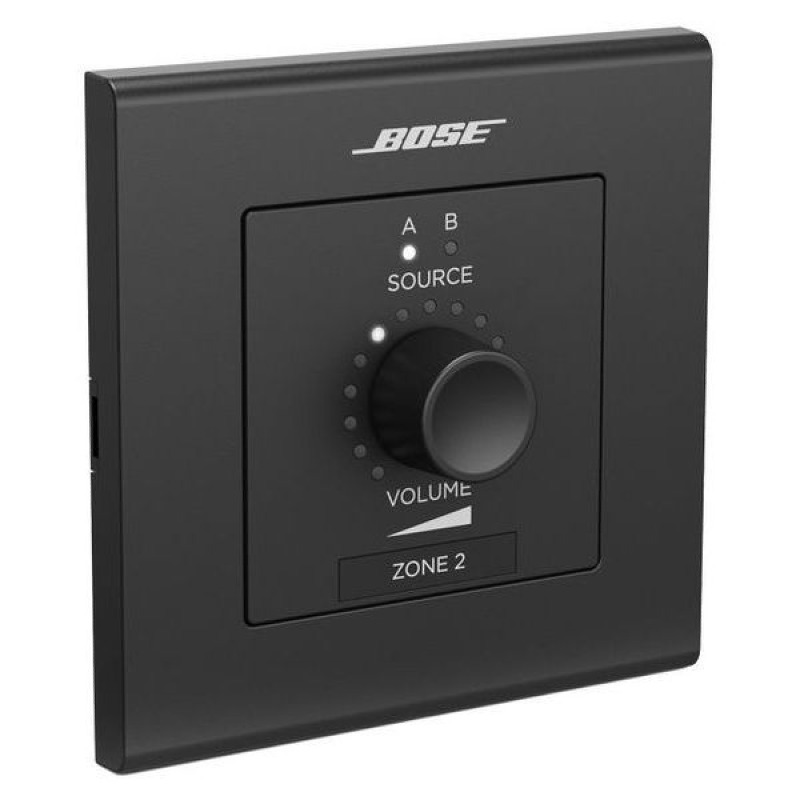

Bose Professional ControlCenter CC-2D Digital Zone Controller (Black)

The ControlCenter CC-2D-B is a wall-mounted digital zone controller designed to work with Bose CSP, ControlSpace ESP, and ControlSpace EX processors. It provides both zone volume control and source selection in a compact, intuitive interface.

Using RS-485 digital communication, the CC-2D integrates seamlessly with supported Bose DSPs, offering reliable long-distance operation and daisy-chain support for multiple controllers. The black finish provides a discreet, professional look that fits a wide range of commercial interiors.

• Digital zone controller for CSP, ESP, and EX processors
• Provides volume adjustment + source selection
• RS-485 communication for reliable and scalable integration
• Host-powered (no external power supply required)
• Black finish (also available in white, CC-2D-W)
• Fits standard single-gang wall boxes

Specifications

• Functions: Zone volume adjustment and audio source selection
• Source Selection: Multiple sources assignable via system configuration
• Communication: RS-485 (Cat 5/6, up to 1,200 m / 4,000 ft)
• Power: Supplied via host processor
• Dimensions (H × W × D): 114 × 70 × 17 mm (4.5″ × 2.8″ × 0.7″)
• Net Weight: ≈ 100 g (0.22 lb)
• Color: Black (also available in white, CC-2D-W)
