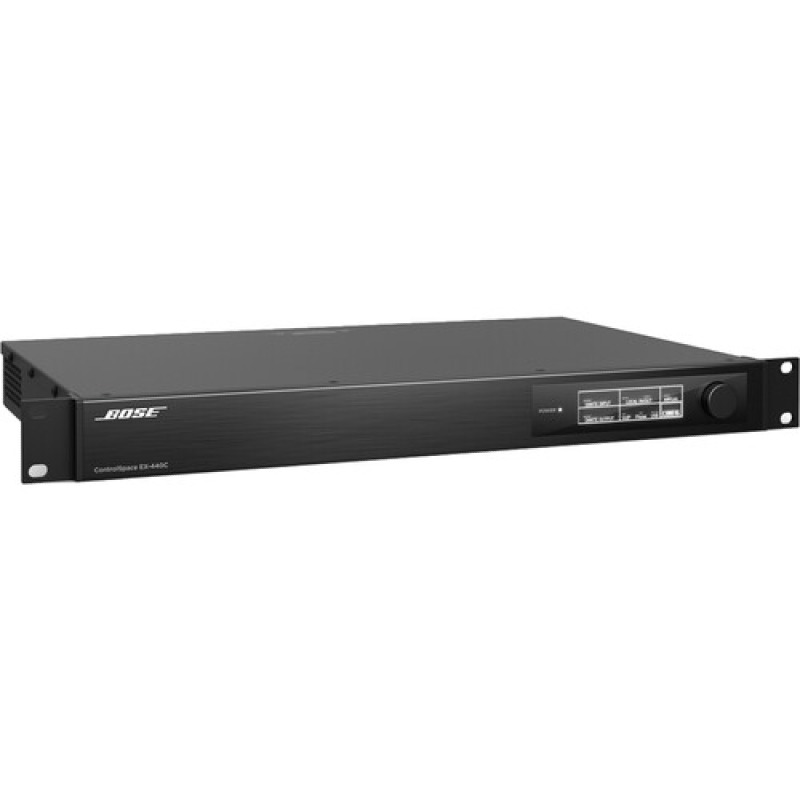

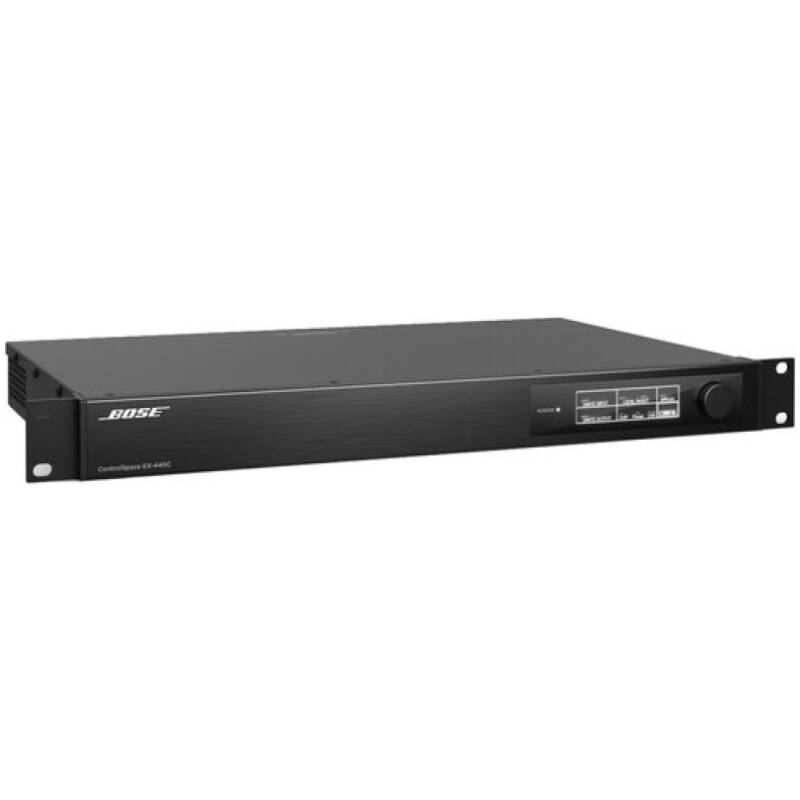

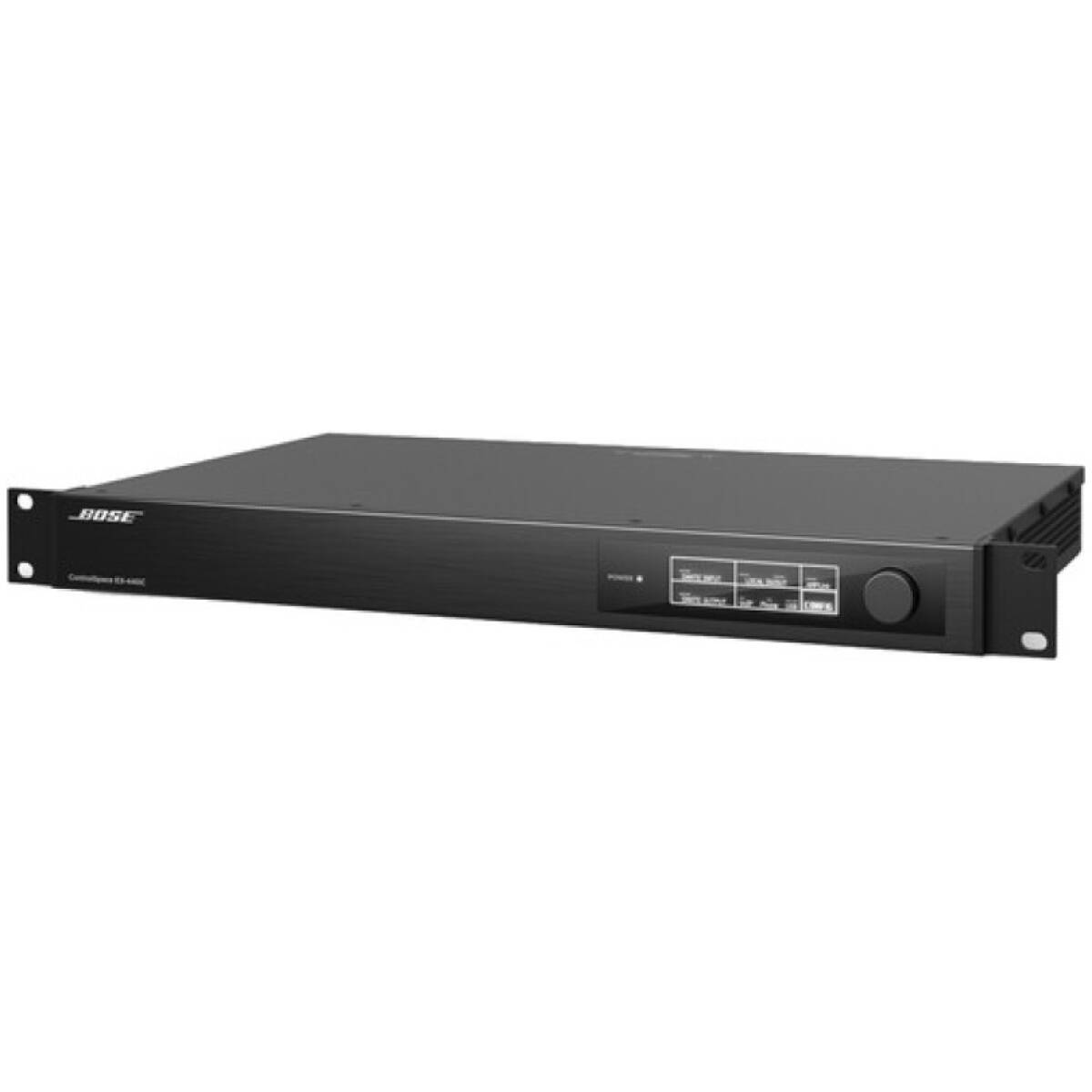

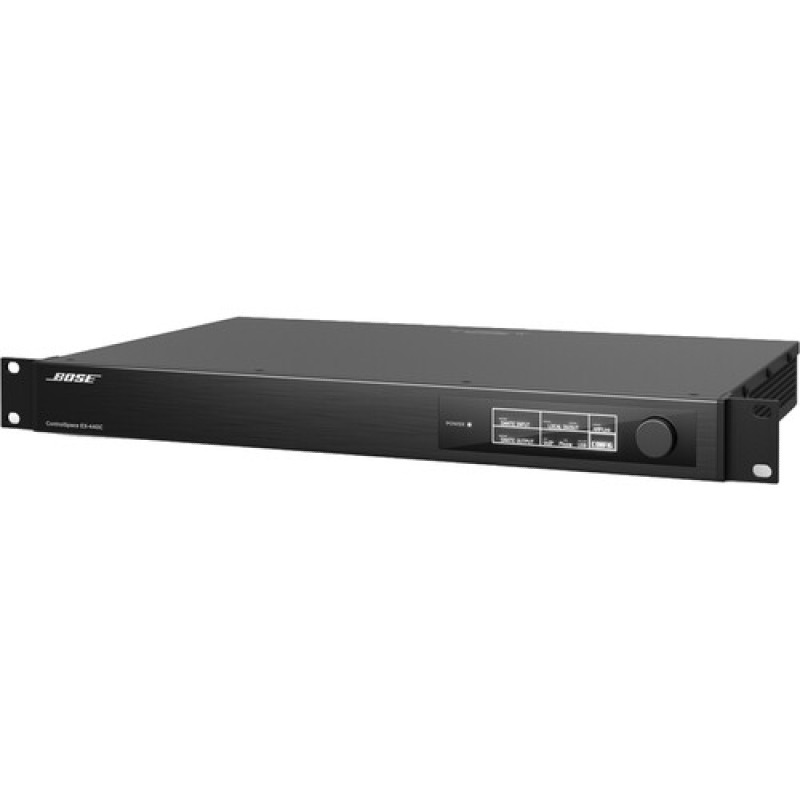

The ControlSpace EX-440C is a dedicated conferencing signal processor designed for high-quality audio performance and seamless integration in meeting rooms, conference spaces, and classrooms. With onboard AEC (Acoustic Echo Cancellation), Dante™ networking, and open-architecture DSP, it delivers clear, intelligible audio for conferencing applications.
Equipped with 4 mic/line analog inputs with AEC and 4 analog outputs, plus extensive Dante connectivity, the EX-440C ensures reliable integration with conferencing endpoints, microphones, and loudspeakers. It is programmed with Bose ControlSpace Designer software and works with Bose ControlSpace EX endpoints, wall controllers, and third-party devices.
- 4 × mic/line inputs with advanced AEC
- 4 × line-level analog outputs
- 16 × 16 Dante digital audio channels
- Comprehensive DSP: EQ, dynamics, filters, auto-mixing, routing, delays
- Configurable via ControlSpace Designer software
- USB audio interface for direct computer connection (BYOD conferencing)
- GPIO and control integration with third-party systems
- Designed for huddle rooms, conference rooms, and multipurpose spaces
Performance & Processing
- Inputs: 4 × balanced mic/line (Euroblock), with phantom power and AEC
- Outputs: 4 × balanced line outputs (Euroblock)
- Dante Networking: 16 × 16 channels, 48 kHz / 24-bit
- USB: Multichannel USB audio interface for direct PC connection
- DSP Functions: AEC, noise reduction, EQ, dynamics, matrix mixing, delay, auto-gain, logic control
- Sample Rate / Bit Depth: 48 kHz / 24-bit
- Latency: < 3 ms analog I/O to analog I/O
Control & Connectivity
- Configuration: ControlSpace Designer software
- Remote Control: Compatible with Bose ControlCenter wall controllers

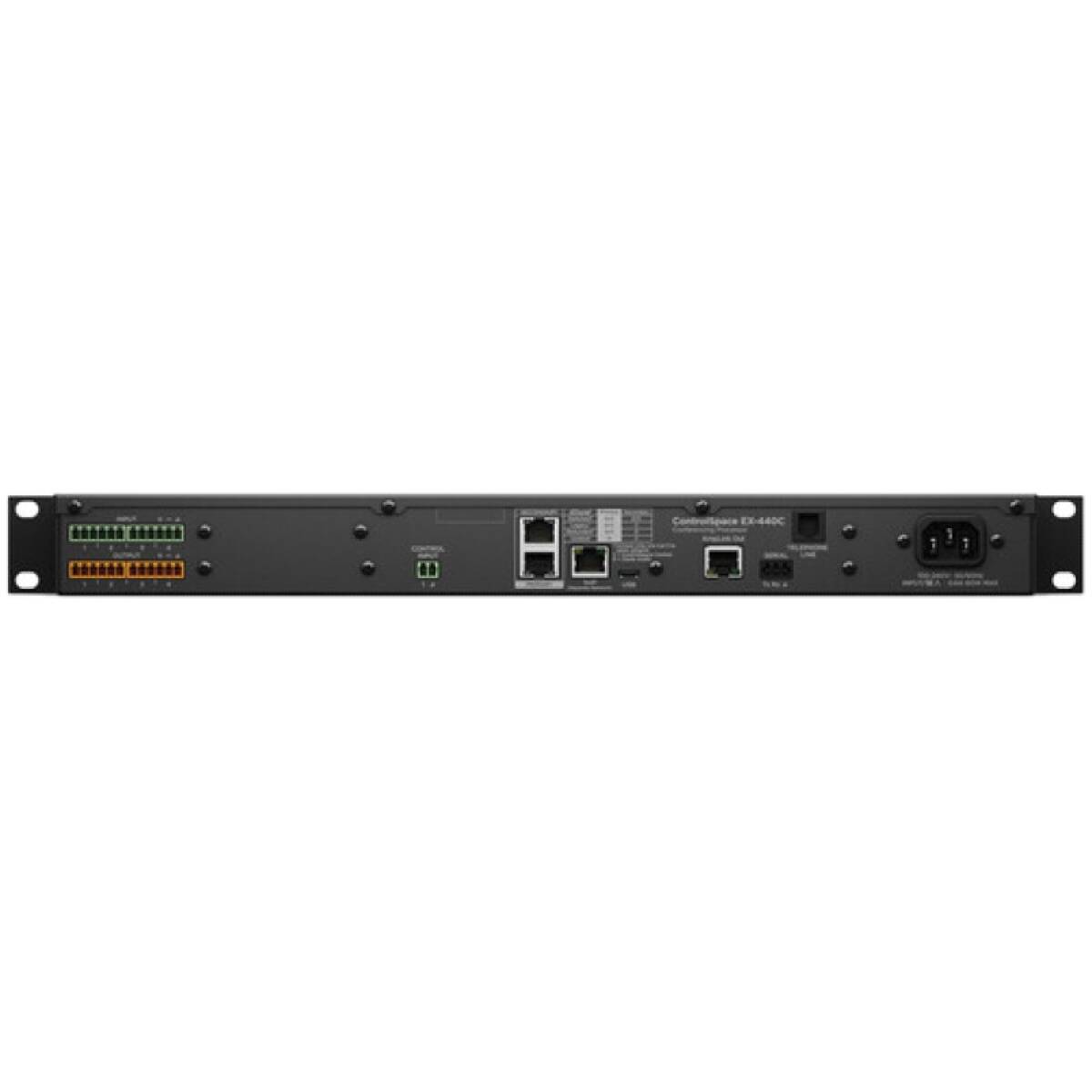

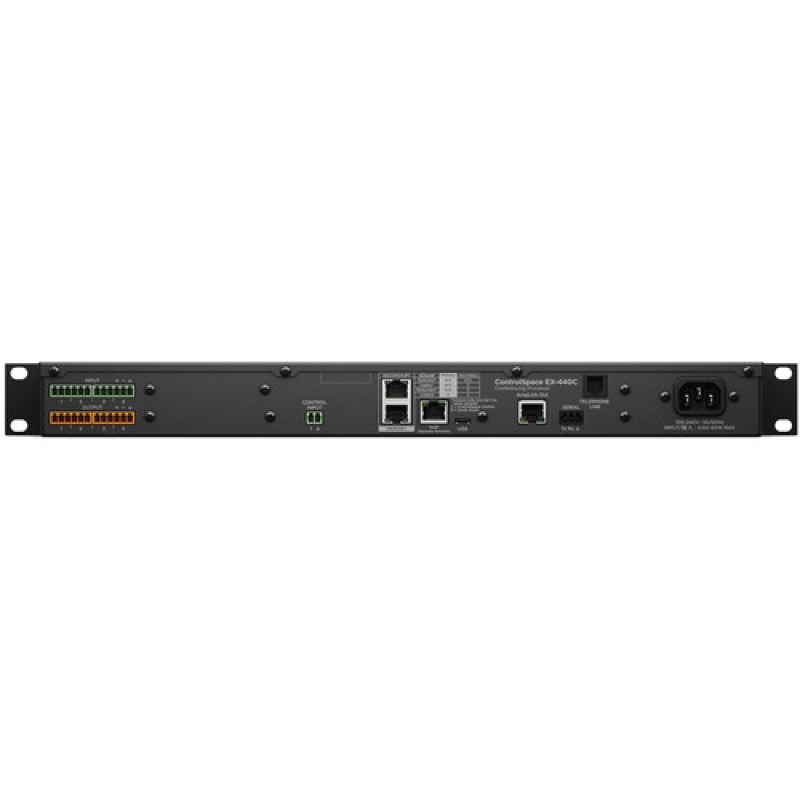

- Network: Dual Dante ports (primary/secondary) + Ethernet control port
- GPIO: 8 × logic I/O for integration with control systems (AMX, Crestron, etc.)
- USB: Type-B connector for conferencing and recording/playback
Physical / Mechanical
- Dimensions (H × W × D): 44 × 483 × 305 mm (1.75″ × 19″ × 12″) – 1RU
- Net Weight: ≈ 4.0 kg (8.8 lb)
- Cooling: Convection cooled (silent operation)
- Mounting: Standard 19″ rackmount
Applications
- Corporate meeting and conference rooms
- Huddle rooms and classrooms
- Hotels and hospitality spaces
- Training facilities
- Multipurpose and government facilities
