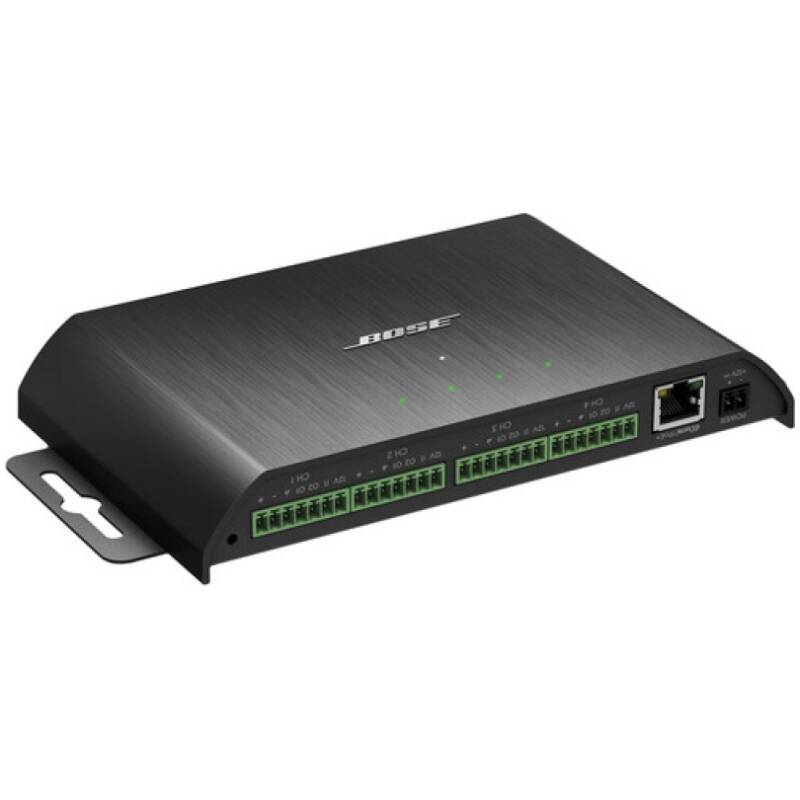

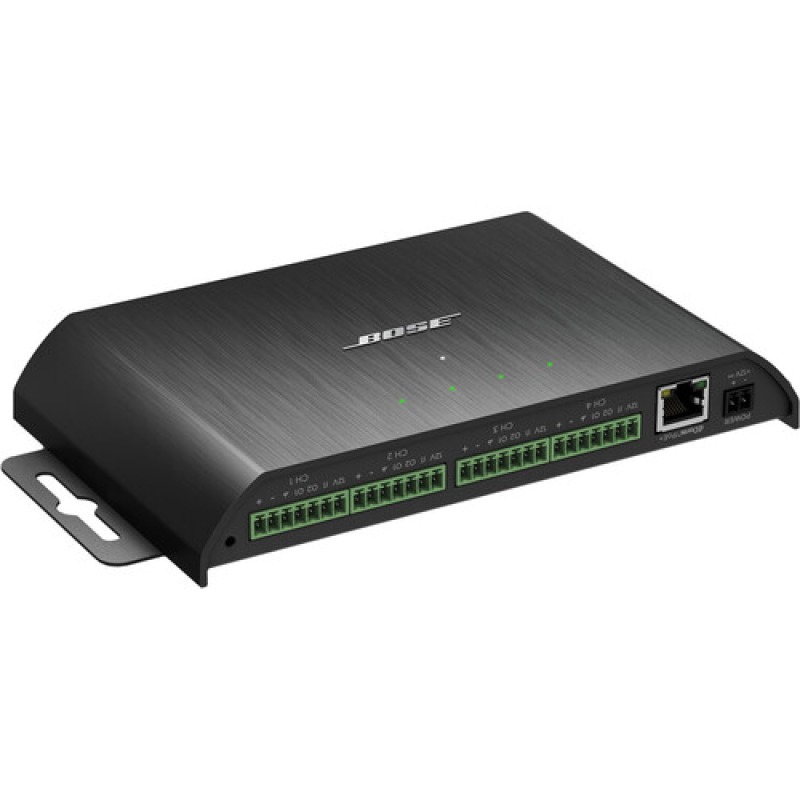

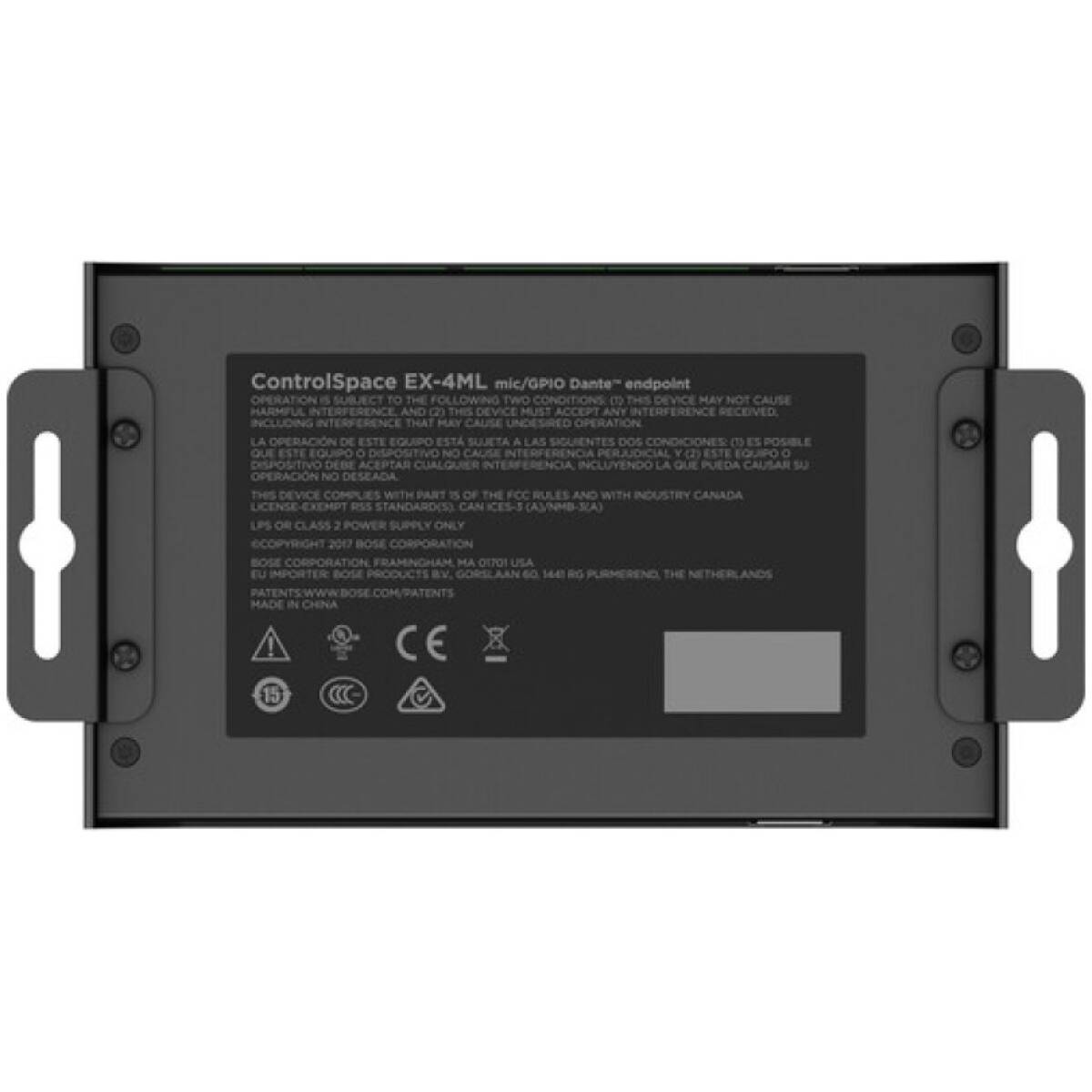

The ControlSpace EX-4ML is a compact Dante endpoint device that provides microphone inputs and GPIO control for integration into conferencing and installed sound systems. With four mic/line inputs, built-in phantom power, and GPIO ports, it is ideal for extending Bose ControlSpace EX conferencing processors and other Dante-enabled systems.
Its small form factor makes it easy to mount under tables, above ceilings, or in equipment racks, bringing microphone and control connectivity closer to the meeting space.
- 4 × mic/line inputs with phantom power
- GPIO for external device control (projectors, screens, switches)
- Dante™ network audio interface (low-latency, uncompressed)
- Designed for seamless use with ControlSpace EX processors
- Compact, discreet form factor for flexible mounting
- Power over Ethernet (PoE) – single cable for audio, power, and control
Specifications
- Analog Inputs: 4 × balanced mic/line (Euroblock), phantom power available
- GPIO: 4 × logic I/O ports (configurable for input or output)
- Dante Networking: 4 × 4 channels, 48 kHz / 24-bit

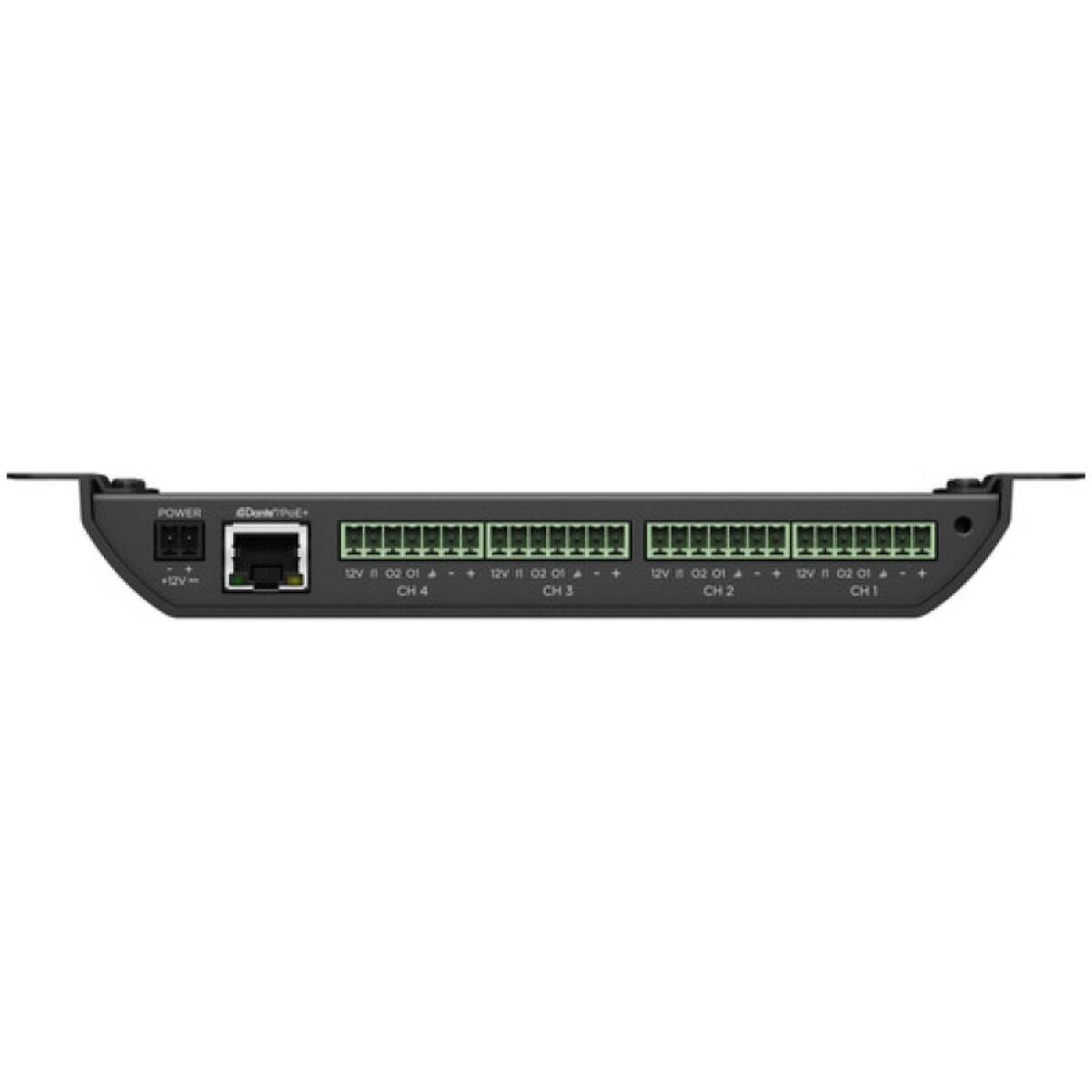

- Connections:

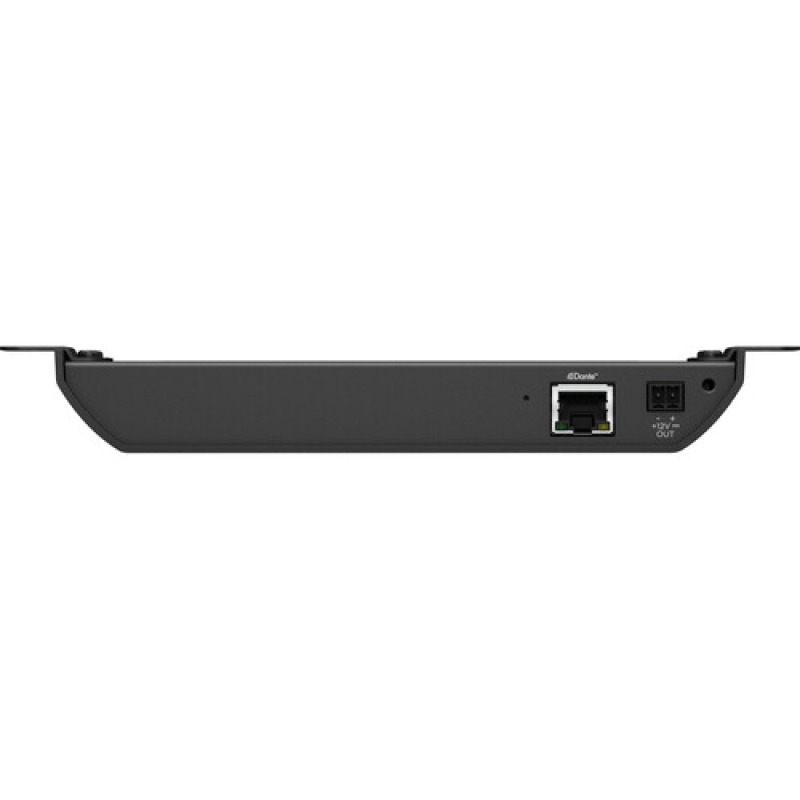

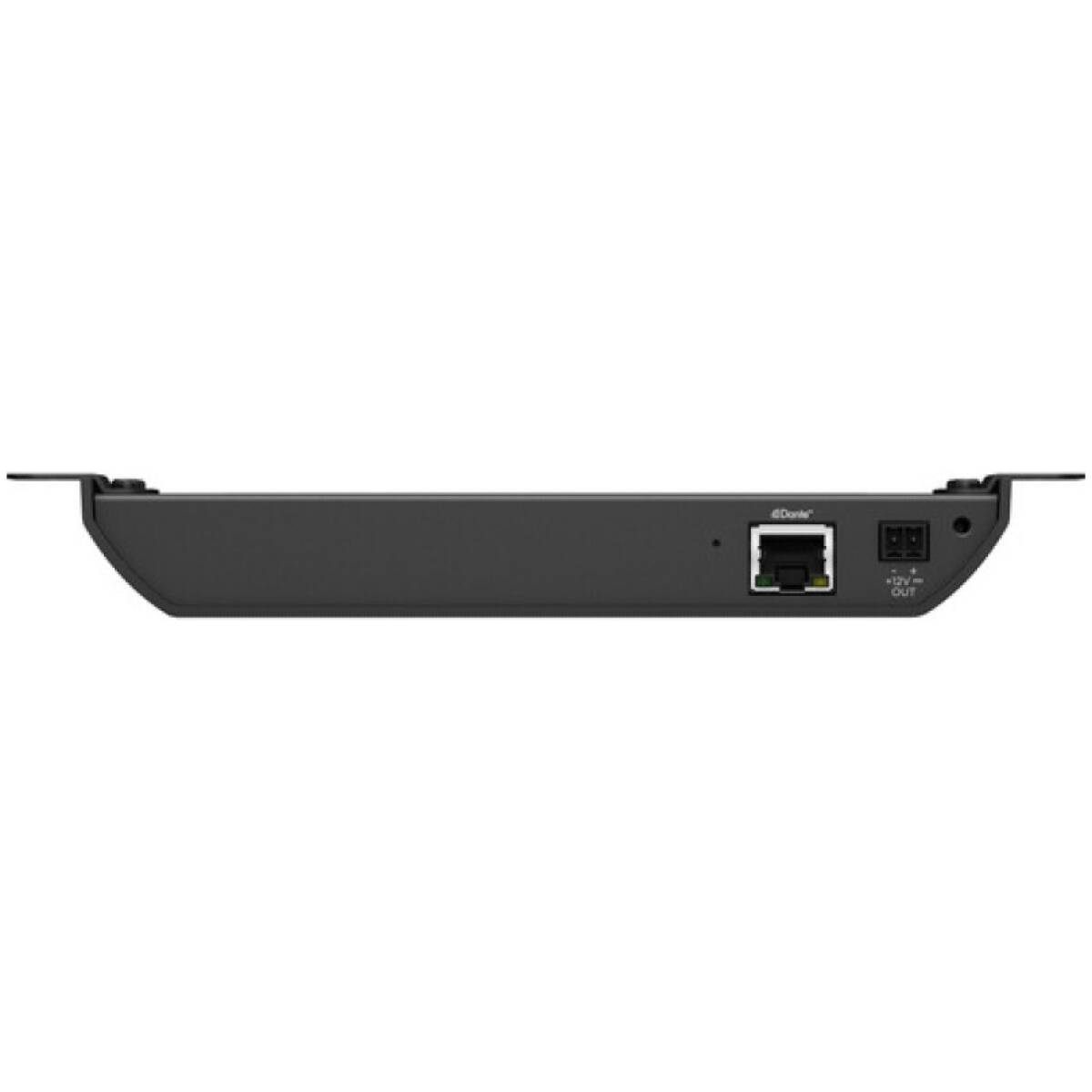

• 1 × RJ-45 Dante (Primary/Secondary selectable)
• 4 × Euroblock mic/line inputs
• 1 × Euroblock GPIO (4 pins) - Power: PoE (IEEE 802.3af, Class 0)
- Dimensions (H × W × D): 41 × 220 × 125 mm (1.6″ × 8.7″ × 4.9″)
- Net Weight: ≈ 0.9 kg (2 lb)
- Mounting: Table, wall, ceiling, or rack accessory brackets
