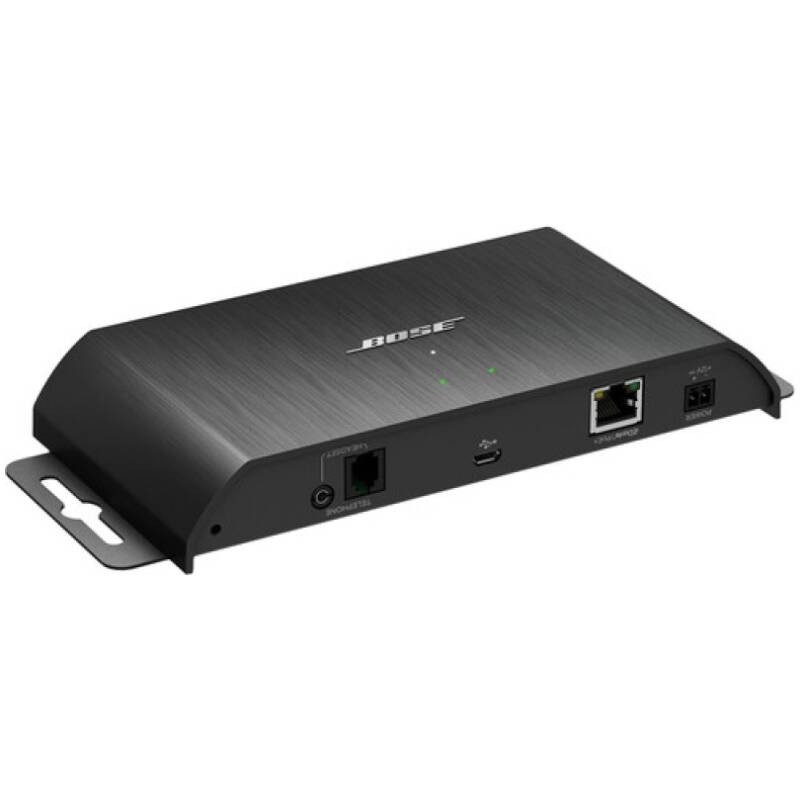

The ControlSpace EX-UH is a compact USB and headset Dante endpoint designed for use with Bose ControlSpace EX conferencing processors. It provides convenient USB audio connectivity for BYOD (Bring Your Own Device) applications and a headset interface for personal conferencing use.
By connecting a laptop via USB or a standard 4-pin headset, the EX-UH integrates personal devices into networked conferencing systems with professional-grade audio quality.
- USB audio interface for laptops and conferencing applications
- Headset port for direct participant connection (4-pin)
- Dante™ networking for low-latency digital audio transport
- Seamlessly integrates with Bose ControlSpace EX processors
- Compact and discreet form factor for under-table or rack installation
- Power over Ethernet (PoE) – single cable for audio, power, and control
Specifications
- Audio I/O:
• USB 2.0 (Type B connector, bidirectional audio)
• Headset port (4-pin connection, mic + headphones) - Dante Networking: 2 × 2 channels @ 48 kHz / 24-bit
- Connections:
• 1 × USB Type B
• 1 × 4-pin headset connector
• 1 × RJ-45 Dante (Primary/Secondary selectable) - Power: PoE (IEEE 802.3af, Class 0)
- Dimensions (H × W × D): 41 × 146 × 127 mm (1.6″ × 5.7″ × 5.0″)
- Net Weight: ≈ 0.7 kg (1.5 lb)
- Mounting: Table, wall, ceiling, or rack accessory brackets
