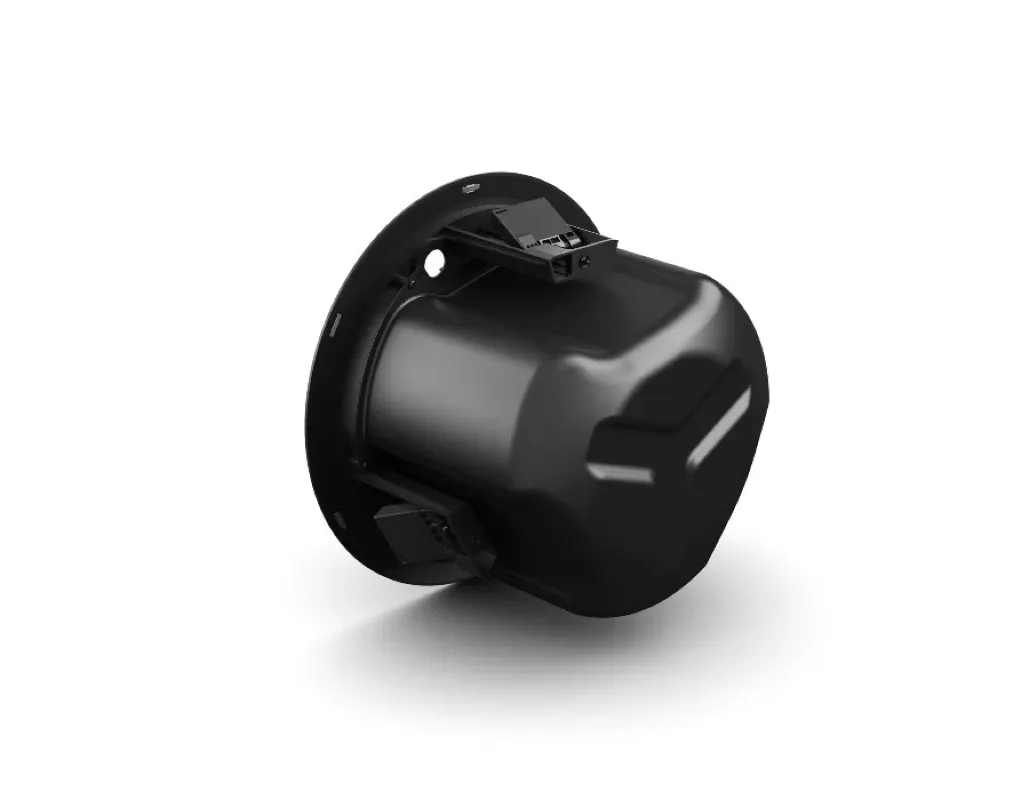

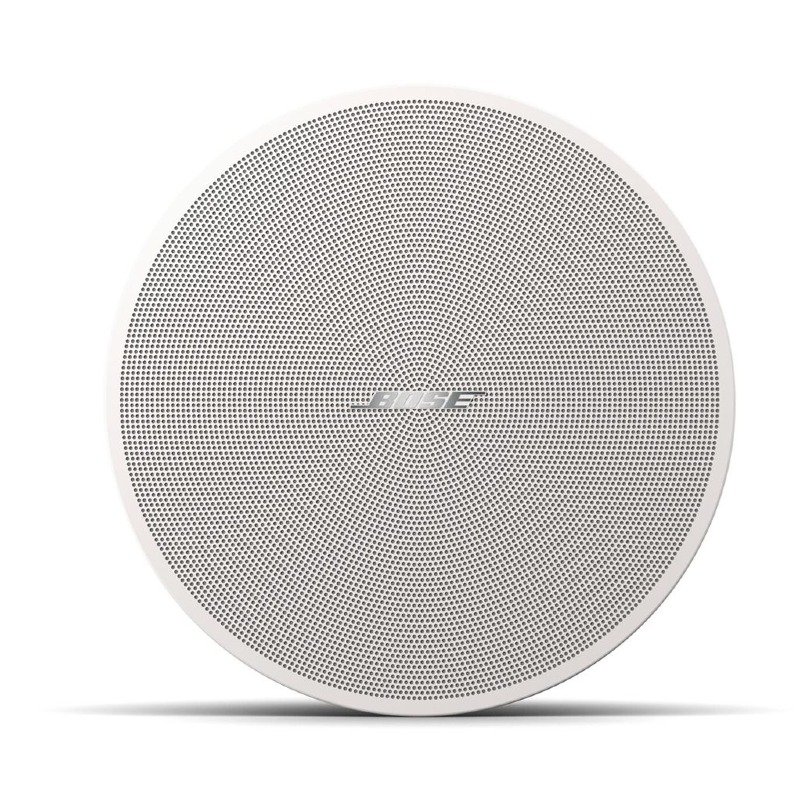

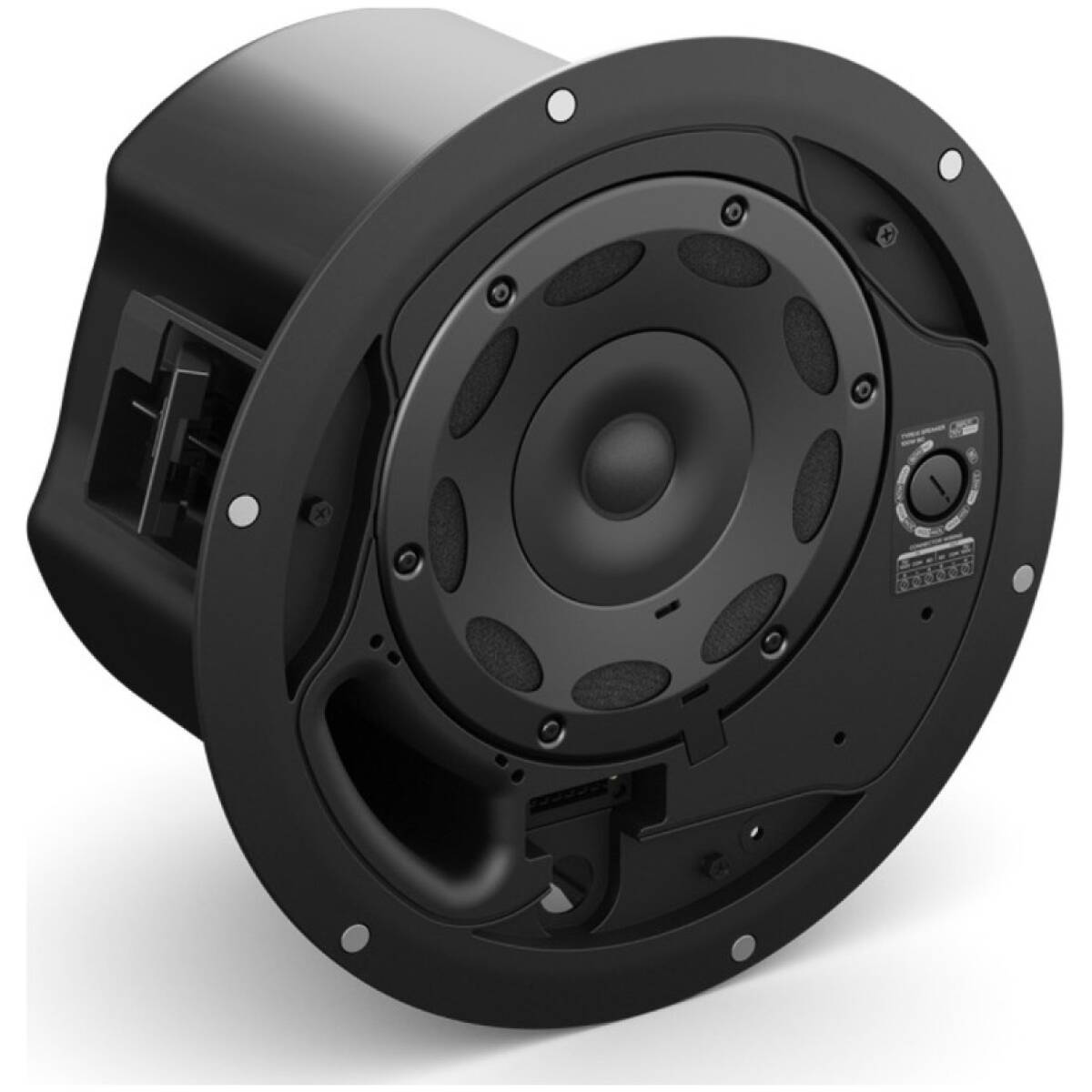

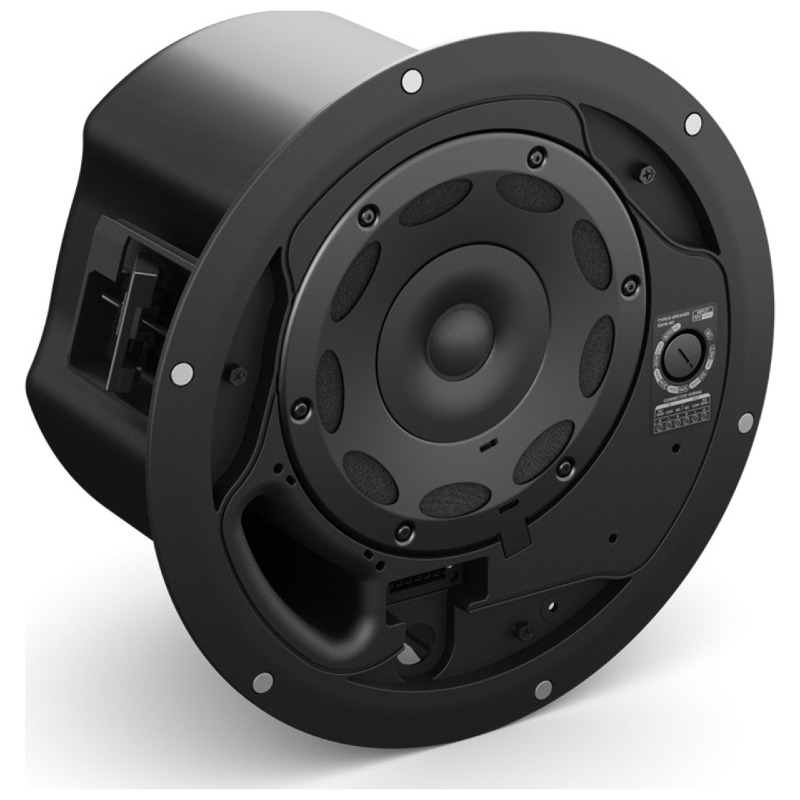

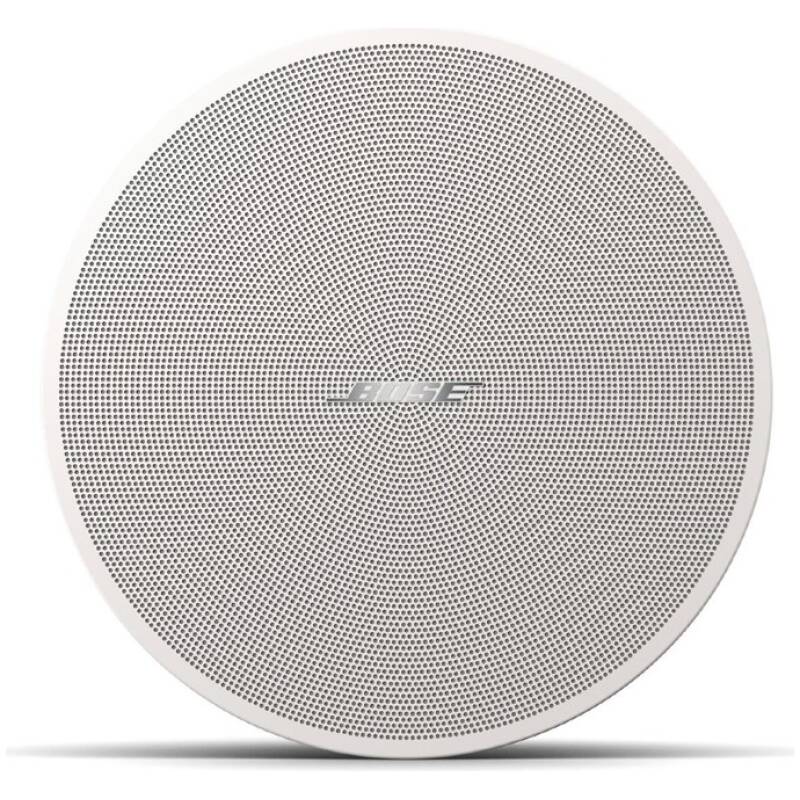

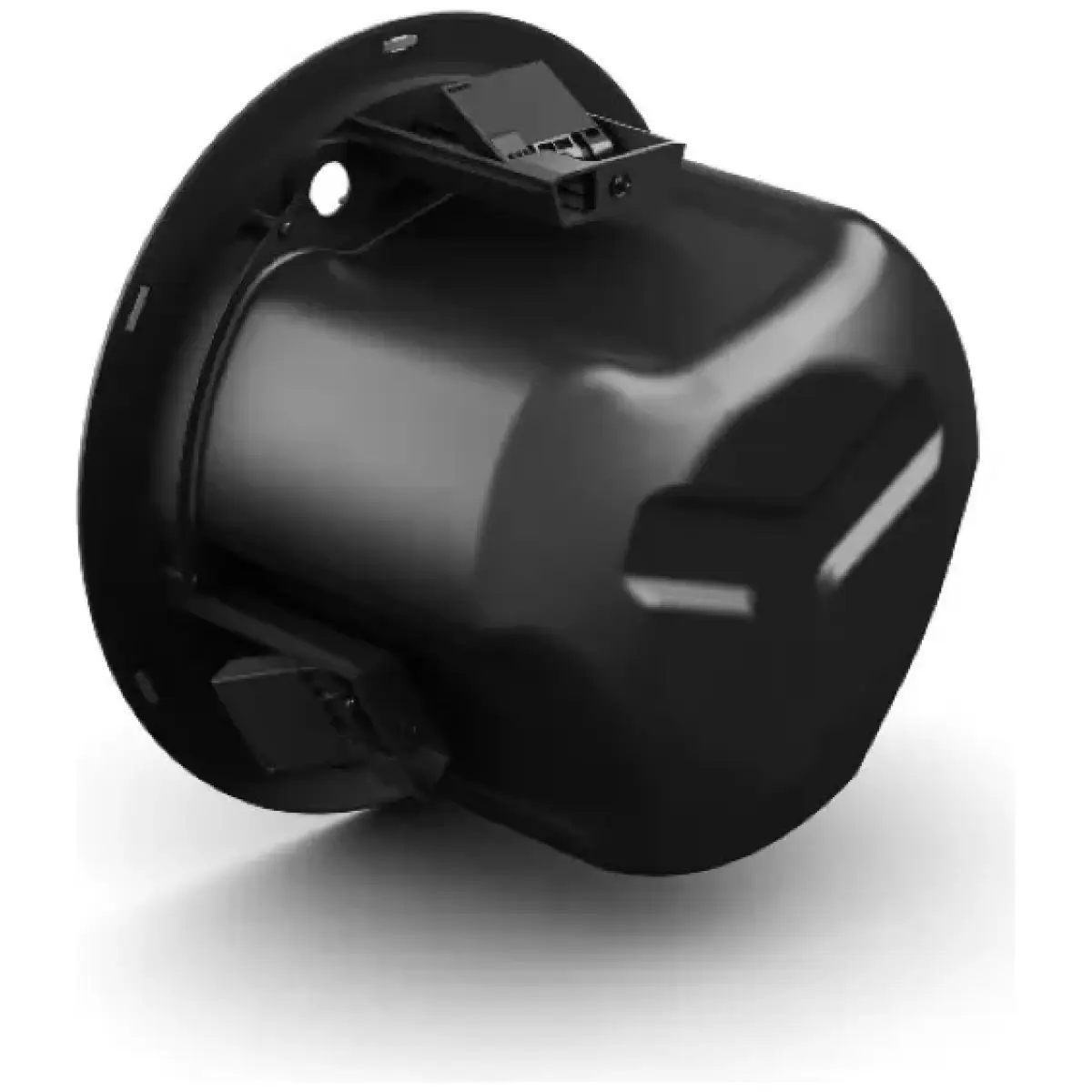

The Bose Professional DM6CW is a passive two-way surface-mount loudspeaker with a 6.5-inch woofer and 1.25-inch coaxial tweeter. Designed for premium performance in both background and foreground applications, it delivers clear highs, deep bass, and wide coverage without requiring DSP or EQ. Its clean white finish integrates seamlessly into modern interiors, making it ideal for commercial installations.
Key Features
- Passive loudspeaker — not powered (requires external amplifier)
- 6.5-inch woofer + 1.25-inch coaxial tweeter
- Frequency response: 59 Hz – 20 kHz
- Power handling: 125 W continuous (500 W peak)
- Maximum SPL: 113 dB peak
- Wide coverage pattern: 150° x 90°
- Works in 8 Ω, 70V, or 100V distributed systems
- Integrated QuickHold U-bracket for fast installation
- Weather-resistant design (IP55)
- White finish for architectural integration
Specifications
- Frequency Range (-10 dB): 55 Hz – 20 kHz
- Power Handling (Continuous / Peak): 125 W / 500 W
- Sensitivity: 87 dB SPL (1 W @ 1 m)
- Max SPL: 107 dB continuous / 113 dB peak
- Nominal Impedance: 8 Ω bypass
- Transformer Taps:
- 70V: 3.8, 7.5, 15, 30, 60 W
- 100V: 7.5, 15, 30, 60 W
