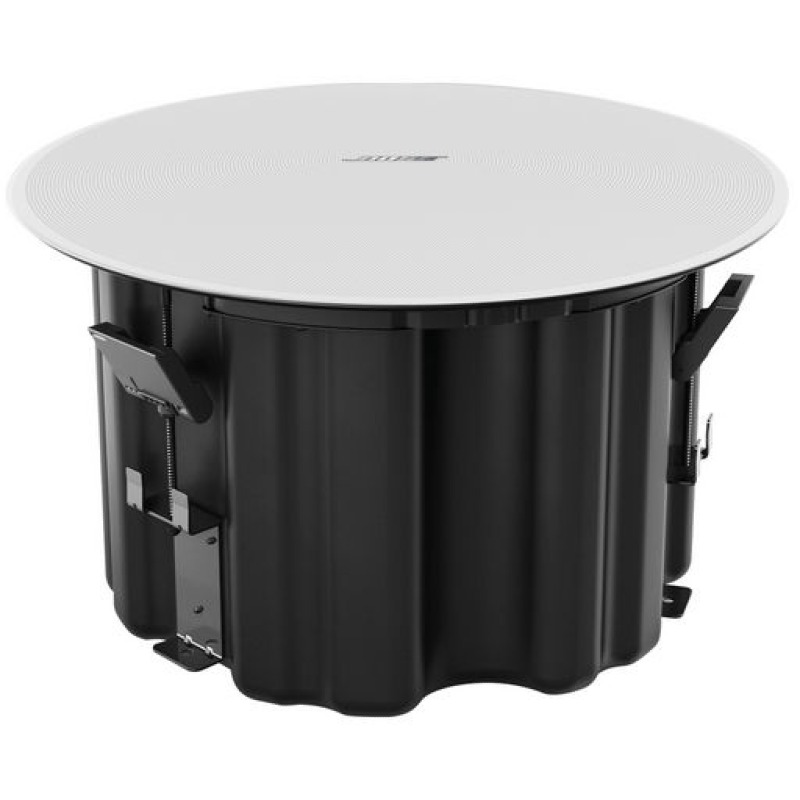

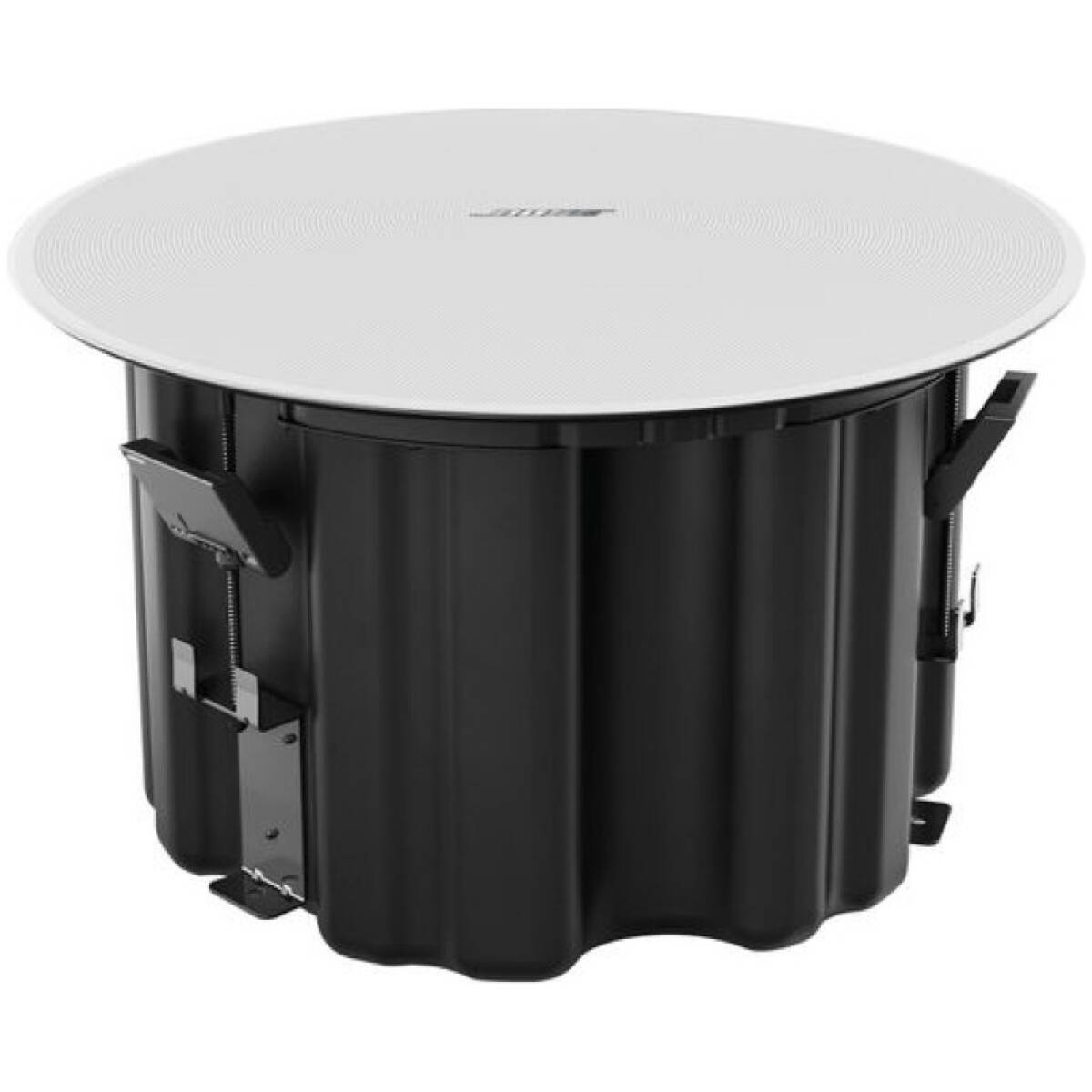

The Bose Professional DM8CW is the largest full-range in-ceiling loudspeaker in the DesignMax series, finished in white. Featuring an 8-inch woofer and a 1.4-inch compression driver in a two-way coaxial design, it delivers powerful, high-output sound with wide coverage, making it ideal for foreground music and demanding commercial applications. With its paintable magnetic grille and discreet white finish, the DM8CW integrates seamlessly into retail, hospitality, houses of worship, and performance spaces.
Key Features
- Passive full-range loudspeaker (requires external amplifier)

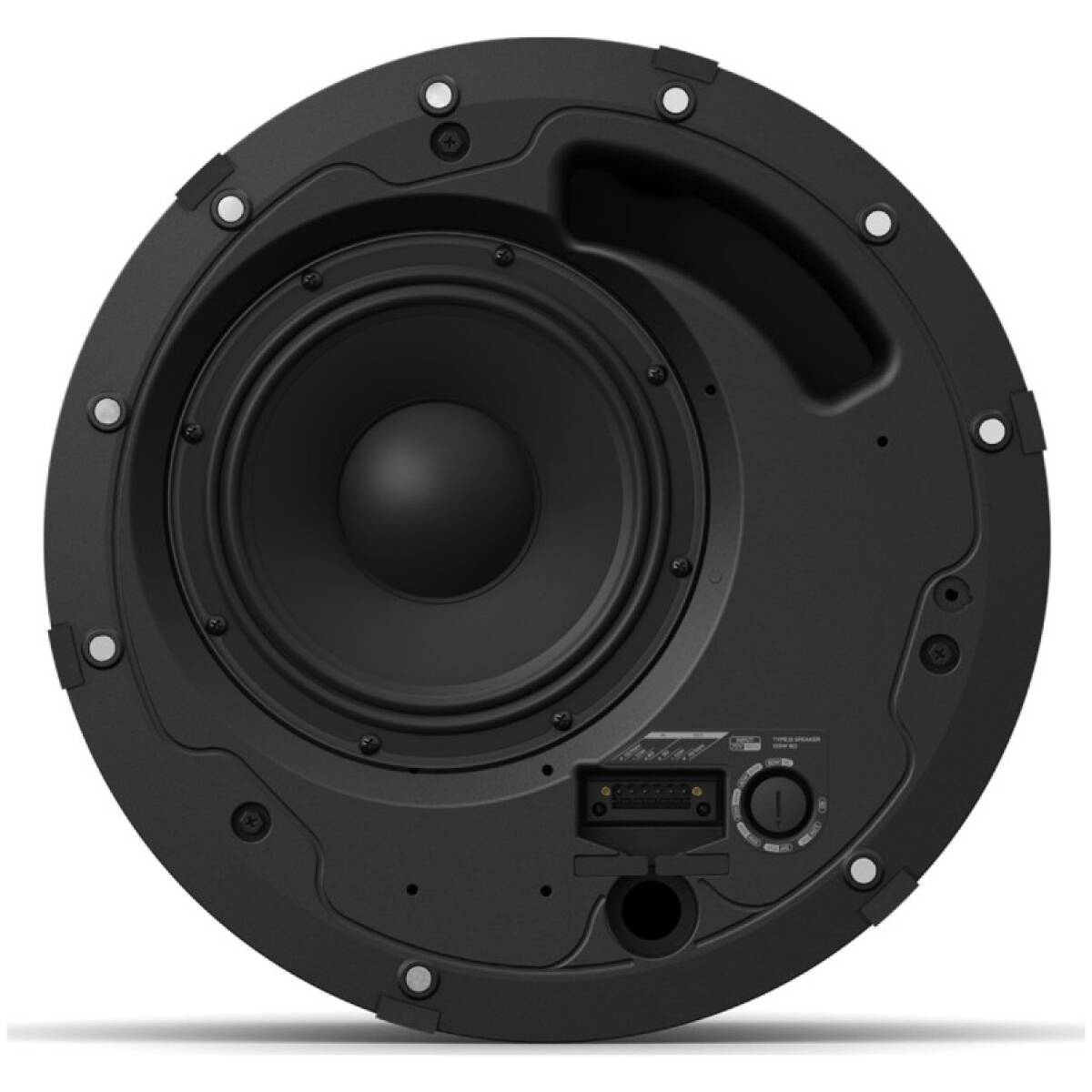

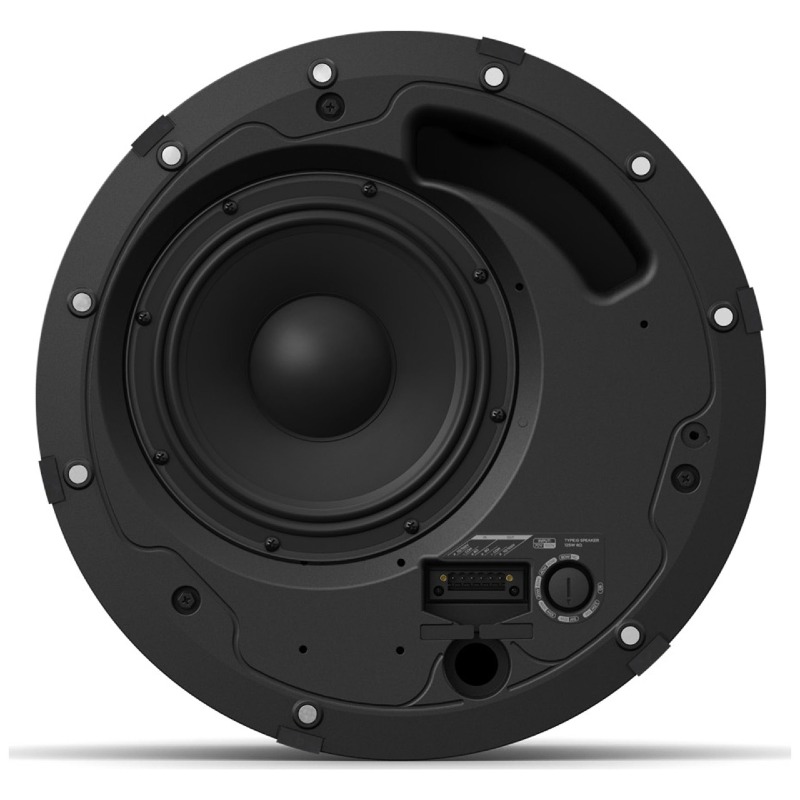

- 8″ woofer + 1.4″ compression driver in coaxial two-way design
- Frequency response: 52 Hz – 20 kHz (–10 dB)
- Power handling: 150 W continuous / 600 W peak
- Maximum SPL: 111 dB continuous, 117 dB peak
- Coverage pattern: 110° × 60°
- 70/100V transformer with 8 Ω bypass for flexible integration

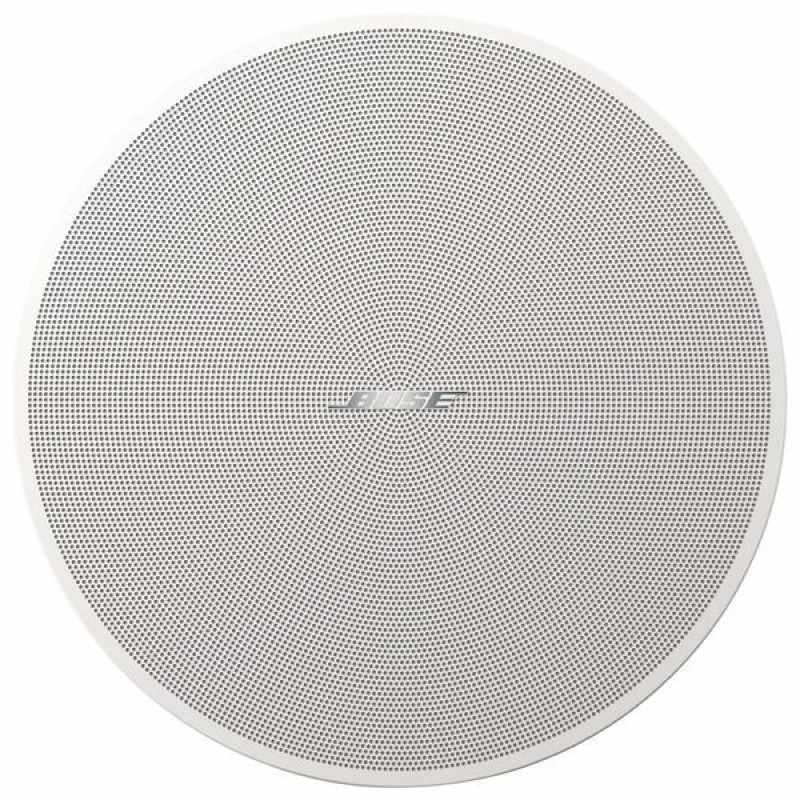

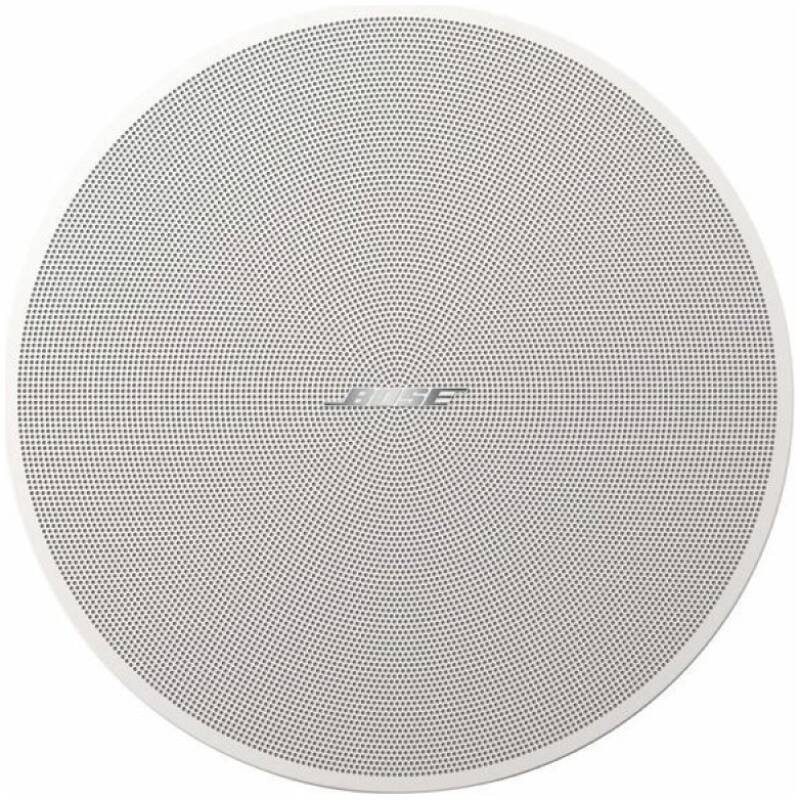

- Paintable magnetic grille for seamless ceiling finish
- Rugged ABS baffle with powder-coated steel grille
Specifications
- Frequency Range (–10 dB): 52 Hz – 20 kHz
- Coverage Pattern: 110° × 60°
- Power Handling: 150 W continuous / 600 W peak
- Nominal Impedance: 8 ohms (with transformer bypass)
- Connections: Euroblock connector

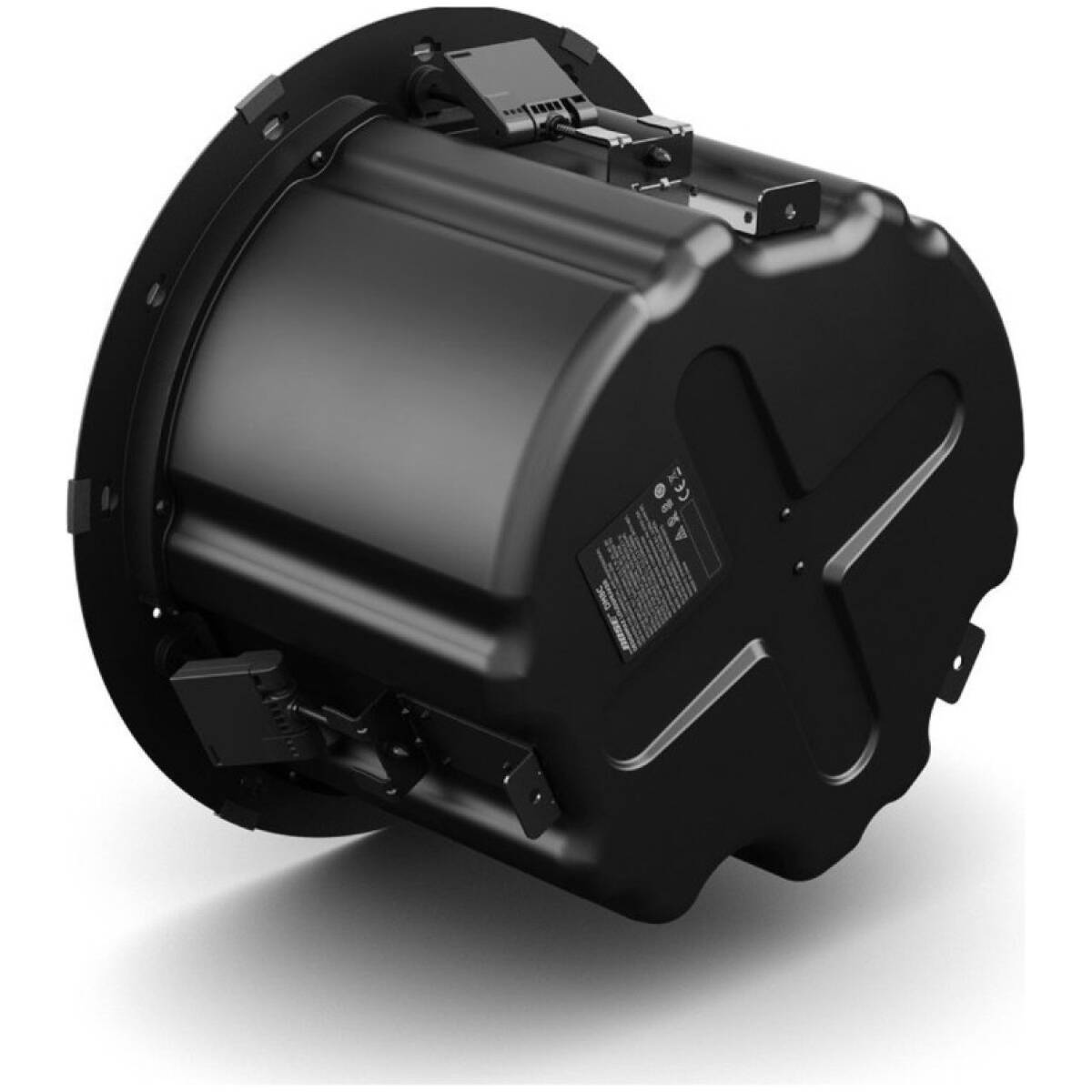

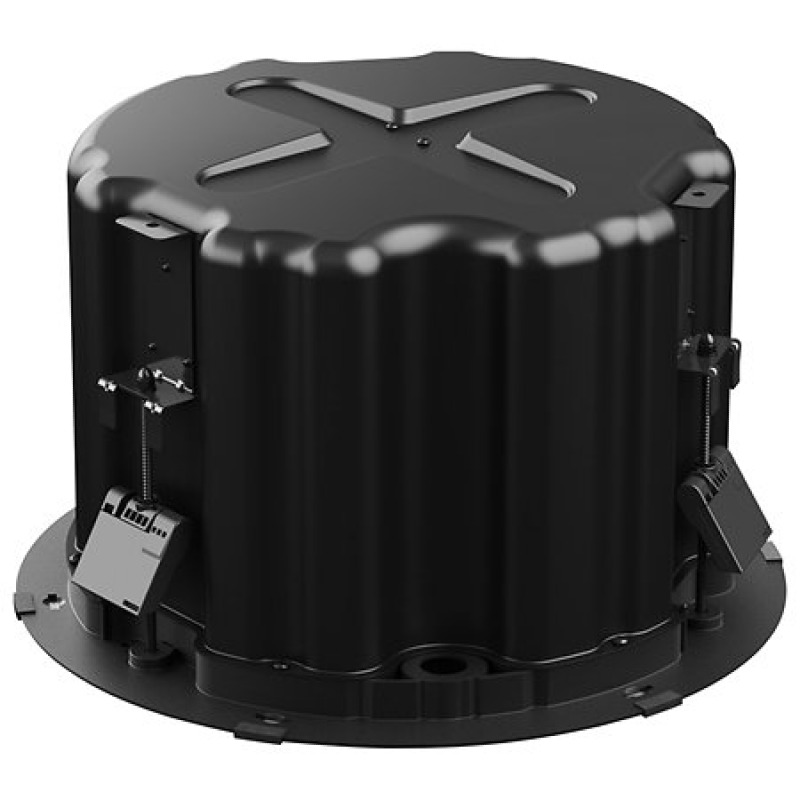

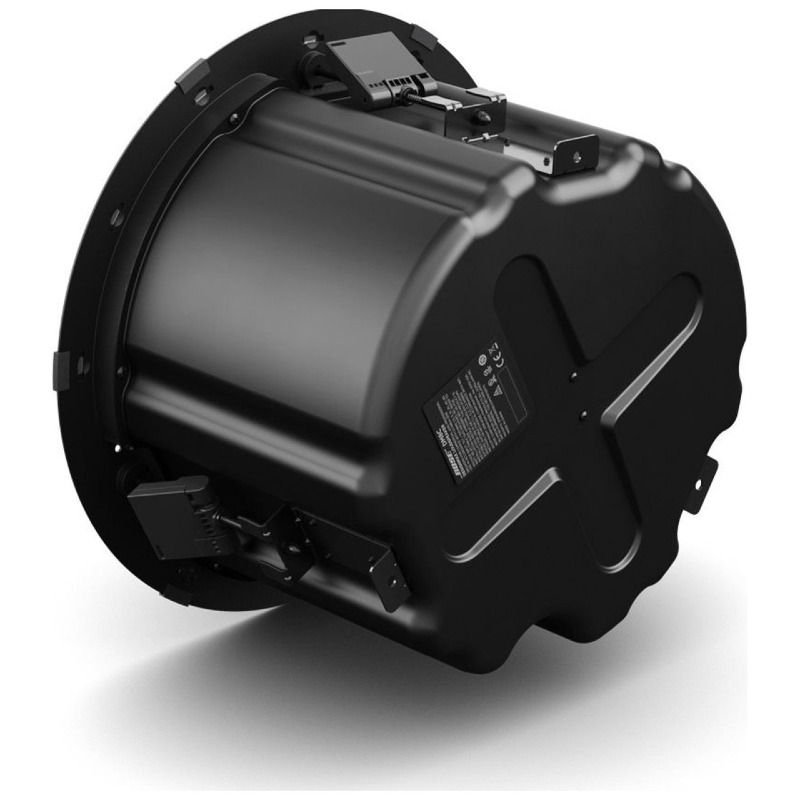

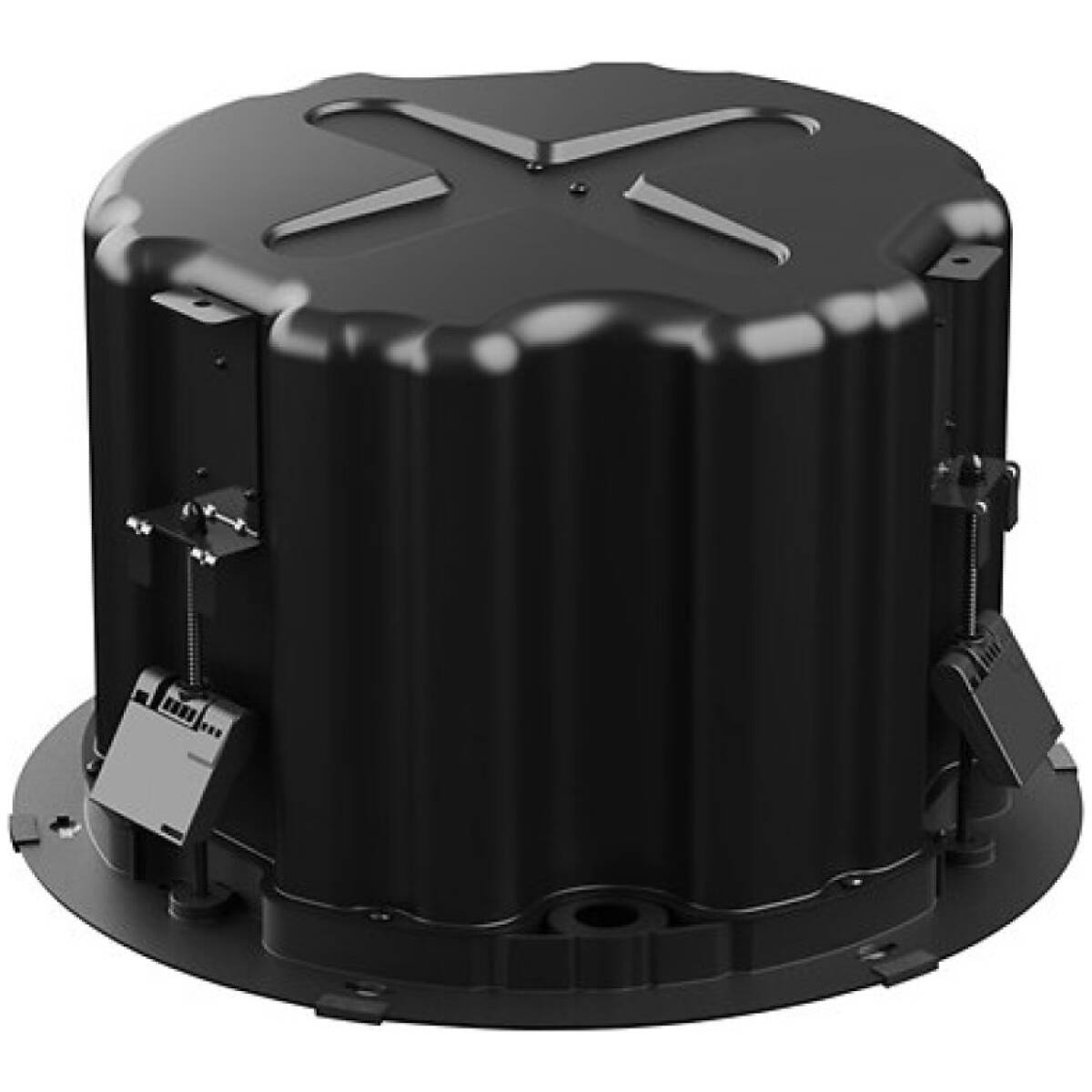

- Enclosure: ABS baffle with steel grille
- Color: White
