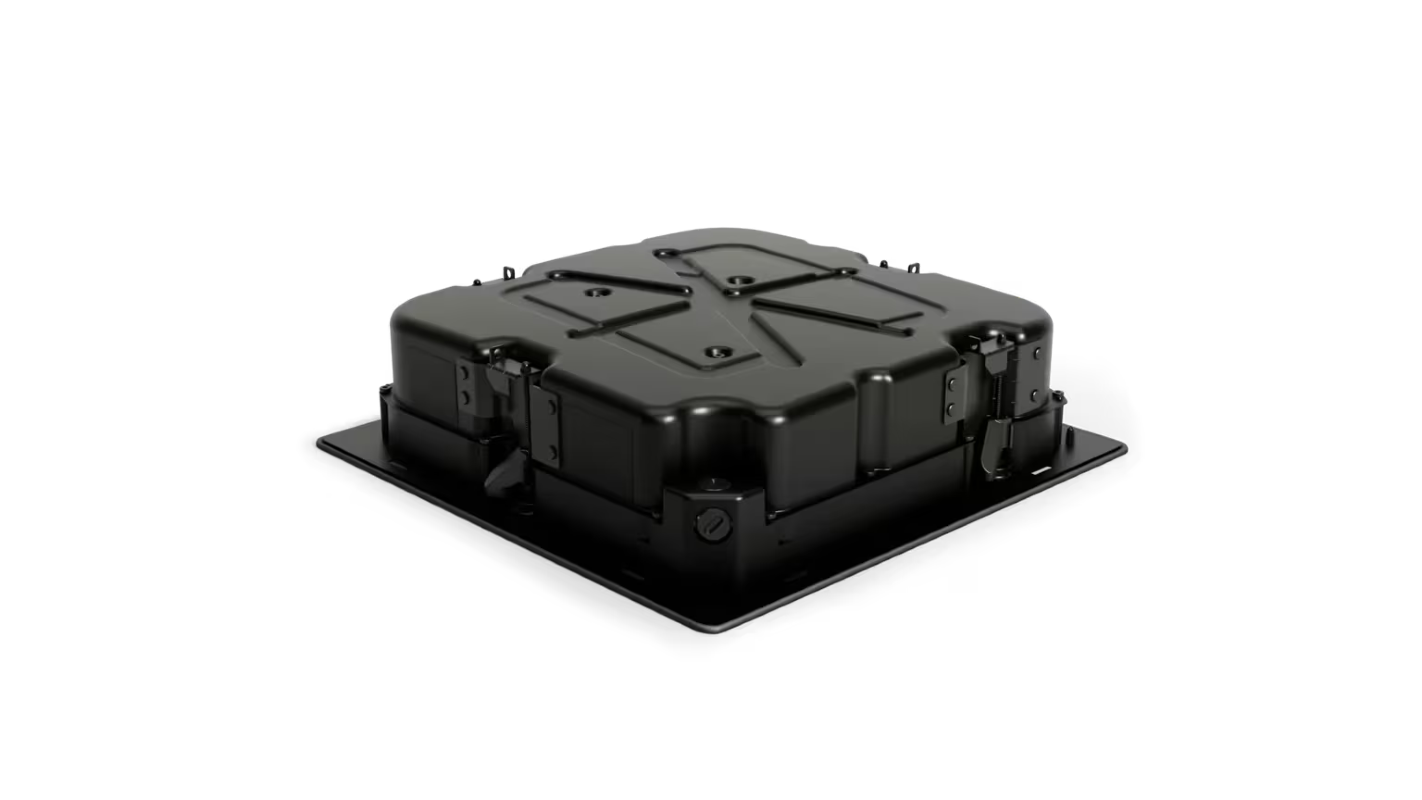

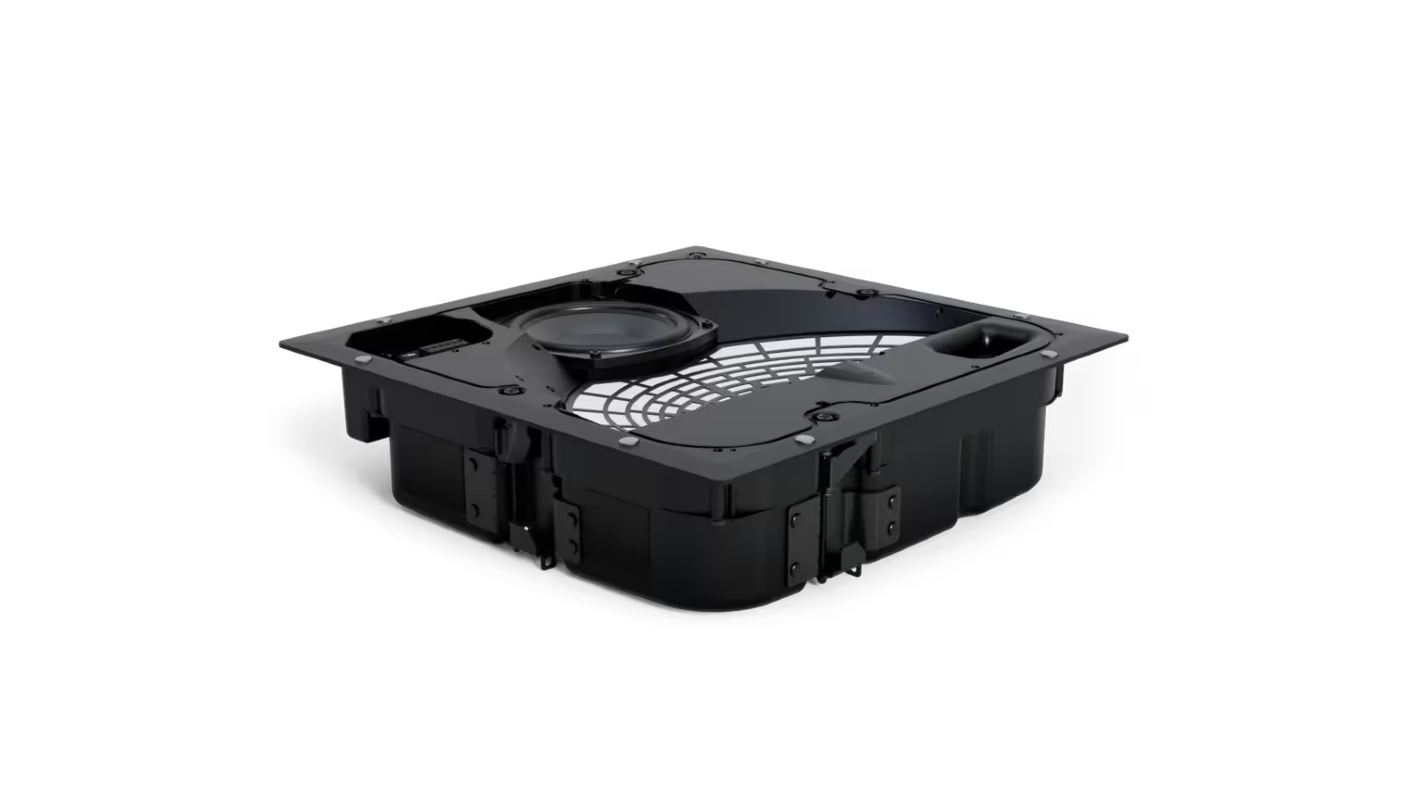

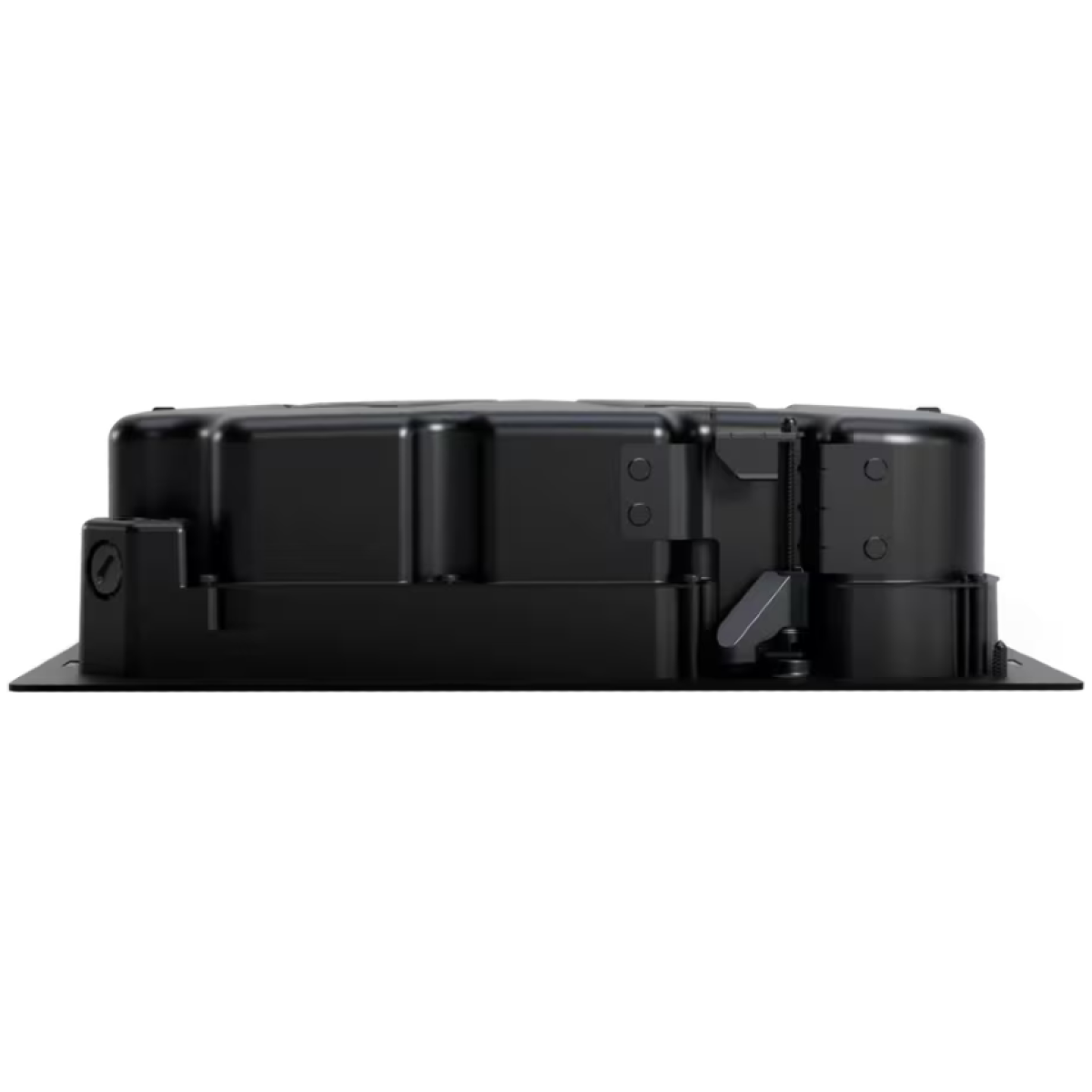

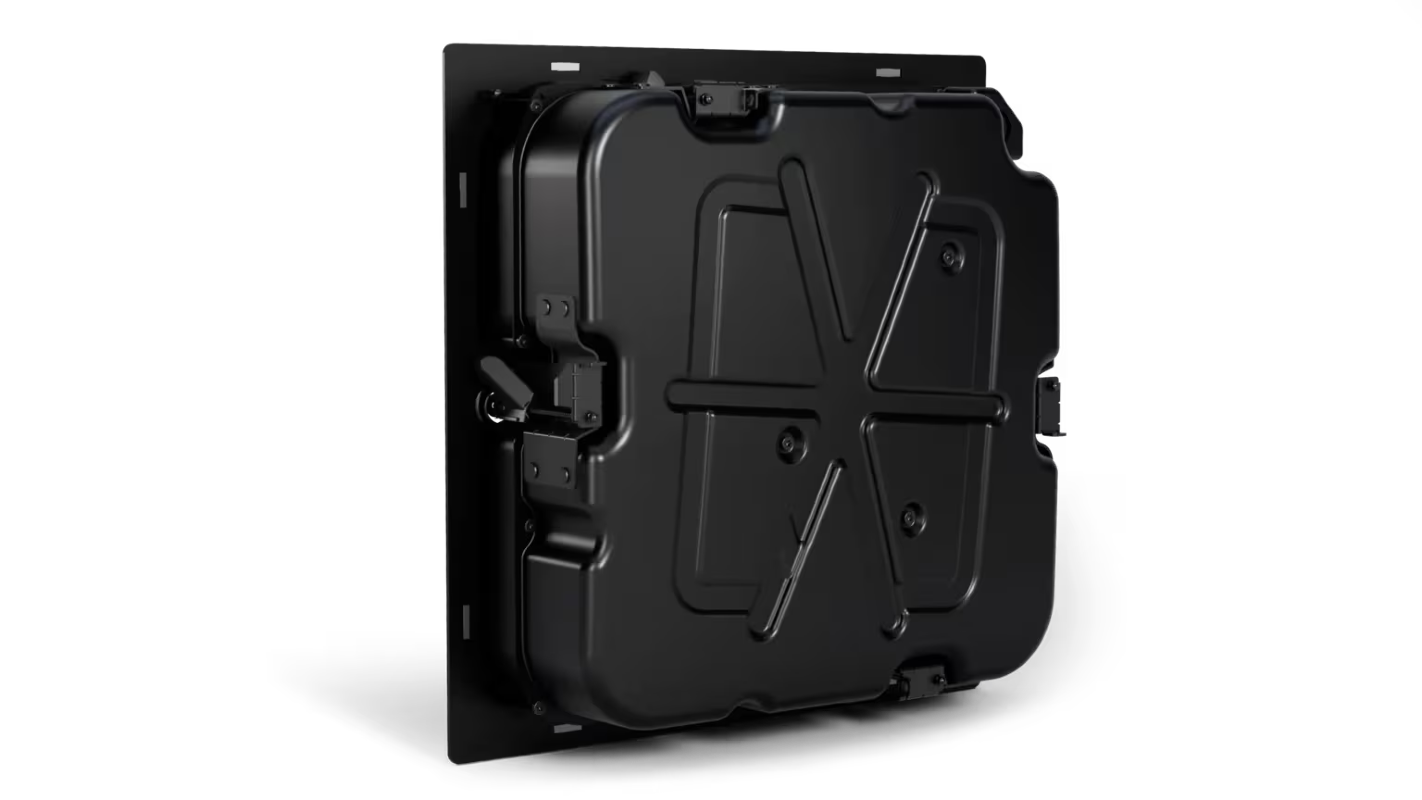

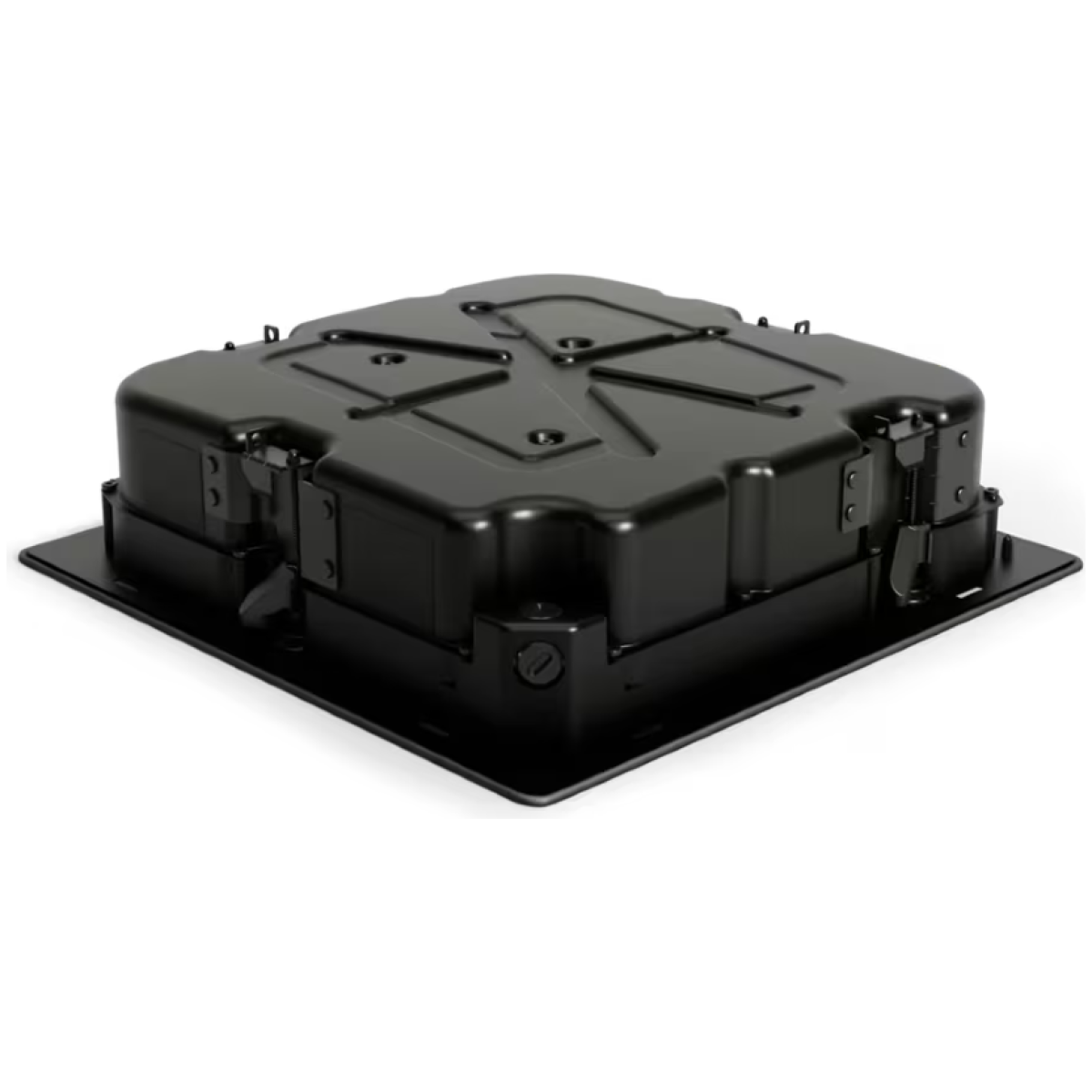

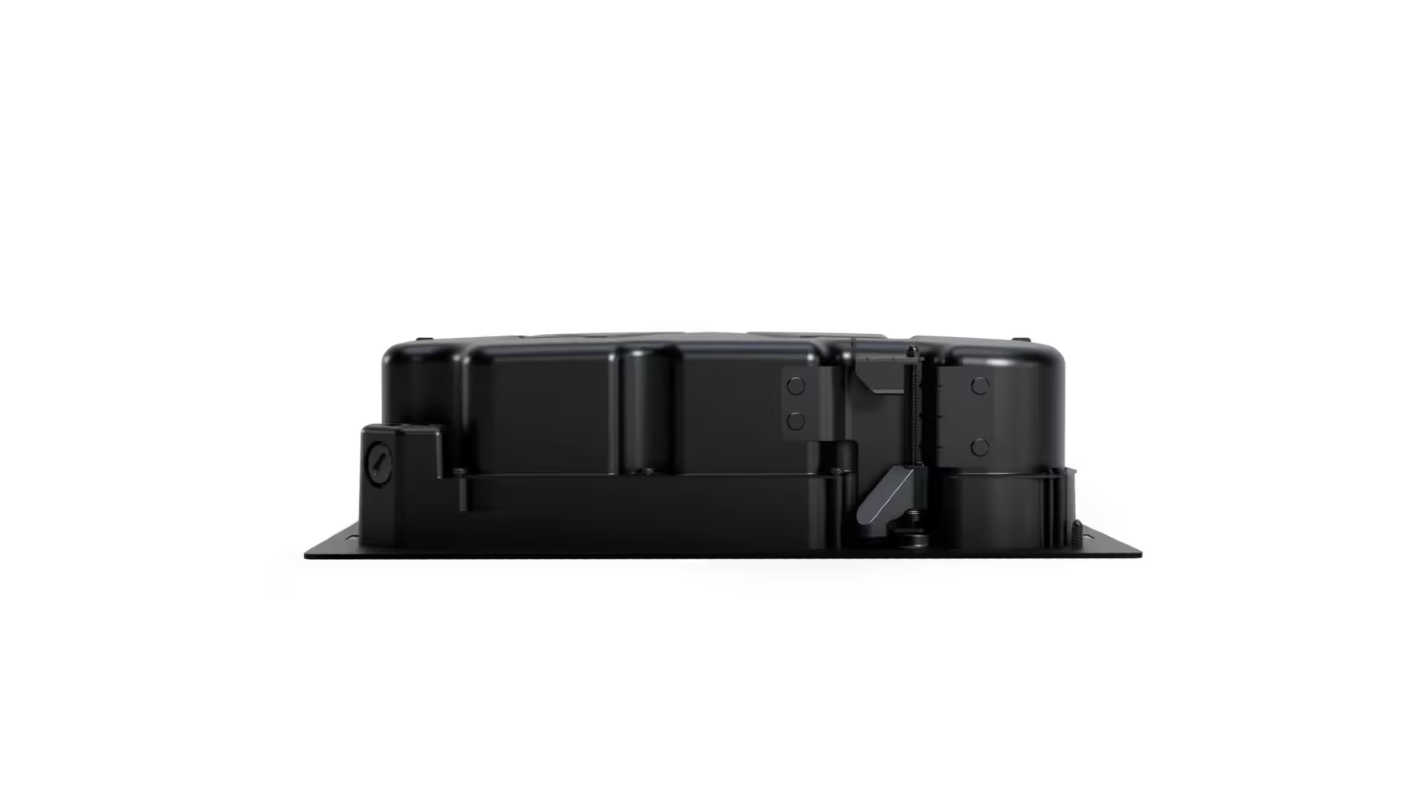

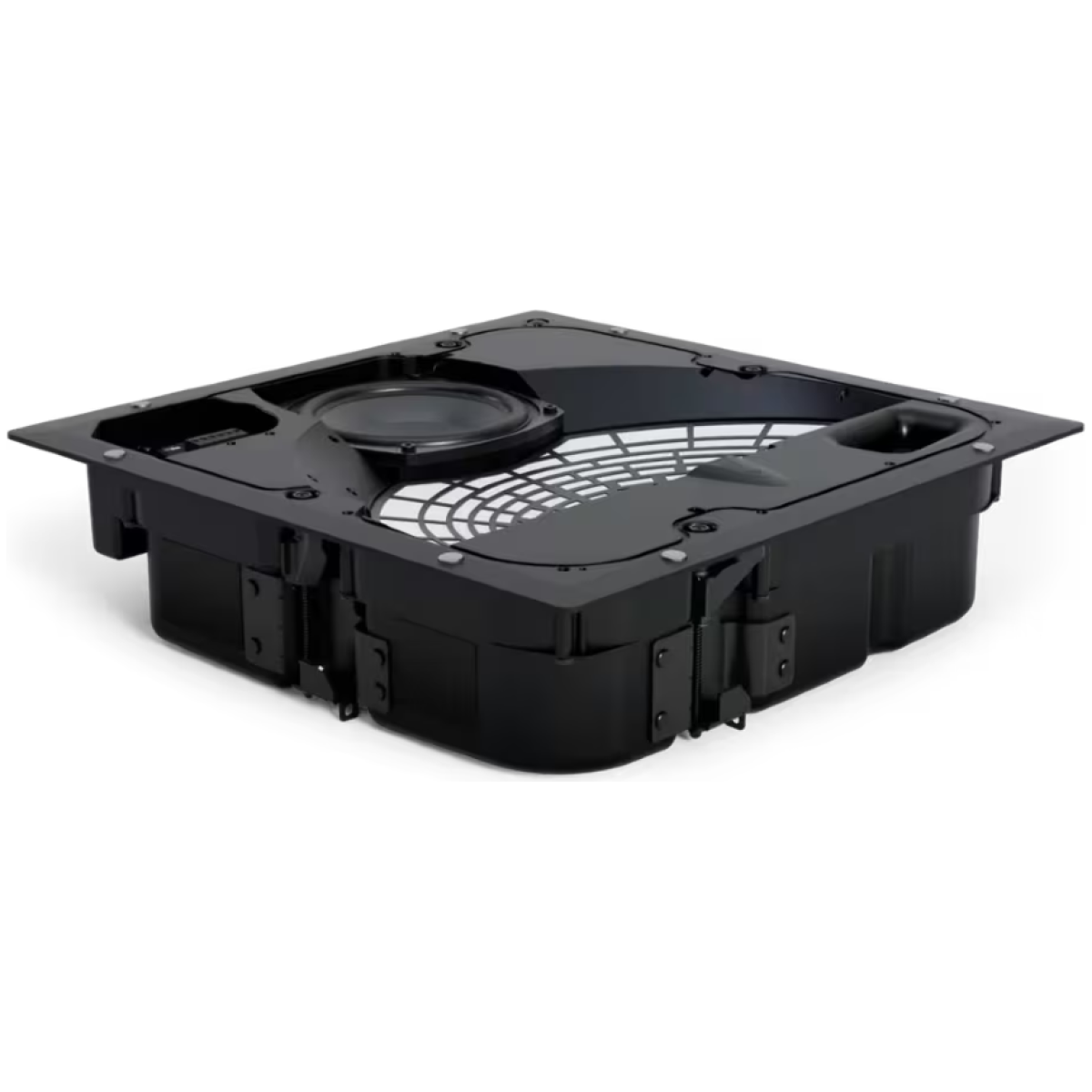

The Bose Professional EM180-LP is the low-profile version of the EdgeMax EM180 premium in-ceiling loudspeaker. With a reduced 10 cm mounting depth, it is designed for installations with limited plenum space while still delivering exceptionally wide 180° horizontal coverage using Bose PhaseGuide technology. The EM180-LP features an 8-inch woofer and a high-frequency compression driver, providing high-output full-range performance in a discreet ceiling-flush design. It is ideal for conference rooms, hospitality spaces, retail, and other architectural environments that demand both wide coverage and shallow-backcan installation.
Key Features
- Passive full-range design (requires external amplifier)

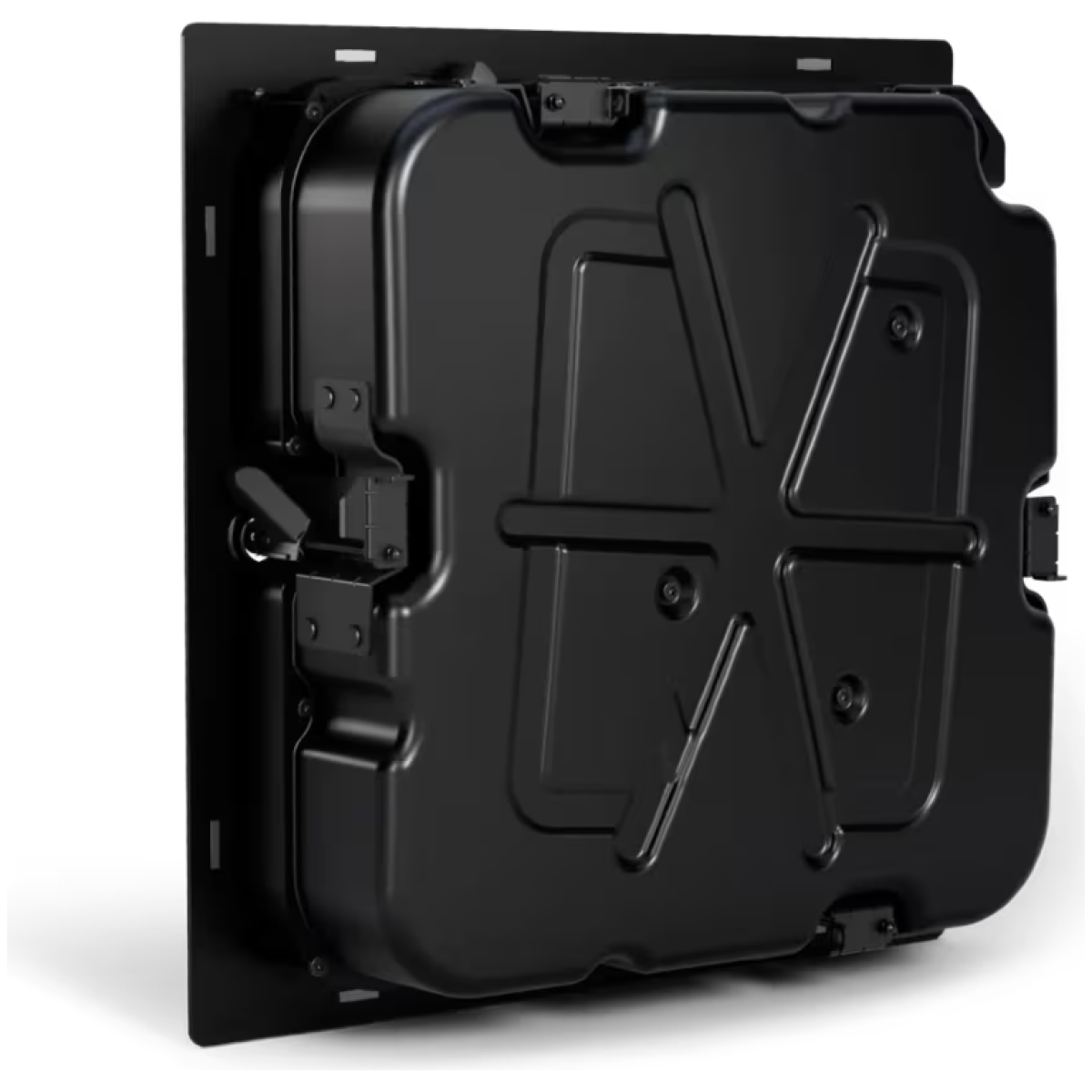

- Low-profile backcan (10 cm depth) for tight ceiling spaces
- 180° horizontal asymmetrical coverage with Bose PhaseGuide technology

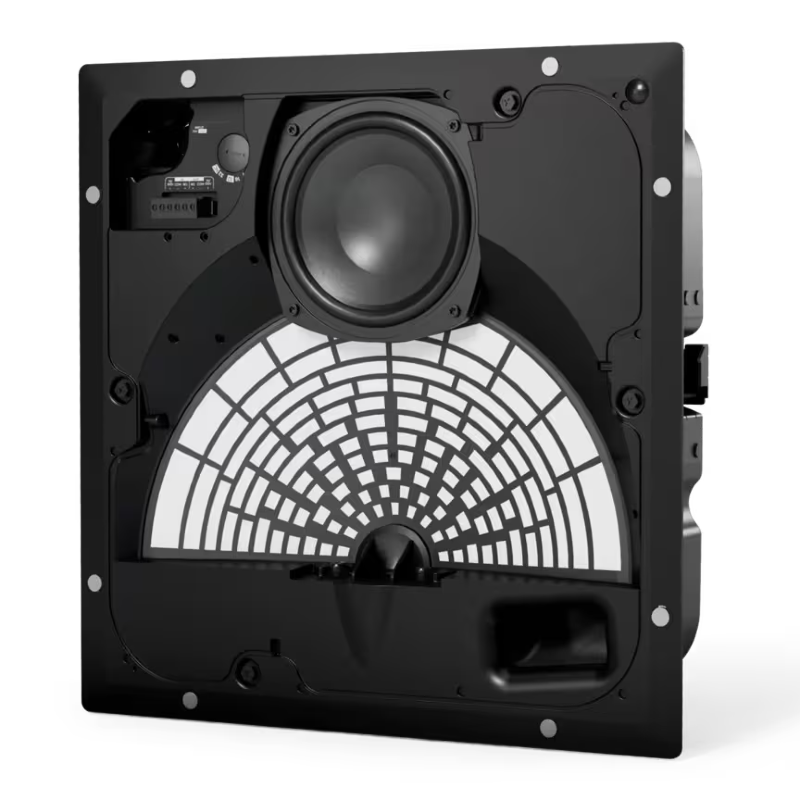

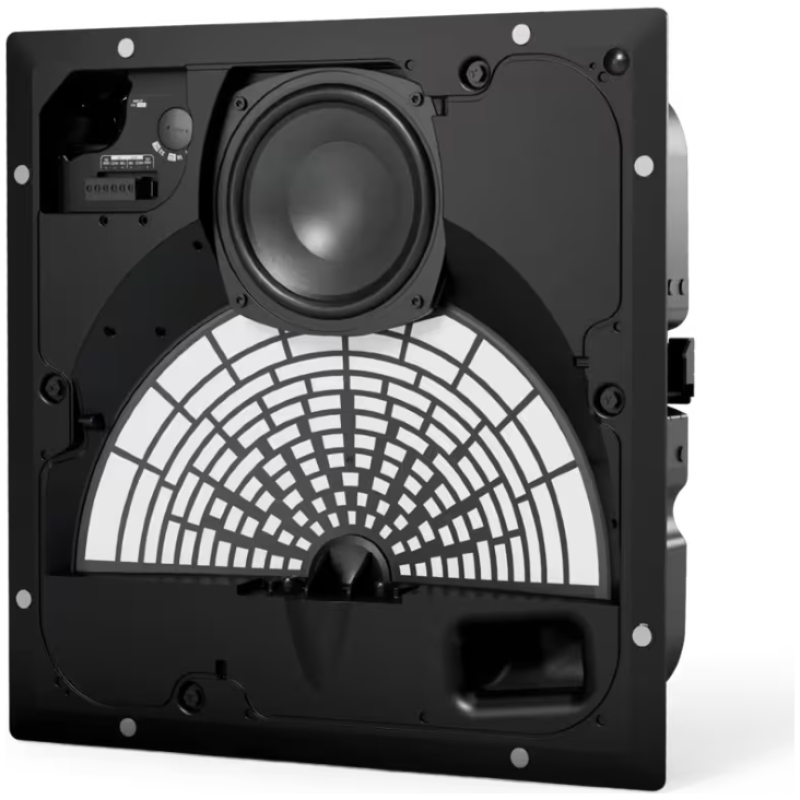

- 8″ woofer and HF compression driver
- Frequency response: 45 Hz – 19 kHz (–10 dB)
- Power handling: 40 W continuous / 160 W peak
- Sensitivity: 95 dB (1 W @ 1 m)
- Maximum SPL: 111 dB continuous, 117 dB peak
- Transformer taps for 70/100V distributed systems, plus 8 Ω bypass
- UL 1480A / UL 2043 plenum-rated
- Magnetic, paintable grille for seamless integration
Specifications
- Frequency Range (–10 dB): 45 Hz – 19 kHz
- Coverage Pattern: 180° horizontal × 80° vertical (asymmetrical)
- Power Handling: 40 W continuous / 160 W peak
- Nominal Impedance: 8 ohms (with transformer bypass)
- Inputs: 6-pin Euroblock connector
- Crossover: Passive 2-way, 1 kHz
