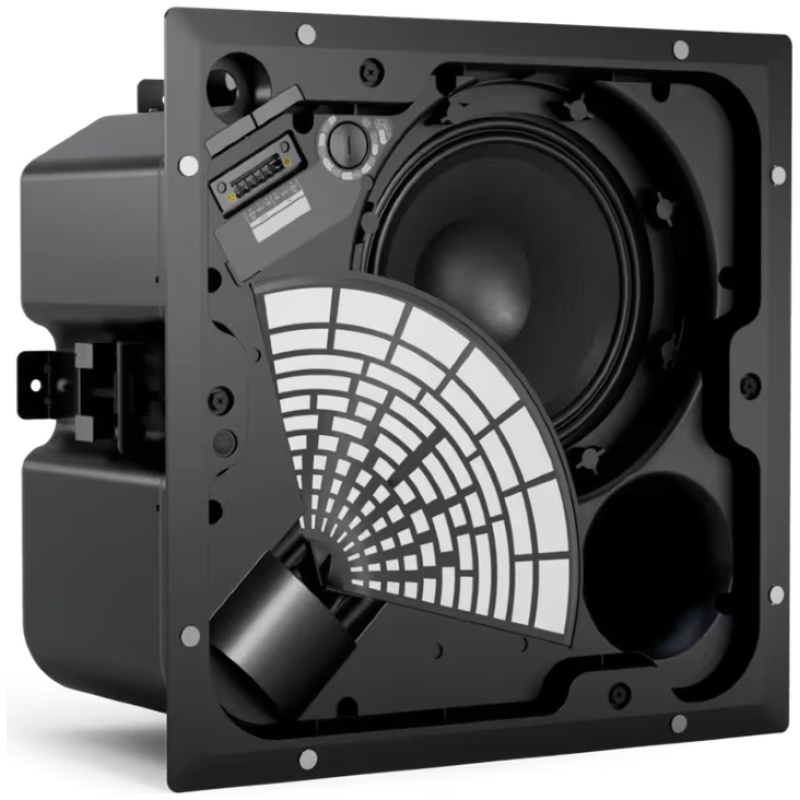

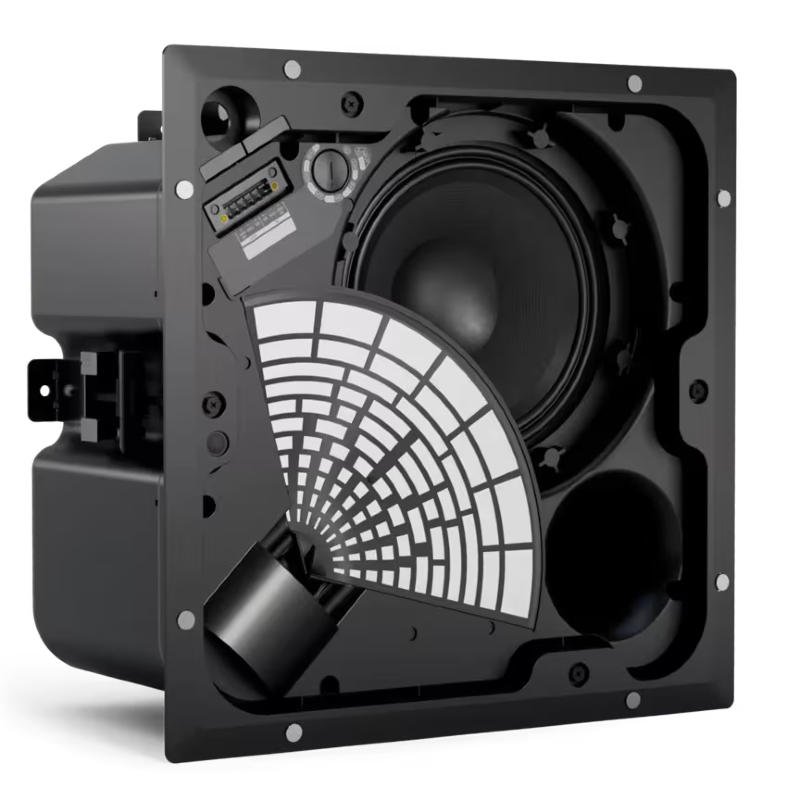

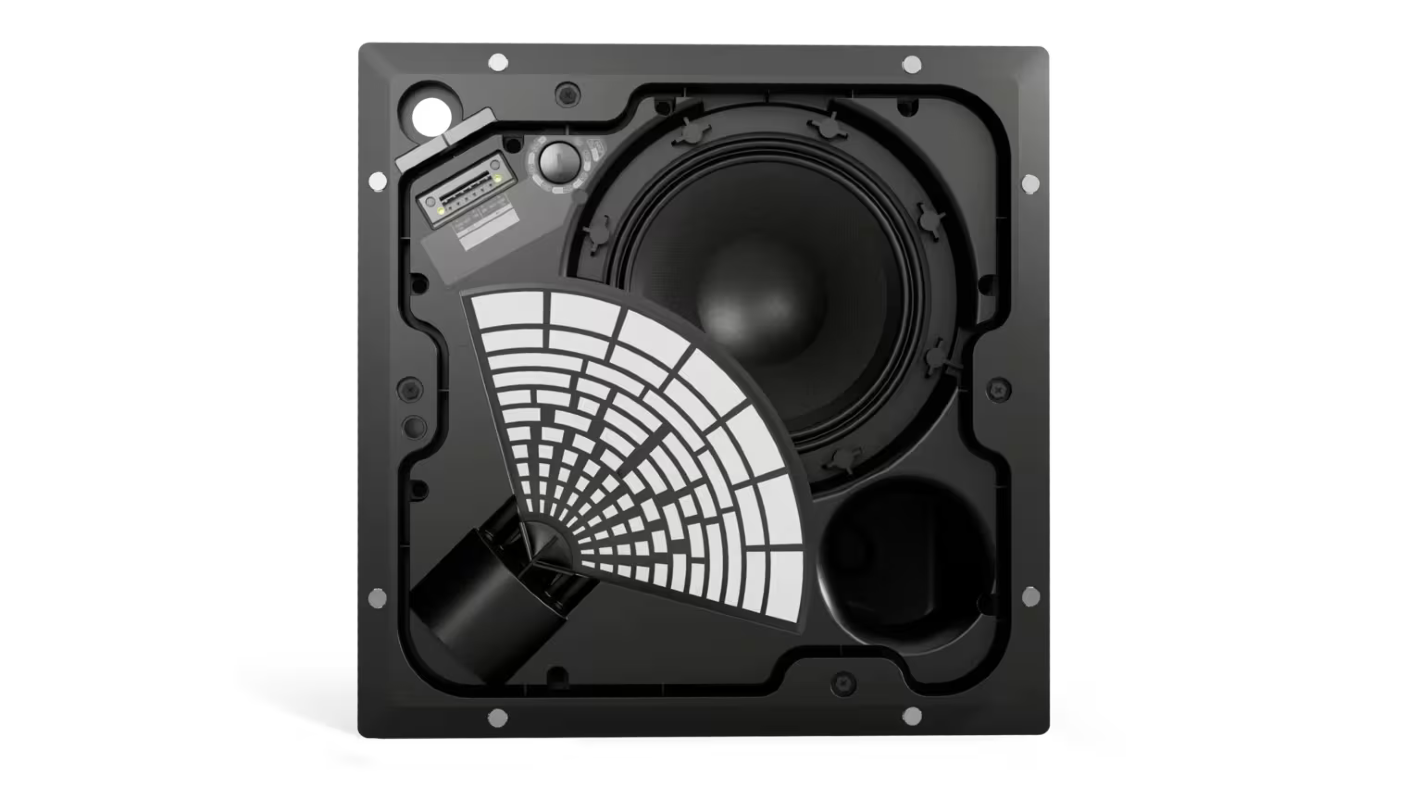

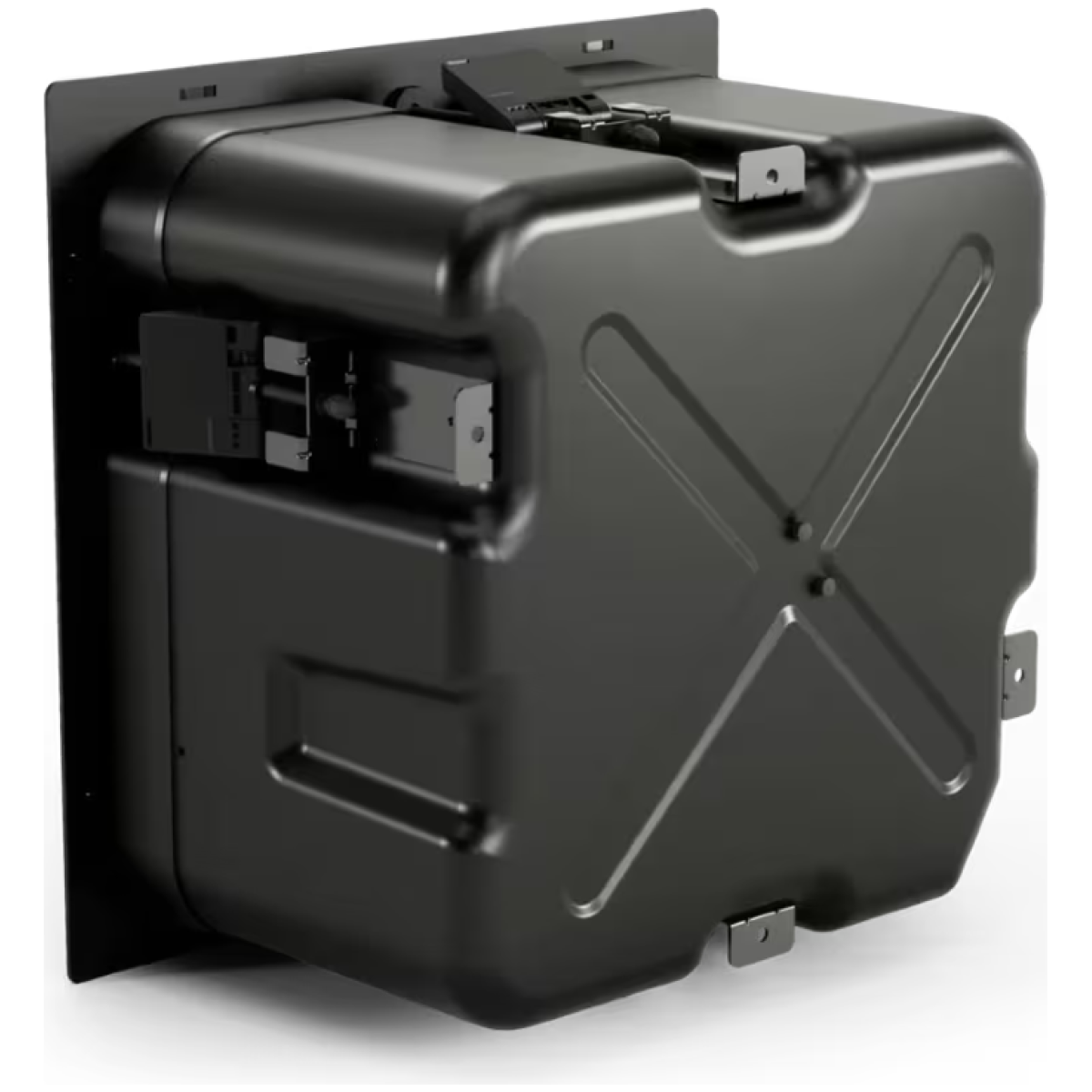

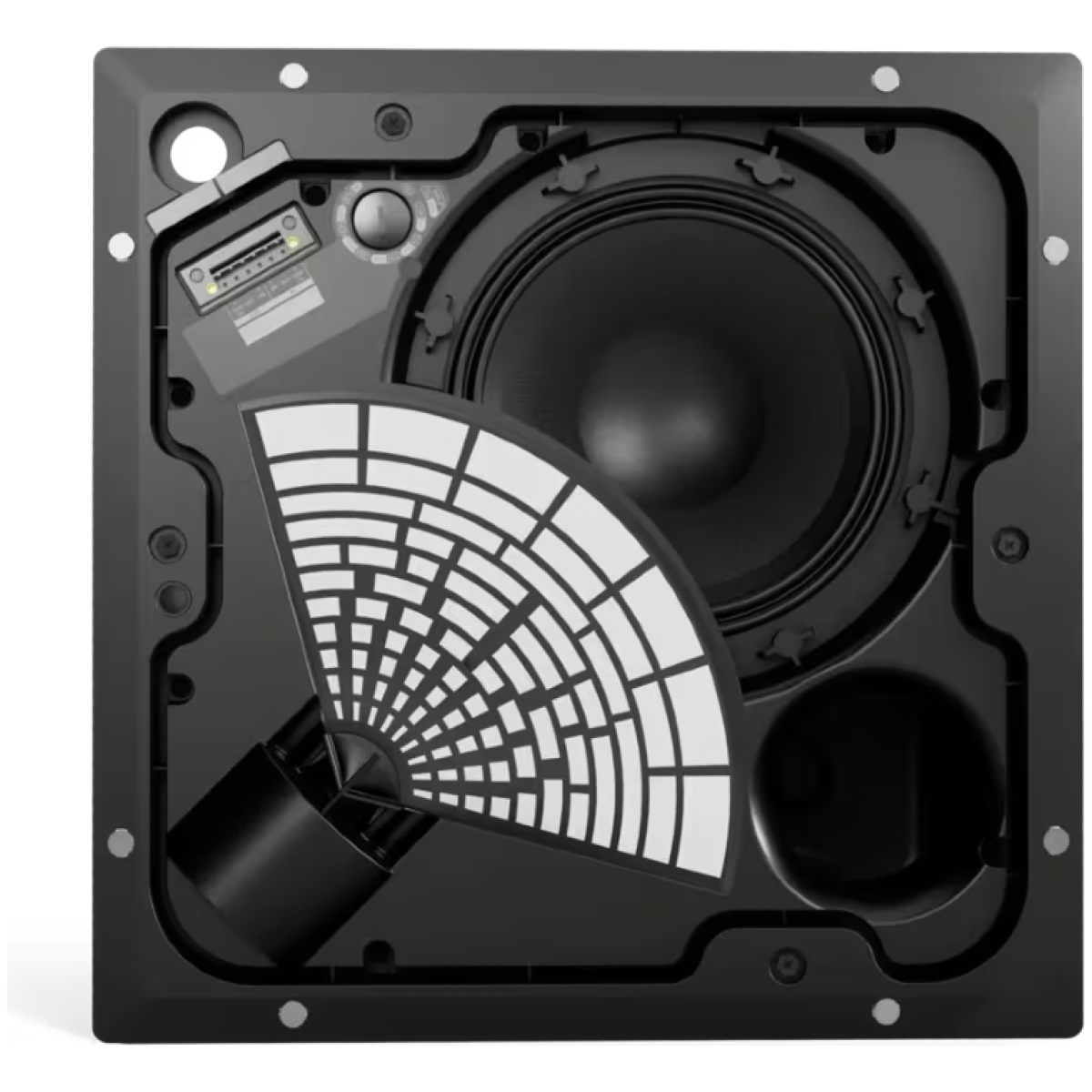

The Bose Professional EM90 is a premium EdgeMax in-ceiling loudspeaker that combines room-filling coverage with discreet architectural integration. Using advanced phase-guide technology and a high-output compression driver, the EM90 delivers 90° of asymmetrical coverage, allowing fewer loudspeakers to cover more space. With its 8-inch woofer, integrated 70/100V transformer, and clean ceiling-flush design, it’s ideal for commercial spaces such as conference rooms, retail environments, houses of worship, and hospitality venues.
Key Features
- Passive full-range in-ceiling speaker (requires external amplifier)
- Asymmetrical 90° coverage using Bose PhaseGuide technology
- 8″ low-frequency driver and HF compression driver
- Integrated 70V/100V transformer with multiple taps
- Frequency response: 45 Hz – 20 kHz (-10 dB)
- Power handling: 125 W continuous / 500 W peak
- Sensitivity: 96 dB SPL (1 W @ 1 m)
- Max SPL: 117 dB continuous, 123 dB peak
- Simple spring-arm ceiling mounting system
- Removable, paintable magnetic grille
Specifications
- Frequency Range (-10 dB): 45 Hz – 20 kHz
- Coverage Pattern: 90° horizontal (asymmetrical) × ~75° vertical
- Power Handling: 125 W continuous / 500 W peak
- Nominal Impedance: 8 ohms
- Crossover: 1.0 kHz, passive two-way
- Inputs: Euroblock 6-pin connector
- Enclosure: Molded composite with metal grille
- Color: White grille (paintable)
