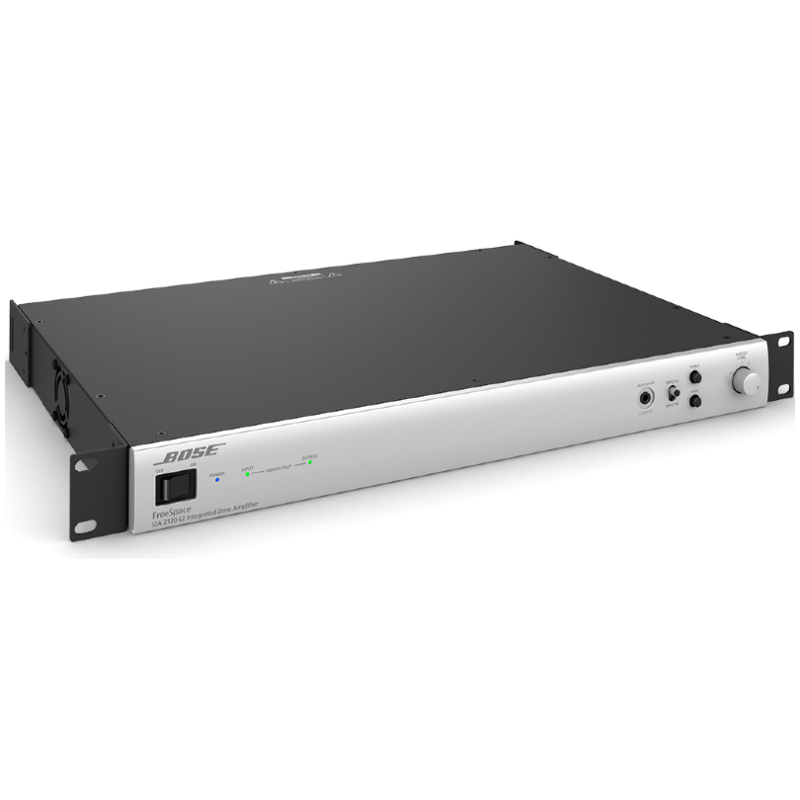

The FreeSpace IZA 2120-HZ is a high-power integrated zone amplifier designed for commercial installations using distributed (70V/100V) loudspeaker systems. It combines amplification, digital signal processing (DSP), and zone control in a single unit, simplifying music and paging system design while delivering high-quality, reliable performance.
With more output power than the IZA 190-HZ, the IZA 2120-HZ is well-suited for medium to large retail, restaurant, hospitality, and office applications. Integrated EQ presets for Bose FreeSpace loudspeakers, paging features, and support for optional remote controls make it a flexible and user-friendly solution.
- Amplifier + DSP + zone controller in one chassis
- 70V/100V distributed system support
- Optimized Bose loudspeaker EQ presets

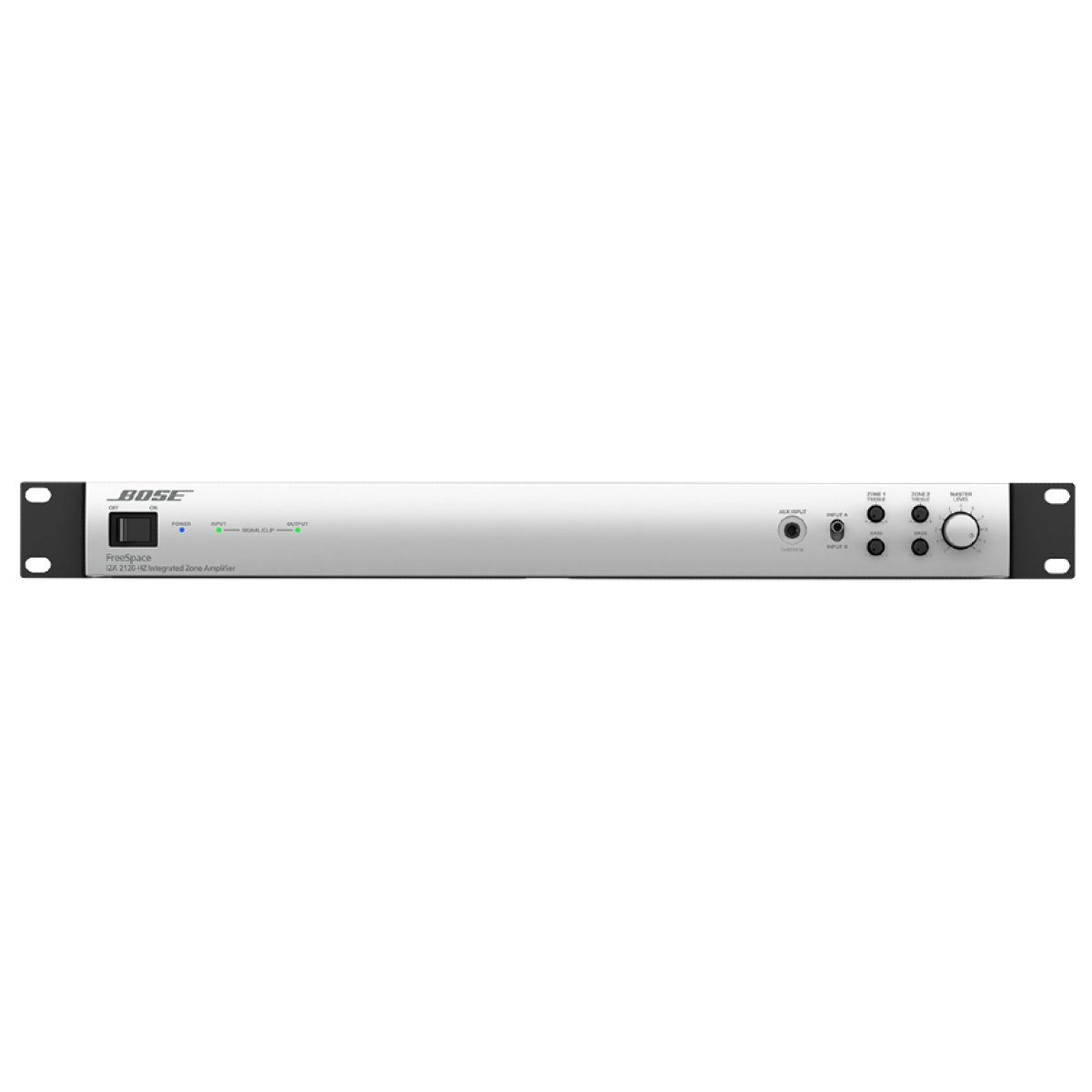

- Front-panel controls for source selection, volume, paging, and tone
- Works with Bose FreeSpace wall-mounted volume/source controllers
- Energy-efficient Class-D amplification with auto-standby
Performance Specifications
- Output Power: 2 × 120 W @ 70V/100V
- Channels: 2 (stereo/dual-mono high-impedance)
- Frequency Response: 20 Hz – 20 kHz (+0/–3 dB)
- THD+N: < 0.3% at rated power
- Signal-to-Noise Ratio: > 88 dB
- Loudspeaker EQ: Selectable Bose FreeSpace presets

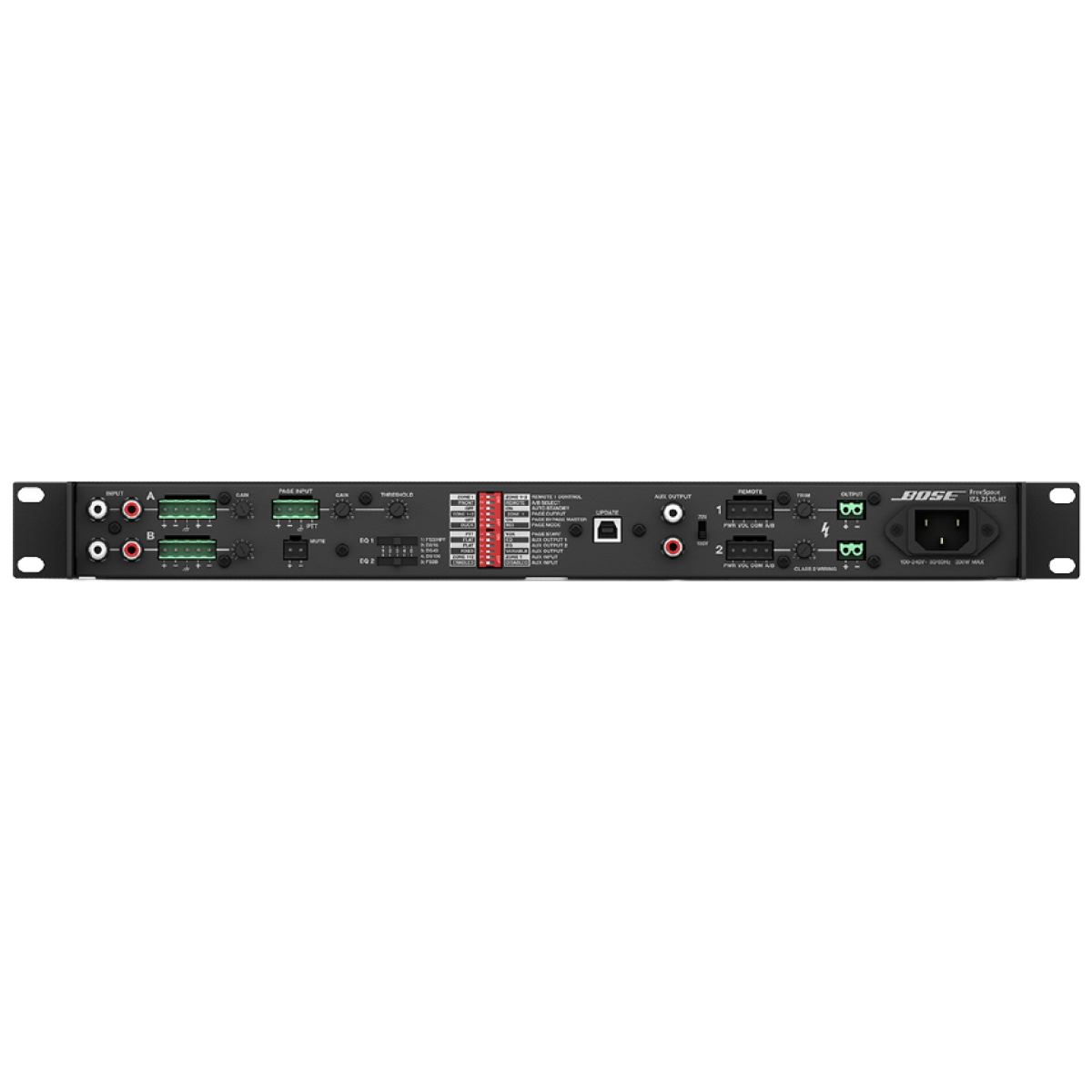

Inputs & Outputs
- Inputs:
• 2 × Line inputs (stereo RCA / Euroblock)
• 1 × Mic/Line input with phantom power (Euroblock) - Outputs:
• 2 × 70V/100V speaker outputs (Euroblock)
• 1 × AUX line output (for expansion or recording) - Remote: Compatible with Bose FreeSpace wall-mounted volume/source controllers
Physical / Mechanical
- Dimensions (H × W × D): 44 mm × 214 mm × 273 mm
(1.75″ × 8.4″ × 10.75″) – 1RU half-rack size - Net Weight: ≈ 2.5 kg (5.5 lb)
- Cooling: Convection cooled (silent operation)
- Mounting: Tabletop, wall, or rack-mountable (with optional kit)
Applications
- Retail stores and shopping centers
- Restaurants, cafés, and bars
- Hotels and hospitality venues
- Offices and corporate facilities
- Schools and education spaces
- Small to medium houses of worship
