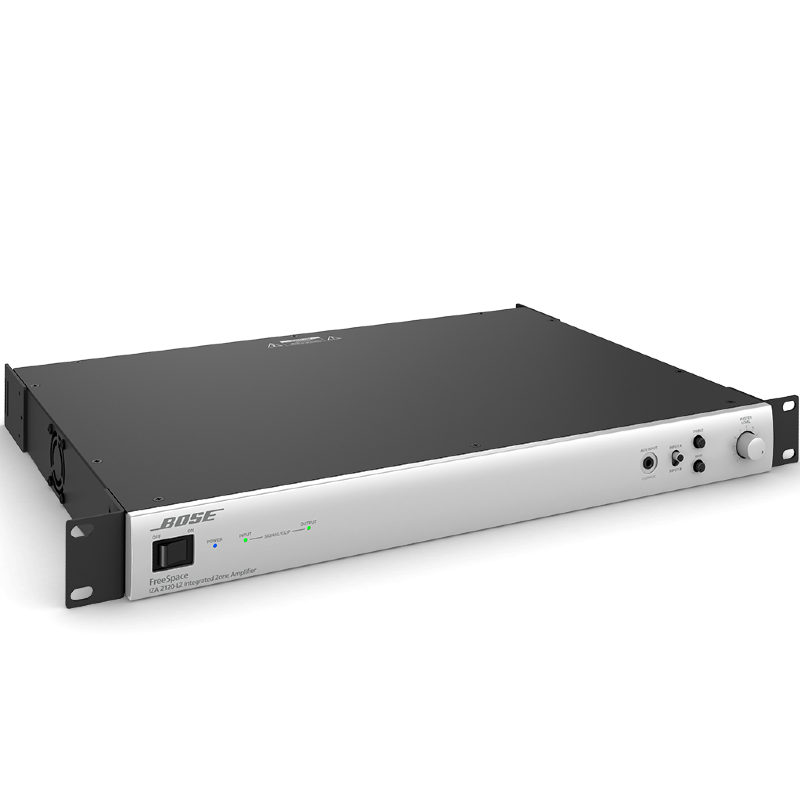

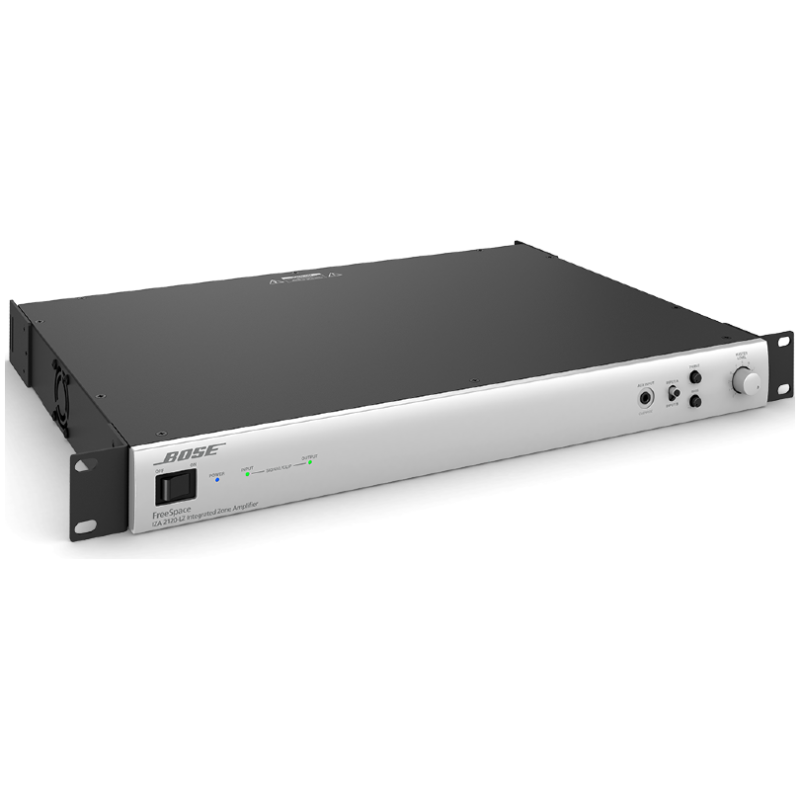

The FreeSpace IZA 2120-LZ is a compact, easy-to-use integrated zone amplifier designed for background/foreground music and paging applications. Combining a power amplifier, digital signal processing (DSP), and zone control in one unit, it simplifies installation while delivering excellent audio quality.
Optimized with Bose loudspeaker EQ presets, the IZA 2120-LZ ensures clear and balanced sound, making it ideal for retail, restaurants, hospitality, and office spaces. Its 2 × 120 W output provides more power and headroom than the smaller IZA 250-LZ model, supporting medium-sized venues with multiple loudspeakers.
- Integrated amplifier, DSP, and zone controller in one chassis
- 2 × 120 W into low-impedance loads (4 Ω / 8 Ω)
- Bose FreeSpace loudspeaker EQ presets for optimized performance

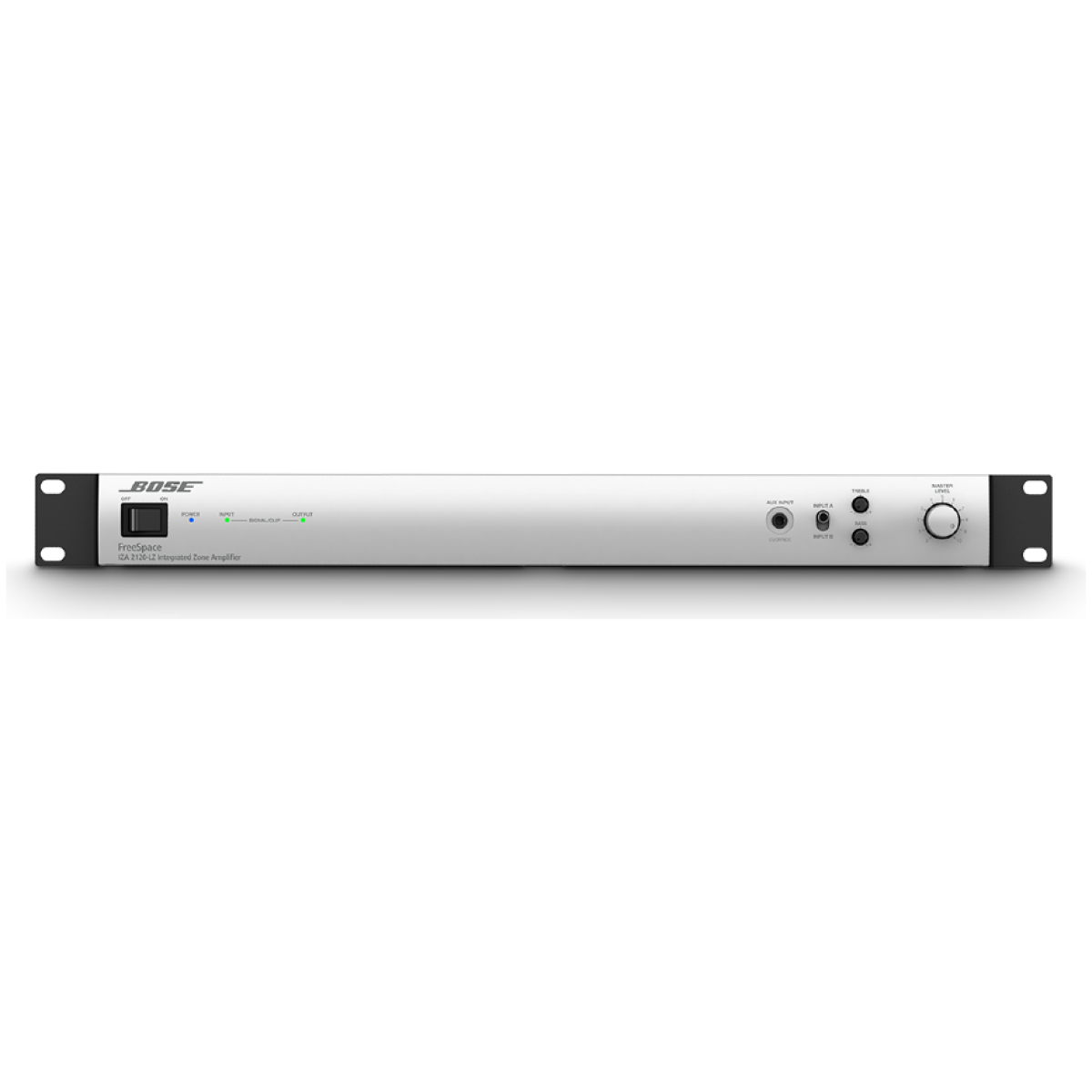

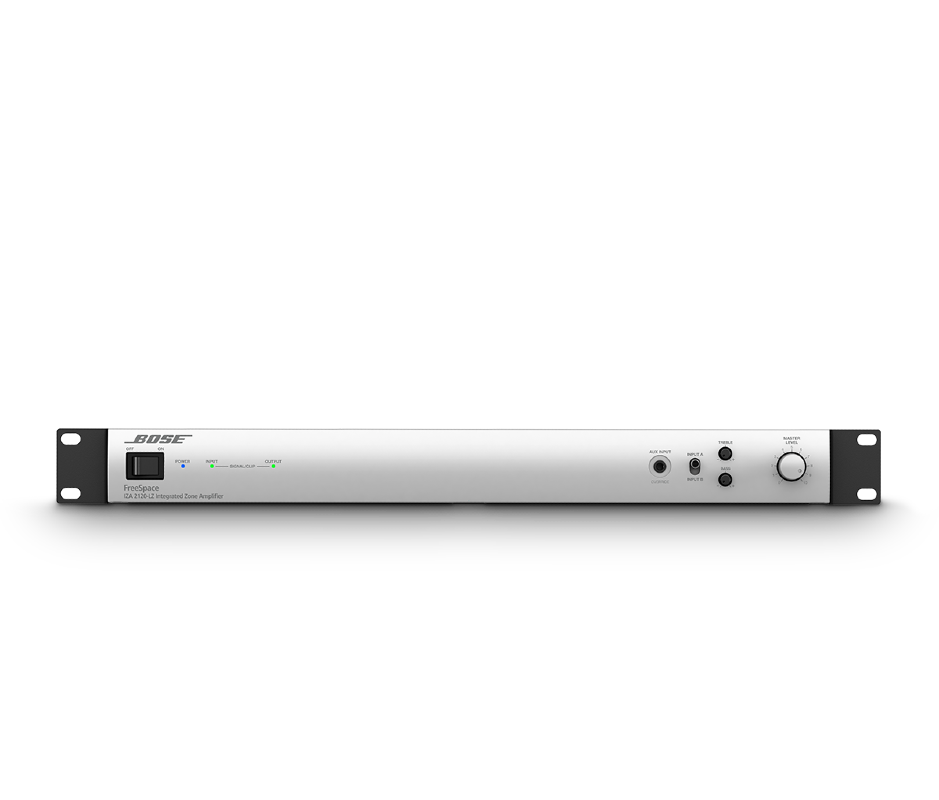

- Front-panel controls for source selection, paging, volume, and tone adjustments
- Works with optional Bose FreeSpace wall-mounted volume/source controllers
- Energy-efficient Class-D amplification with auto-standby mode
Performance Specifications
- Output Power: 2 × 120 W @ 4 Ω or 8 Ω
- Channels: 2 (stereo or dual mono)
- Frequency Response: 20 Hz – 20 kHz (+0/–3 dB)
- THD+N: < 0.3% at rated power
- Signal-to-Noise Ratio: > 88 dB
- Loudspeaker EQ: Selectable Bose FreeSpace presets

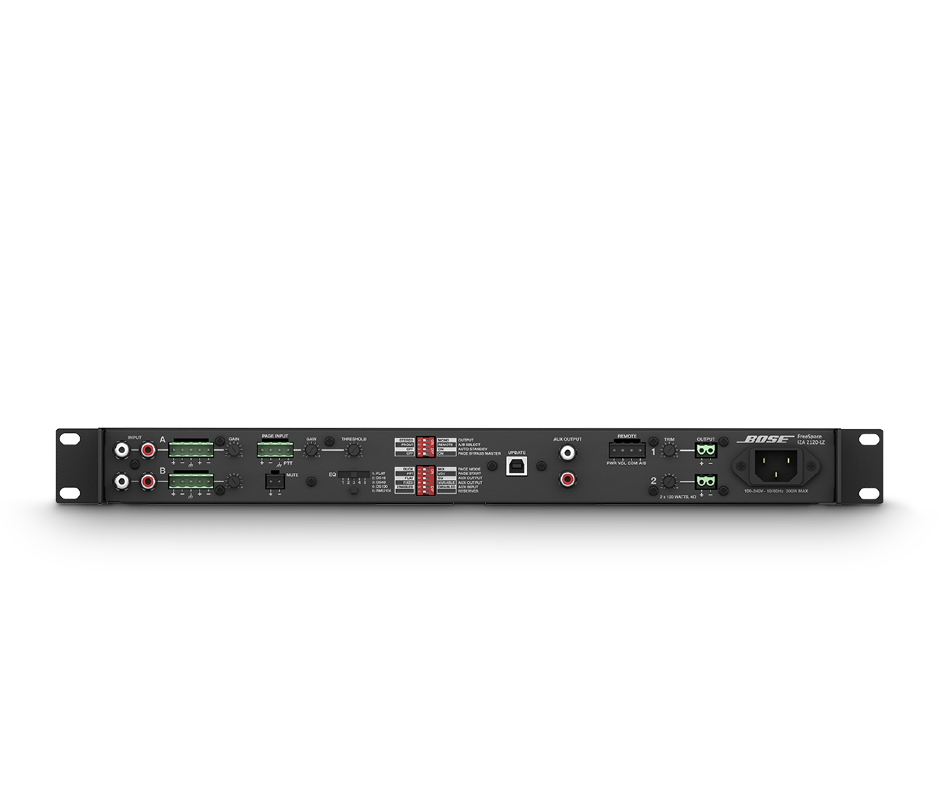

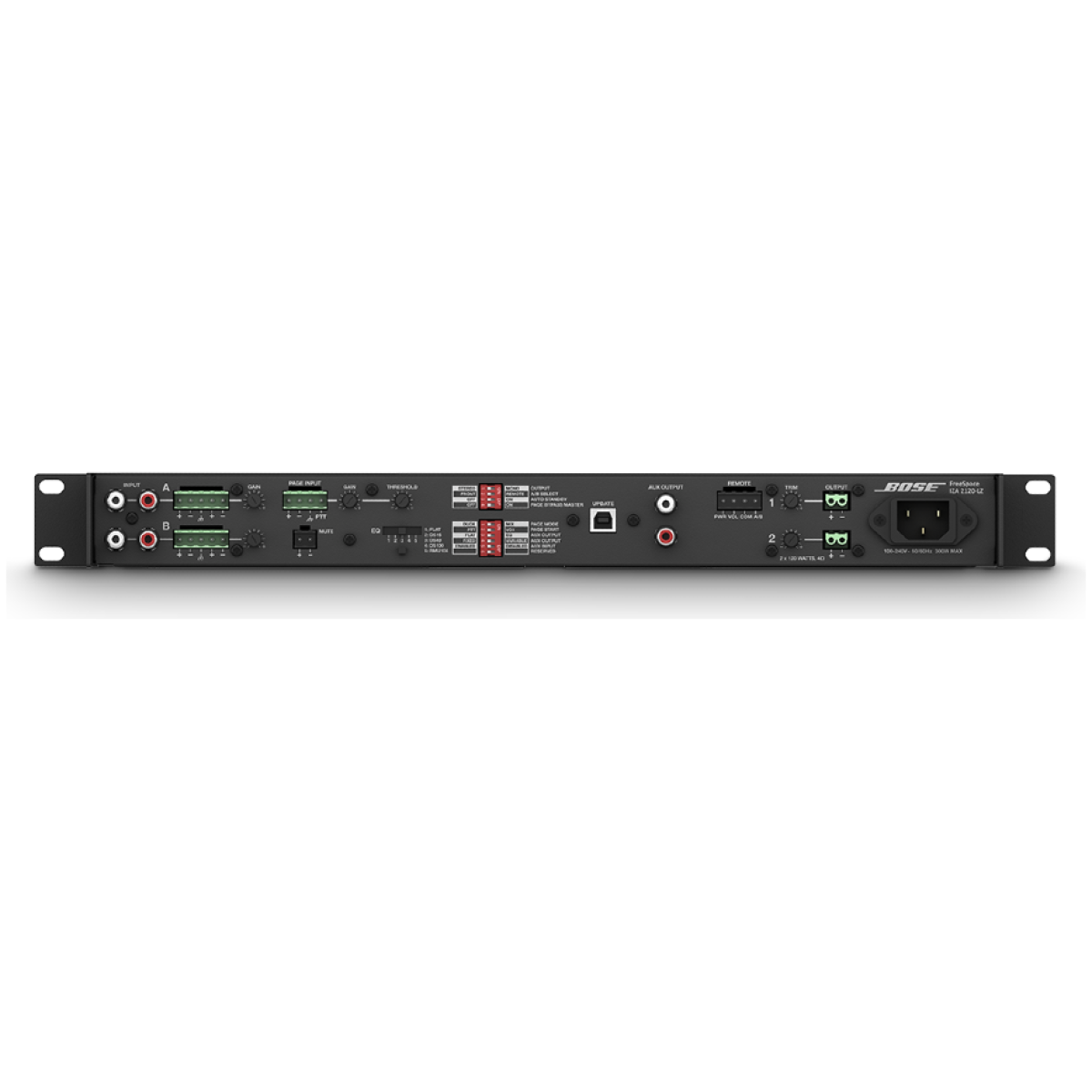

Inputs & Outputs
- Inputs
• 2 × Line inputs (stereo RCA / Euroblock)
• 1 × Mic/Line input with phantom power (Euroblock) - Outputs
• 2 × Speaker outputs (Euroblock, 4/8 Ω)
• 1 × AUX line output (for expansion/recording) - Remote Control
• Compatible with Bose FreeSpace wall-mounted volume/source controllers
Physical / Mechanical
- Dimensions (H × W × D): 44 × 214 × 273 mm (1.75″ × 8.4″ × 10.75″) – half-rack, 1RU
- Net Weight: ≈ 2.5 kg (5.5 lb)
- Cooling: Convection cooled (silent, fanless design)
- Mounting: Tabletop, wall-mountable, or rack-mountable (with optional rack kit)
Applications
- Retail stores
- Restaurants, cafés, and bars
- Hotels and hospitality spaces
- Offices and corporate facilities
- Education facilities
- Small houses of worship
