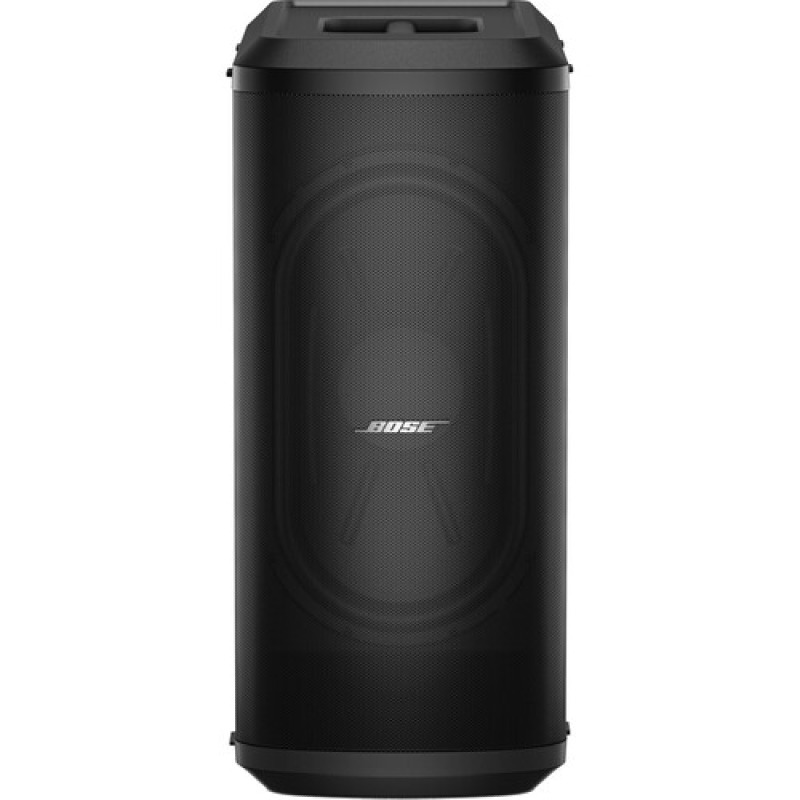

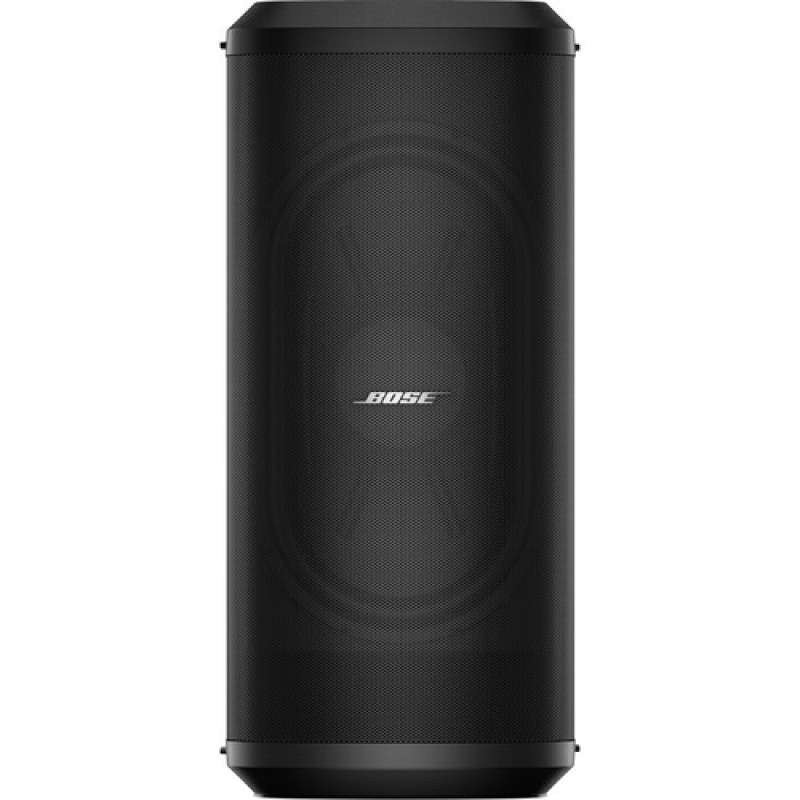

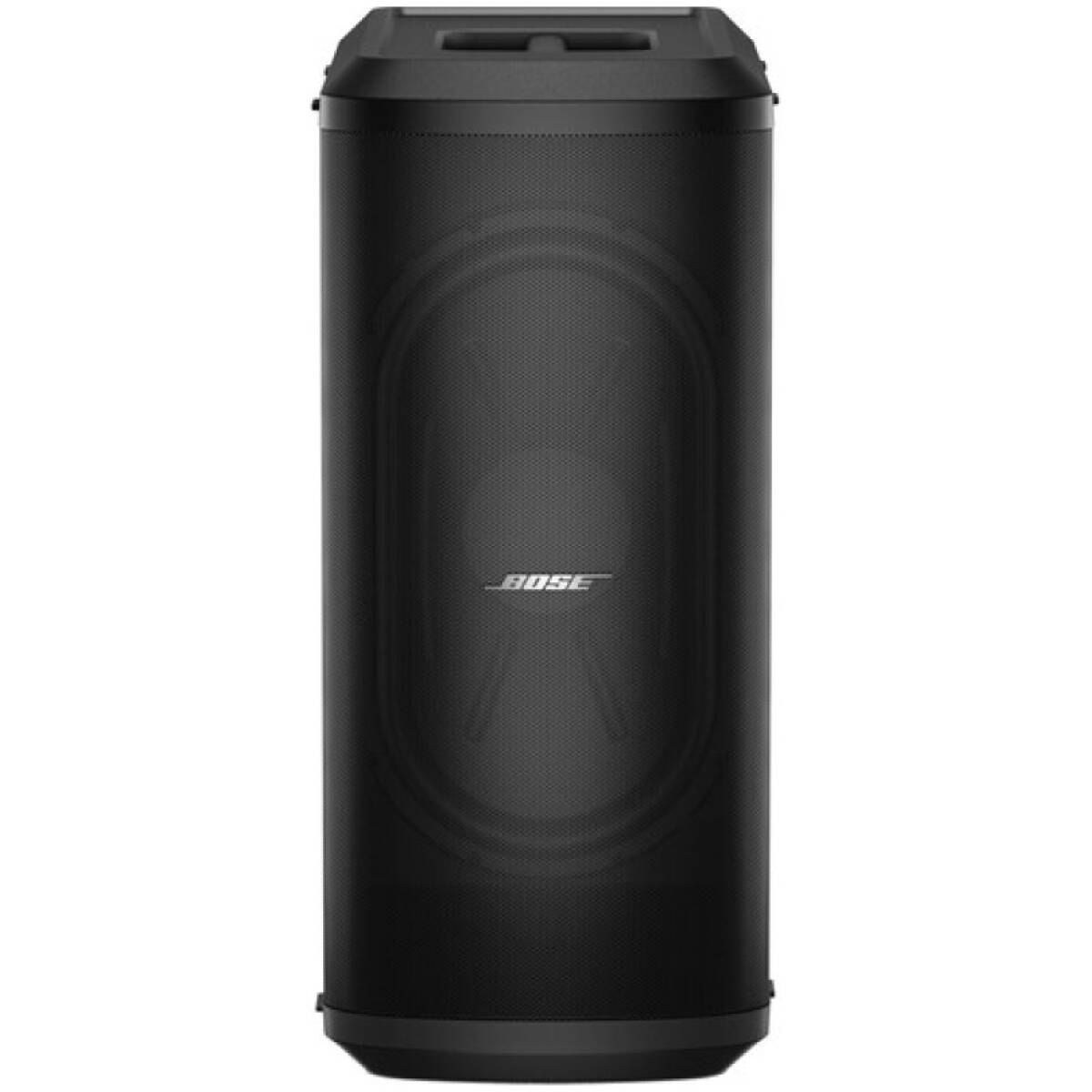

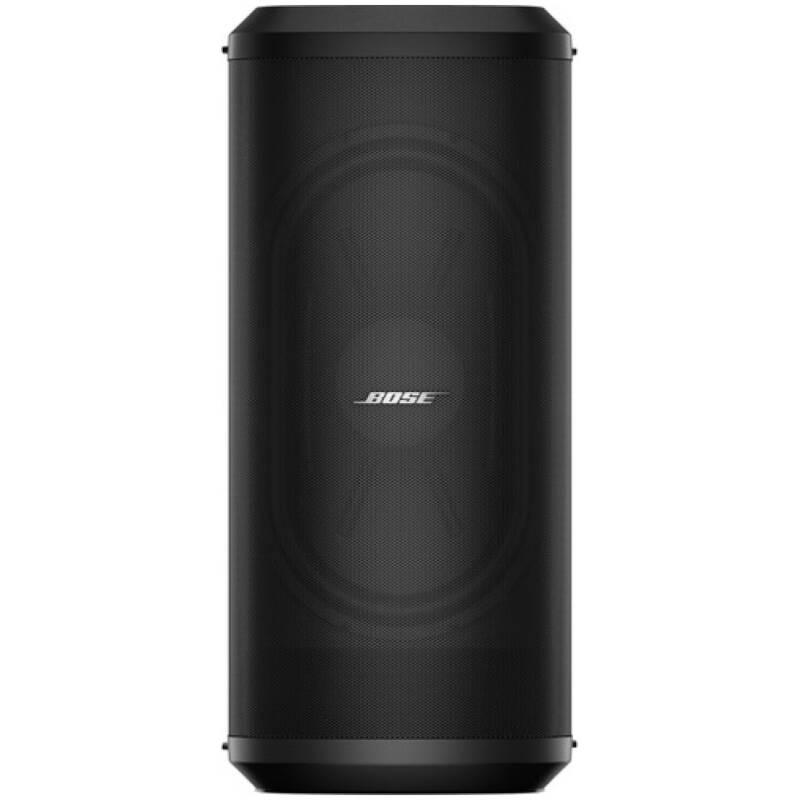

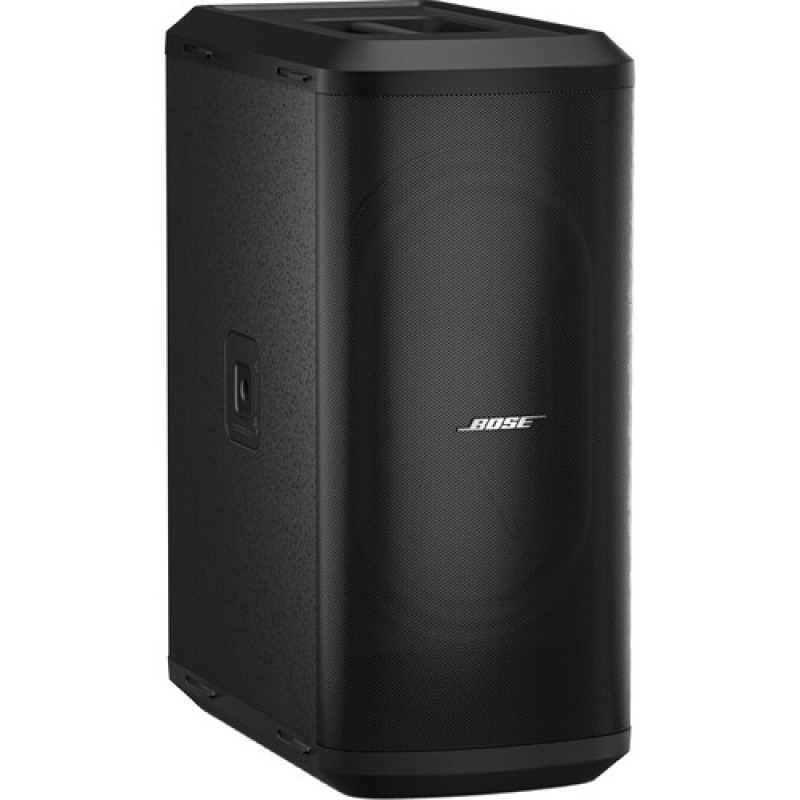

Bose Professional L1 PRO Series Sub2 Portable Bass Module

The Bose Sub2 is a powered portable bass module designed for the Bose L1 Pro series line array systems. Featuring a larger 10″ × 18″ high-excursion neodymium RaceTrack driver, the Sub2 delivers deeper, more powerful bass down to 37 Hz with higher output than the Sub1, all in a slim, easy-to-carry enclosure.

It connects seamlessly with the L1 Pro32 using a single SubMatch cable that carries both audio and power. It can also be paired with the L1 Pro8 or L1 Pro16 for extended low-frequency reinforcement. Multiple Sub2 units can be stacked to increase bass performance for larger venues.

• Powered bass module with 10″ × 18″ RaceTrack driver
• Deeper bass extension: down to 37 Hz
• Higher output than the Sub1 for larger audiences/venues
• Slim cabinet design for portability and stage convenience
• SubMatch connection (single cable for audio + power to L1 Pro32)
• Compatible with L1 Pro8, Pro16, and Pro32 systems
• Stackable for scalable low-frequency reinforcement

Performance Specifications

• Frequency Response: 37 Hz – 200 Hz
• Max SPL: 123 dB

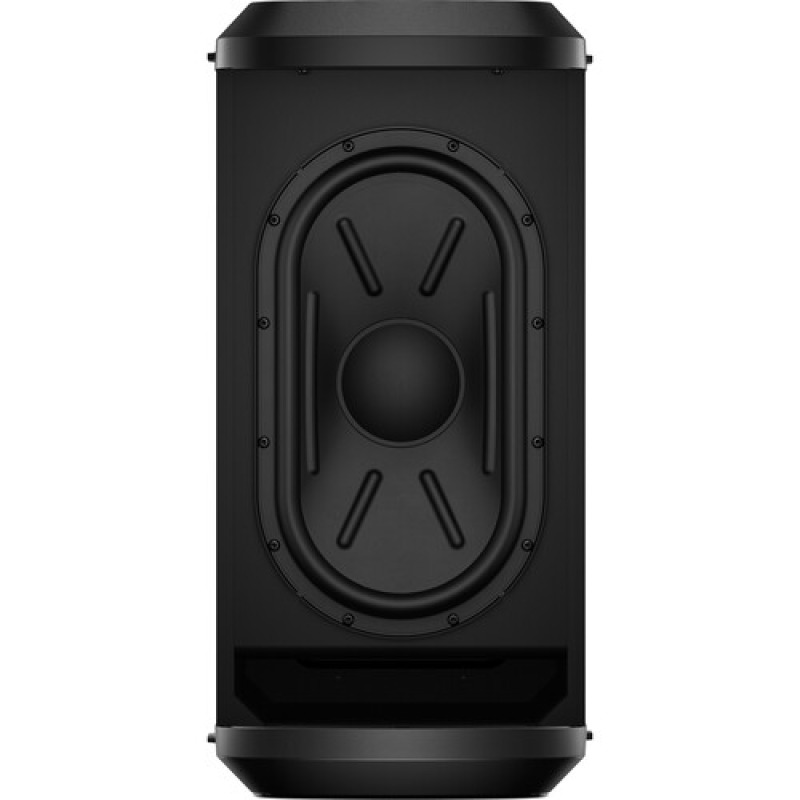

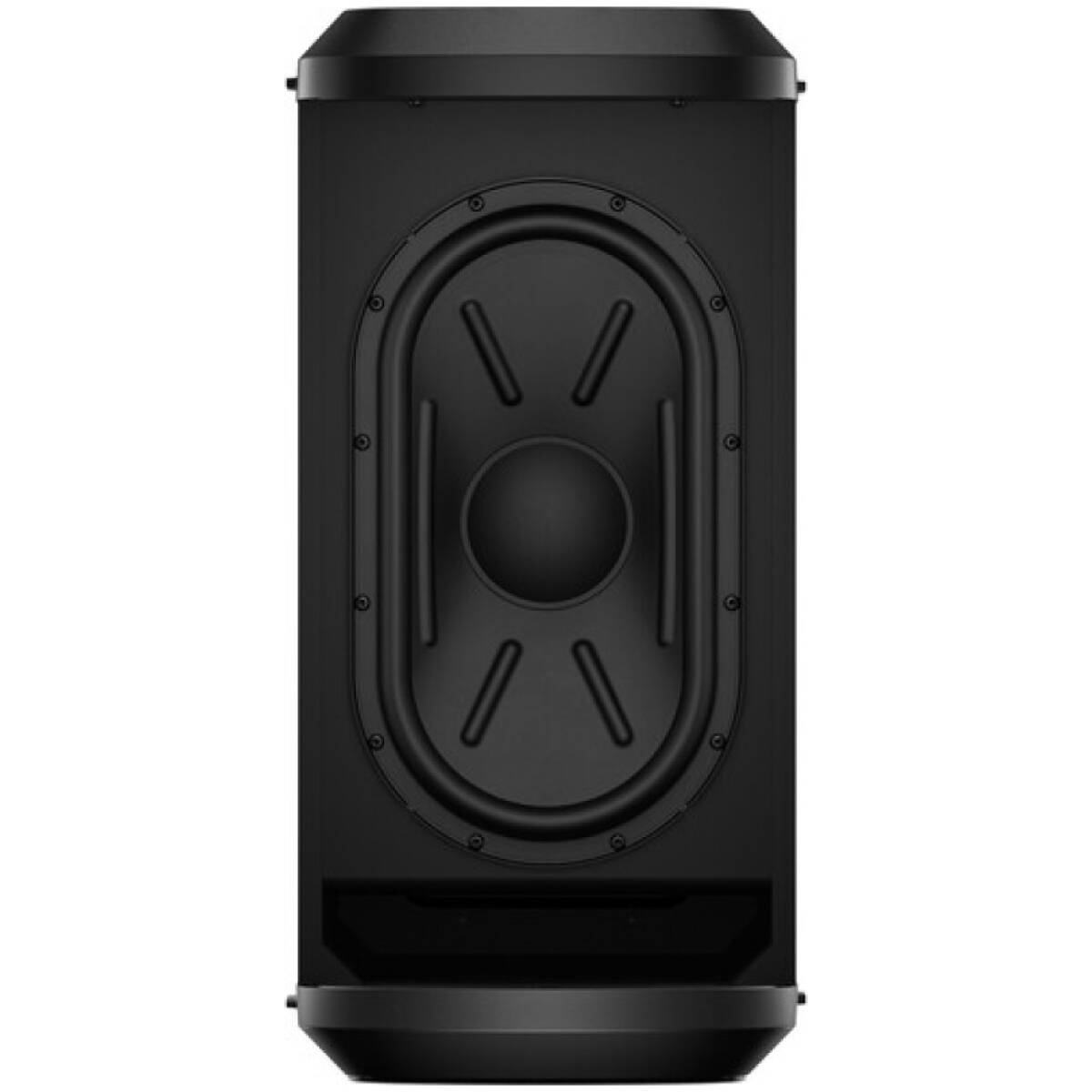

• Driver: 10″ × 18″ high-excursion neodymium RaceTrack driver
• Amplification: Built-in Class-D amplifier

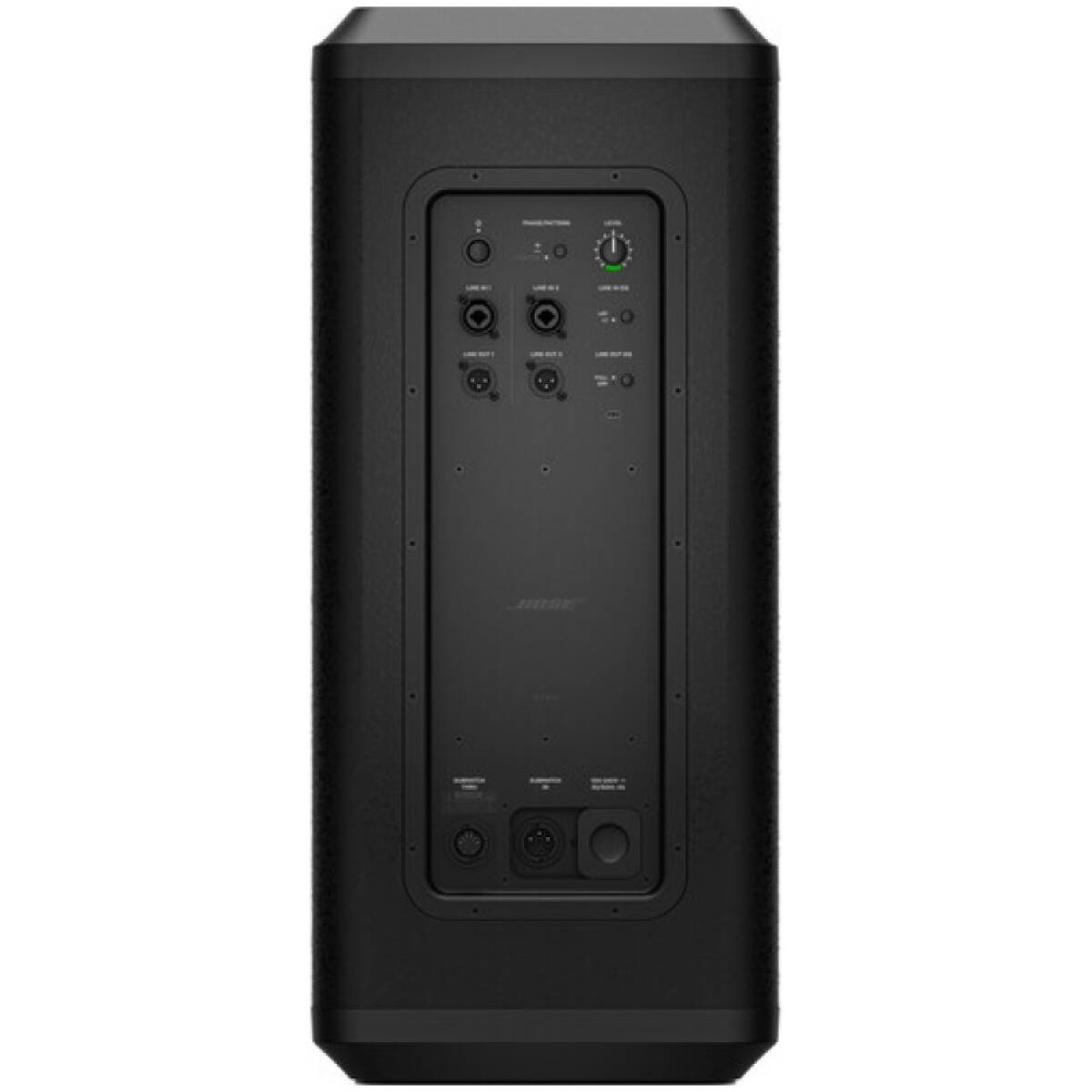

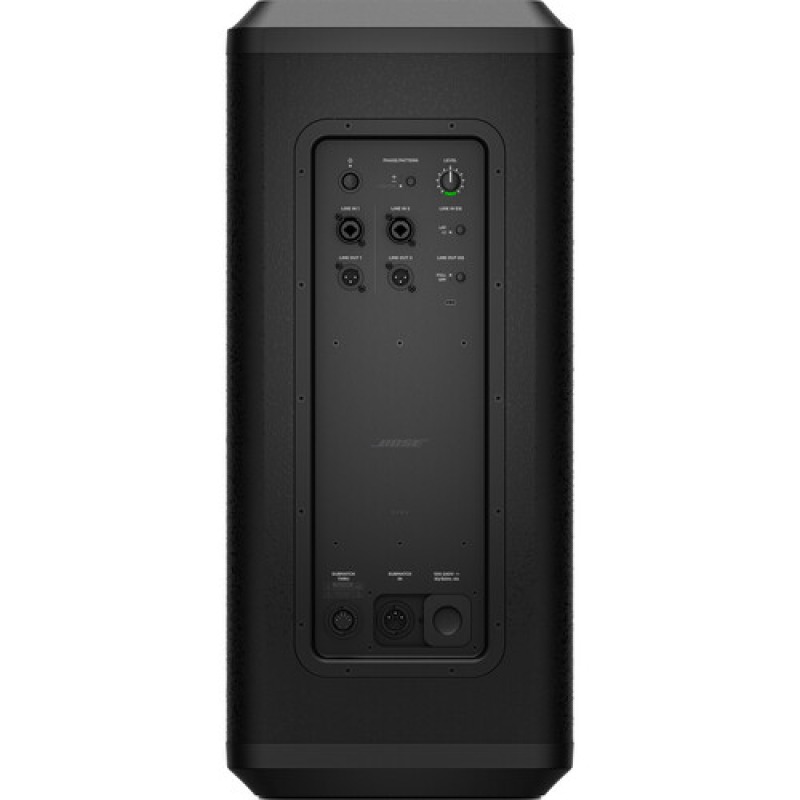

Connectivity

• SubMatch input/output for L1 Pro32 (single-cable audio + power)
• Line-level input/output (XLR) for use with L1 Pro8, Pro16, or other systems

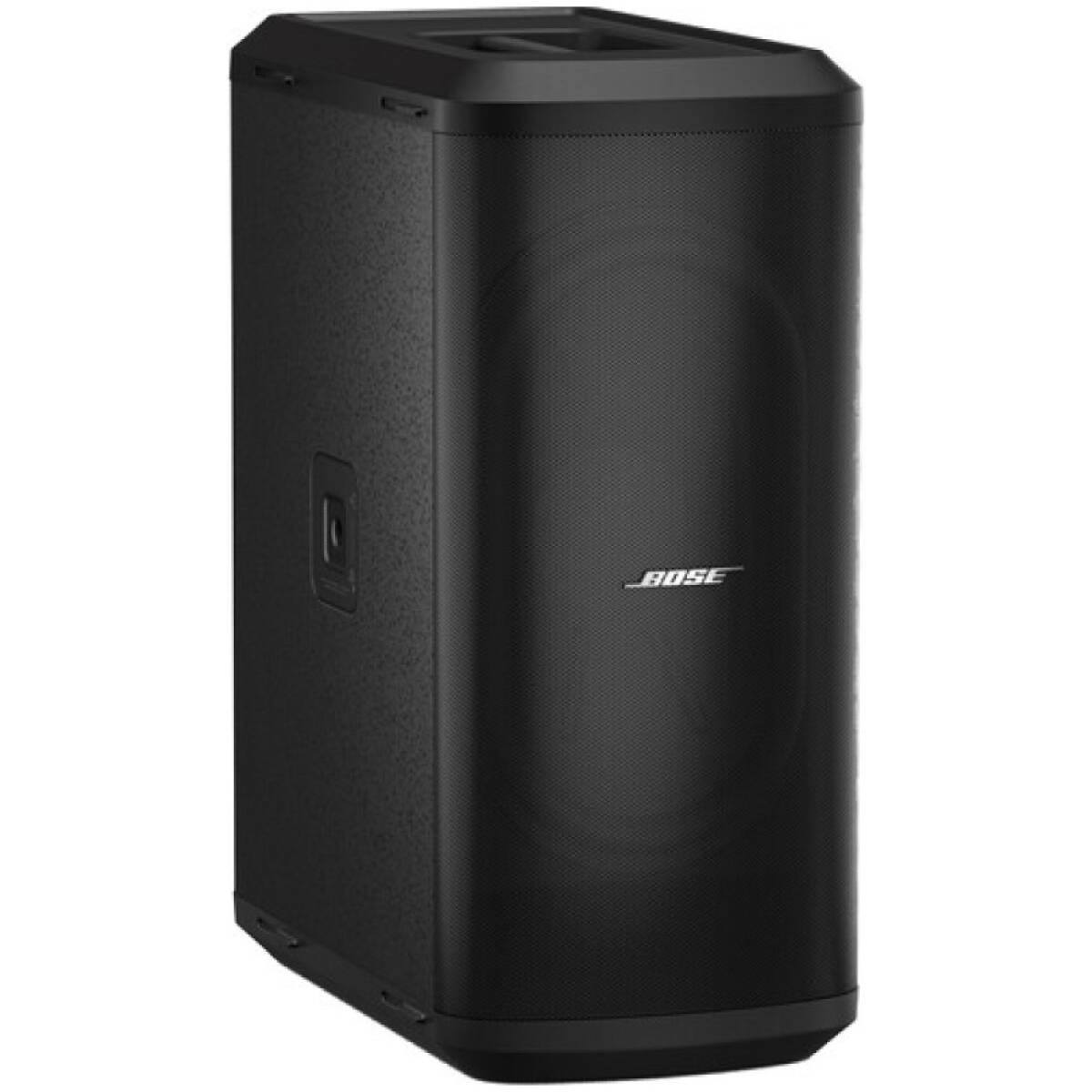

Physical / Mechanical

• Dimensions (H × W × D): 69 × 31 × 55 cm (27.2″ × 12.2″ × 21.7″)
• Net Weight: ≈ 18.5 kg (40.8 lb)
• Enclosure: Rugged wood cabinet with steel grille
• Finish: Black with integrated carry handle
