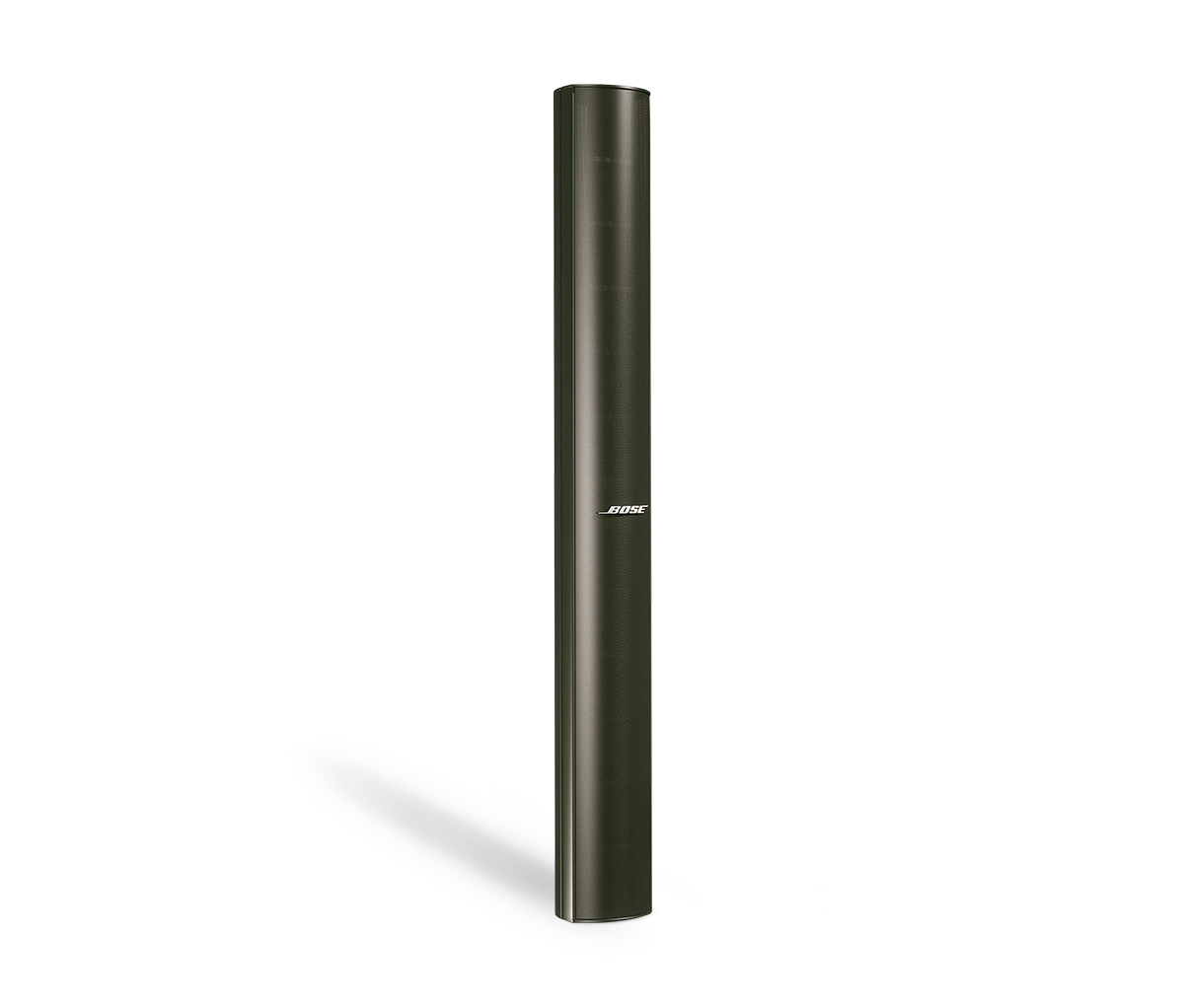

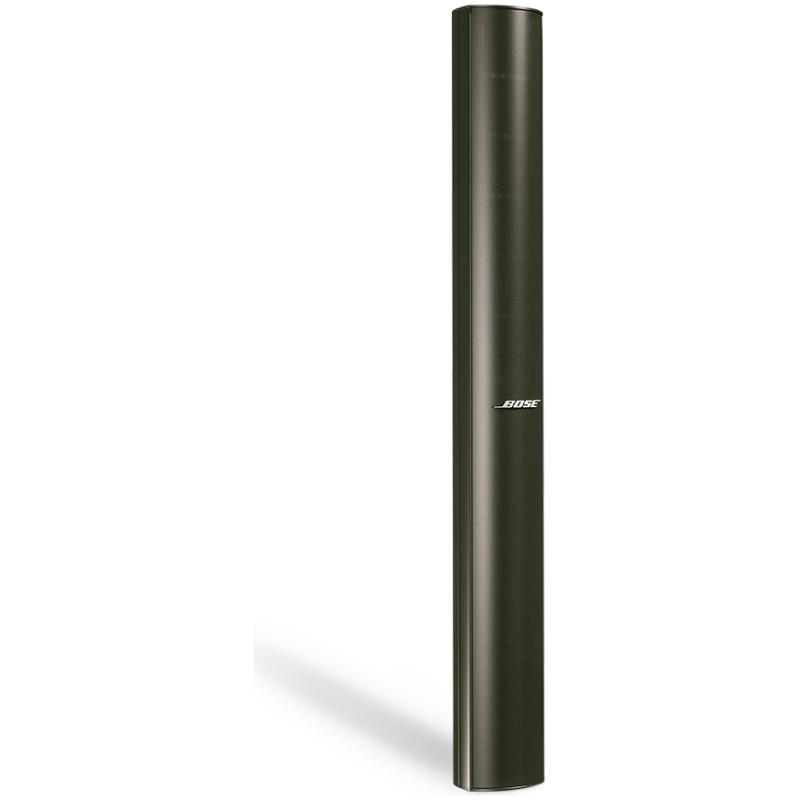

Bose MA12 Modular Line Array Loudspeaker

Key Features

• Modular line array with 12 × 2.25″ full-range drivers
• 160° horizontal coverage for even sound distribution
• Slim column-style enclosure for discreet installation
• Expandable design – stack multiple units using coupler brackets (CBMA12)
• Black finish (B = Black; also available in White as MA12W)
• Ideal for houses of worship, auditoriums, lecture halls, and multipurpose venues

Specifications

• Frequency Response (-10 dB): ~155 Hz – 12 kHz
• Coverage: 160° horizontal × 20° vertical (per module)
• Power Handling: 200 W continuous (IEC)
• Sensitivity (SPL / 1W @ 1m): ~88 dB
• Maximum SPL: ~98 dB (per module)
• Nominal Impedance: 8 Ω
• Drivers: 12 × 2.25″ (57 mm) full-range
• Color: Black
