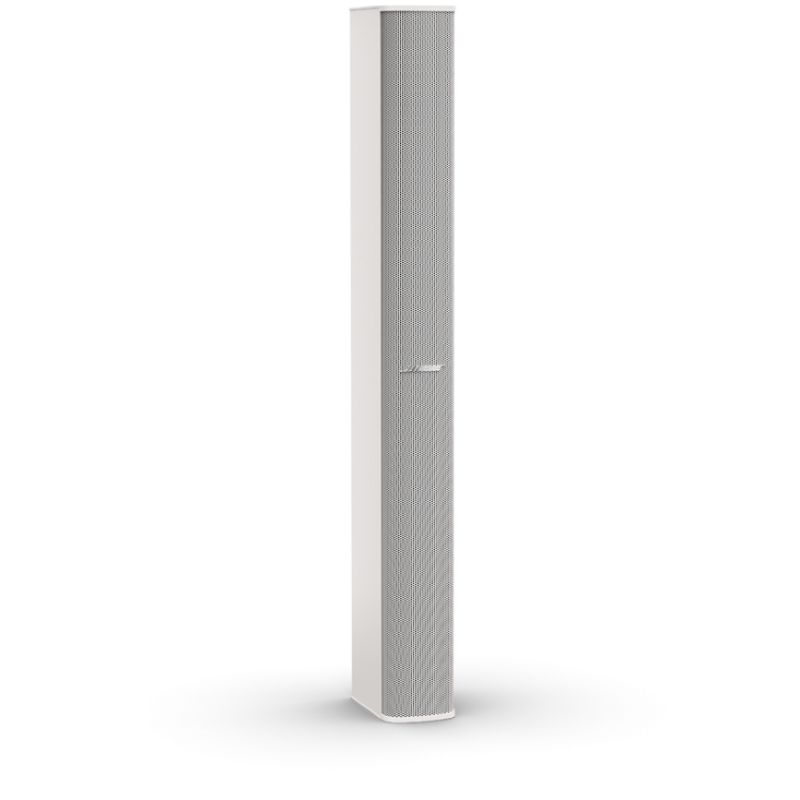

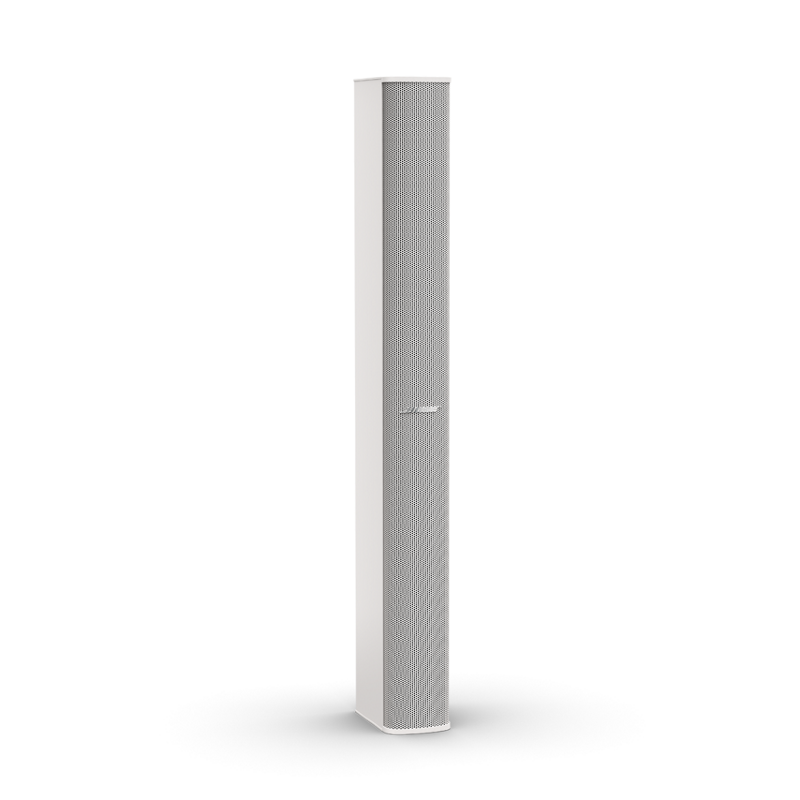

The Bose MSA12XW is a digitally steerable modular line array loudspeaker finished in white, designed for high speech intelligibility and full-range music reinforcement in acoustically challenging spaces. It provides precise vertical coverage control using onboard DSP and beam-steering technology, reducing unwanted reflections and improving clarity in reverberant environments such as houses of worship, auditoriums, transportation hubs, and lecture halls.
Key Features
- Digitally steerable modular line array loudspeaker

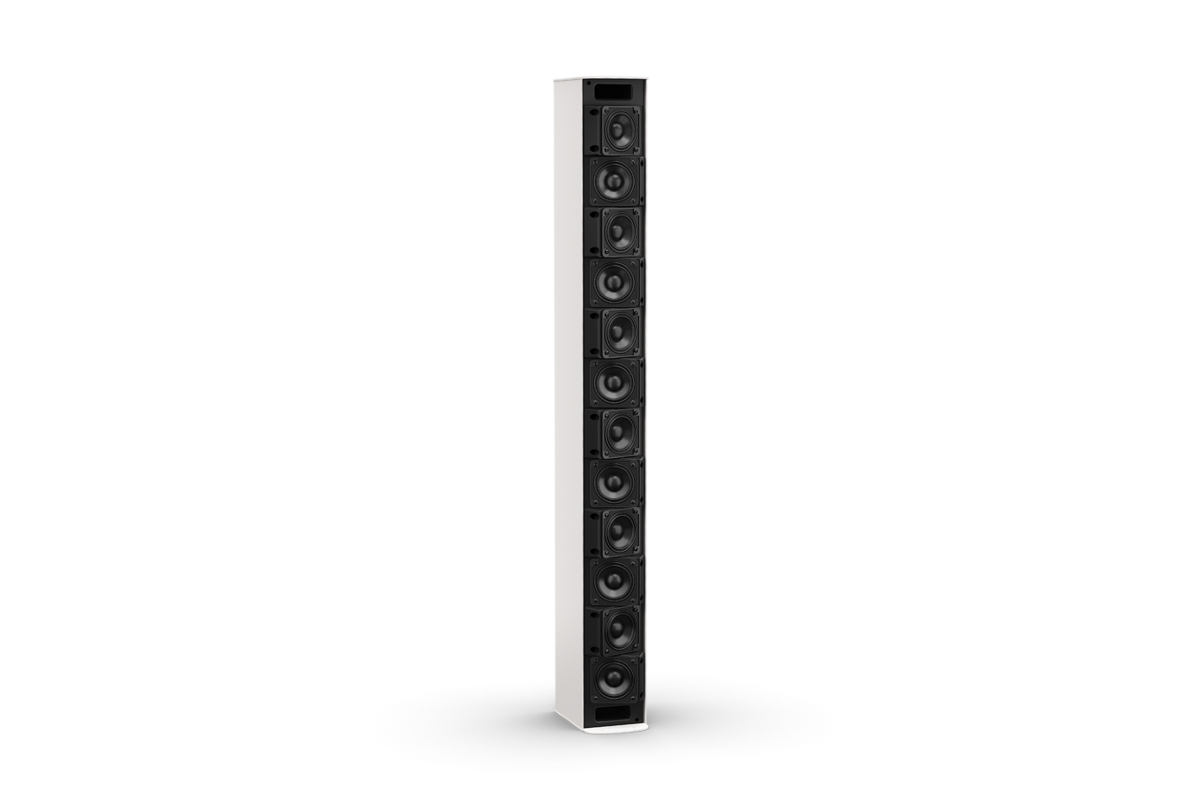

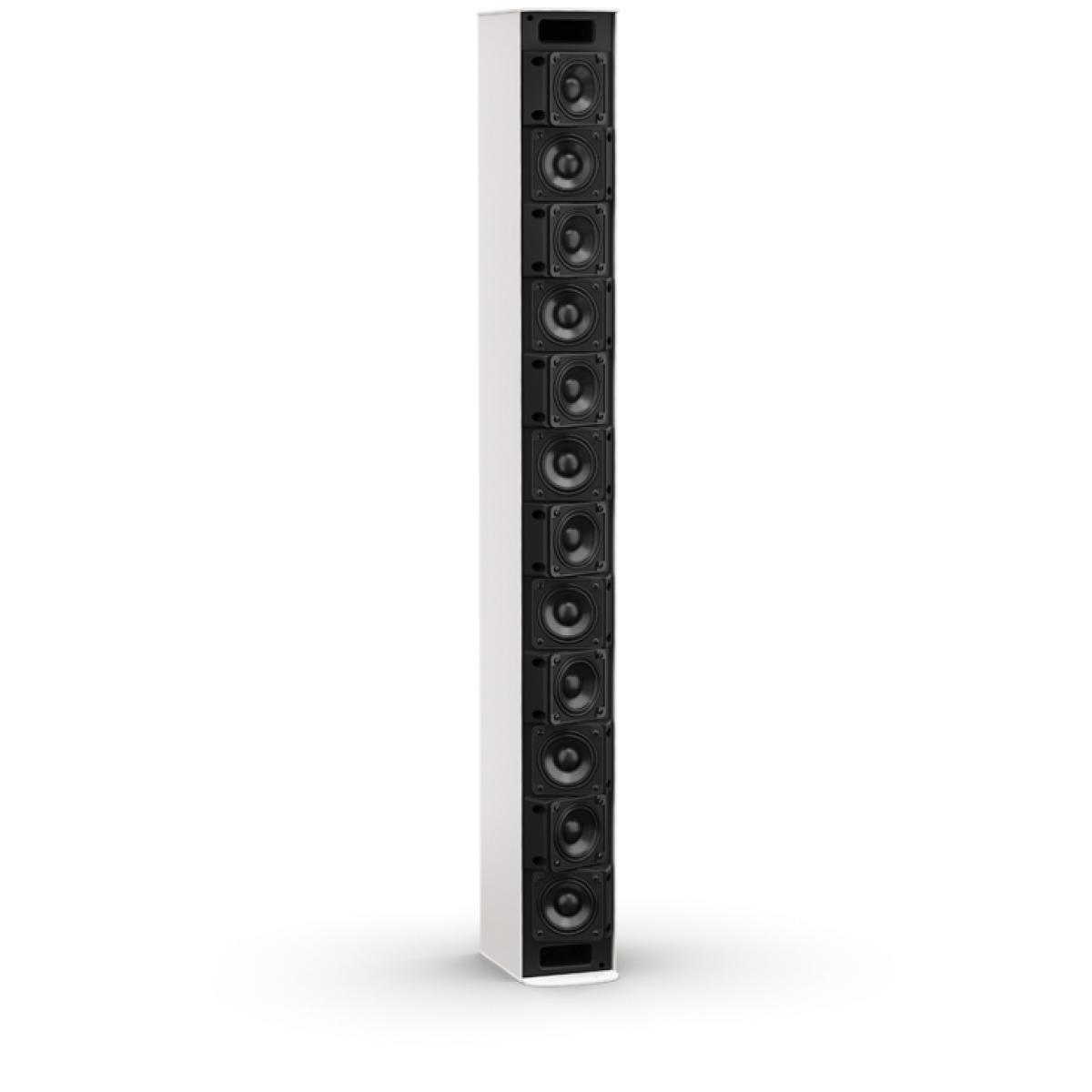

- 12 × 2.25″ full-range drivers
- Vertical coverage control: ±20° digital beam steering
- Built-in DSP and Dante™/AES67 connectivity
- Seamless integration with multiple MSA12X modules for larger arrays
- White finish (W = White; also available in Black as MSA12XB)
- Compact, slim column design for architectural integration
Specifications
- Frequency Response (-10 dB): ~75 Hz – 14 kHz
- Coverage: 160° horizontal; digitally steerable vertical (±20°)
- Max SPL: ~123 dB (per module)
- Amplification: Self-powered with built-in DSP
- Network: Dante™ / AES67 audio networking
- Color: White
