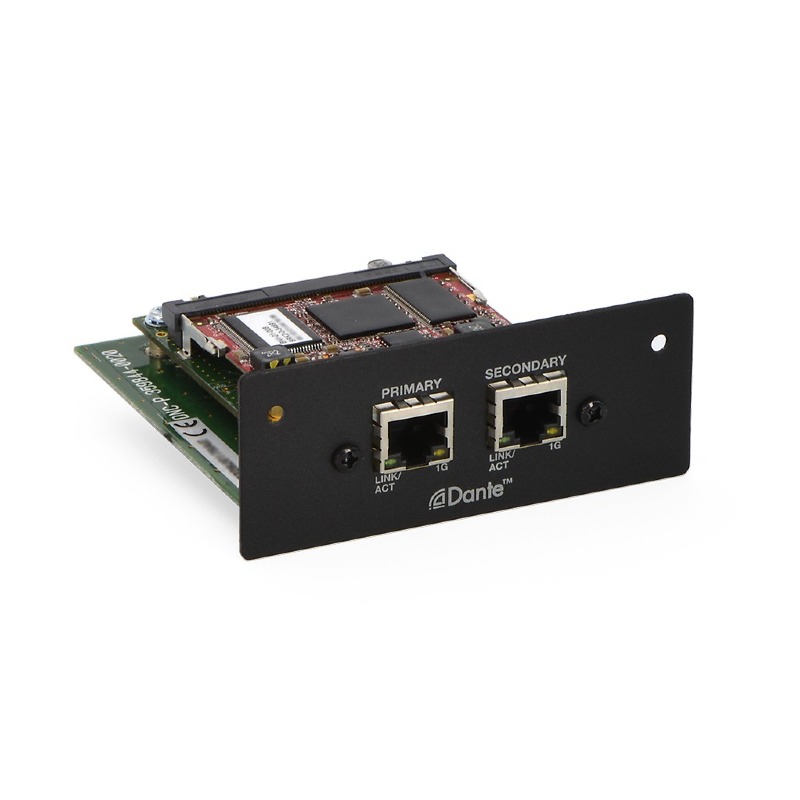

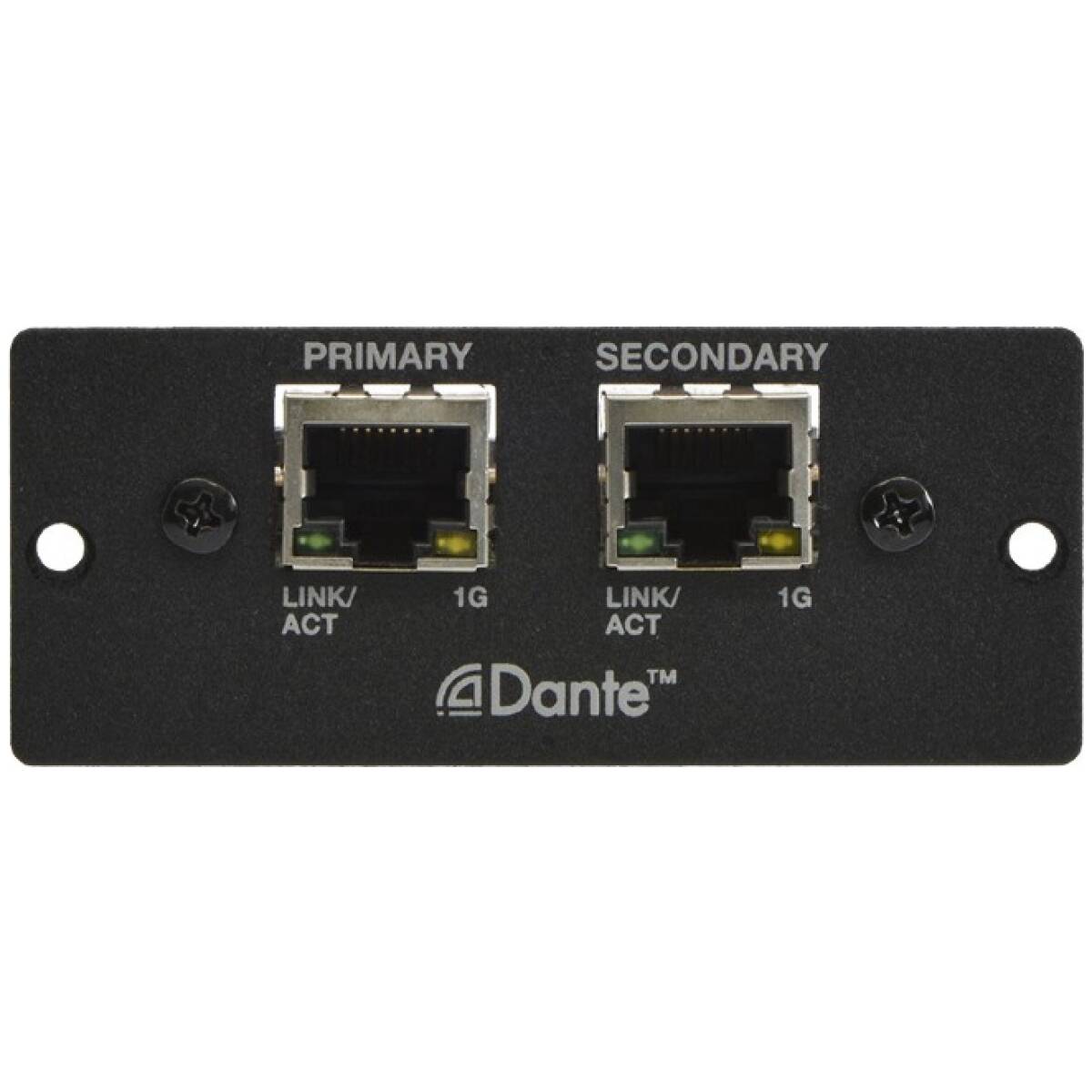

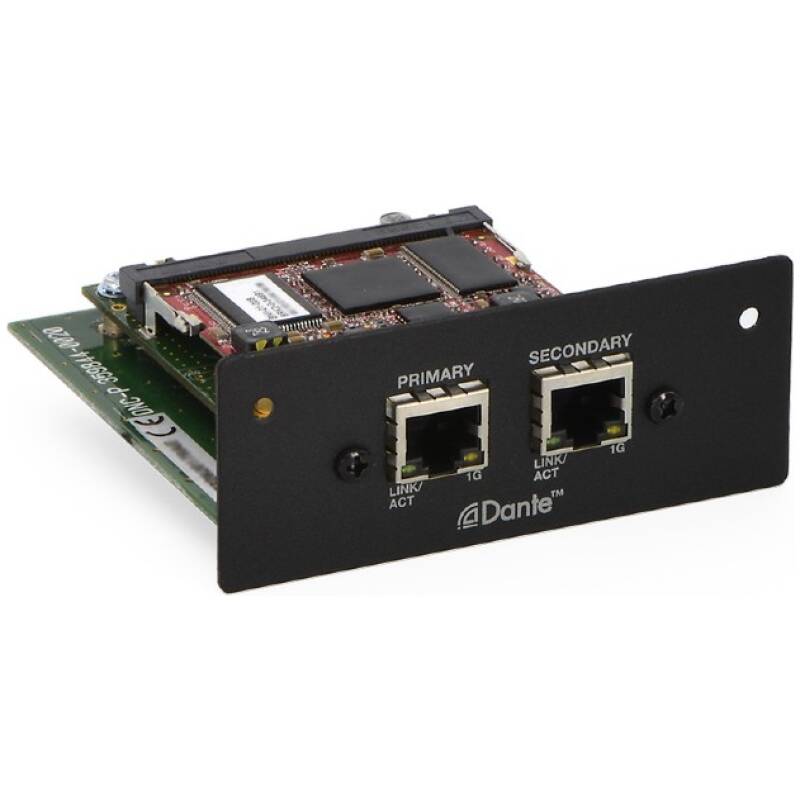

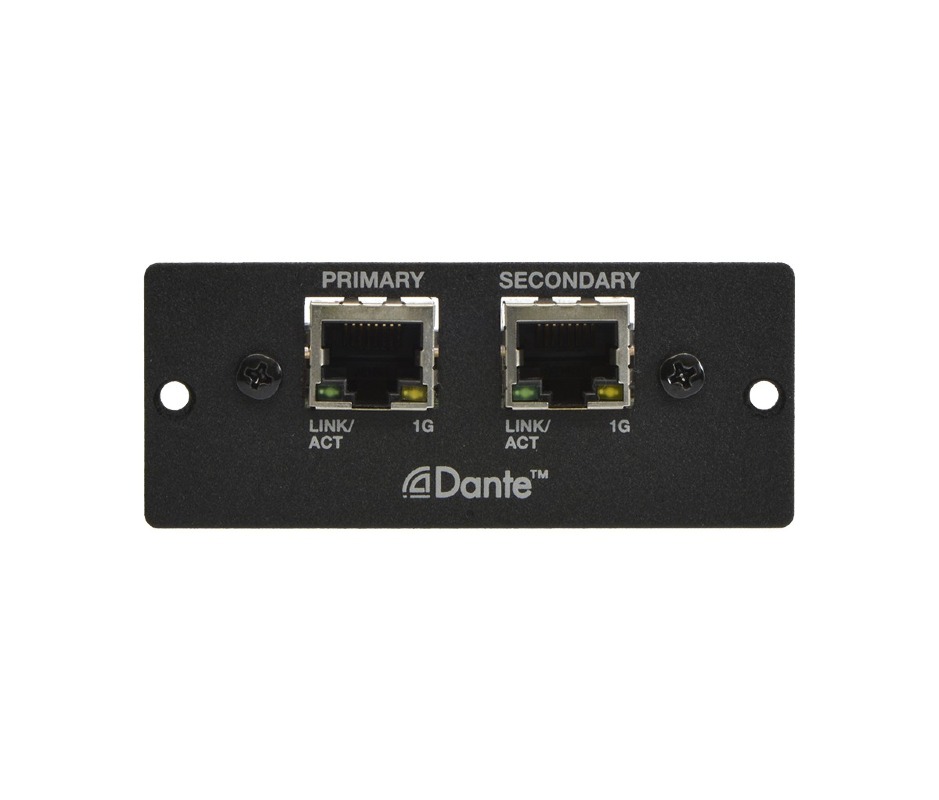

Bose Professional PowerMatch Dante Network Card

The PowerMatch Dante Network Card is an optional input expansion module for Bose PowerMatch configurable power amplifiers. It adds Dante™ digital audio networking capability, enabling the amplifier to receive audio directly from a Dante network while also supporting flexible routing, redundancy, and integration with other Dante-enabled devices.

With this card installed, PowerMatch amplifiers can be seamlessly integrated into networked audio systems in arenas, houses of worship, education, and large commercial spaces.

• Adds Dante™ digital audio networking to PowerMatch amplifiers
• Supports high-quality, low-latency uncompressed digital audio
• Primary and secondary Dante network ports for redundant network operation
• Scalable with thousands of Dante-enabled devices worldwide
• Simplifies system design by eliminating multiple analog input runs
• Easy configuration and routing with Audinate’s Dante Controller software
• Hot-swappable, installs into the input card slot of PowerMatch amplifiers

Specifications

• Channels: Up to 16 channels of Dante digital audio input
• Format: Dante™ digital audio (48 kHz / 24-bit)
• Latency: < 1 ms typical
• Redundancy: Primary and Secondary RJ-45 Dante ports
• Cabling: Standard CAT 5e or better, up to 100 m per run
• Compatibility: Bose PowerMatch configurable power amplifiers with input card slots
• Dimensions (H × W × D): Approx. 22 × 100 × 127 mm (0.9″ × 3.9″ × 5.0″)
• Weight: Approx. 0.2 kg (0.45 lb)

Applications

• Networked sound reinforcement systems
• Stadiums and arenas
• Theaters and performing arts centers
• Houses of worship
• Corporate and education facilities
• Hospitality and large-scale retail
