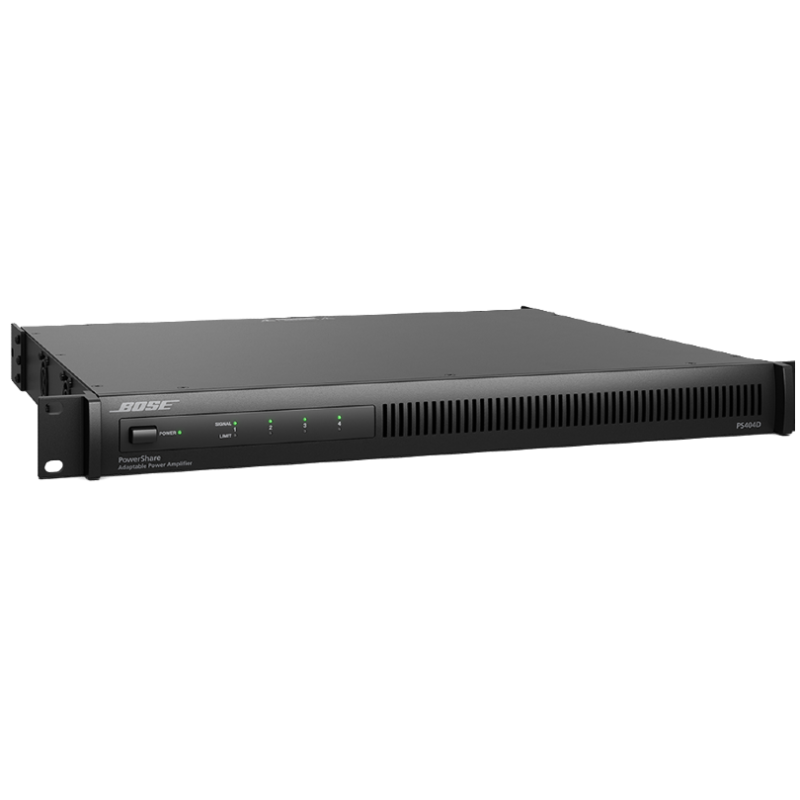

The PowerShare PS404D is a flexible 4-channel, 400-watt power amplifier that delivers outstanding audio performance and installation versatility. Using Bose PowerShare technology, it can distribute the total 400 W across all output channels as needed, rather than being limited to fixed wattages per channel.
The “D” model adds a Dante™ digital audio network interface, enabling integration into Dante-based audio systems. This allows both analog and digital inputs with auto-standby operation for energy efficiency.
- Total power of 400 W that can be shared across all outputs
- 4-channel Class-D design with selectable low- or high-impedance operation (4–8 Ω, 70V, 100V)
- Dante™ digital audio network interface for flexible integration (PS404D model)
- Compatible with Bose loudspeaker EQ presets for optimized performance
- Auto-standby with fast wake-up for energy savings
- Compact 1RU chassis – lightweight and rack-friendly
- Protection circuitry for safe and reliable operation
Performance Specifications
- Output Power: 400 W total, adaptable across 4 channels
- Load Configurations: 4–8 Ω, 70V, or 100V
- Frequency Response: 20 Hz – 20 kHz (+0/–3 dB)
- THD+N: < 0.04% at rated power
- Signal-to-Noise Ratio: > 100 dB (A-weighted)
- Channel Separation: > 65 dB @ 1 kHz
Inputs & Outputs
- Inputs:
• 4 × Balanced analog Euroblock line inputs
• Dante™ digital audio (RJ-45 Ethernet) - Outputs:

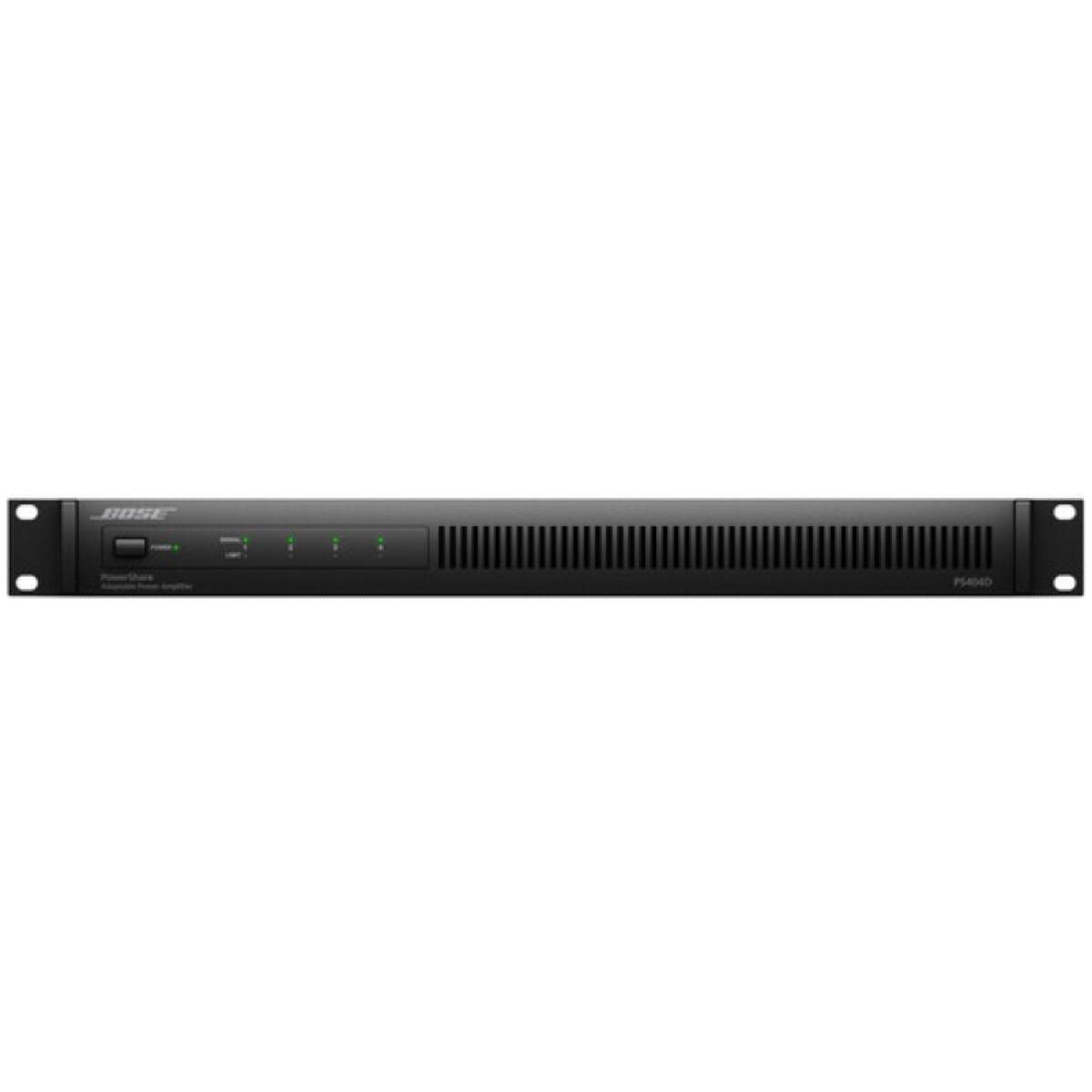

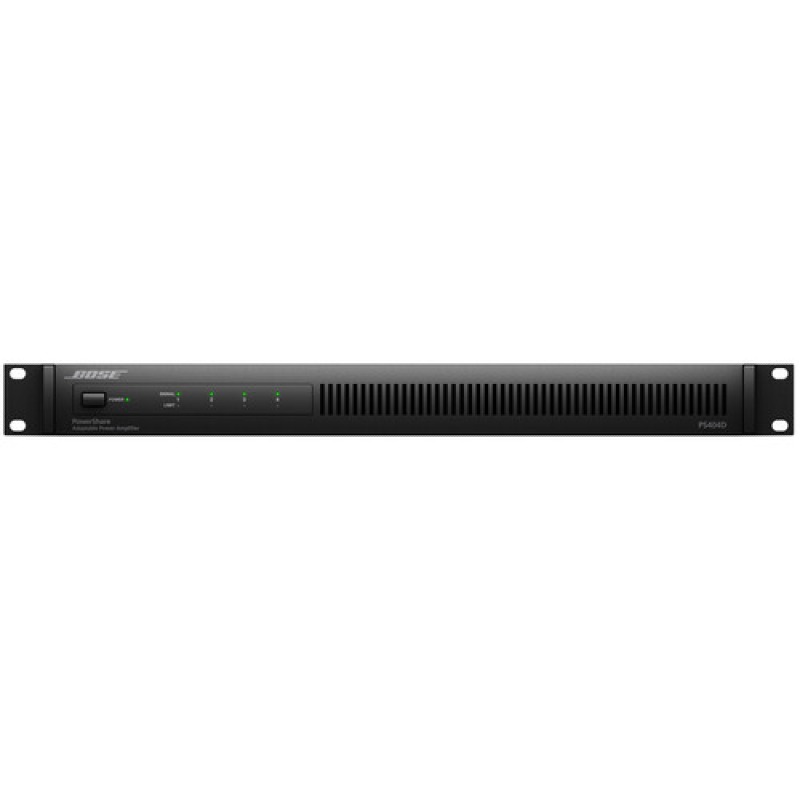

• 4 × Balanced Euroblock speaker outputs (low-Z or high-Z selectable) - Front Panel: Power button, status LEDs (signal, clip, protect, standby, network)

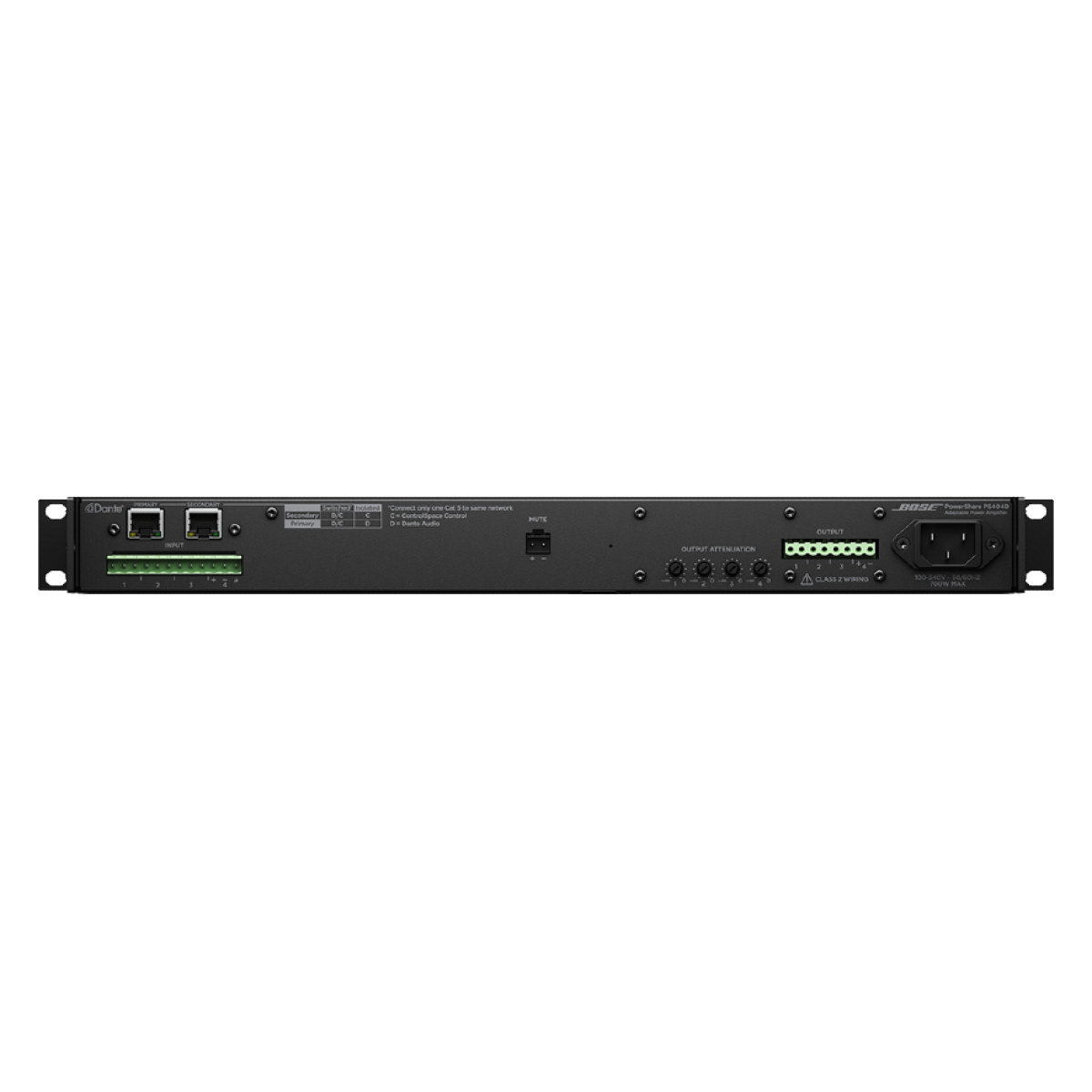

- Rear Panel: Gain controls, DIP switches, network port (PS404D only)
Physical / Mechanical
- Dimensions (H × W × D): 44 × 483 × 438 mm (1.75″ × 19″ × 17.25″) – 1RU
- Net Weight: ≈ 7.5 kg (16.5 lb)
- Cooling: Variable-speed fan-cooled
- Mounting: Standard 19″ rackmount
Applications
- Corporate meeting rooms
- Retail stores and shopping centers
- Restaurants, cafés, and hospitality venues
- Houses of worship
- Education facilities
- Dante-enabled networked audio systems
