The PowerShareX PSX1204D is a premium 4-channel, 1,200-watt adaptable amplifier designed for demanding commercial installations. Using the next generation of Bose PowerShare technology, it allows the full 1,200 W of available power to be distributed dynamically across all outputs, giving system designers maximum flexibility.
The “D” version includes Dante™ digital audio networking, making it easy to integrate into networked audio environments while still supporting analog inputs. Optimized Bose loudspeaker EQs and advanced power sharing ensure consistent performance across zones.
- 1,200 W total output power, shareable across 4 channels
- 4-channel Class-D amplifier supporting low-Z (4/8 Ω) and high-Z (70V/100V) operation
- Dante™ digital audio networking for scalable, flexible routing
- Bose loudspeaker EQ presets for optimized performance
- Next-gen PowerShare technology with dynamic power allocation
- Auto-standby and energy-efficient operation
- Rugged 1RU rackmount chassis with advanced protection circuitry
Performance Specifications
- Output Power: 1,200 W total, adaptable across 4 channels
- Load Configurations: 4/8 Ω, 70V, or 100V
- Frequency Response: 20 Hz – 20 kHz (+0/–3 dB)
- THD+N: < 0.04% at rated power
- Signal-to-Noise Ratio: > 100 dB (A-weighted)
- Channel Separation: > 65 dB @ 1 kHz
Inputs & Outputs
- Inputs:
• 4 × Balanced analog Euroblock line inputs
• Dante™ digital audio (RJ-45 Ethernet) - Outputs:

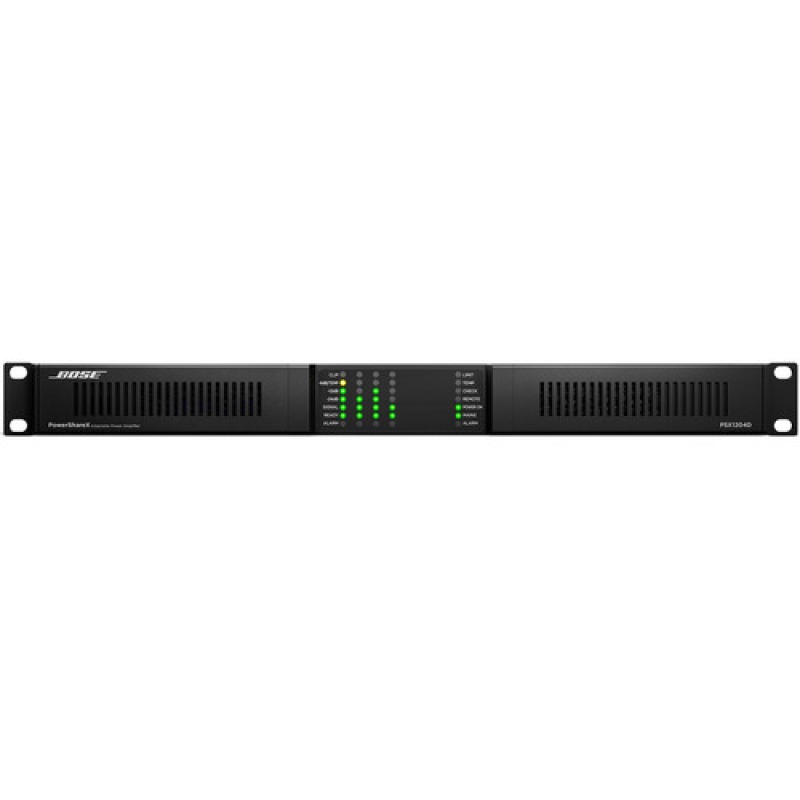

• 4 × Balanced Euroblock loudspeaker outputs (selectable low-Z / high-Z) - Front Panel: Power button, status LEDs (signal, clip, protect, standby, network)

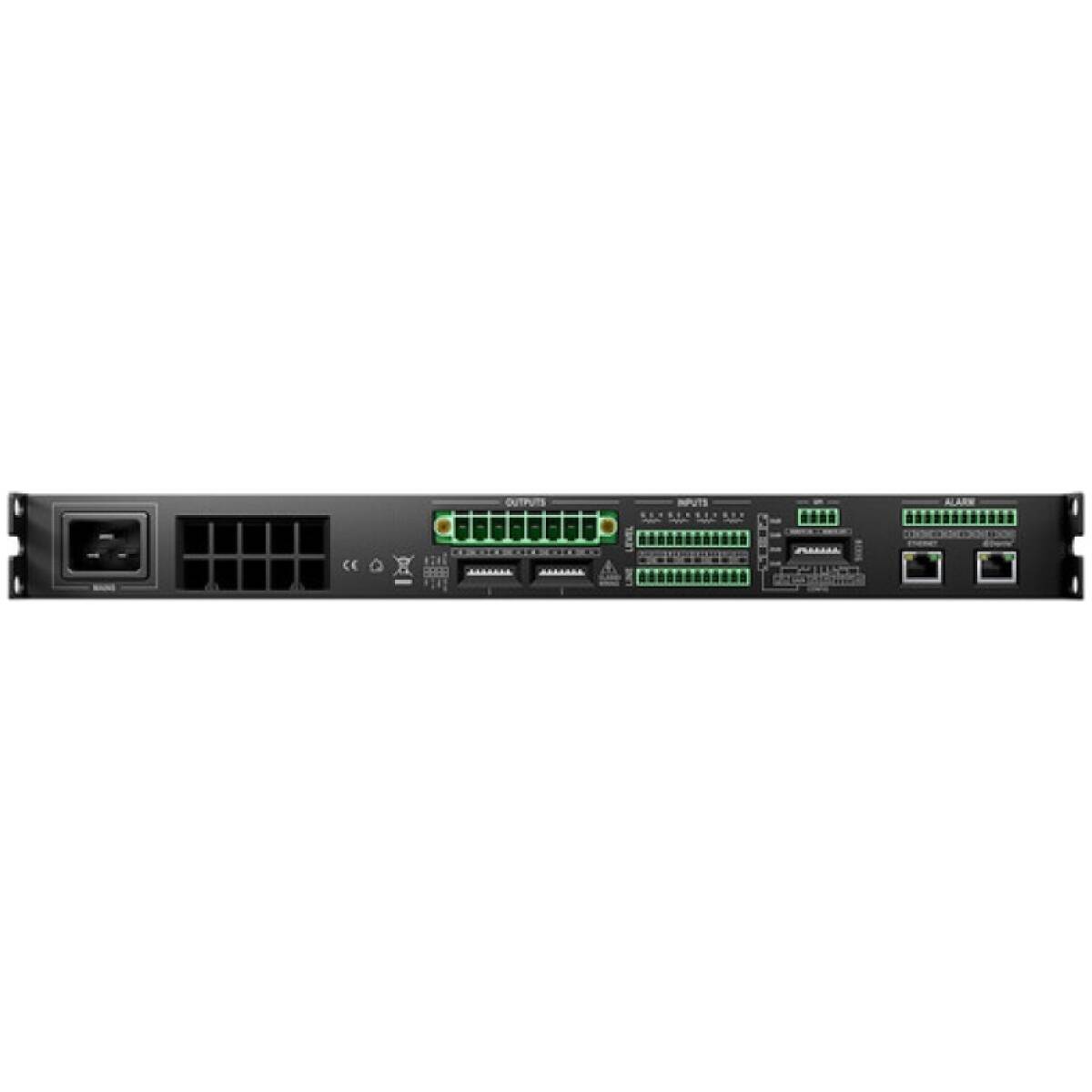

- Rear Panel: Gain controls, DIP switches, Dante ports (primary/secondary)
Physical / Mechanical
- Dimensions (H × W × D): 44 × 483 × 438 mm (1.75″ × 19″ × 17.25″) – 1RU
- Net Weight: ≈ 8.2 kg (18 lb)
- Cooling: Variable-speed fan cooling
- Mounting: Standard 19″ rackmount
Applications
- Large retail and shopping complexes
- Hotels, resorts, and hospitality venues
- Corporate conference centers and offices
- Education facilities and auditoriums
- Houses of worship
- Theaters, entertainment venues, and Dante-enabled distributed audio systems
