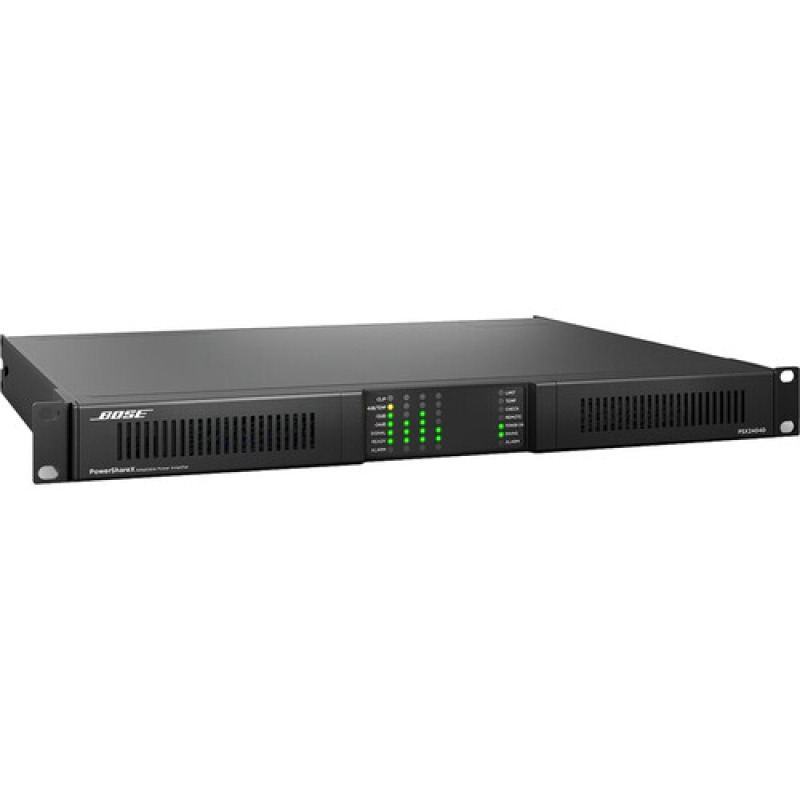

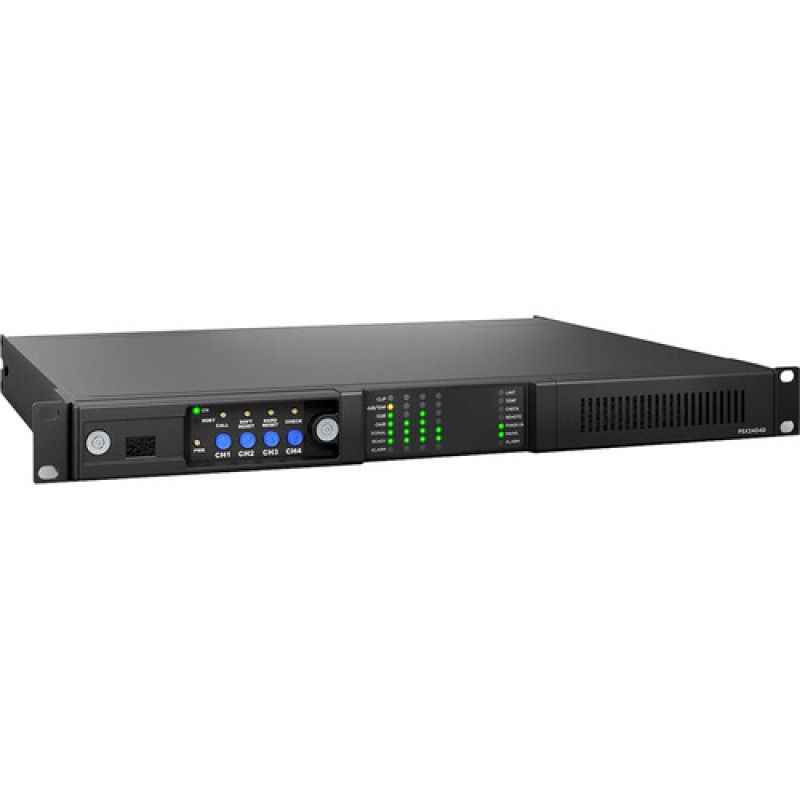

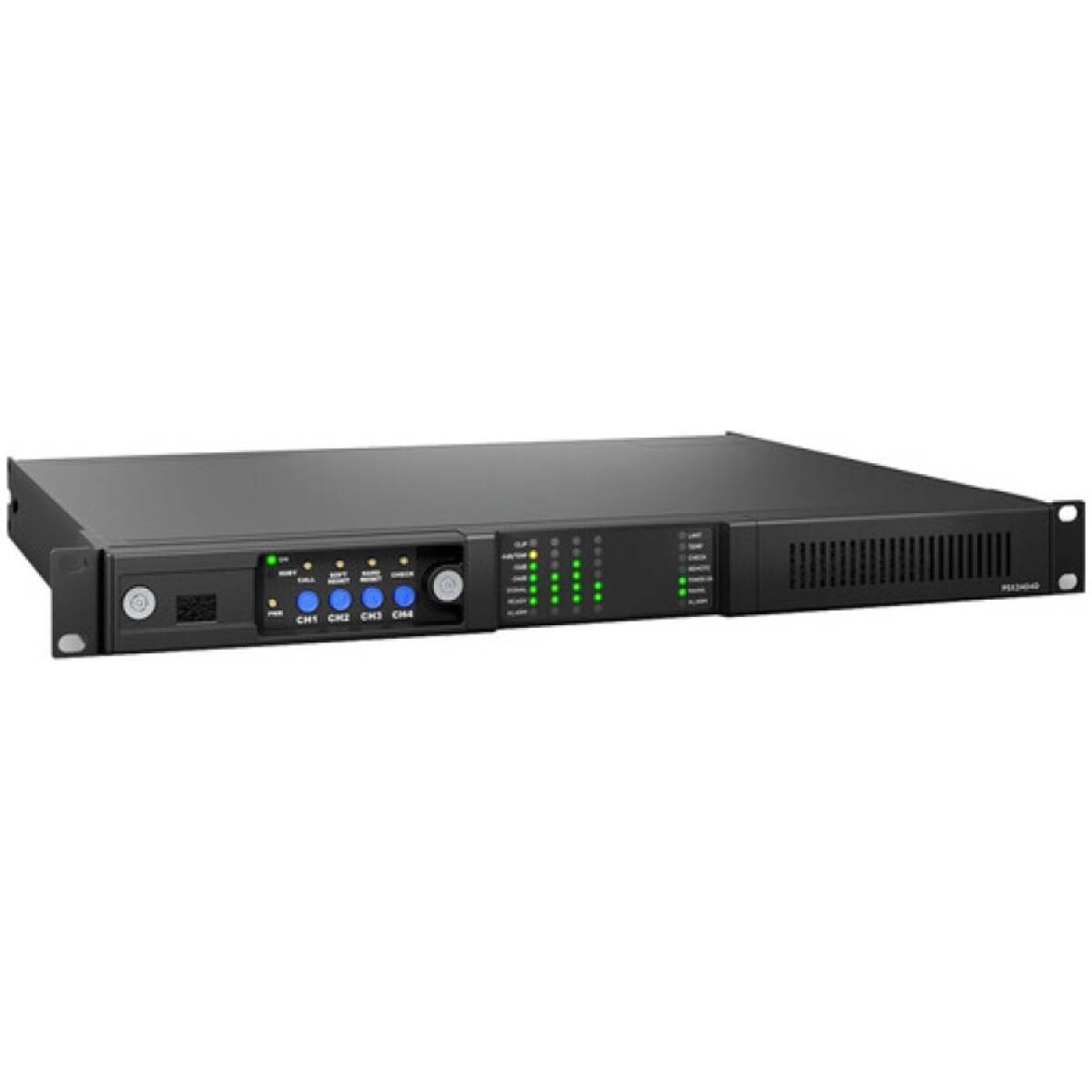

The PowerShareX PSX2404D is a flagship 4-channel, 2,400-watt adaptable amplifier designed for large-scale commercial sound installations. Featuring the next generation of Bose PowerShare technology, it allows the full 2,400 W of available power to be dynamically shared across all four output channels.
The “D” version integrates Dante™ digital audio networking, enabling seamless connection to Dante-enabled systems while still offering analog input support. Built with a rugged 1RU chassis, advanced DSP integration, and full loudspeaker EQ presets, the PSX2404D provides unmatched flexibility, efficiency, and reliability for demanding applications.
- Total 2,400 W power, adaptable across 4 channels
- 4-channel Class-D amplifier, supporting low-Z (4/8 Ω) and high-Z (70V/100V) operation
- Dante™ network connectivity for scalable installations
- Bose loudspeaker EQ presets for optimal performance
- Dynamic power sharing across all outputs
- Energy-efficient Class-D amplification with auto-standby
- Advanced protection circuitry for safe, long-term operation
Performance Specifications
- Output Power: 2,400 W total, shareable across 4 channels
- Load Configurations: 4/8 Ω, 70V, or 100V
- Frequency Response: 20 Hz – 20 kHz (+0/–3 dB)
- THD+N: < 0.04% at rated power
- Signal-to-Noise Ratio: > 100 dB (A-weighted)
- Channel Separation: > 65 dB @ 1 kHz
Inputs & Outputs
- Inputs:
• 4 × Balanced analog Euroblock line inputs
• Dante™ digital audio (RJ-45, primary/secondary) - Outputs:

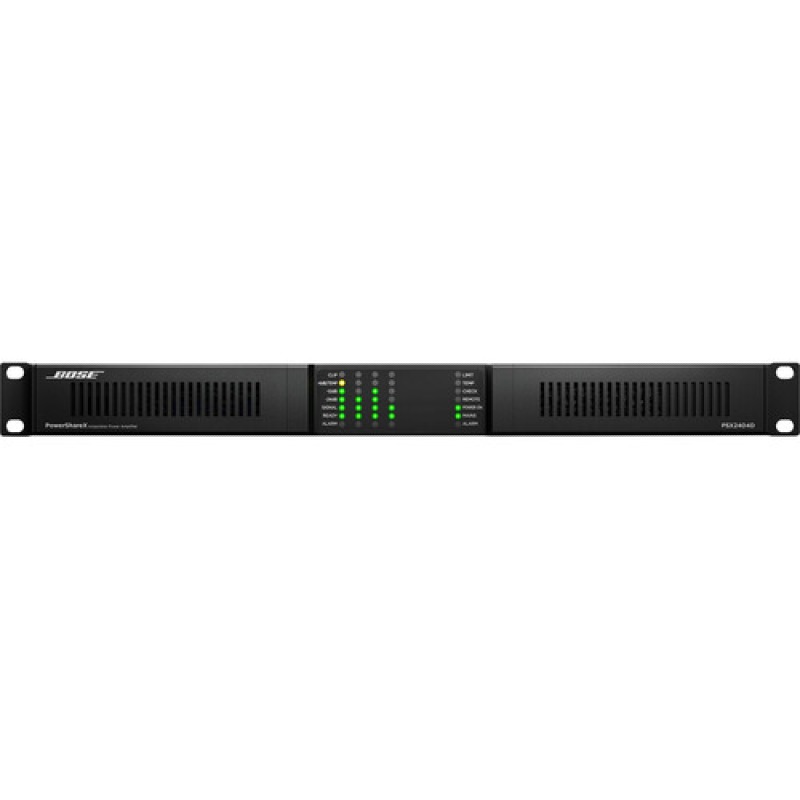

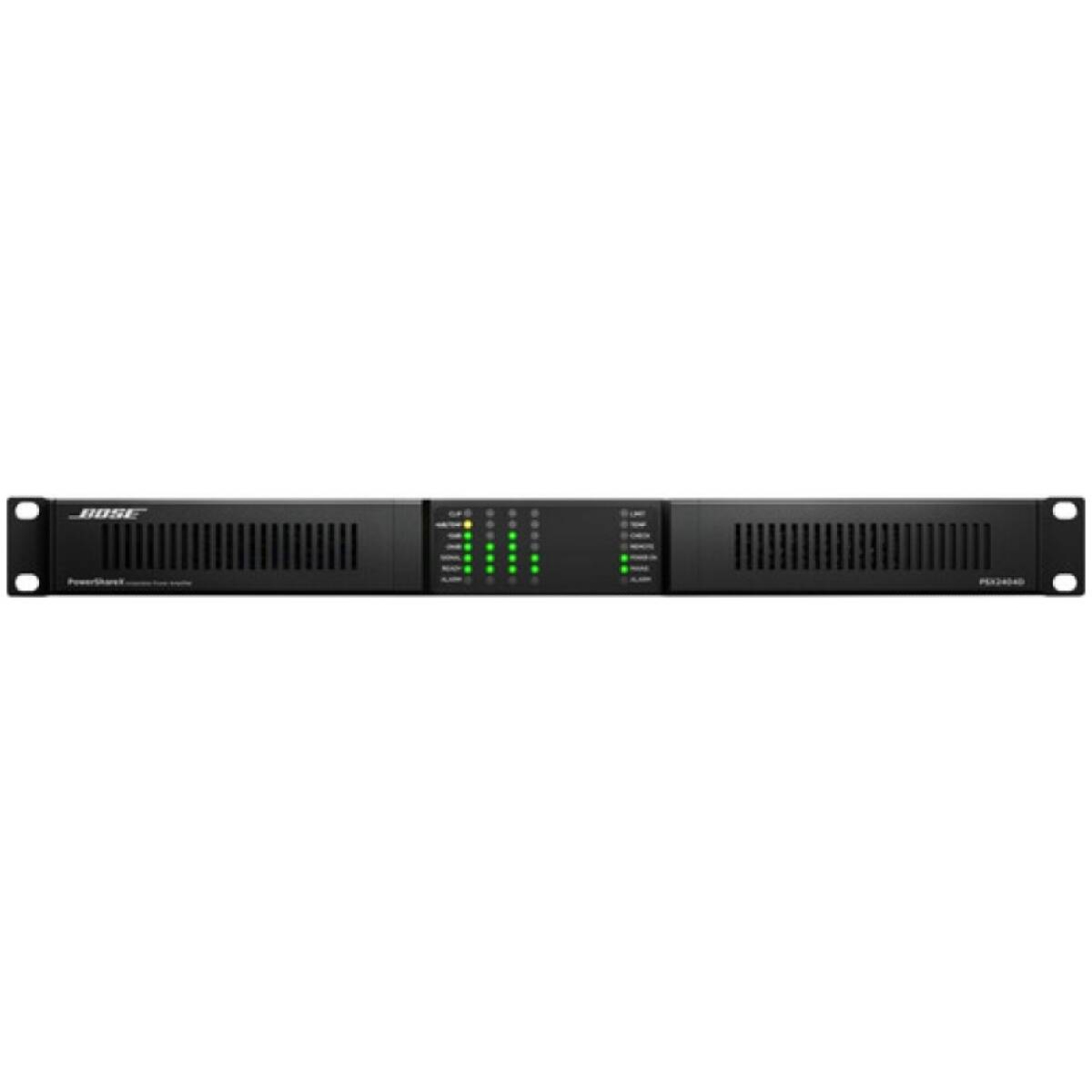

• 4 × Balanced Euroblock loudspeaker outputs (low-Z / high-Z selectable) - Front Panel: Power switch, LED status indicators (signal, clip, protect, standby, network)

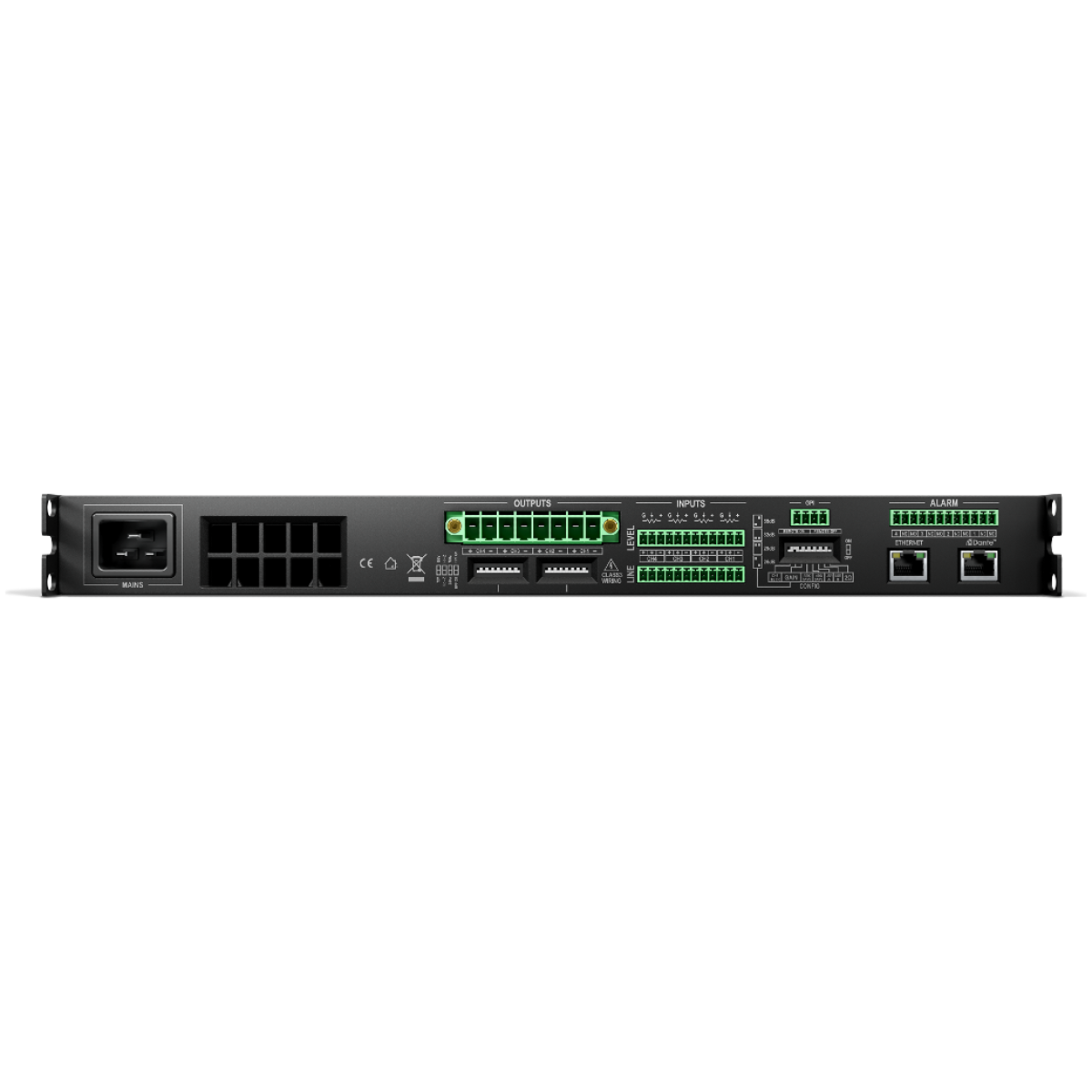

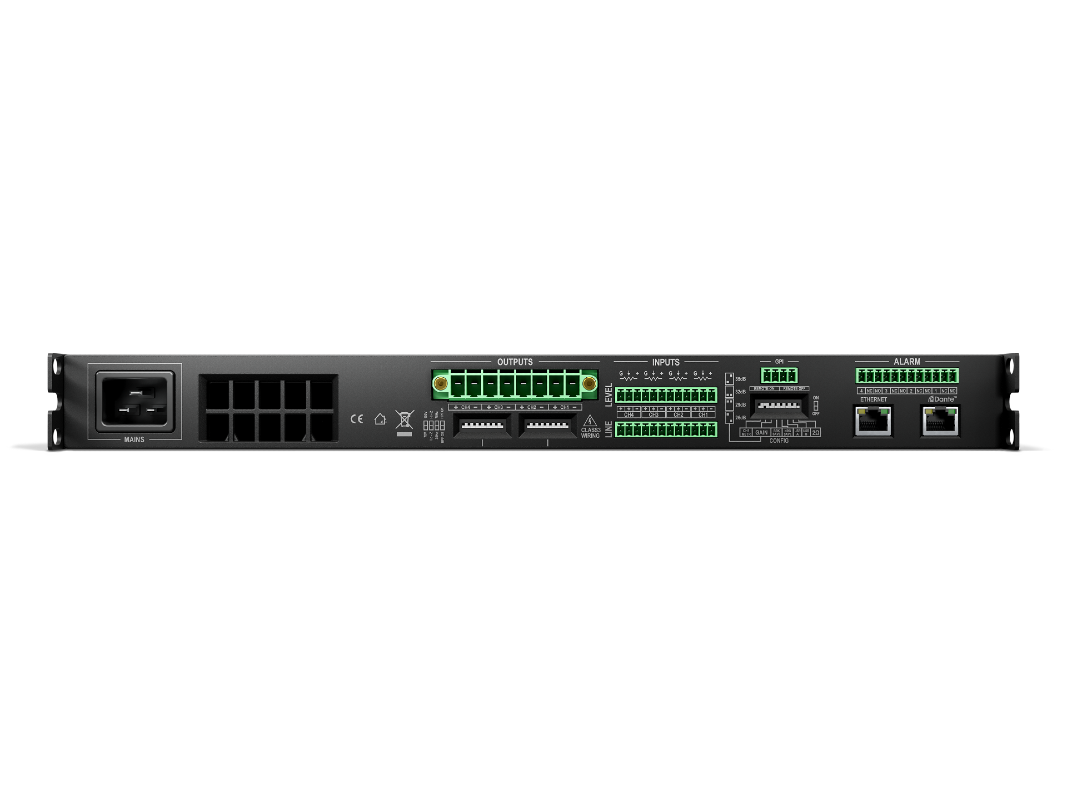

- Rear Panel: Gain controls, DIP switches, Dante ports
Physical / Mechanical
- Dimensions (H × W × D): 44 × 483 × 438 mm (1.75″ × 19″ × 17.25″) – 1RU
- Net Weight: ≈ 8.5 kg (18.7 lb)
- Cooling: Variable-speed fan cooling
- Mounting: Standard 19″ rackmount
Applications
- Large-scale retail and shopping complexes
- Stadiums and arenas
- Theaters and performance venues
- Hotels, resorts, and convention centers
- Universities and auditoriums
- Houses of worship
- Dante-enabled enterprise-level distributed audio systems
