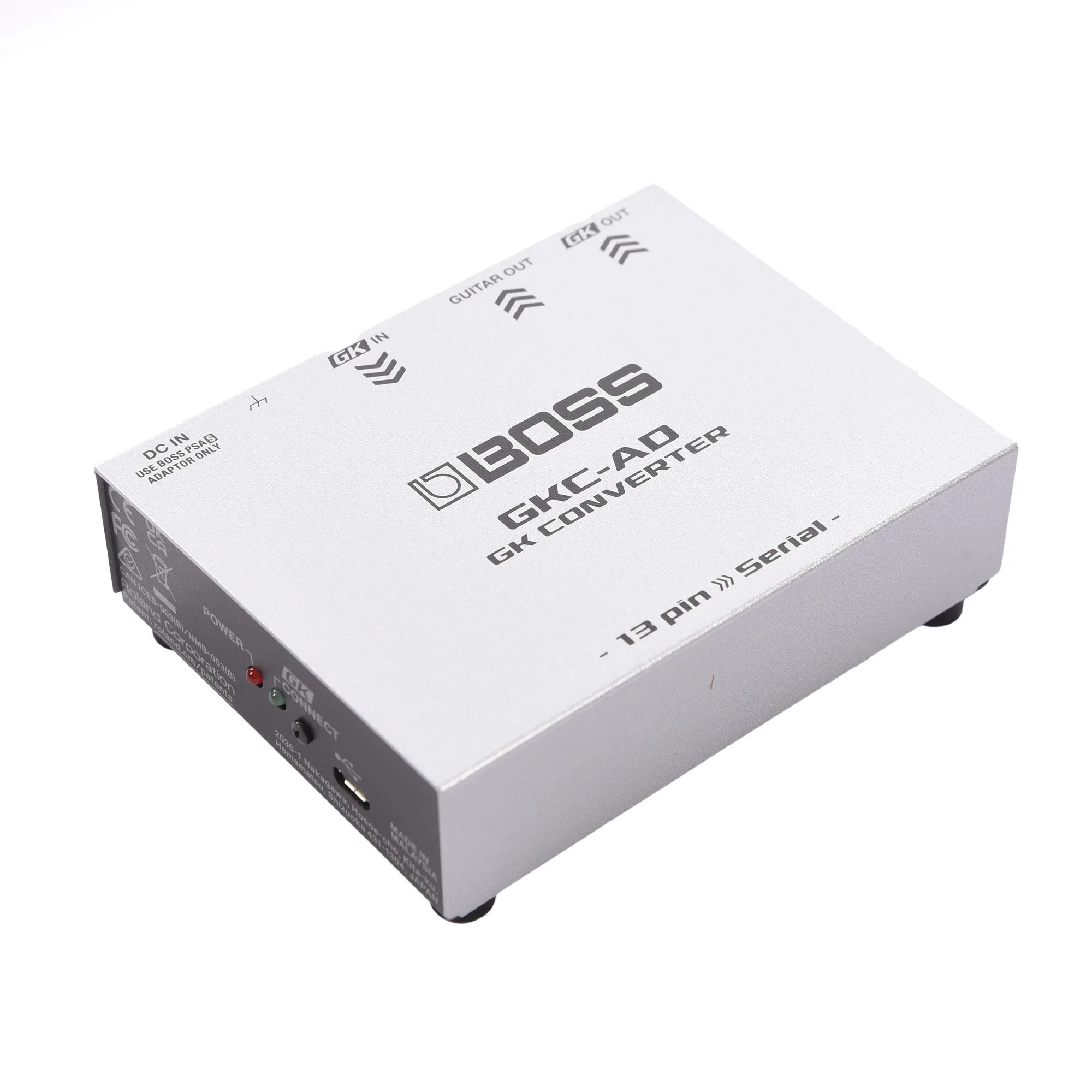

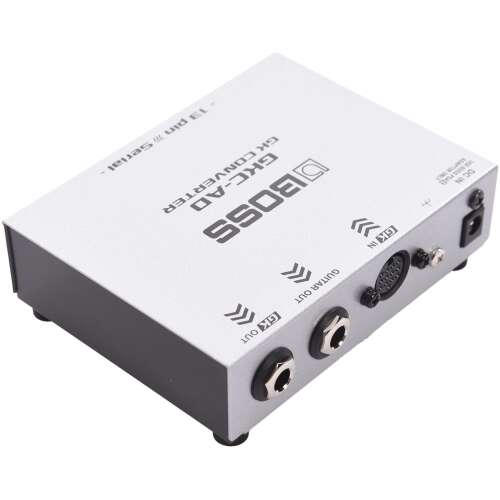

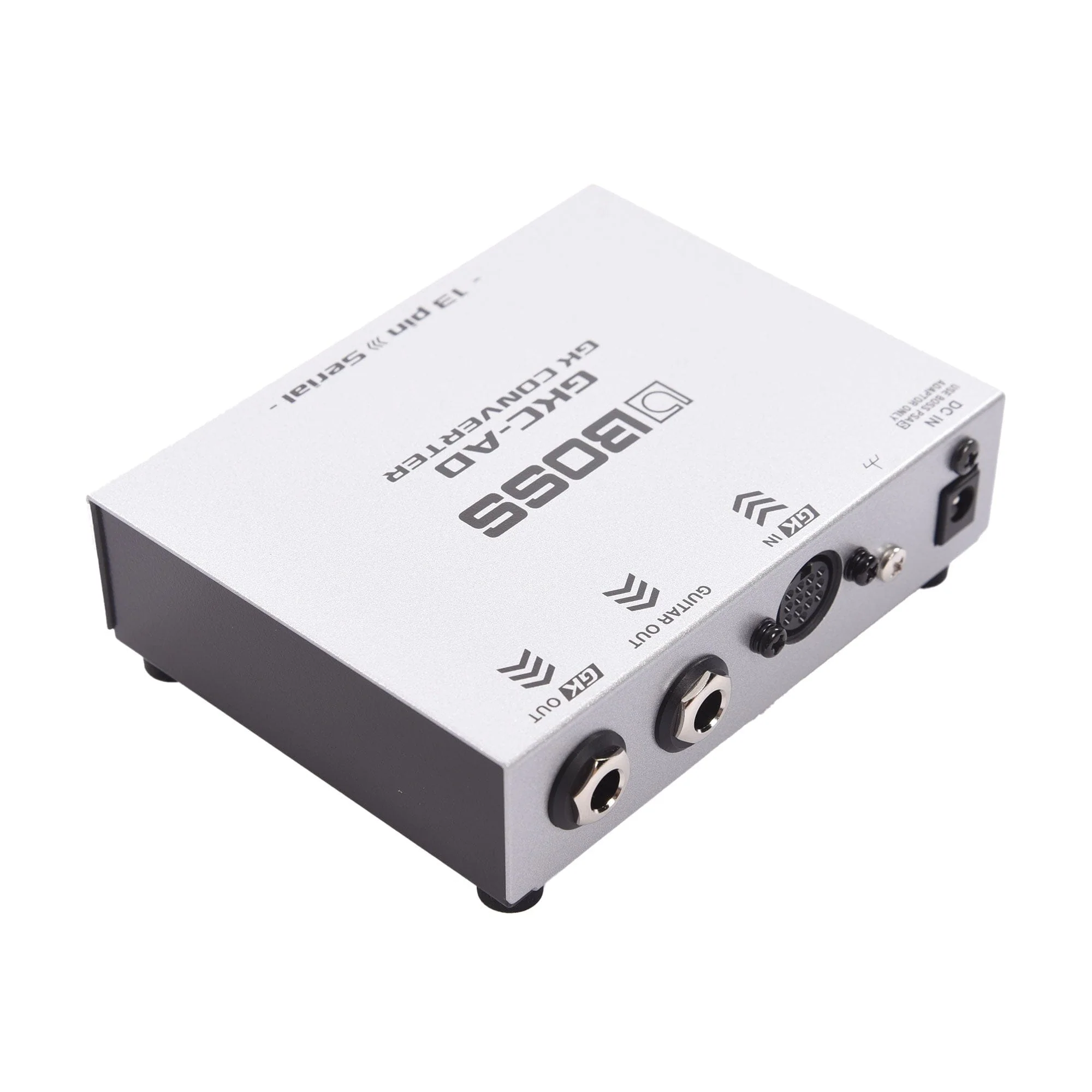

Boss GKC-AD GK Analog to Digital Converter

Connectors GK IN connector: 13 pins DIN type

GK OUT jack: 1/4-inch TRS phone type (for BGK cable only)

GUITAR OUT jack: 1/4-inch phone type

DC IN: jack

USB port: USB Micro-B (program update only) Nominal Output Level

GUITAR OUT: -10 dBu Recommended Load Impedance

GUITAR OUT: 10 k ohms or greater Indicators

Guitar IN: 1 M ohm Indicators POWER indicator
GK CONNECT indicator Current Draw240 mA Power Supply AC adaptor Accessories AC adaptor
Owner’s Manual
Leaflet “USING THE UNIT SAFELY “Options (sold separately)

Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)
