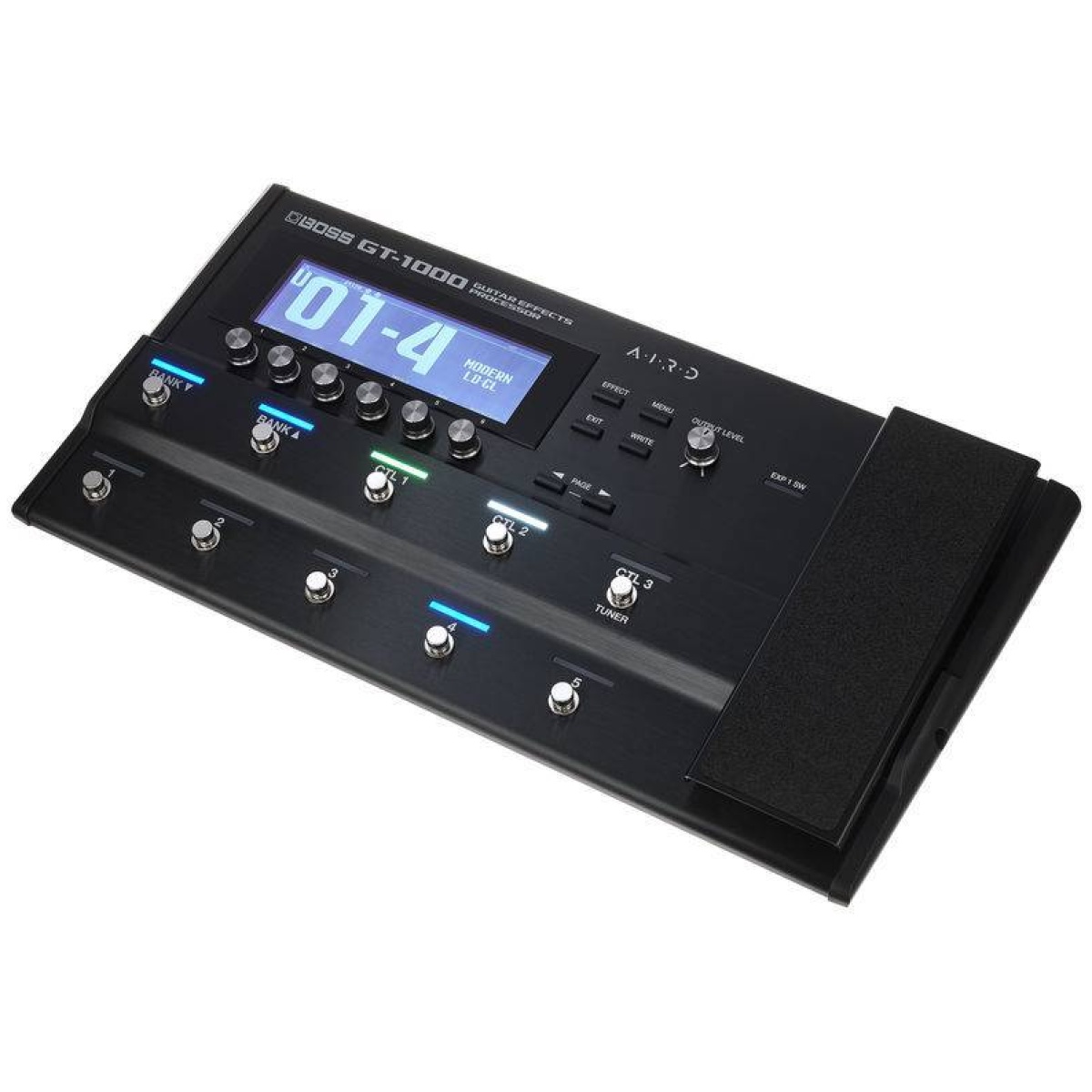

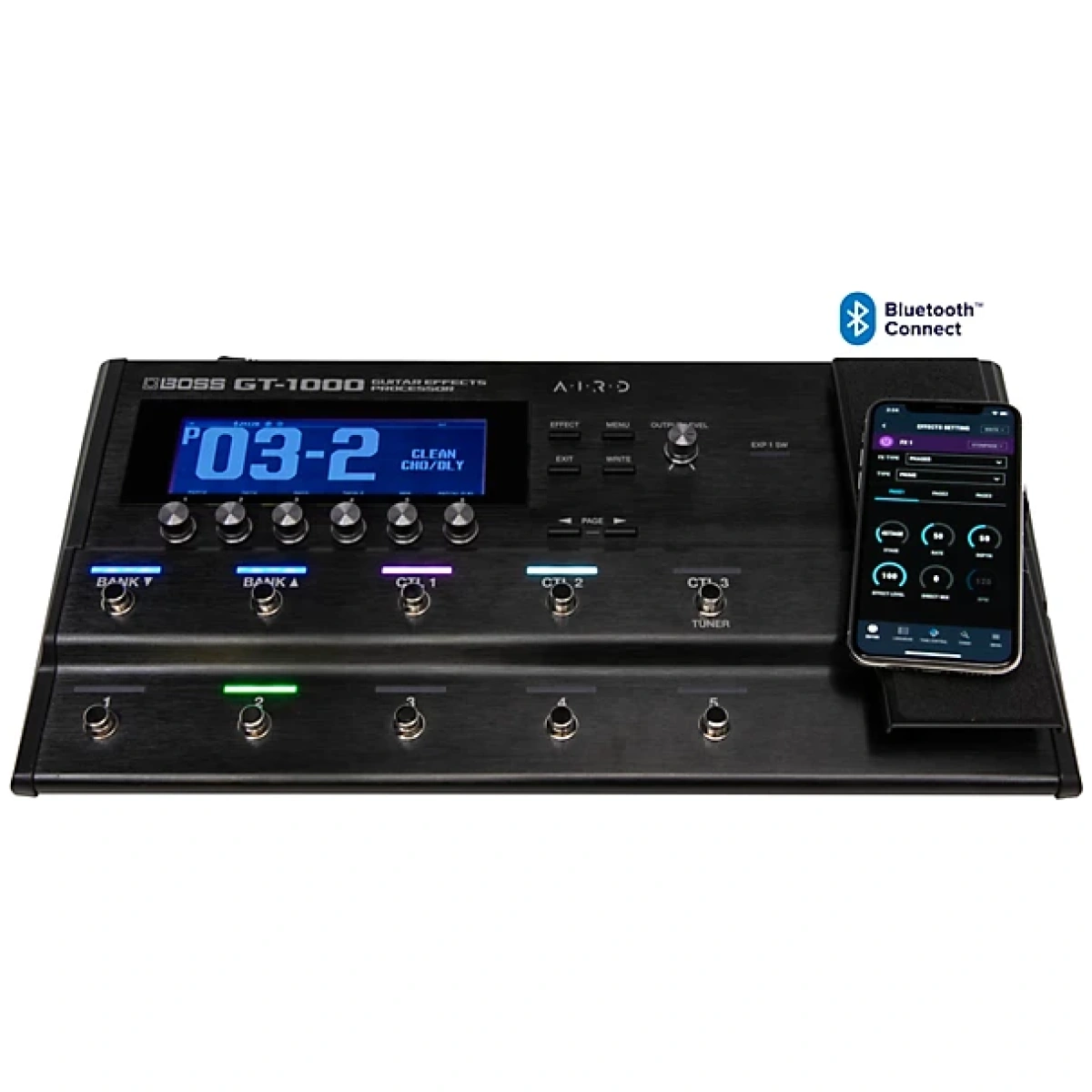

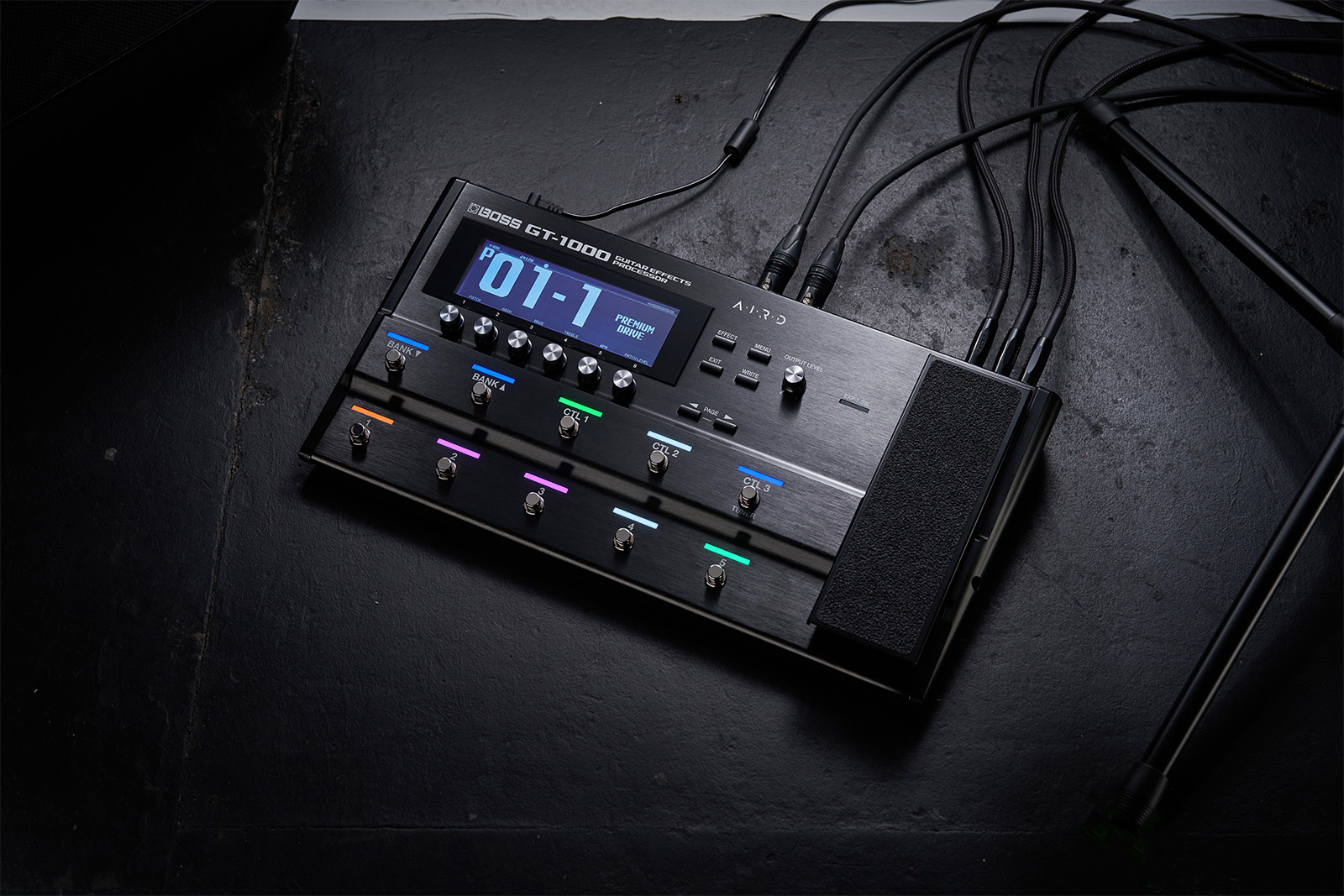

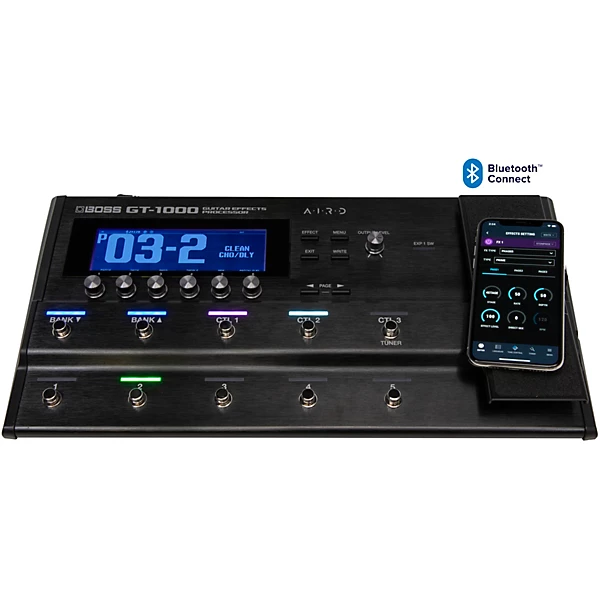

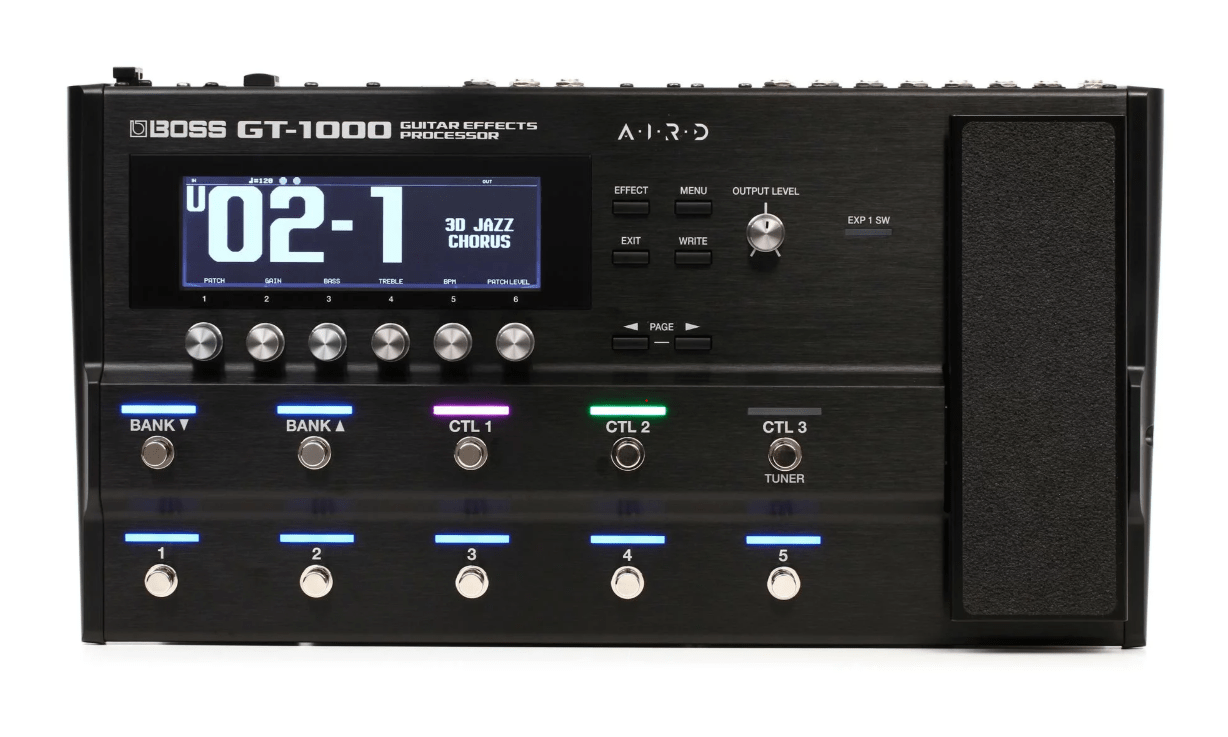

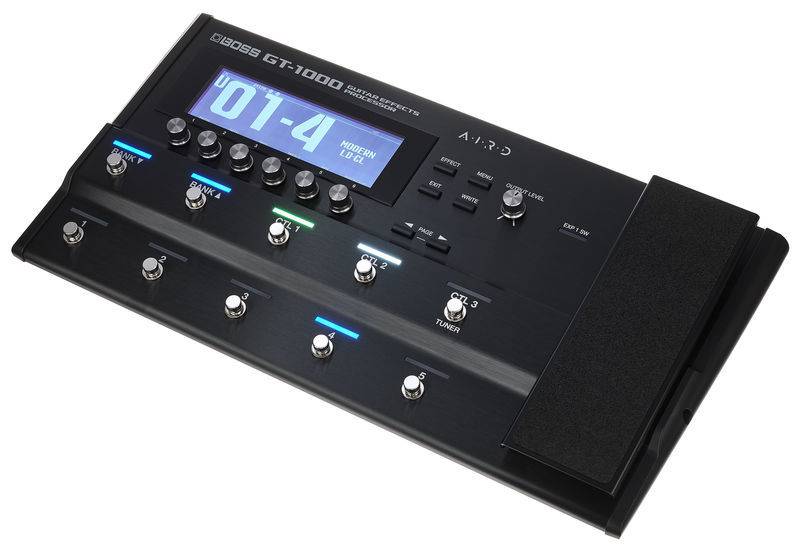

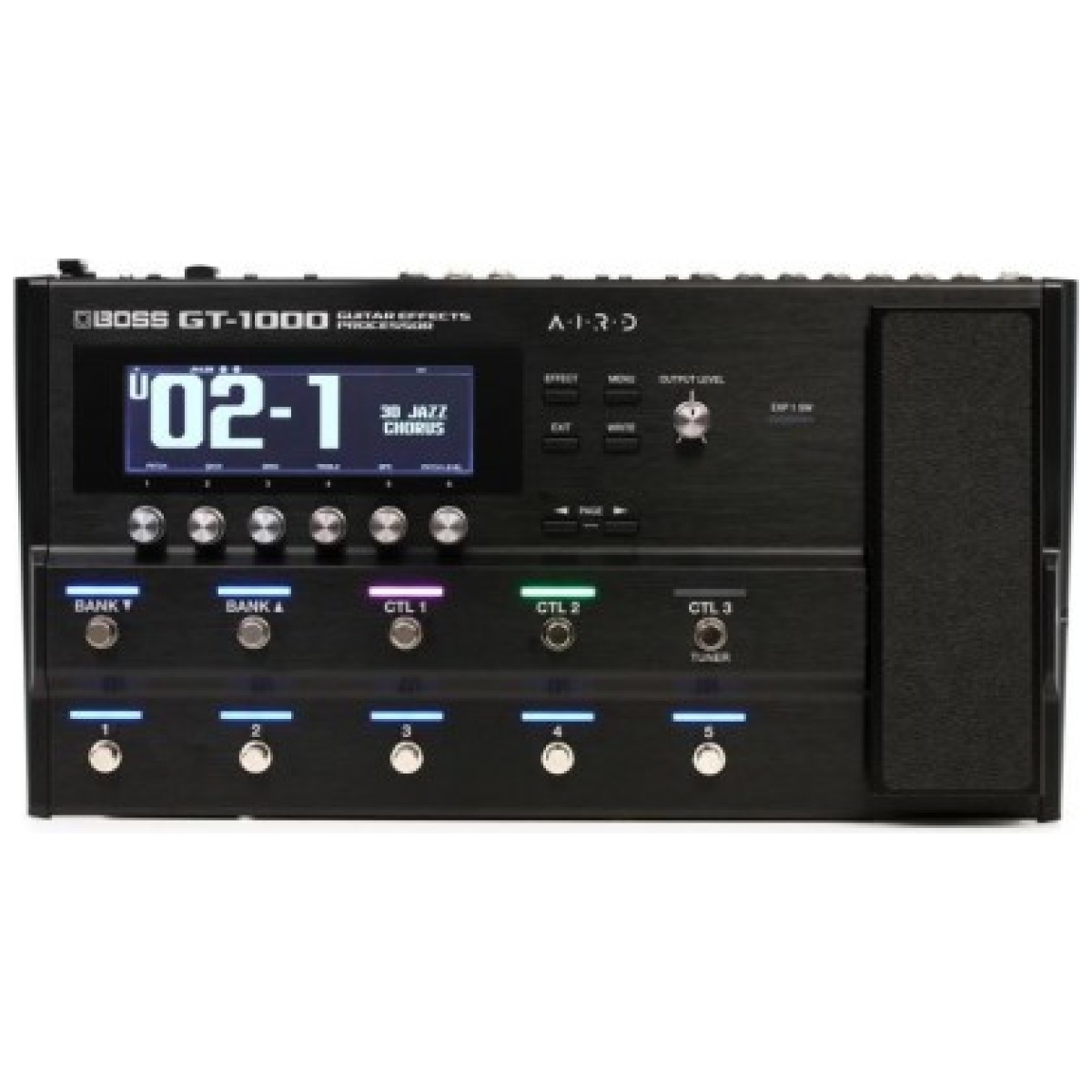

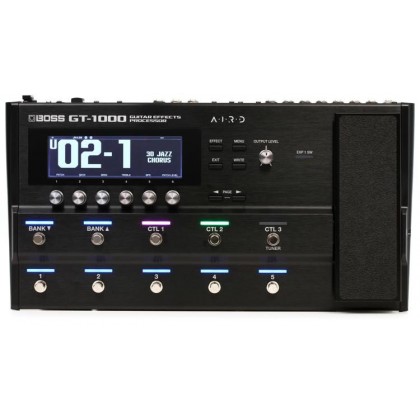

Boss GT-1000 Guitar Multi Effects Pedal

96 kHzAD Conversion 32 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters. DA Conversion32 bitsEffects185 typesPatches250 (User) + 250 (Preset)Phrase Loop38 sec. (MONO)
19 sec. (STEREO)Tuner Internal Detection+/-0.1 cent Nominal Input Level INPUT: -10 dBu
RETURN1: -10 dBu
RETURN2: -10 dBu Maximum Input Level INPUT: +18 dBu
RETURN1: +8 dBu
RETURN2: +8 dBu Input Impedance INPUT: 1 M ohm
RETURN1: 1 M ohm
RETURN2: 1 M ohm Nominal Output Level MAIN OUTPUT (L/MONO, R): -10 dBu
SUB OUTPUT (L, R): +4 dBu
PHONES: -10 dBu
SEND1: -10 dBu
SEND2: -10 dBu Output Impedance MAIN OUTPUT (L/MONO, R): 1 k ohm
SUB OUTPUT (L, R): 600 ohms
PHONES: 20 ohms
SEND1: 1 k ohm
SEND2: 1 k ohm Recommended Load Impedance MAIN OUTPUT (L/MONO, R): 10 k ohms or greater
SUB OUTPUT (L, R): 600 ohms or greater
PHONES: 44 ohms or greater
SEND1: 10 k ohms or greater
SEND2: 10 k ohms or greater Controls DOWN switch, UP switch CTL1–3 switches, 1–5 switches, POWER switch
EFFECT button, MENU button, EXIT button, WRITE button, PAGE button
1–6 knobs, OUTPUT LEVEL knob

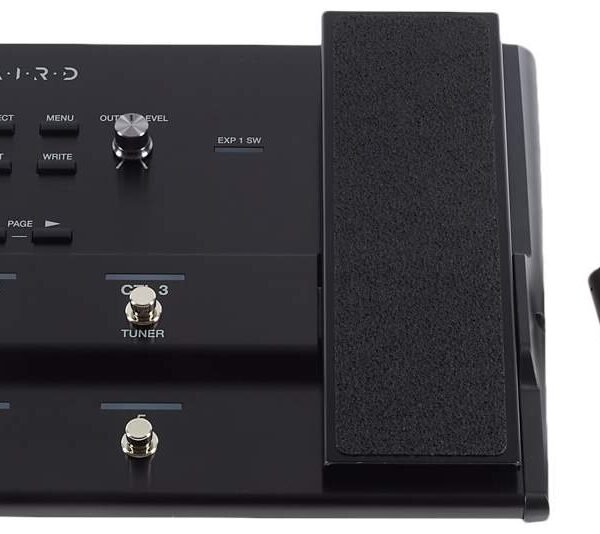

Expression pedal Display Graphic LCD (512 x 160 dots, backlit LCD) Connectors INPUT jack, MAIN OUTPUT (L/MONO, R) jacks, SEND1 jack, RETURN1 jack, SEND2 jack, RETURN2 jack: 1/4-inch phone type
SUB OUTPUT (L, R) connectors: XLR type
PHONES jack: Stereo 1/4-inch phone type
CTL4, 5/EXP2 jack, CTL6, 7/EXP3 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type
USB COMPUTER port: USB B type
DC IN jack
MIDI (IN, OUT) connectors Power Supply AC adaptor Current Draw1.2 A Power consumption when in OFF mode0.0 W

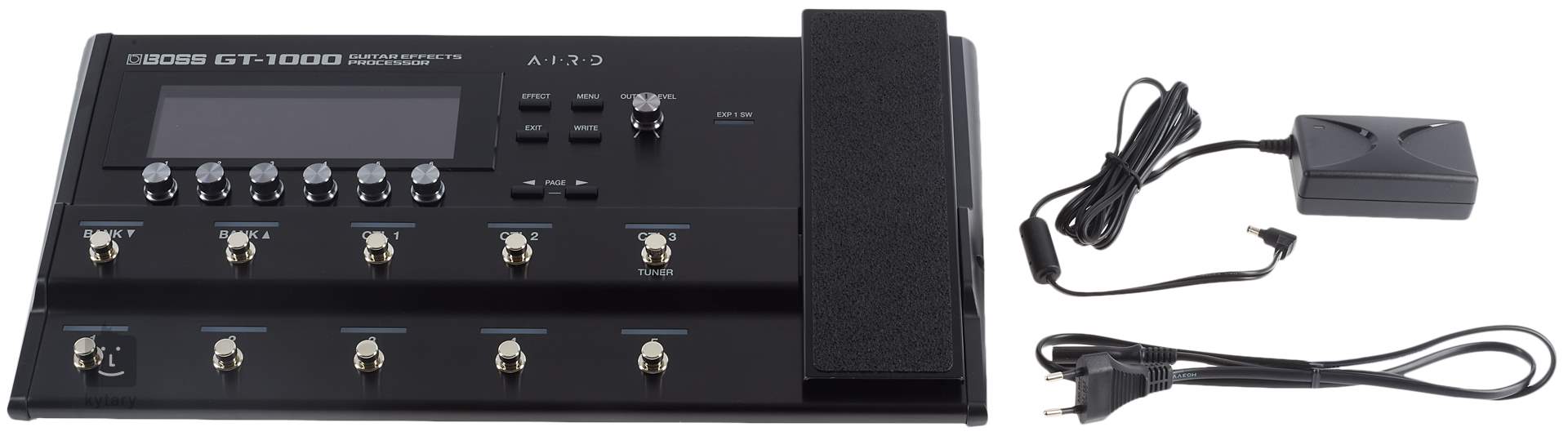

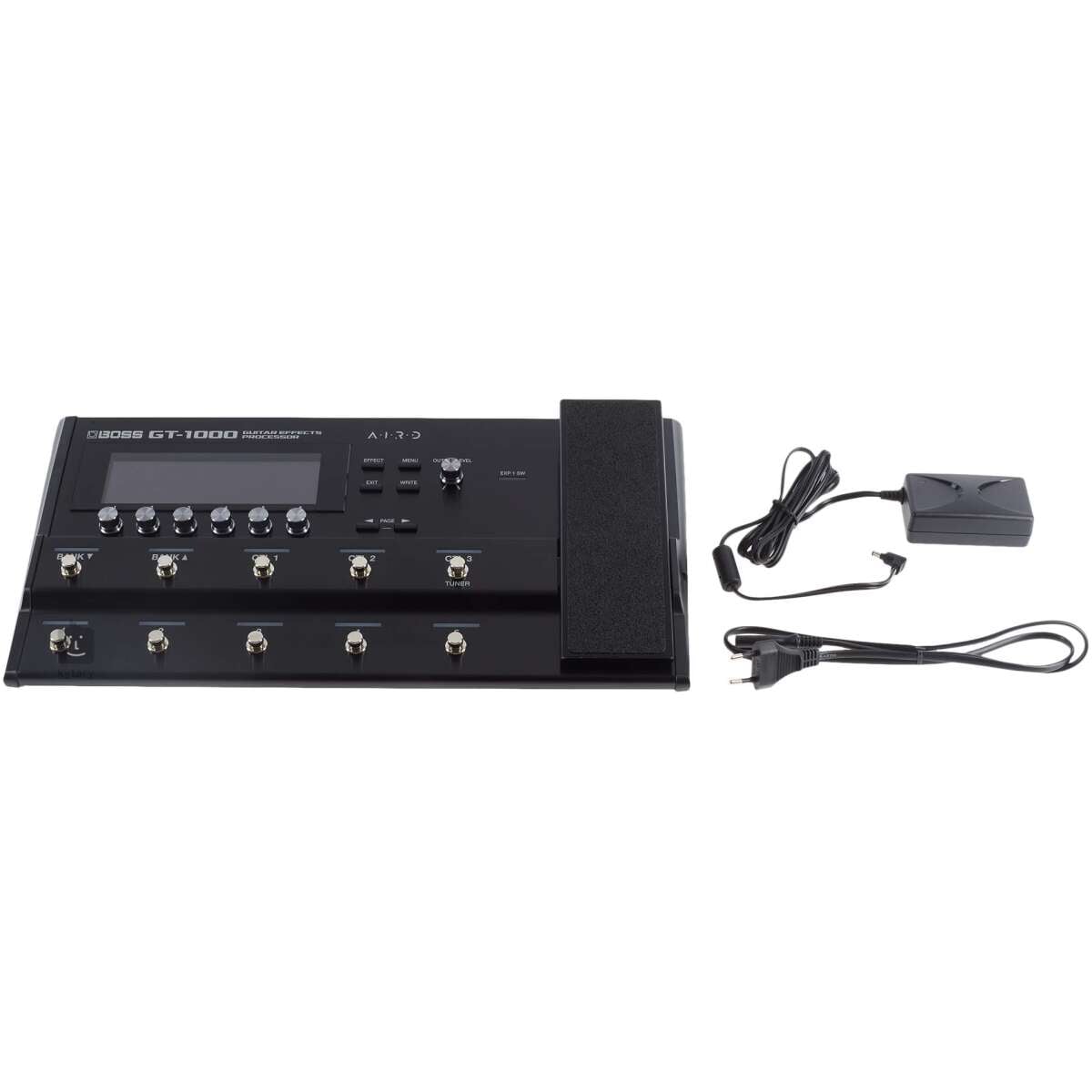

* When the power automatically turns off Accessories AC adaptor (PSB-1U + AC Cord Set)
Owner’s manual
Leaflet “USING THE UNIT SAFELY “Options (sold separately)

Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
AC adaptor (PSB-1U)

* When purchasing an AC adaptor, be sure to specify the adaptor (from the list that follows) that is designed for the region in which it will be used, and the voltage supplied there.
(PSB-120/PSB-120TW/PSB-230EU/PSB-230UK/PSB-240A)
