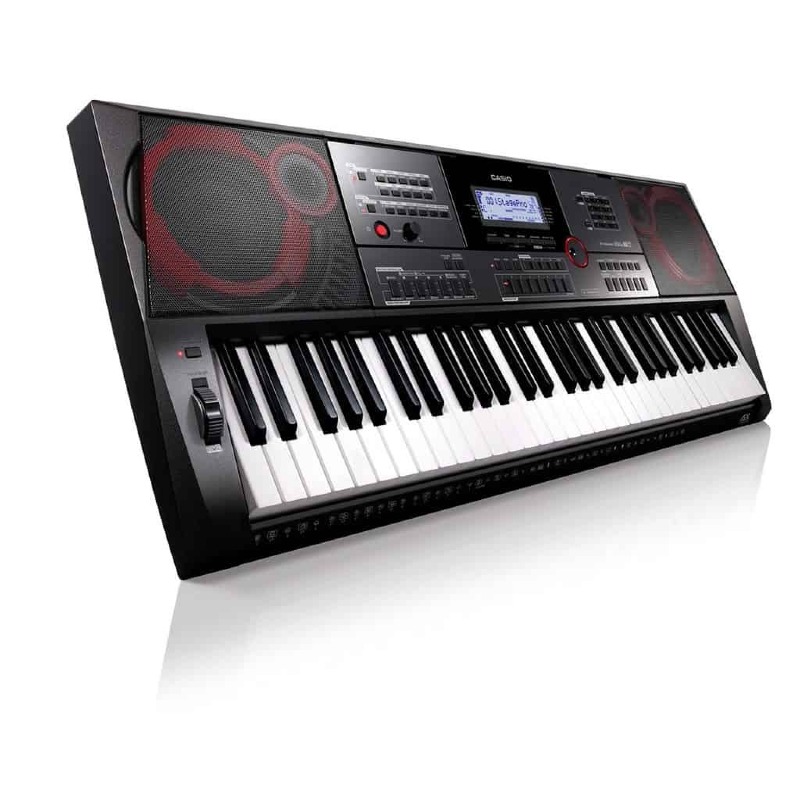

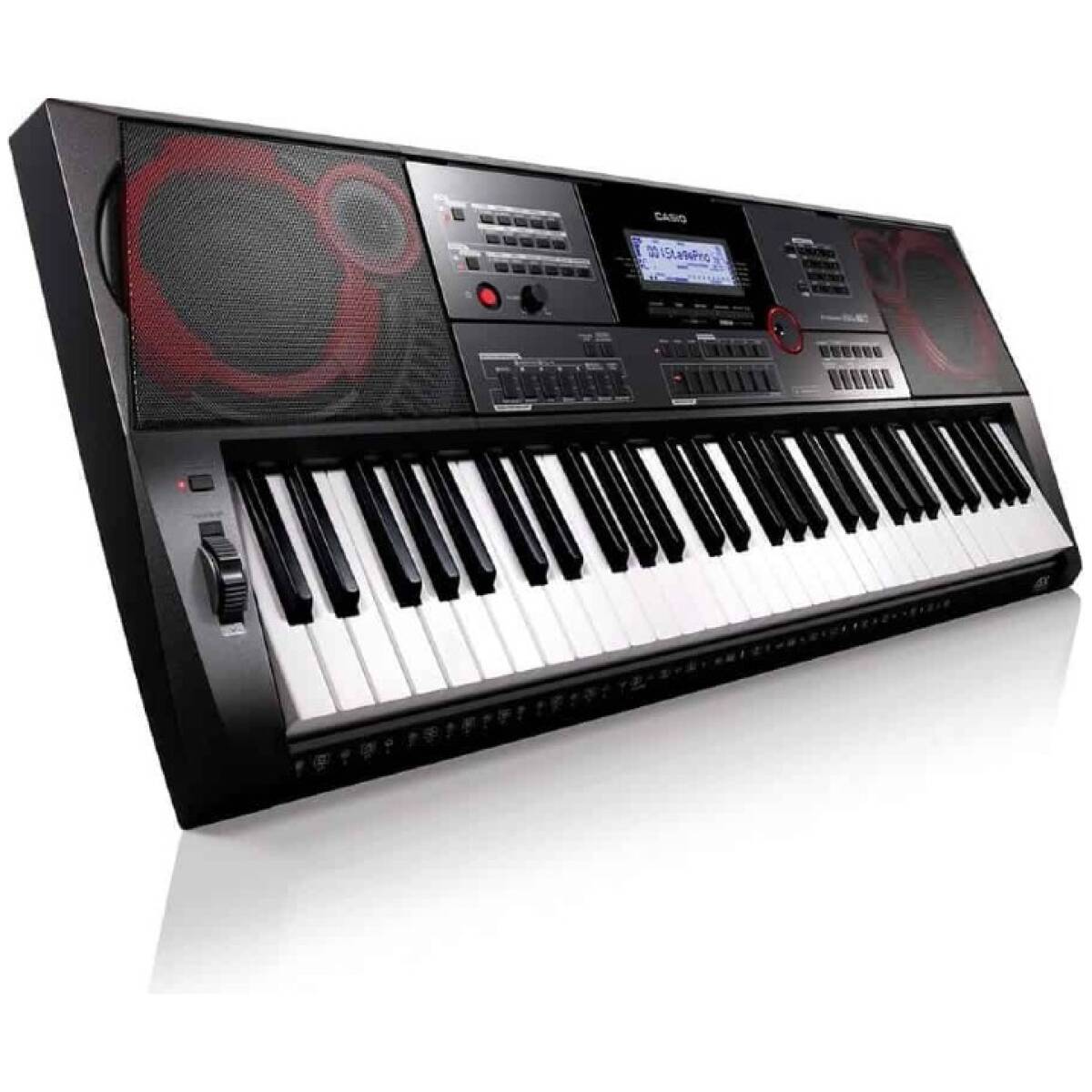

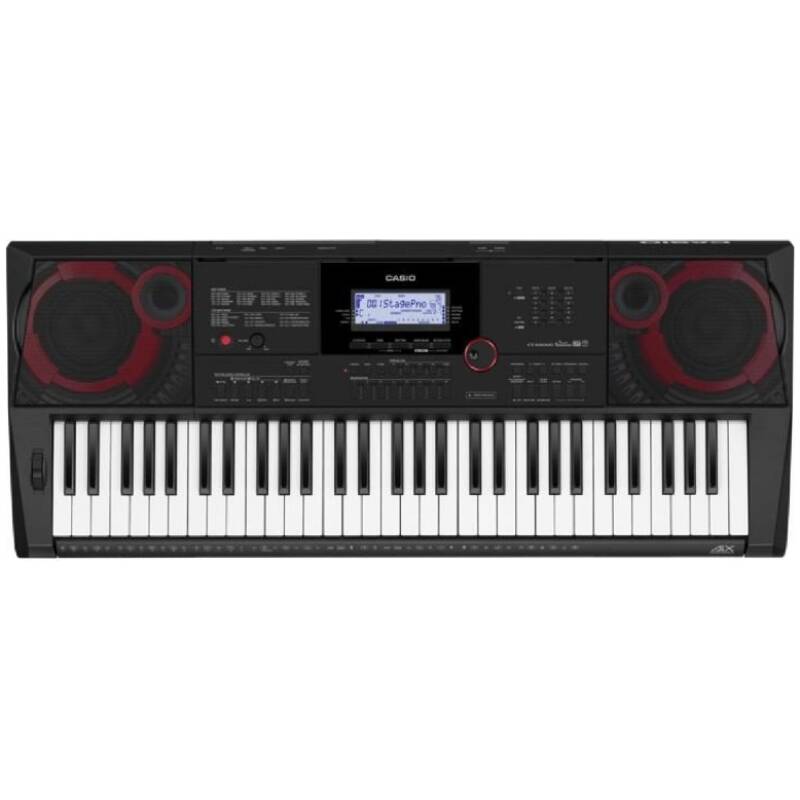

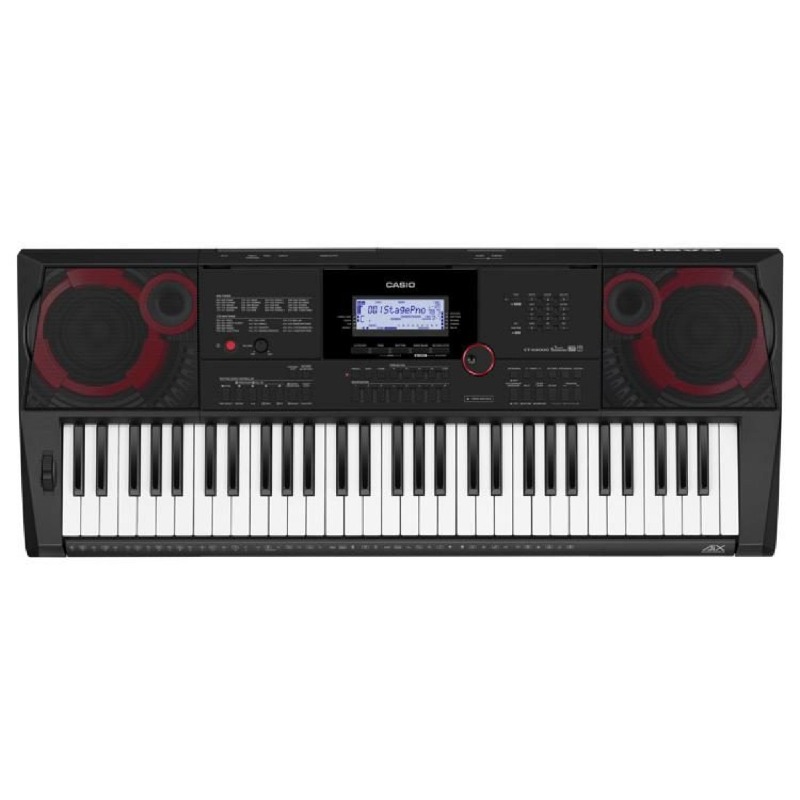

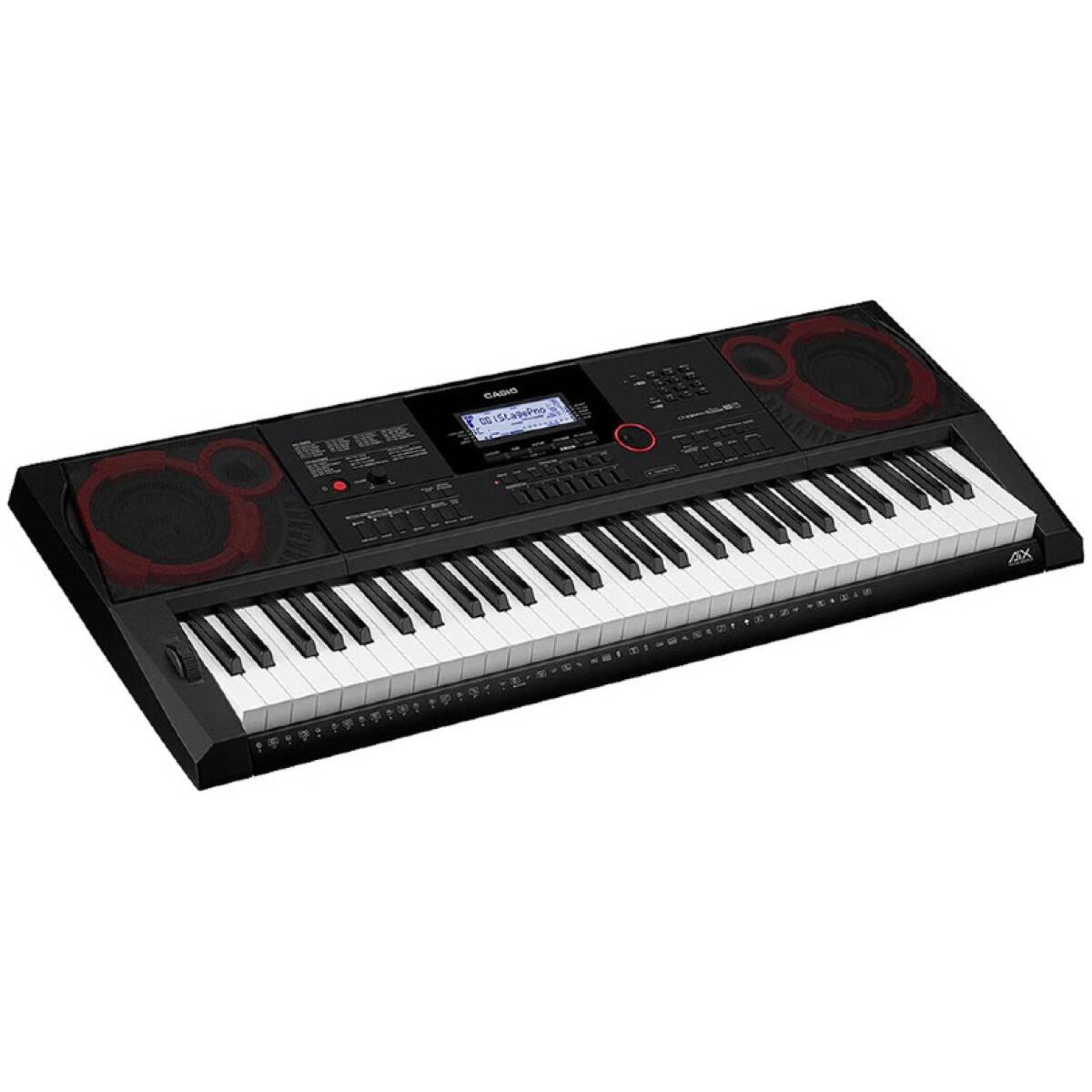

Inspiring masterful arrangements:

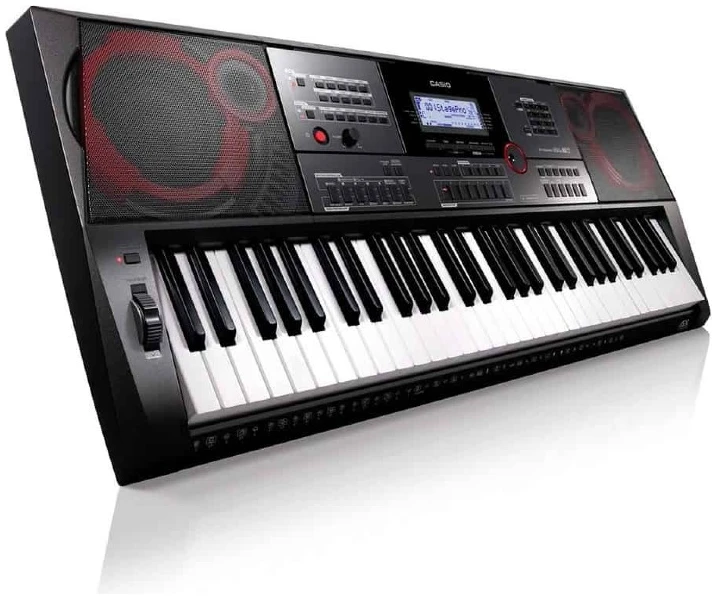

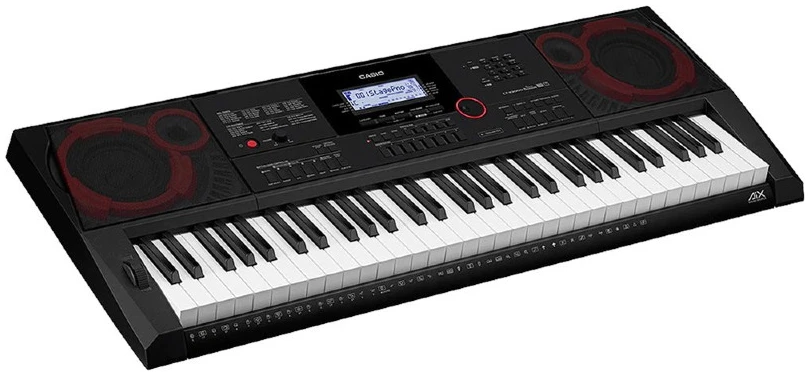

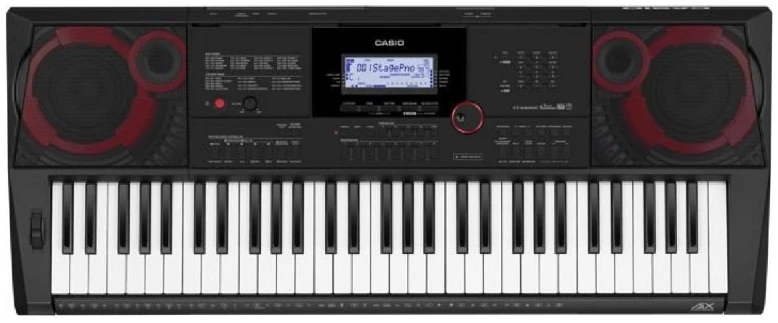

– The newly developed AiX Sound Source ensures that the noises and rhythms on the CT-X3000 sound authentic. With the new 2 x 6 watt sound system and a host of features that make it quick and simple for you to produce your own arrangements, the CT-X3000 is a real all-rounder — whether it’s used for teaching or composing song ideas at home.
– New powerful AiX Sound Source
– New contemporary content within the 800 tones and 235 rhythms
– 4 phrase pads
– 2 x pedal jacks incl. 1 x expression pedal jack
– Audio In, USB to Host & to Device
SPECIFICATIONS:
Keyboard: 61 keys
Touch response: 3 types, off
Maximum Polyphony: 64 notes (32 for certain tones)
Tones:
– Sound Source: AiX
– Built-in tones: 800
– User tones: 100
– Functions: Layer, Split
Digital effects:
– Reverb: 24 types, off
– Chorus: 12 types, tone
– Delay: 15 types, tone
– DSP: 100 types, DSP tones
Master effects:
– Equalizer (10 Presets)
External input effects:
– Center cancel (vocal cut) for input from the audio in jack
Metronome:
– Beats per measure: 0 (accented tone off), 1 to 16
– Tempo range: 20 to 255
Song bank:
– Demo song: 3
– Built-in songs: 30
– User-recorded songs: 10
USB Flash Drive SMF files:
– Playback of standard MIDI files (SMF format 01/1), CASIO MIDI files (CMF format) on a USB flash drive is supported.
USB audio playback:
– Playback of audio files on a USB flash drive is supported.
– Supported file formats: WAV, 44,1 kHZ 16 Bit
– Other functions: Center cancel (vocal cut)
Auto accompaniment:
– Built-in rhythms: 235
– User rhythms: 50
Music presets:
– 310
One touch presets:
– 235
Phrase Pads:
– Number of pads: 4
– User Phrases: 100 (4 phrases x 25 pads)
– Editing mode: Copy, delete, phrase editing
Mixer functions:
– Affected parts: Sound source parts, microphone input part
– Parameters: Part on/off, volume, pan reverb send, chorus send, delay send
Registration:
– 128 setups (8 setups x 16 banks), registration sequence
Tone editing:
– Preset tone editing, DSP editing. Memory for storage of edited tones (up to 100)
Internal rhythm editing:
– New rhythm creation, rhythm editing Memory for storage of created/edited rhythms (up to 50)
MIDI recorder:
– 2Real-time recording, playback
– Keyboard play: 10 songs, 17 tracks (1 system track, 16 solo tracks)
– Memory capacity: approximately 40.000 notes (per song)
– Editing mode: Song editing, track editing, event editing, step input
– Other functions: Overdubbing, punch-in recording
Controllers:
– Pitch bend wheel, SUSTAIN button, PORTAMENTO button
– Other functions
– Transpose: ± 1 octave (-12 to 0 to + 12 semitones)
– Octave shift: Upper 1/ Upper 2/ Lower 1/ Lower 2, ± 3 octaves
– Tuning: A4 = 415,5 to 465,9 Hz (initial default: 440,0 Hz)
– Part coarse tune: For each keyboard part, ± 2 octaves (-24 to 0 to + 24 semitones)
– Part fine tune: For each keyboard part, ± 99 cents
– Preset scales: 17 preset scales, scale fine tuning
– Auto harmonize: 12 types
– Arpeggiator: 150 types
MIDI:
– 16-multi-timbre received, GM Level 1 standard

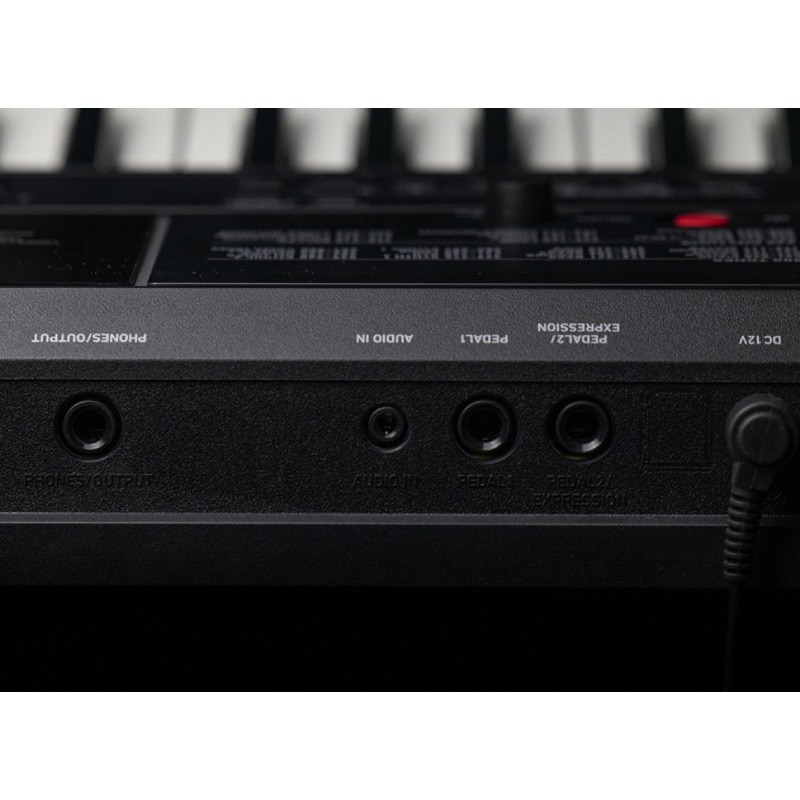

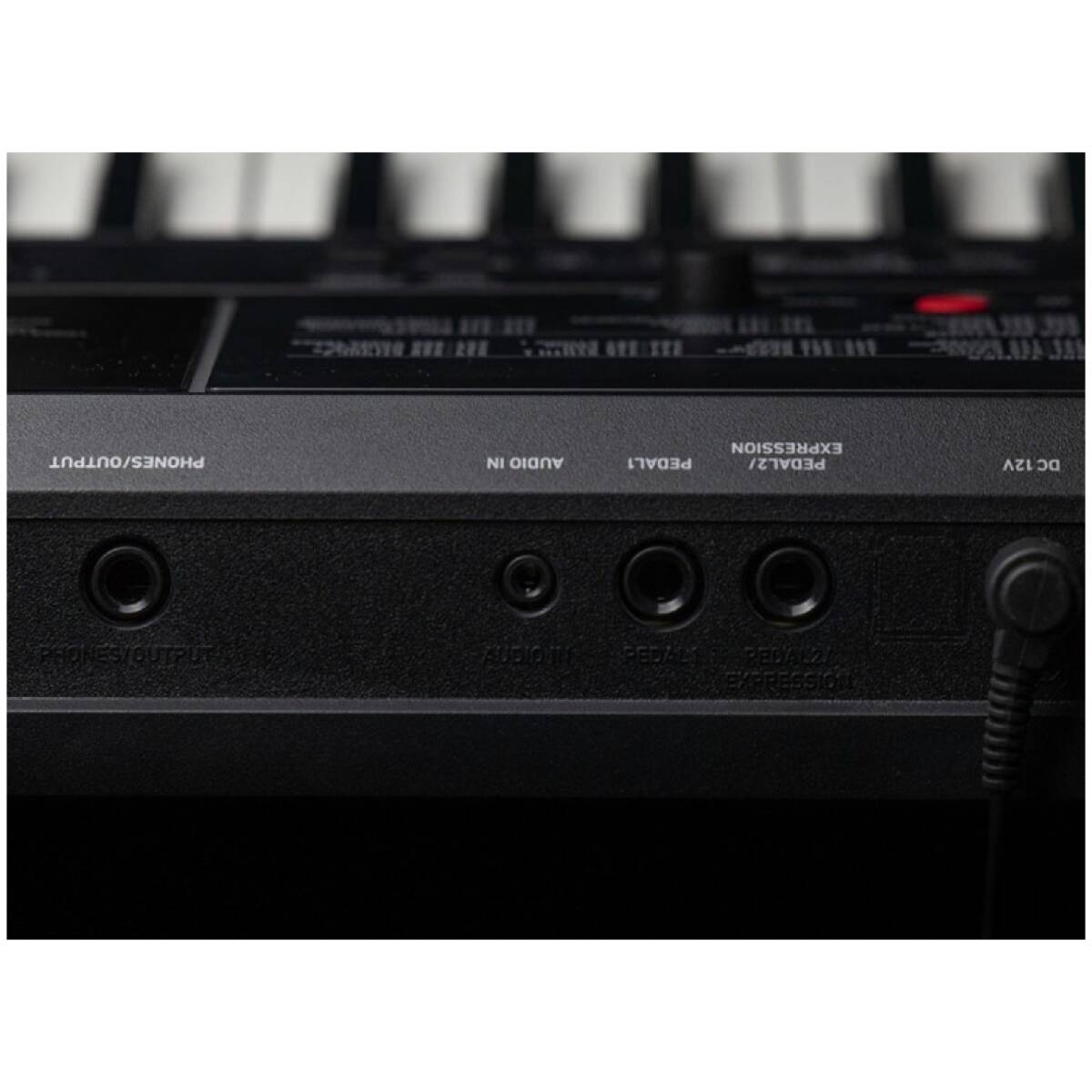

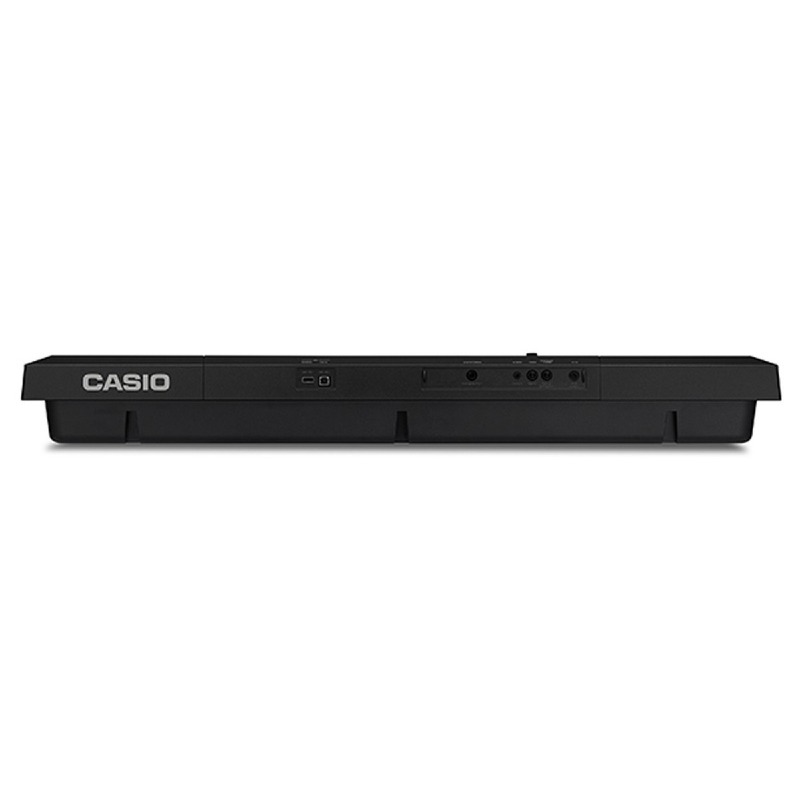

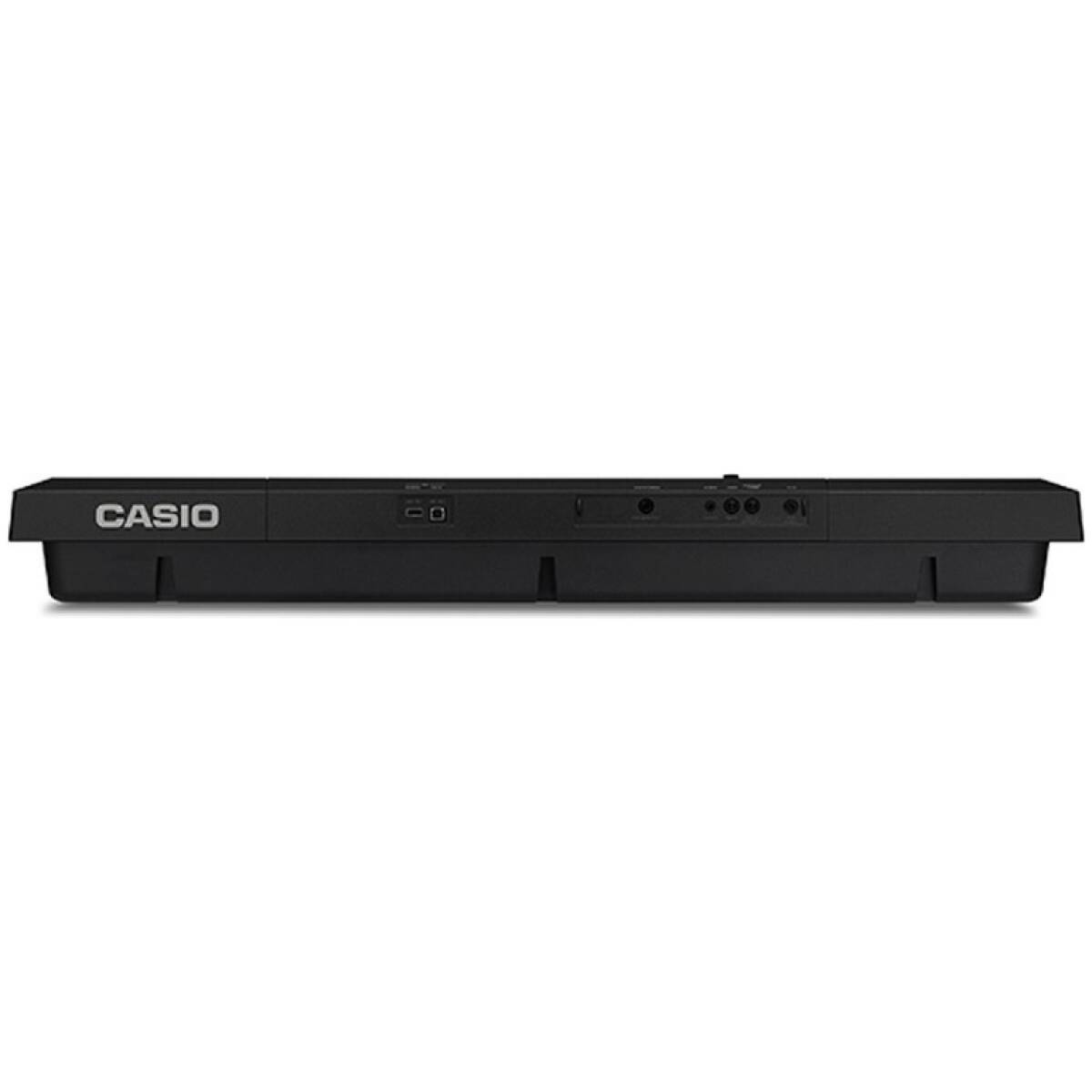

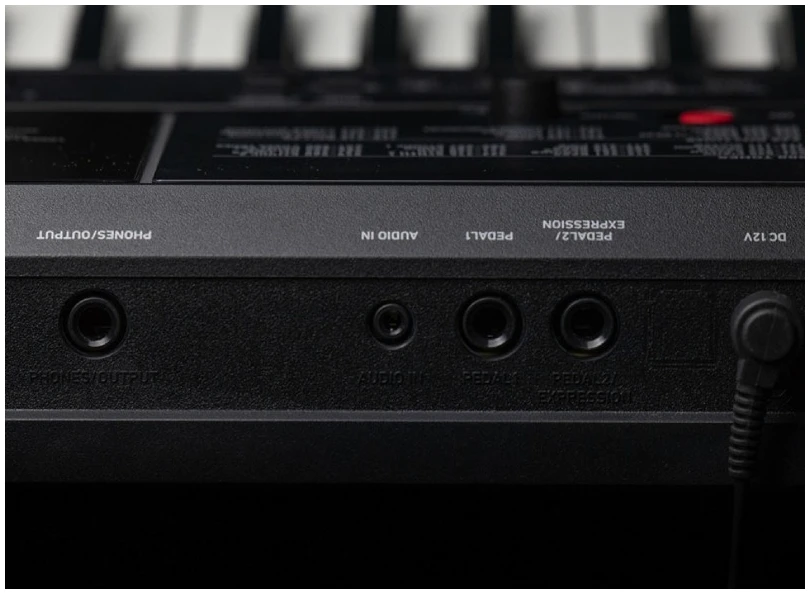

Inputs/Outputs:
– USB flash drive port: Type A
– USB port: Type B
– Pedal jack 1: Standard jack (sustain, sostenuto, soft, rhythm)
– Pedal jack 2, expression jack: Standard jack (expressio jack)
– Phones/Output jack: Stereo standard jack
– Audio input jack: Stereo mini jack (Input impedance: 9 kΩ, input sensitivity: 200 mV)
Power jack:
– DC 12 V
Power supply:
– 2-way
– Batteries: 6 x D-size alkaline batteries
– Battery life: approximately 10 hours continuous operation on alkaline batteries
– AC adaptor: AD-A12150LW
– Auto power off: approximately 30 minutes after last operation; can be disabled
Speakers:
– 10 cm x 2 (output: 6 W + 6 W)
Power consumption:
– 12 V – 8 W
Dimensions:
– 94,8 x 38,4 x 11,6 cm
Weight (without batteries):
– approximately 6,9 kg (without batteries)
