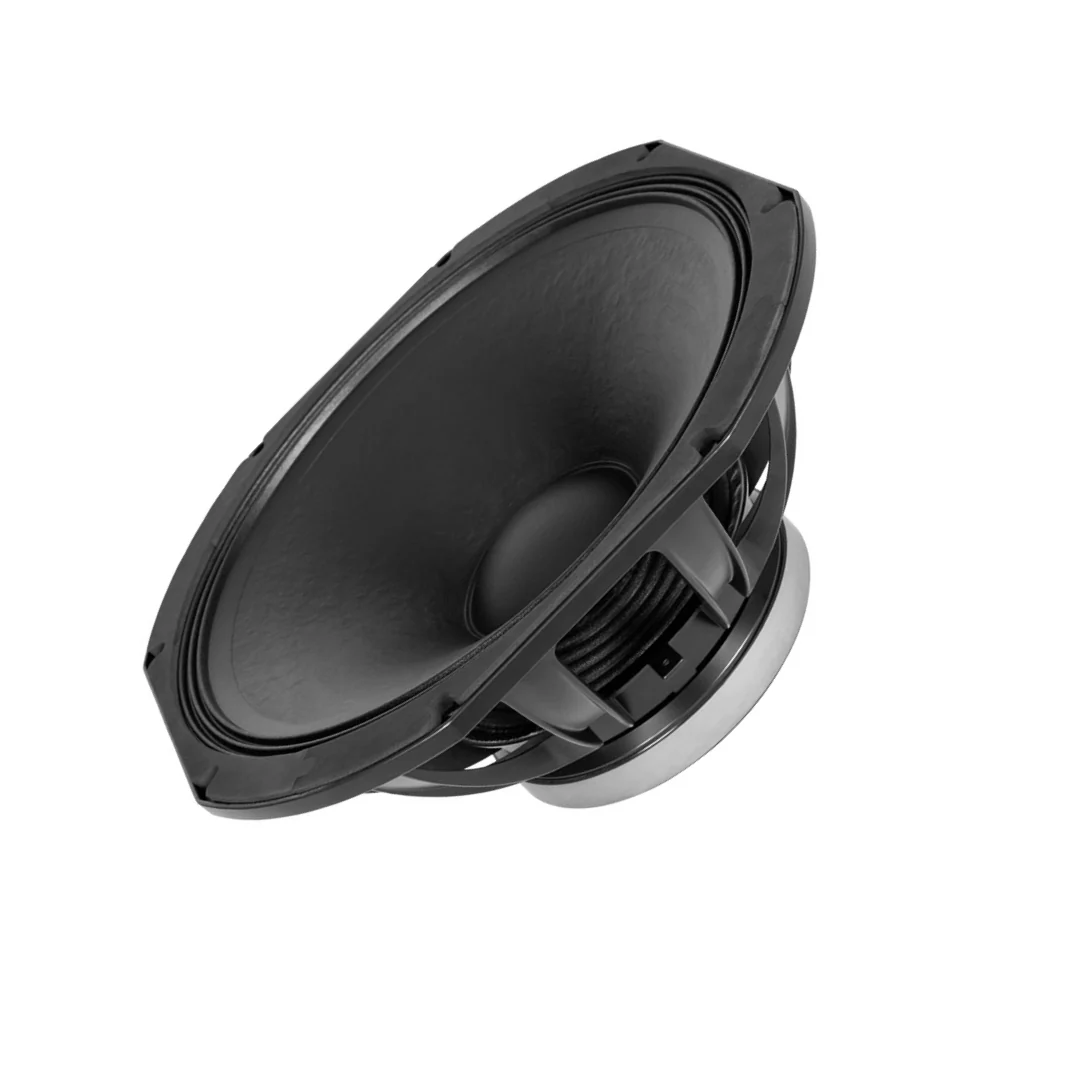

The 15PF800‑8 stands out as a robust solution for audio professionals seeking both volume and fidelity. Engineered with a durable treated paper cone and spider, it remains resilient under demanding conditions, while the 3″ voice coil and vented chassis maintain thermal stability at high output. Its wide frequency response and tight control make it well-suited for full-range speaker systems, stage wedges, and live sound applications. Delivering both accuracy and durability, this speaker driver is ideal for touring, installations, and energetic performance environments.
Features
- 15″ treated paper cone for natural, balanced full-range sound
- 800 W RMS / 1,600 W peak power handling for sustained high-volume performance
- 3″ (75 mm) CCAW voice coil rated to 240 °C for thermal resilience

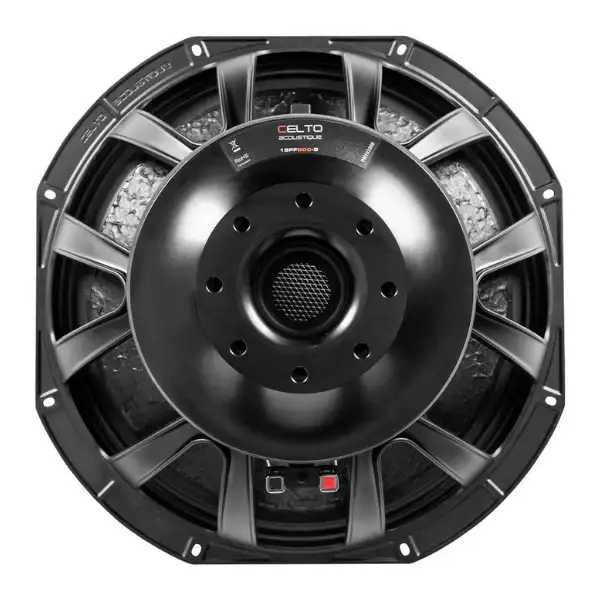

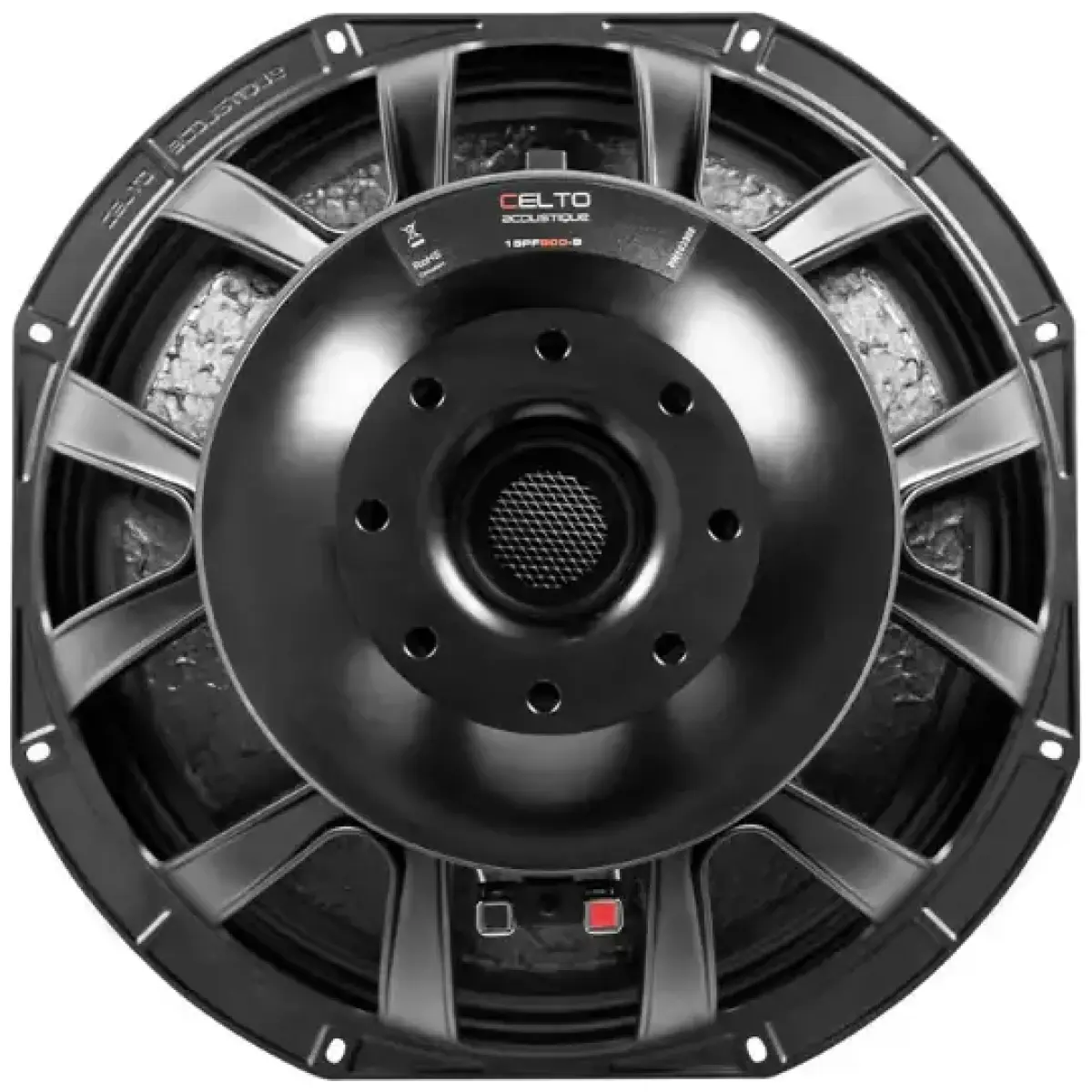

- Vented, die-cast aluminium chassis allowing efficient heat dissipation
- Ferrite magnet ensuring strong magnetic field and efficiency
- Treated cone and spider for protection against moisture and mechanical fatigue
- Standard 8 Ω impedance compatible with most pro audio amplifiers
Specifications
| Specification | Details |
|---|---|
| Driver Type | 15″ full-range/loudspeaker driver |
| Nominal Impedance | 8 Ω |
| Power Handling (RMS) | 800 W |
| Peak Power Handling | 1,600 W |
| Voice Coil | 3″ (75 mm) CCAW, rated to 240 °C |
| Basket | Vented die-cast aluminium chassis |
| Cone Material | Treated pulp paper |
| Surround | Treated for reliability |
| Magnet | Ferrite |
| Sensitivity | ~100 dB (1 W/1 m) |
| Resonance Frequency (Fs) | ~45 Hz |
| Mounting Cut-out Diameter | ~396 mm |
| Weight | ~11 kg |
| Durability | Weather-resistant cone and spider |
