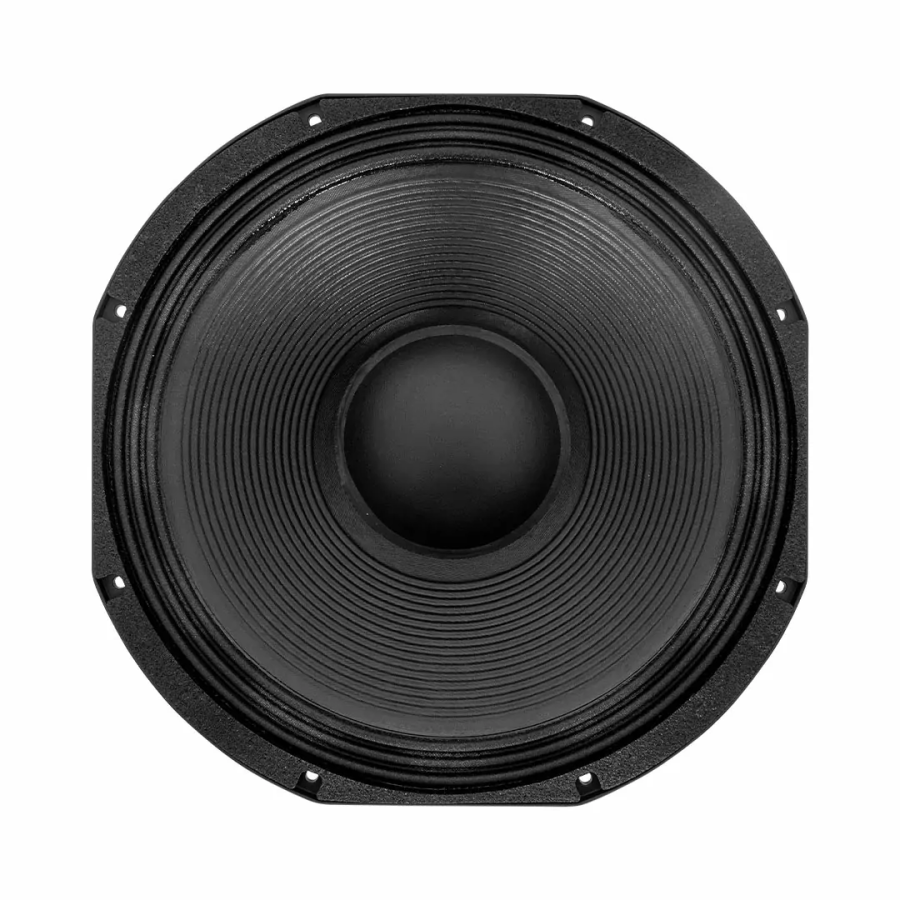

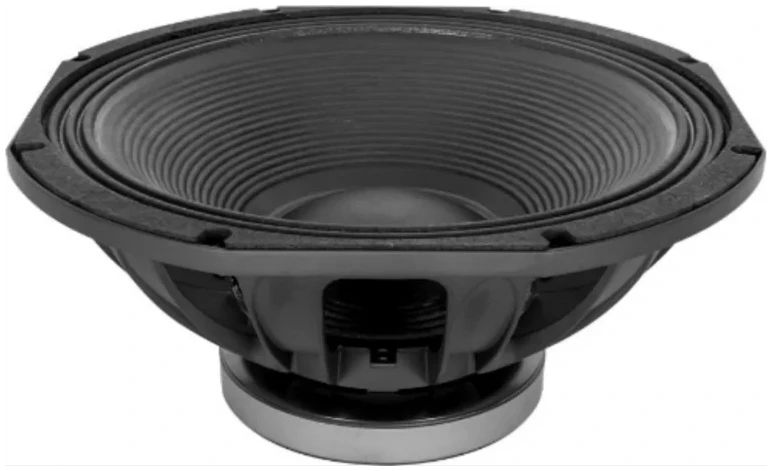

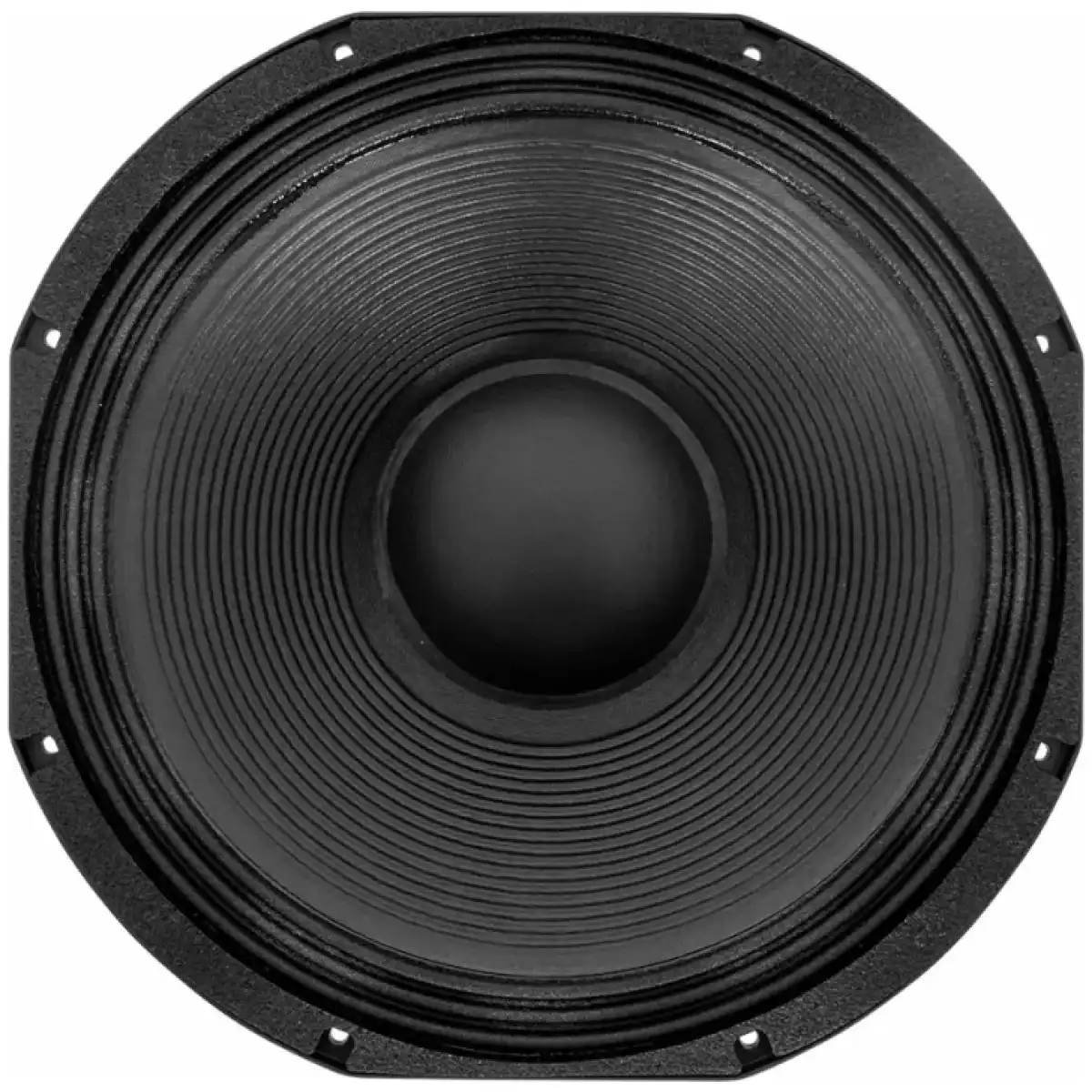

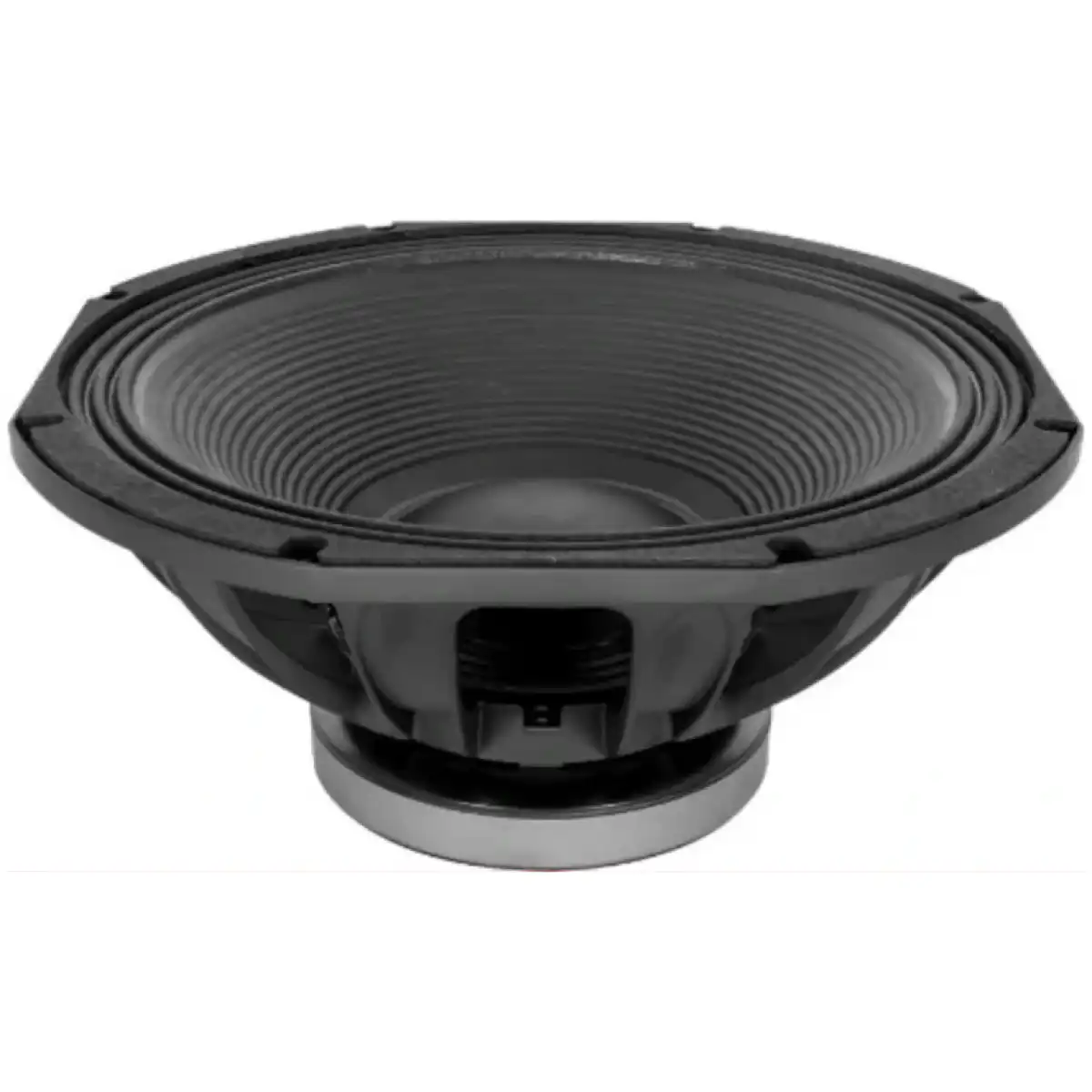

Celto 18SW1500-8 18″ Loose Speaker

FEATURES

Ultra-long excursion design

Split Winding voice coil

DCS (Deflective Cooling System)

Water resistant Keviar® loaded paper cone

Optimized parameters for compact cabinets

SPECIFICATIONS

Nominal diameter = 460mm (18inch)

Nominal Impedance = 8 ohms

Power handling = 1500W RMS (AES Standard)

Sensitivity = 97dB / 1W / 1m

Voice coil diameter = 4 inch (100mm)

Voice coil height Hvc = 34mm

Voice coil air gap Hag = 15mm

Xmax (Hvc-Hag)/2 + Hag/4 = +/-13.25mm

Xmech (peak-peak) = 62mm

Voice coil winding = 2 layers IN / OUT

Voice coil material = IEC grade Copper

Voice coil former = T600 fiberglass

Suspension = Triple roll, impregnated fabric

Spider = dual with silicon damping, NOMEX®

Cone = fiber loaded treated paper

Chassis = Die Cast Aluminium
