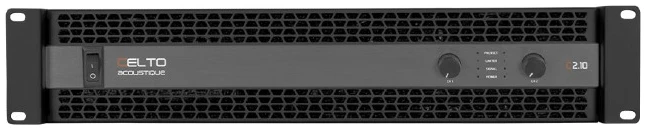

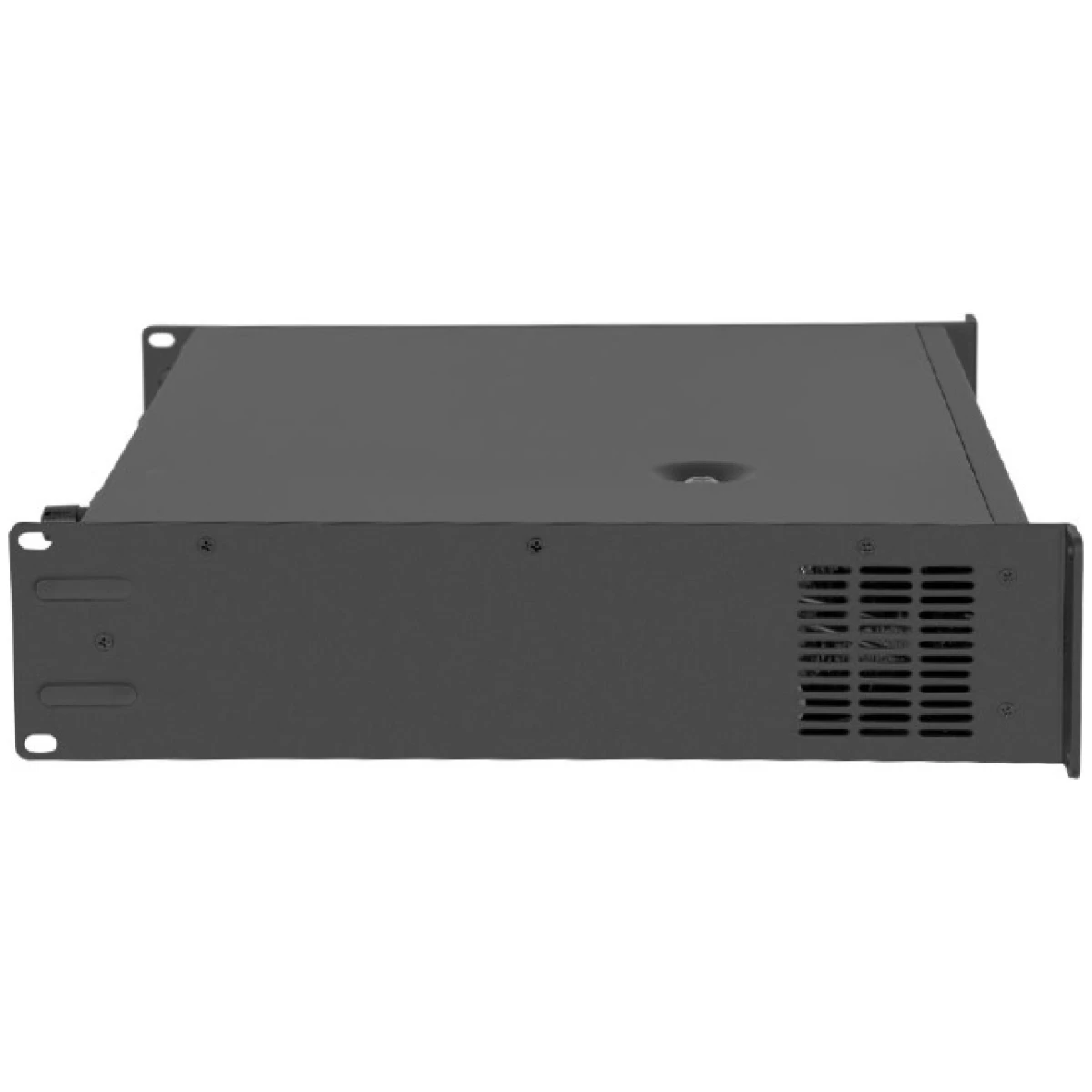

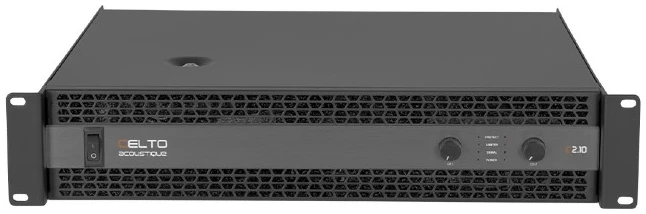

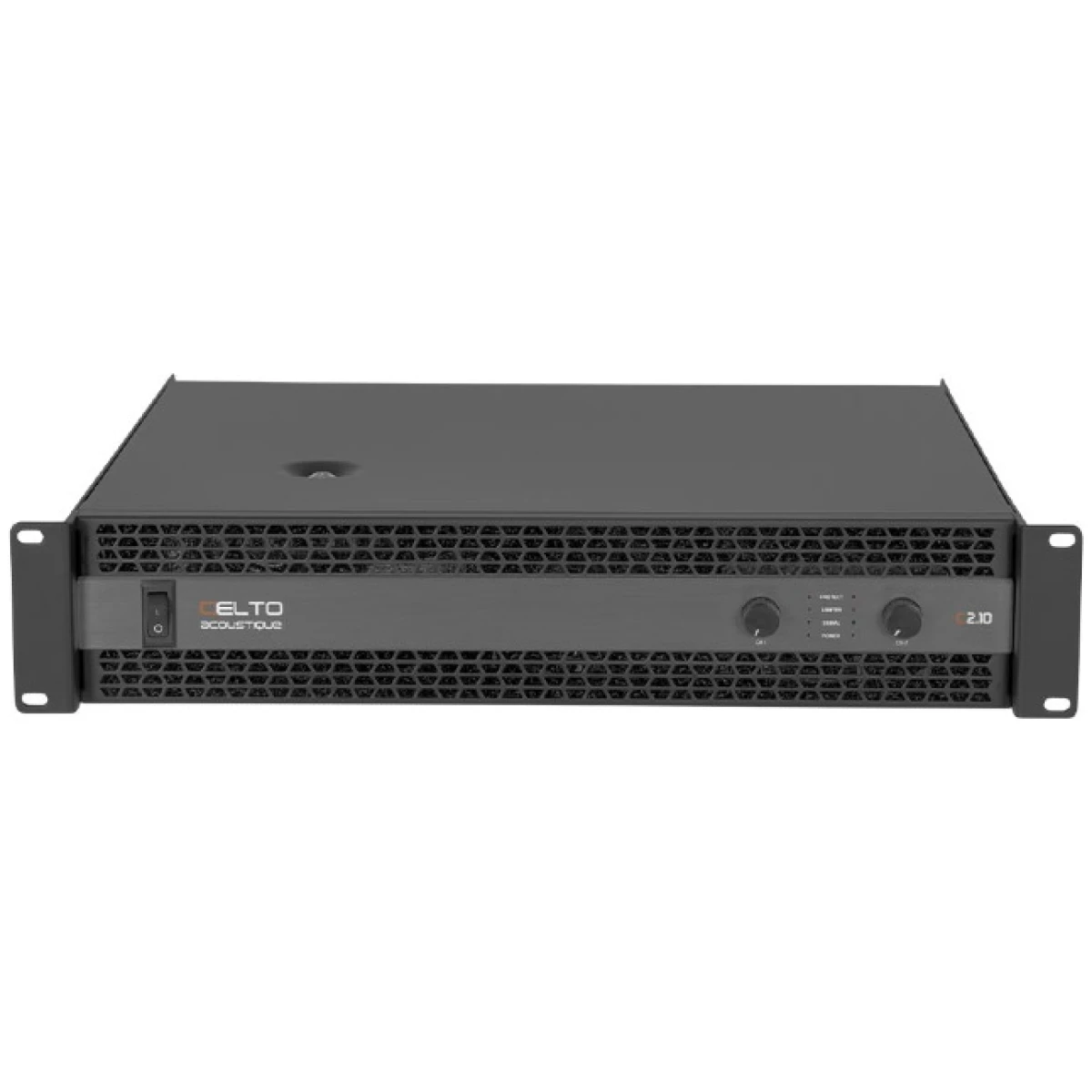

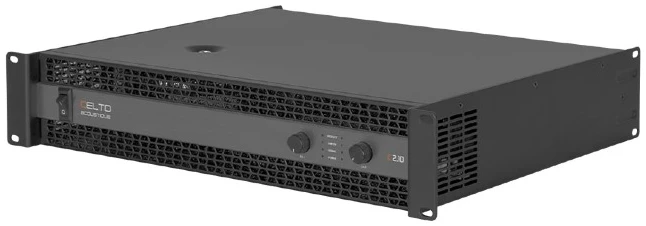

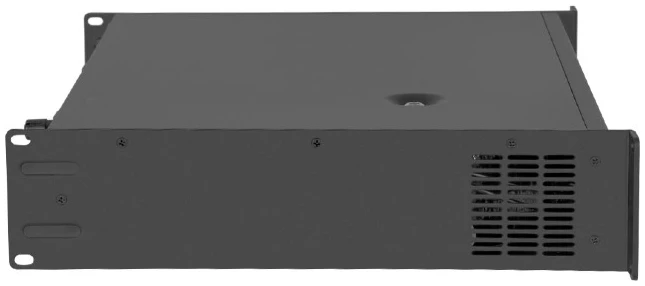

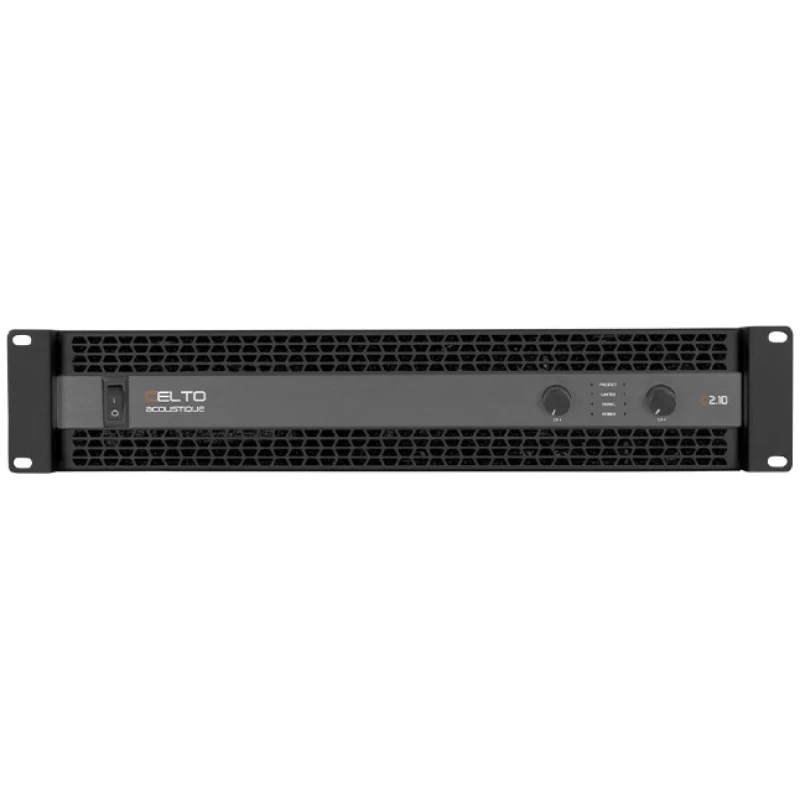

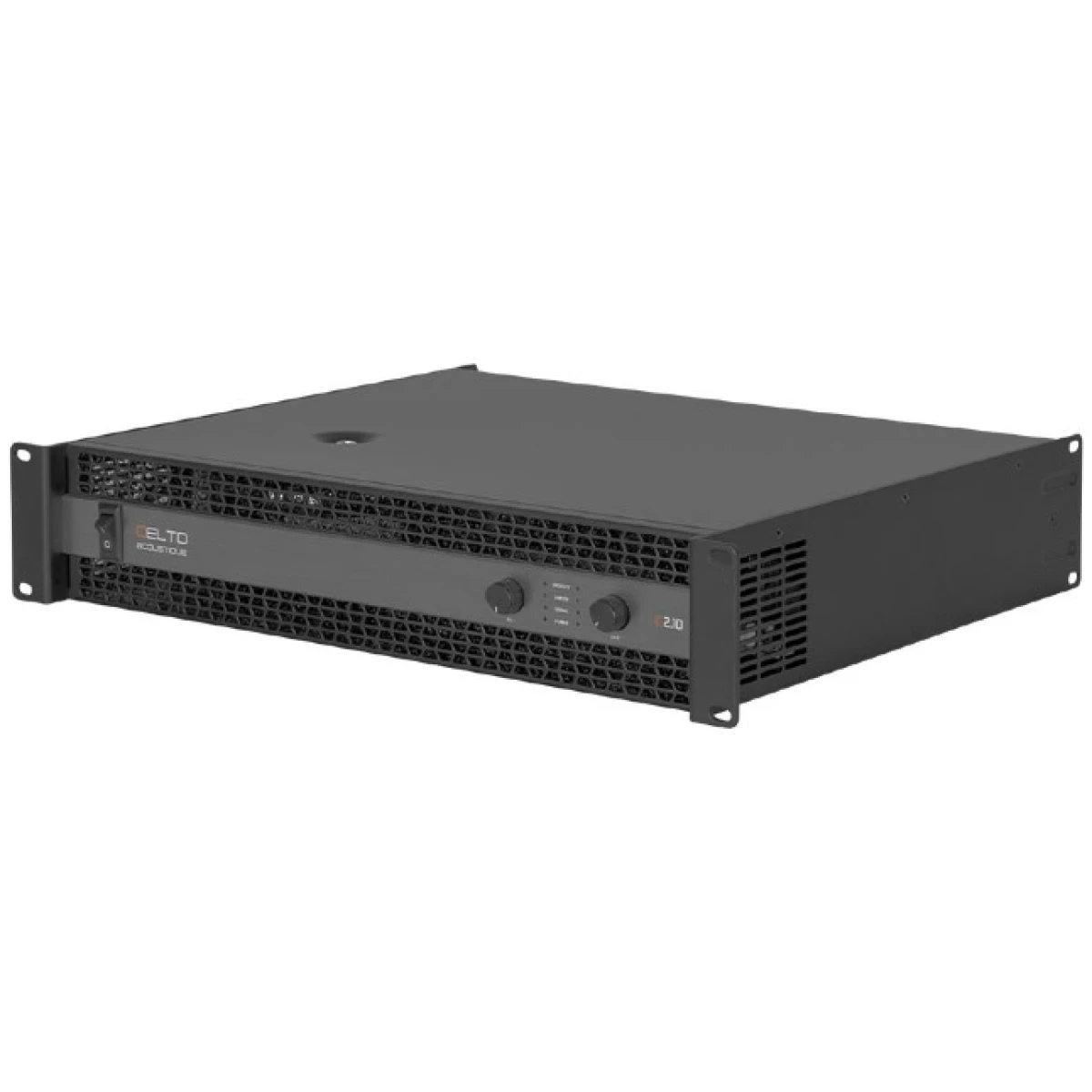

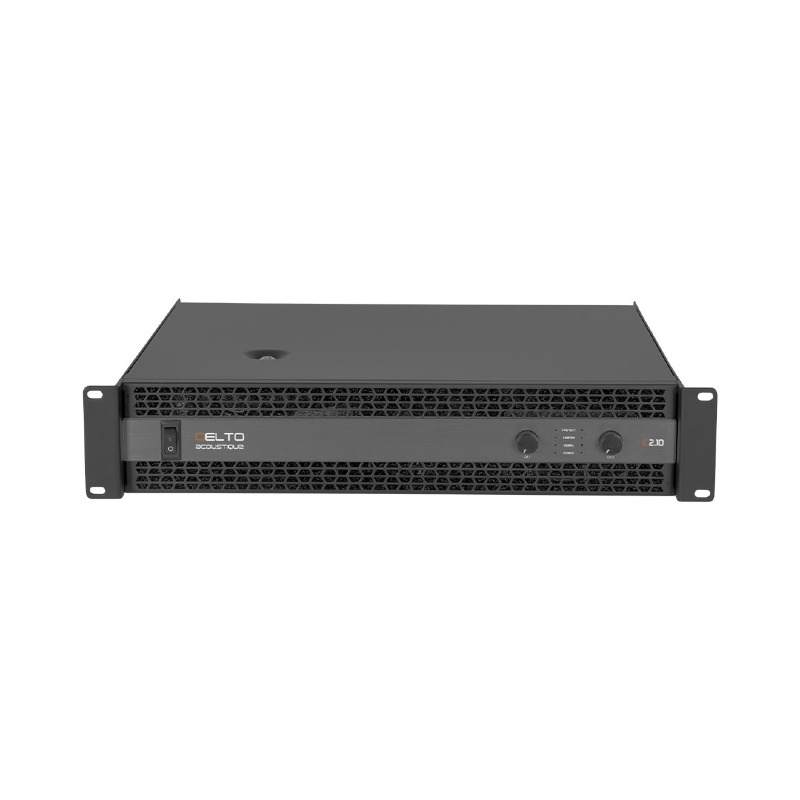

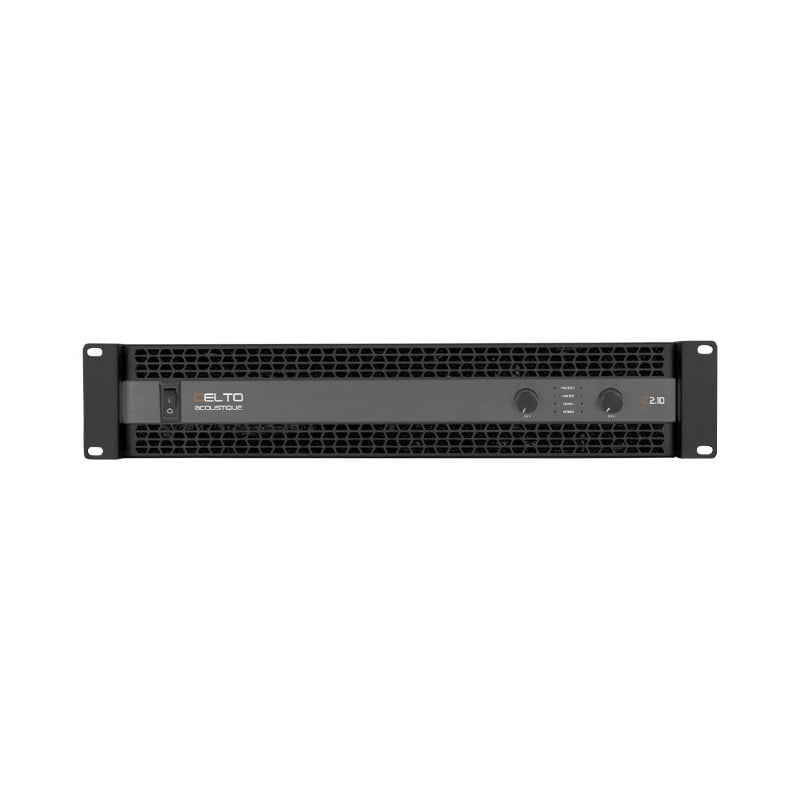

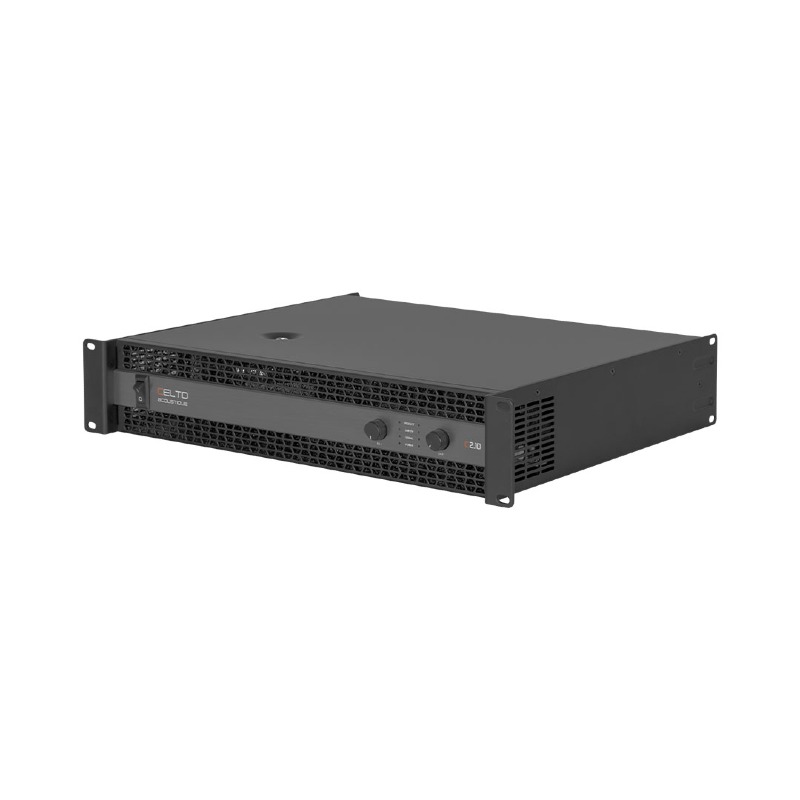

Celto acoustique C2.10 Power Amplifier

• Linear with Aluminum toroidal transformer
• Low distortion Peak Limiter
• Class H output stage (70% efficient)
• Protection, Soft-start, Short-circuit, Over-voltage, Over-current, Over-load, DC output, Temperature
• Simple layout and assembly for easy servicing
• Genuine parts exclusively provided by world class suppliers
• Compact and Lightweight 2U low depth format

SPECIFICATIONS:

Max output Power EIA 1kHz 1% THD (EIA = 33ms ON / 66ms OFF) | 2x 750W 8 ohms | 2x 1100W 4 ohms | 1x 2200W 8 ohms (Bridge)
Overall gain | 35dB (50 times voltage)
Sensitivity at 8 ohms | >108dB
Frequency Response (-1dB) | 20~20000Hz
Typical THD (half power, 1kHz, 8 ohms) | <0.1%
Typical IMD (1kHz at 4:1, -20dB) | <0.3%
Crosstalk (1kHz) | >65dB
Slew Rate | >20V/us
Input Impedance | 20 kΩ
Damping factor (1kHz, 8 ohms) | >500
Protections | Soft-Start, Short-Circuit, Over-Voltage, Over-Current, Over-Load, DC Output, Temperature
Operating Voltage | 190~260VAC 50-60Hz
Preamp | Low noise and low distortion circuit, PeakStop Opto-Limiter
Power Supply (PSU) | Linear topology with toroidal transforner
Output stage | 2-step Class H without cross-rail distortion (70% efficiency)
Cooling | Front to back airflow, Temperature regulated fans, Copper heat-sink for maximum heat transfer

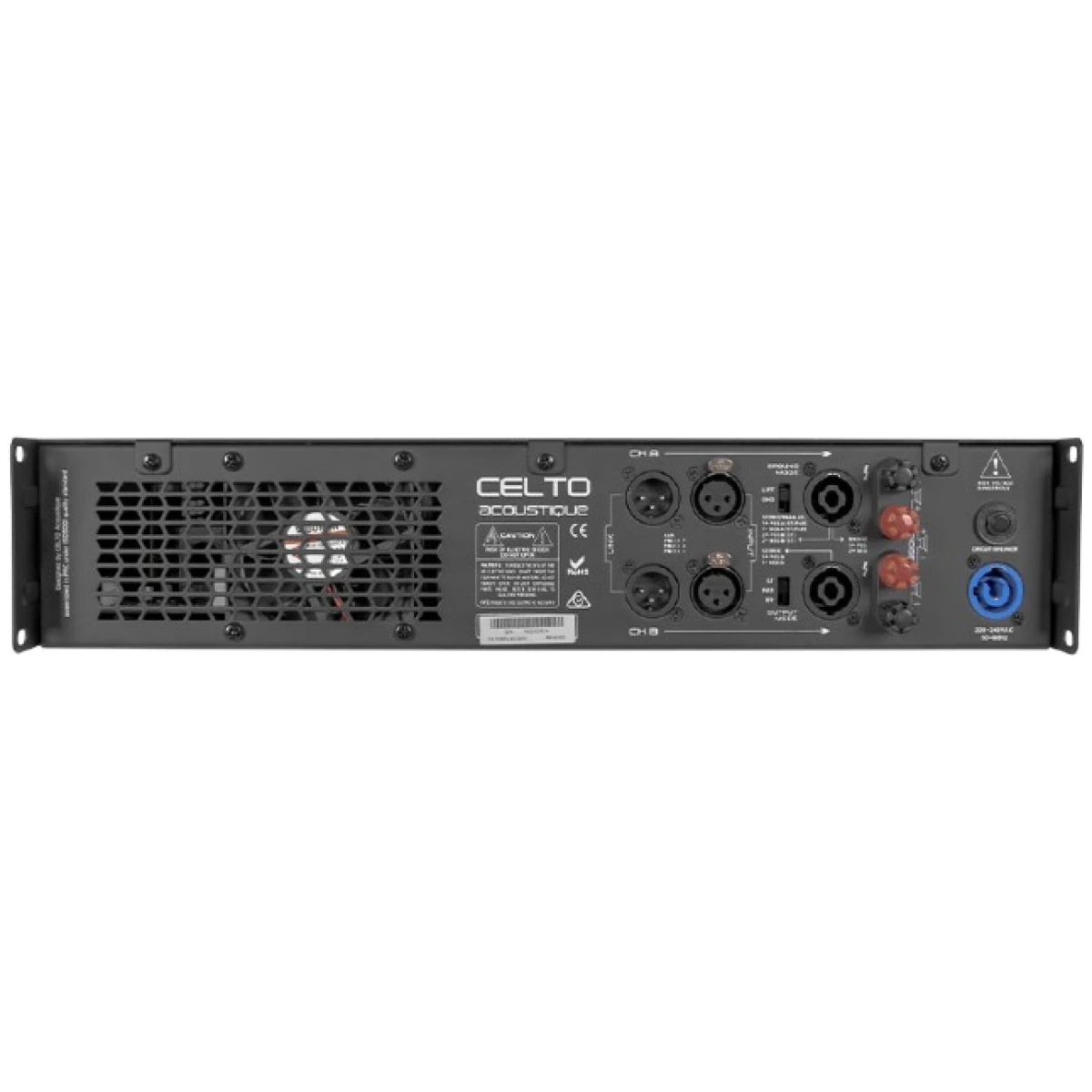

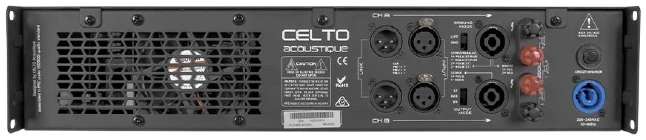

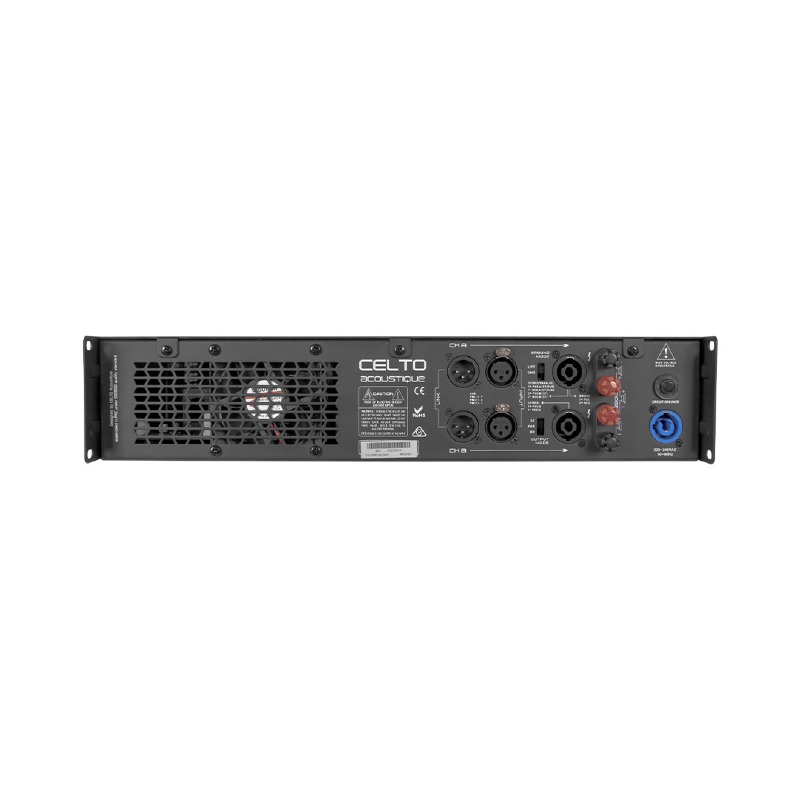

Rear Panel | 2 NEUTRIK XLR Input with latch, 2 NEUTRIK XLR Link ,2 NEUTRIK Speakon NL4, 2 speaker Binding post terminals, Stereo / Parallel / Bridge switch, Ground / Lift switch, Magnetic Breaker, PowerCon 20A (Included)
Speakon Wiring | SPK1 = 1+1- CH A / 2+2- CH B | SPK2 = 1+1- CH B / 2+2- Not Used

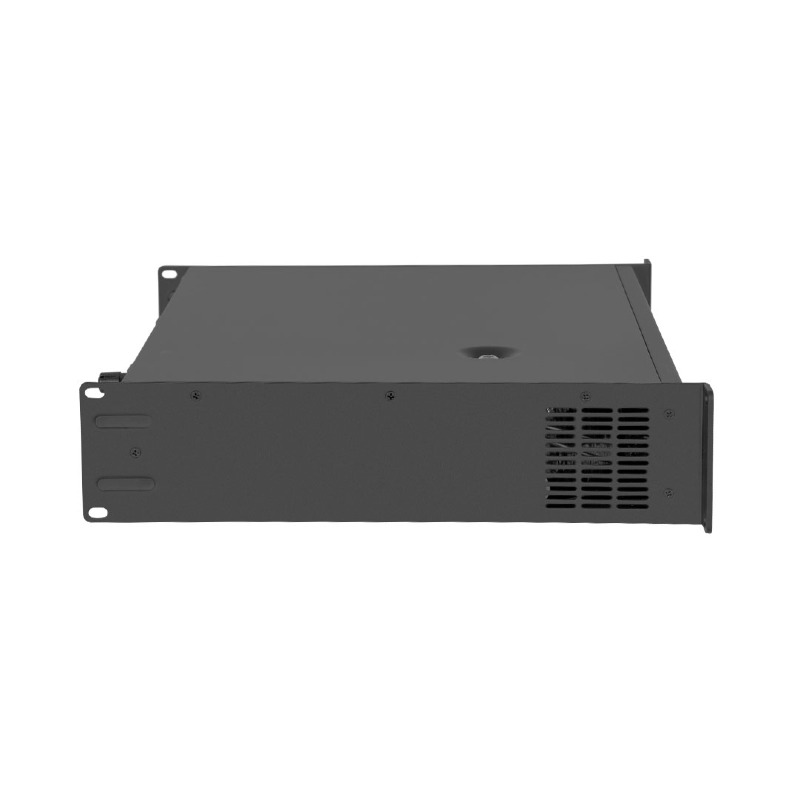

Chassis | 19″ 2U height, 378mm total depth
Weight Net / Gross | 16kg / 17.5kg
