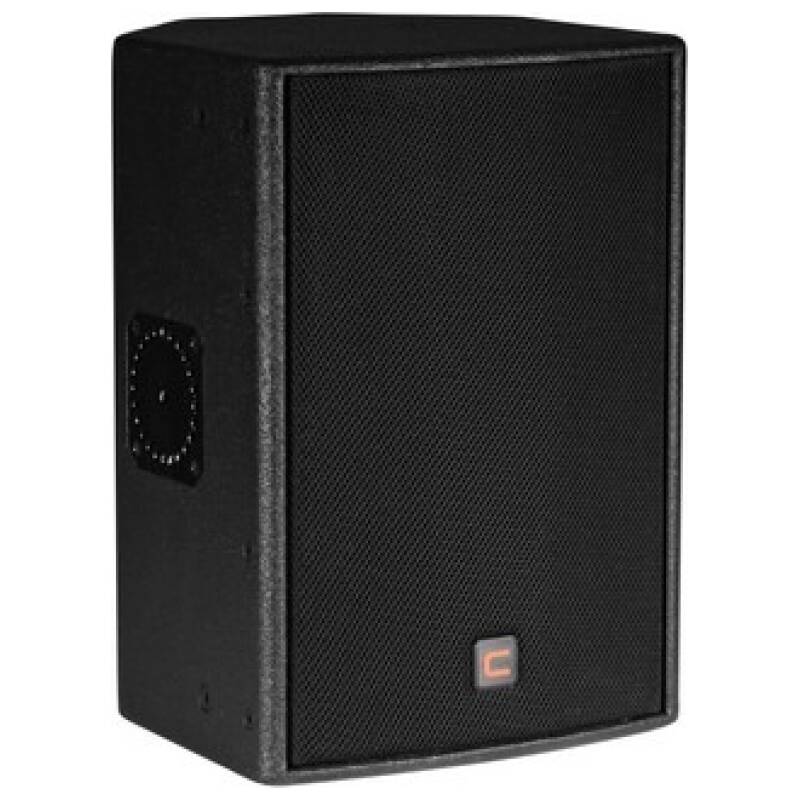

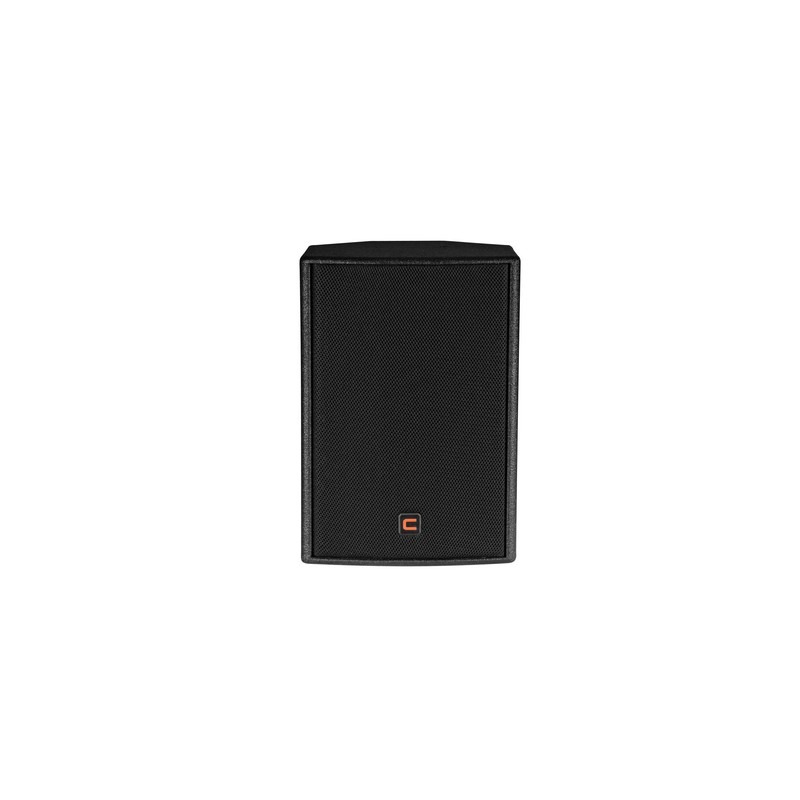

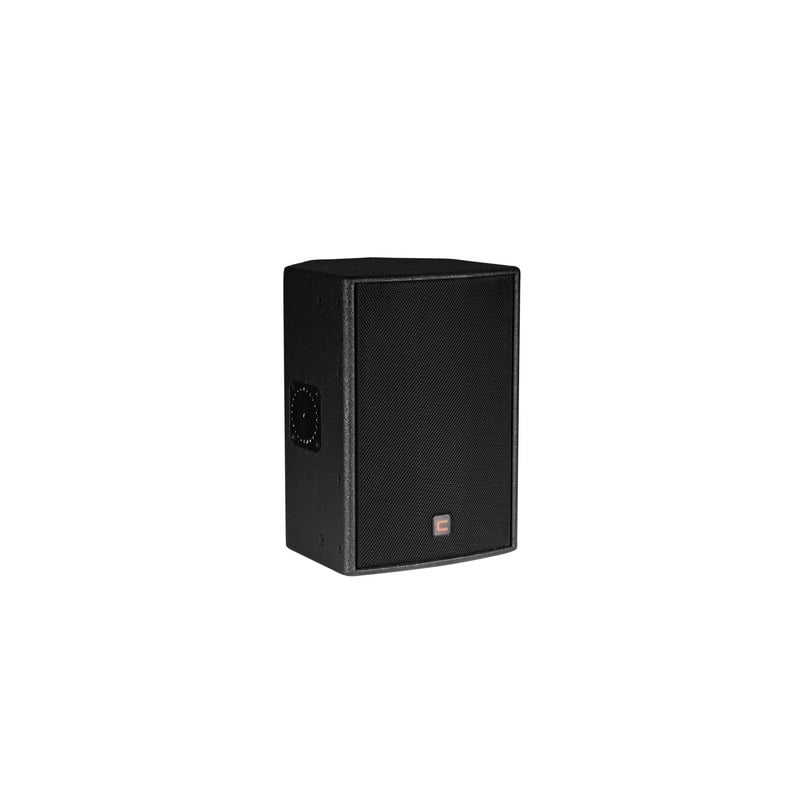

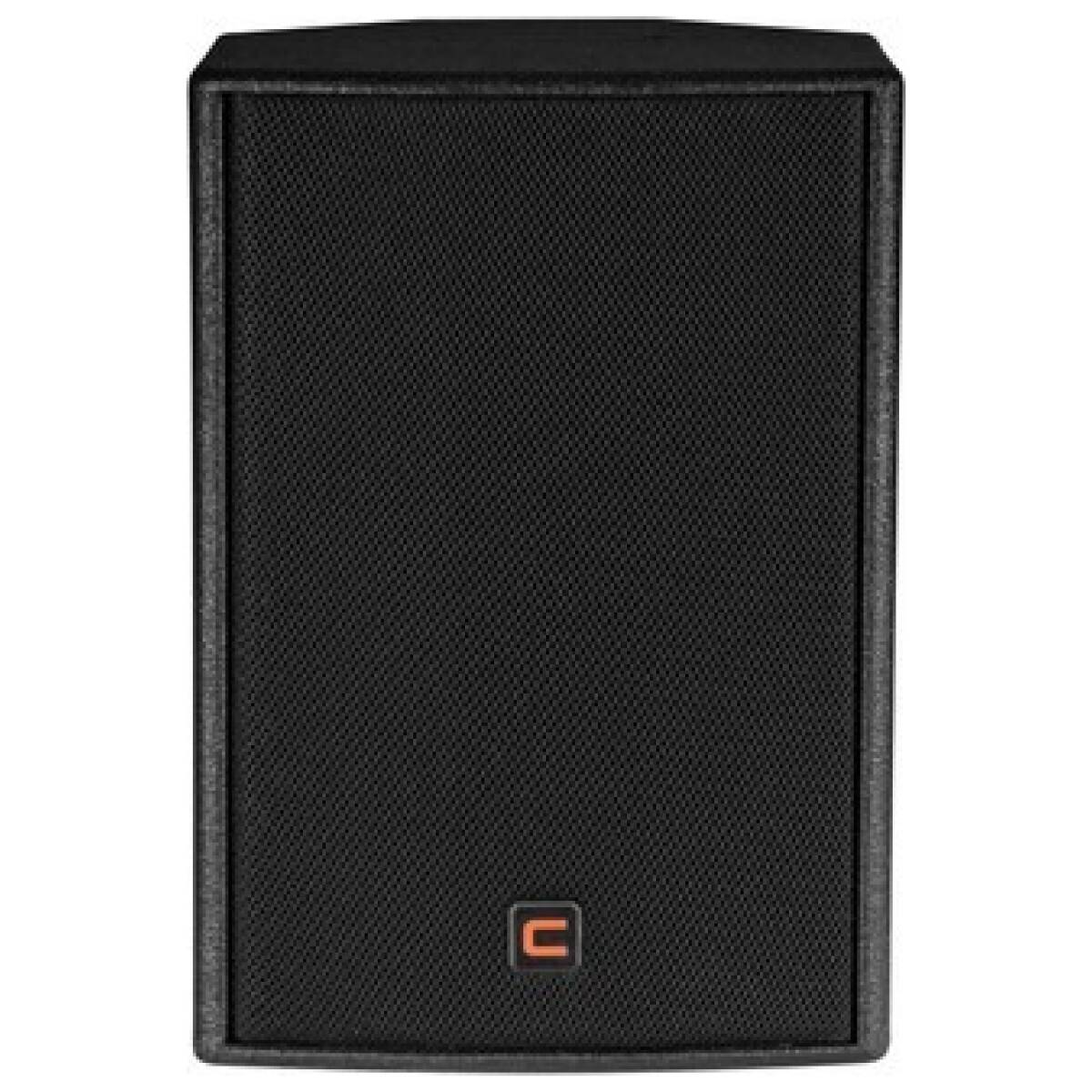

Multi Purpose Speakers, Rental Company Money Maker
- Real 300W RMS power capacity
- Natural sound and incredible holographic reproduction
- Optimized for smooth frequency response in and out axis
- Premium custom coaxial driver based on IsoRay technology
- Next generation HSP Annular Ring Radiator HF
- Conical 90° HF Horn pattern
- Outdoor grade Baltic birch plywood cabinet
- Touring grade Rubberized PolyUrea black coating
- Monitor angle and integrated rigging
Speaker type | Coaxial Multi-purpose full range
Power Handling (AES standard) | 300W RMS / 1200W Peak
Nominal impedance | 8 ohms
Average sensitivity | 97dB / 1W / 1m
Maximum SPL (calculated) | 122 dB RMS / 128dB Peak
Frequency response (-6dB no preset) | 78~22000Hz
Nominal directivity (-6dB) | 90° Conical
Cabinet material | Exterior grade Baltic Birch Plywood
Cabinet finish | Ruberrized PolyUrea Black coating, Integral Airnet fabric on Front grill
Floor monitor use | Yes (symetrical)
Flying hardware | 7 M8 points + 36 positions Aluminum Yoke plate
Mounting hardware | Ø35mm adapter (optional)

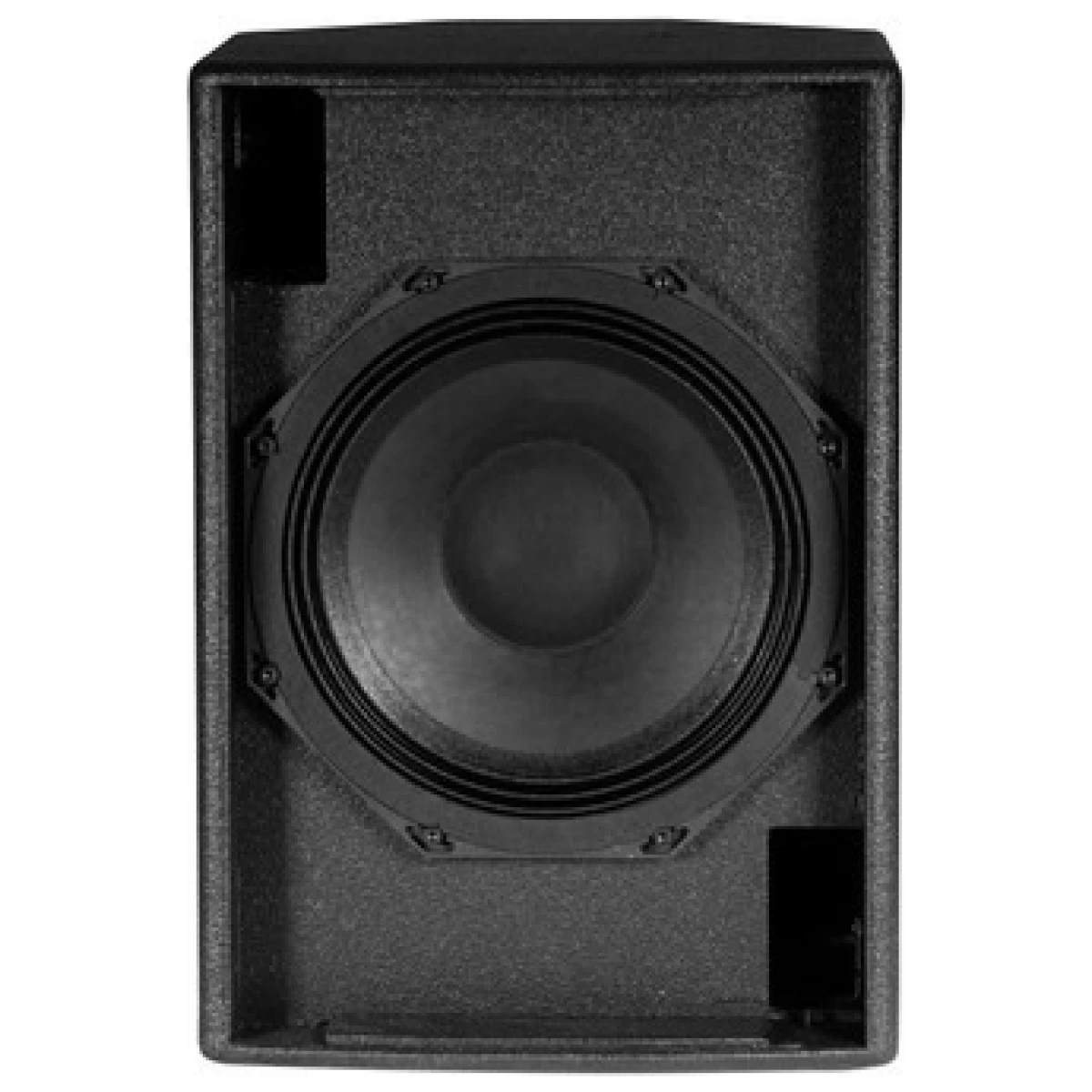

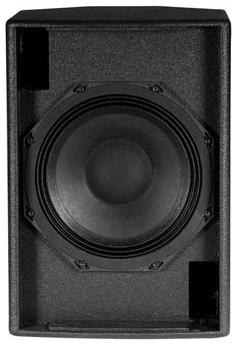

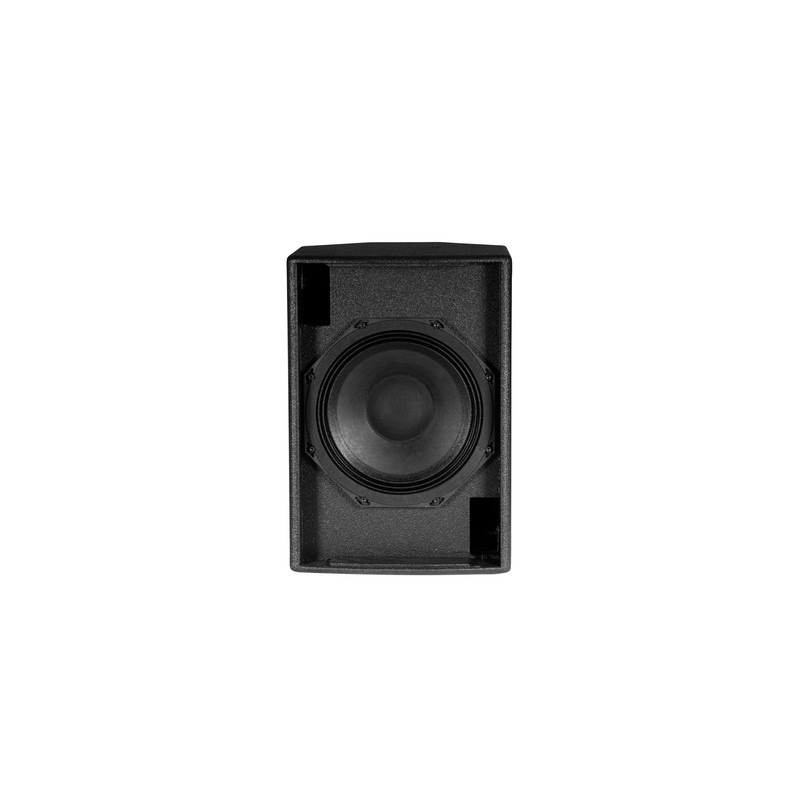

LF | 10″ coaxial CELTO Acoustique 10CX300
Woofer Chassis | Die Cast Aluminum
Woofer Voice coil diameter | 2.5″ / 65mm
HF | CELTO Acoustique ACD40 (in coaxial mounting)
HF RMS power (AES standard) | 80W above 1.5kHz
HF Exit | 1″ / 25mm
HF Voice coil diameter | 1.7″ / 44mm
HF Diaphragm | HSP Annular Ring Radiator
Crossover | 1.5kHz 2-way passive network

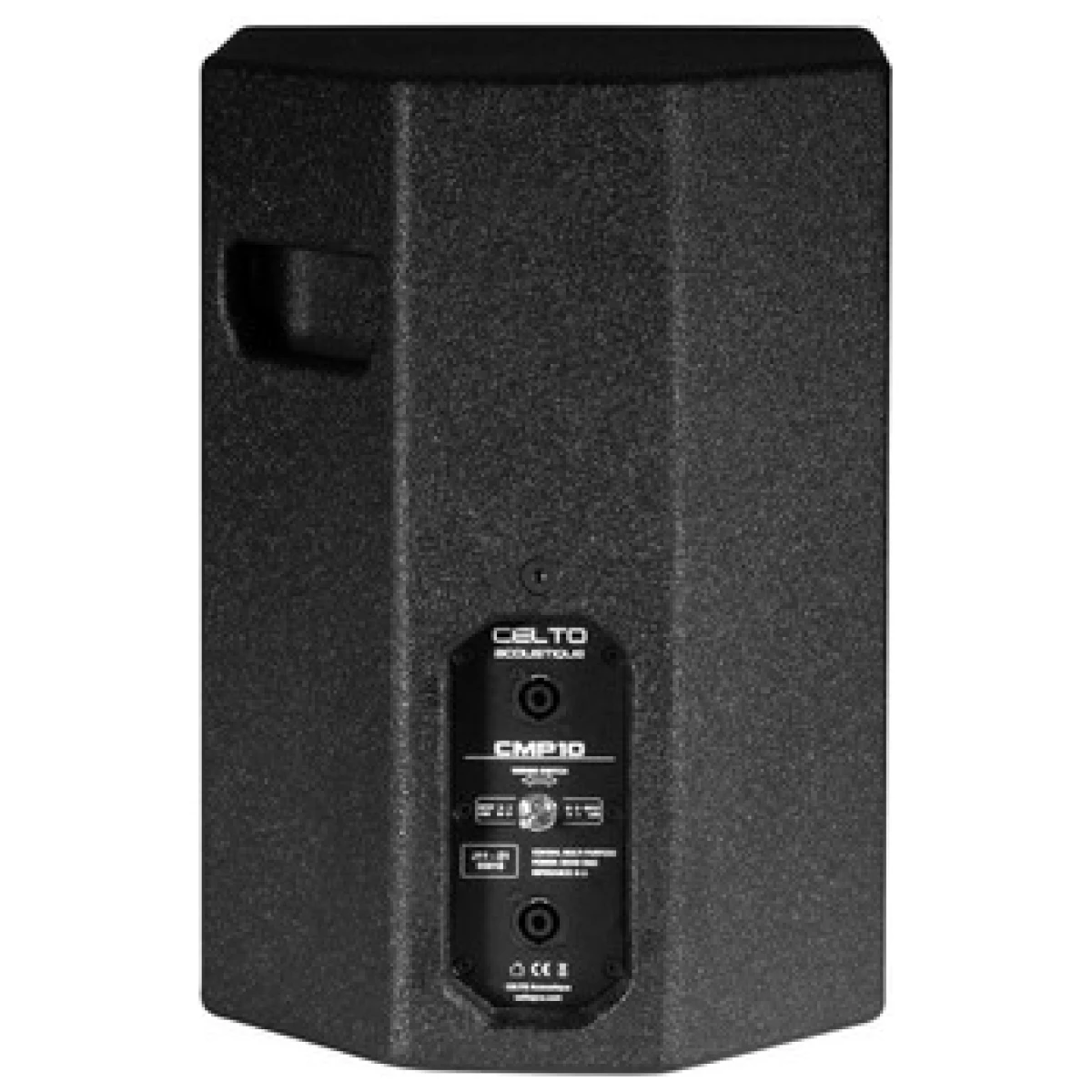

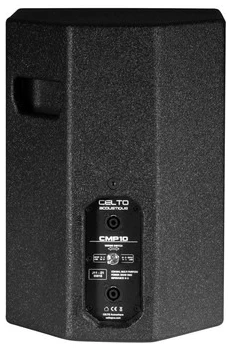

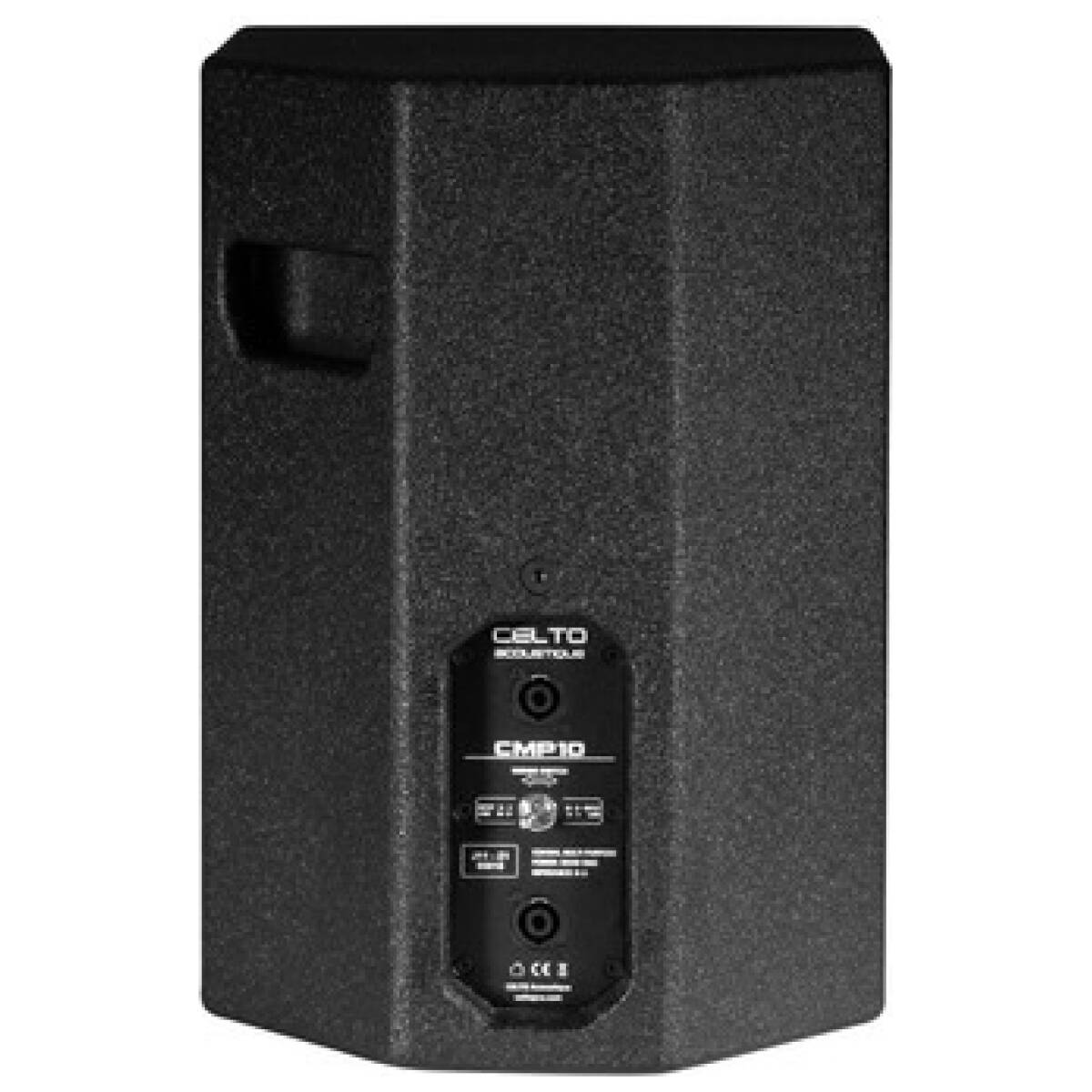

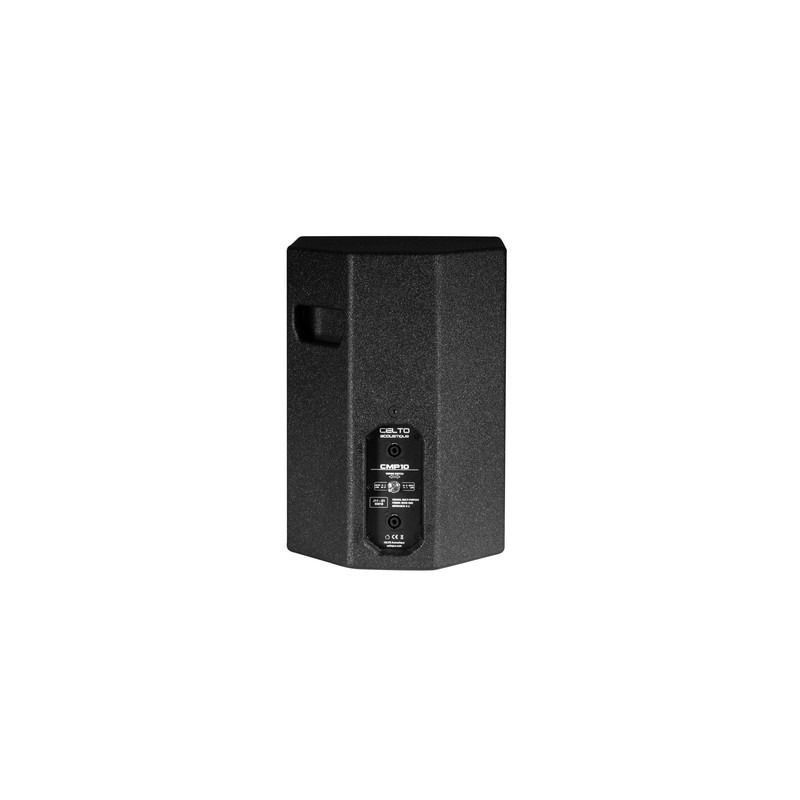

Connectors | Genuine NEUTRIK, 2pcs Speakon NL4MP with switch for 1+/-1 or 2+/2- input
Speaker size (HxWxD) | 306x440x298 mm
Speaker Weight | 15kg
Shipping information | 18.6kg 410x570x410 mm
Accessories | CMP10-YOKE CMP10-SBAG (padded cover bag) | CPC-70 (pole bar with crank) | CCA-MA (mounting adapter)
