- Real 600W RMS power capacity
- Natural sound and incredible holographic reproduction
- Optimized for smooth frequency response in and out axis
- Premium custom CELTO Acoustique Drivers
- Proprietary 80ºx50º rotatable 6th order Polynomial horn
- Birch plywood cabinet with tongue & groove assembly
- Touring grade gloss-free black painting
SPECIFICATIONS:
Speaker type | Multi-purpose full range
Power Handling (AES standard) | 600W RMS / 2400W Peak
Nominal impedance | 8 ohms
Average sensitivity | 97dB / 1W / 1m
Maximum SPL (calculated) | 125 dB RMS / 131dB Peak
Frequency response (-6dB no preset) | 50~22000Hz
Nominal directivity (-6dB) | 80° (H) x 50° (V)
Cabinet material | Outdoor grade Birch Plywood
Cabinet finish | Textured Waterborne Black coating | Integral Airnet fabric on Front grill
Floor monitor use | Yes (symetrical)
Flying hardware | 17 M8 points
Mounting hardware | Ø35mm socket (0° and 10°)

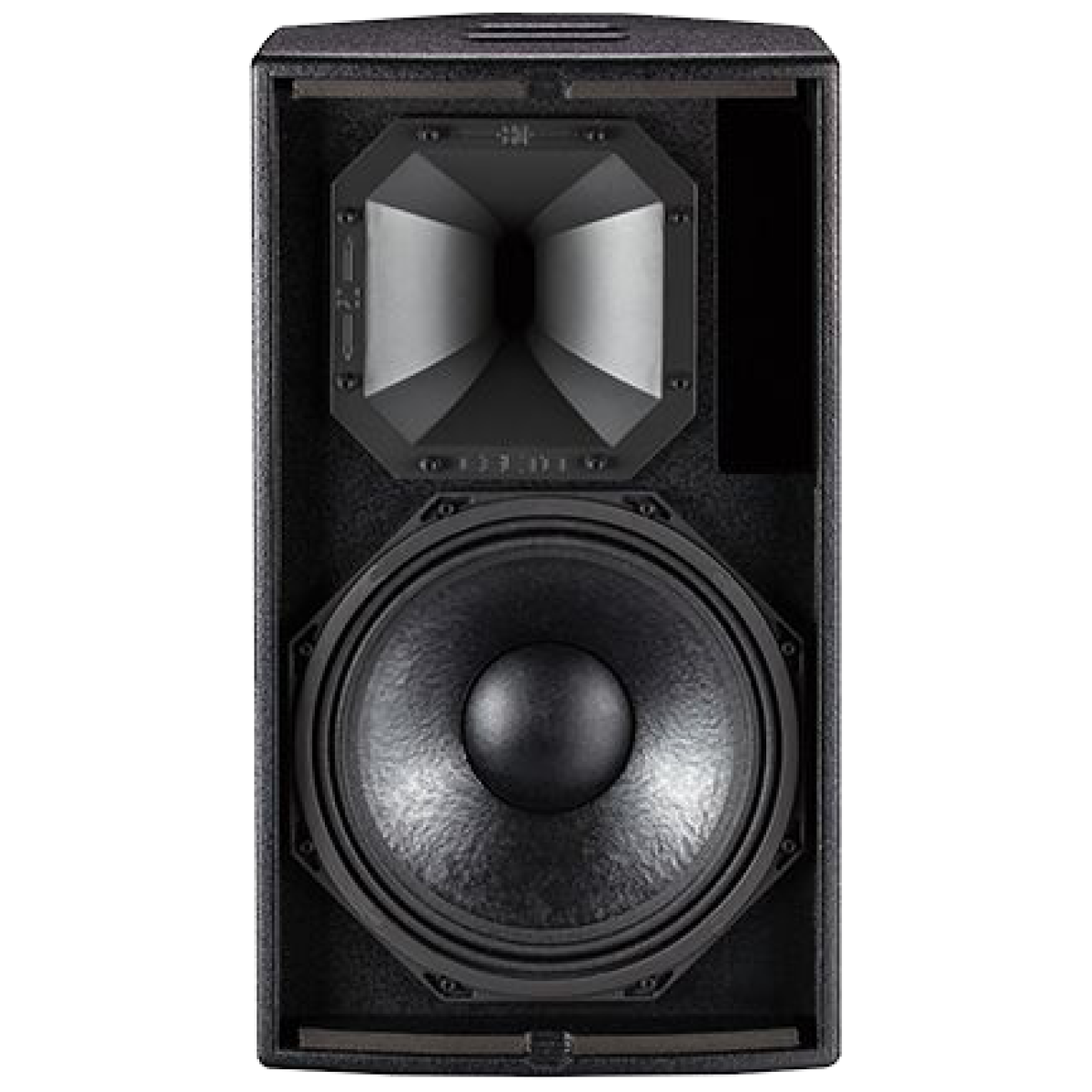

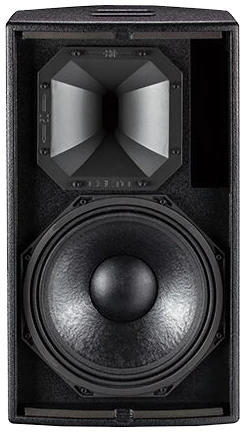

LF | 12″ CELTO Acoustique 12PF600
Woofer Chassis | Die Cast Aluminum
Woofer Voice coil diameter | 3″ / 75mm
HF | CELTO Acoustique ACD44
HF RMS power (AES standard) | 80W above 1.5kHz
HF Exit | 1″ / 25mm
HF Voice coil diameter | 1.7″ / 44mm
HF Diaphragm | HSP Annular Ring Radiator
Crossover | 1.5kHz 2-way passive network

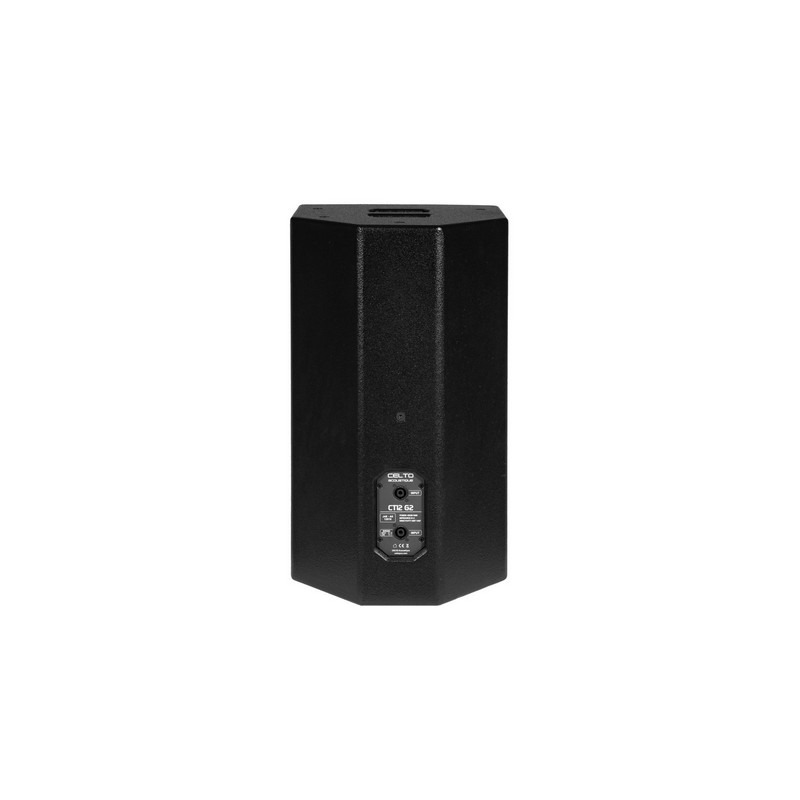

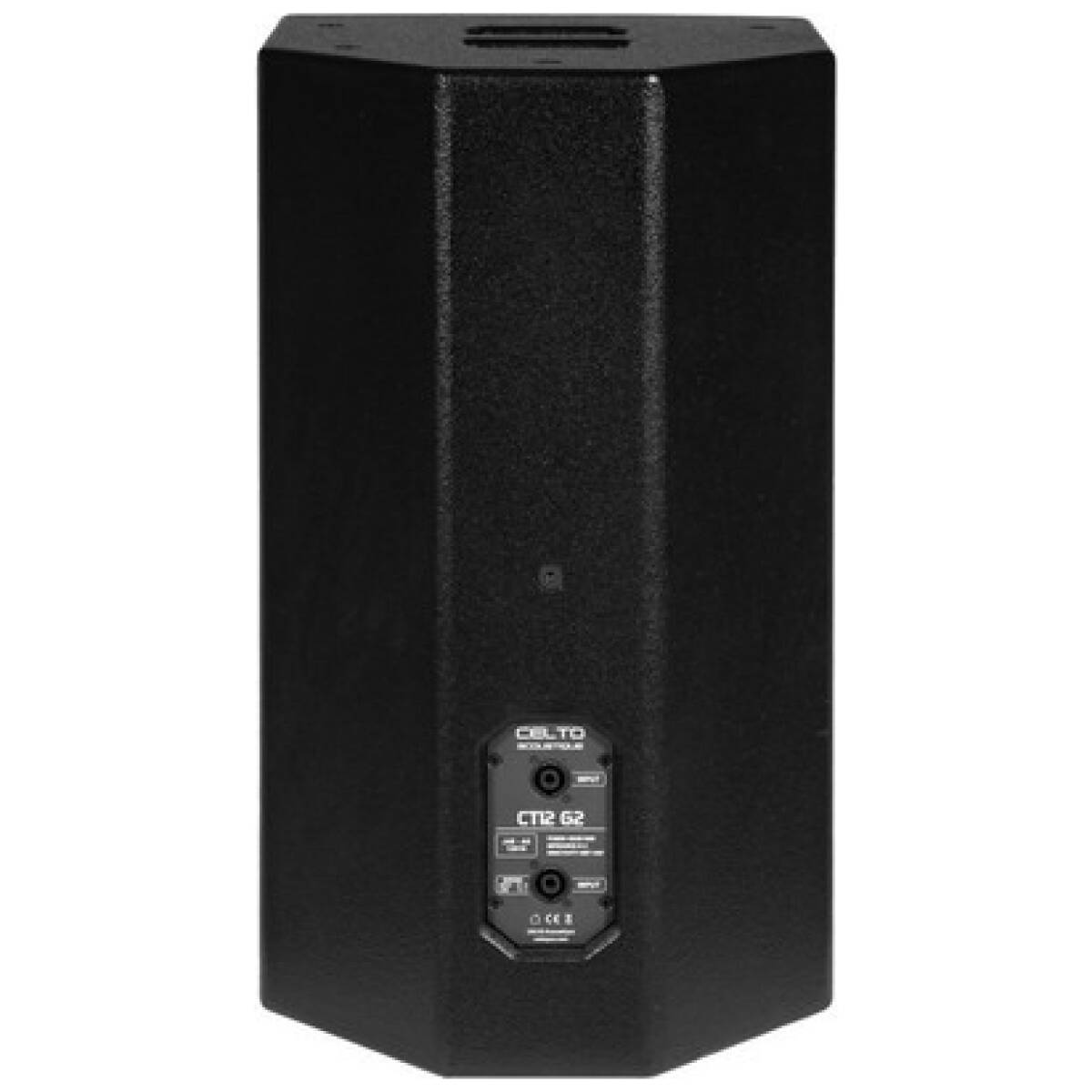

Connectors | Genuine NEUTRIK, 2pcs Speakon NL4MP
Speaker size (HxWxD) | 356x620x345 mm
Speaker Weight | 23kg
Shipping information | 28.5kg | 735x460x440mm
Accessories | CT12G2-YOKE | CT12-SBAG (padded cover bag) | CPC-70 (pole bar with crank) | KTV-BRKT1 (ceiling mounting braket) | WMBRKT40 (wall mounting braket)
