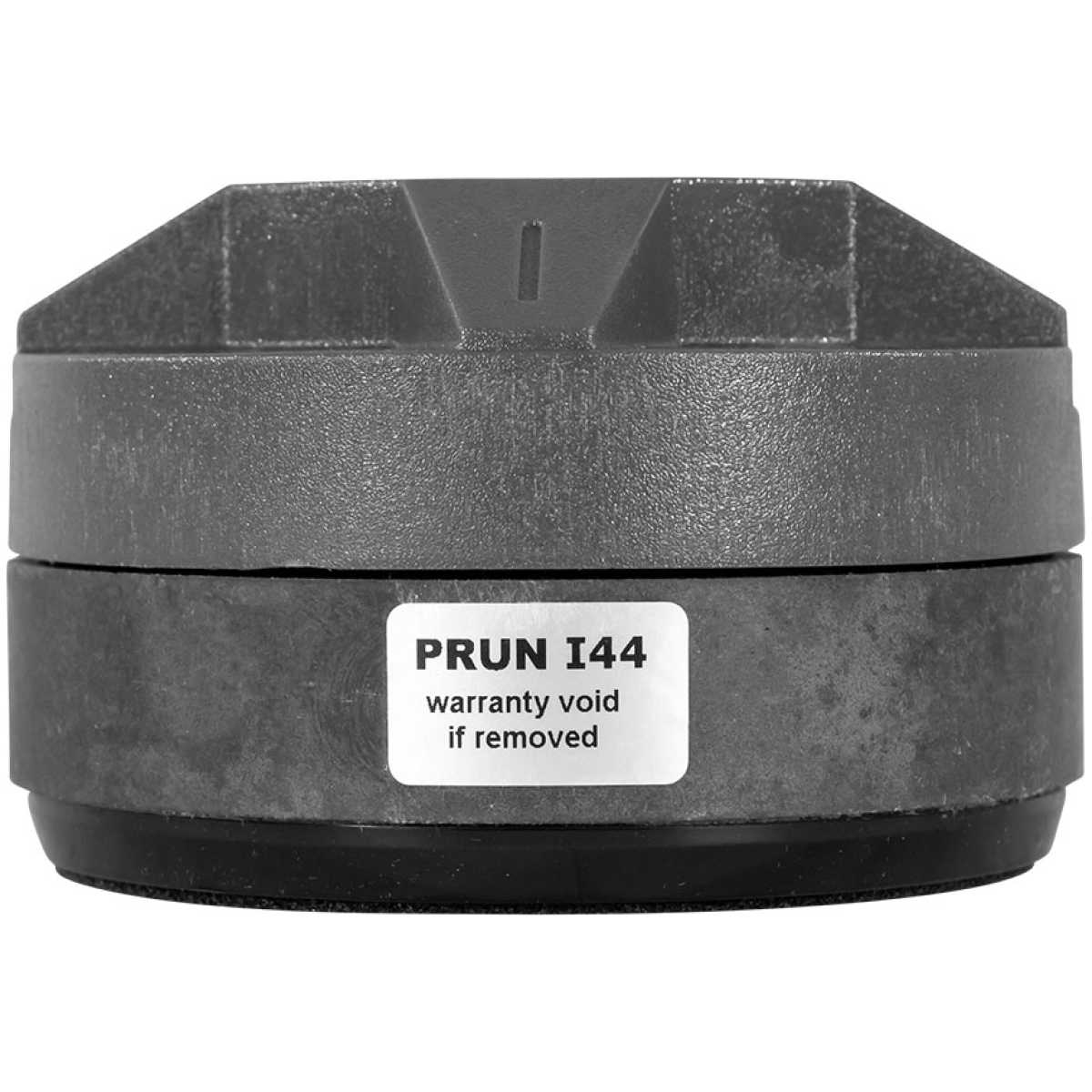

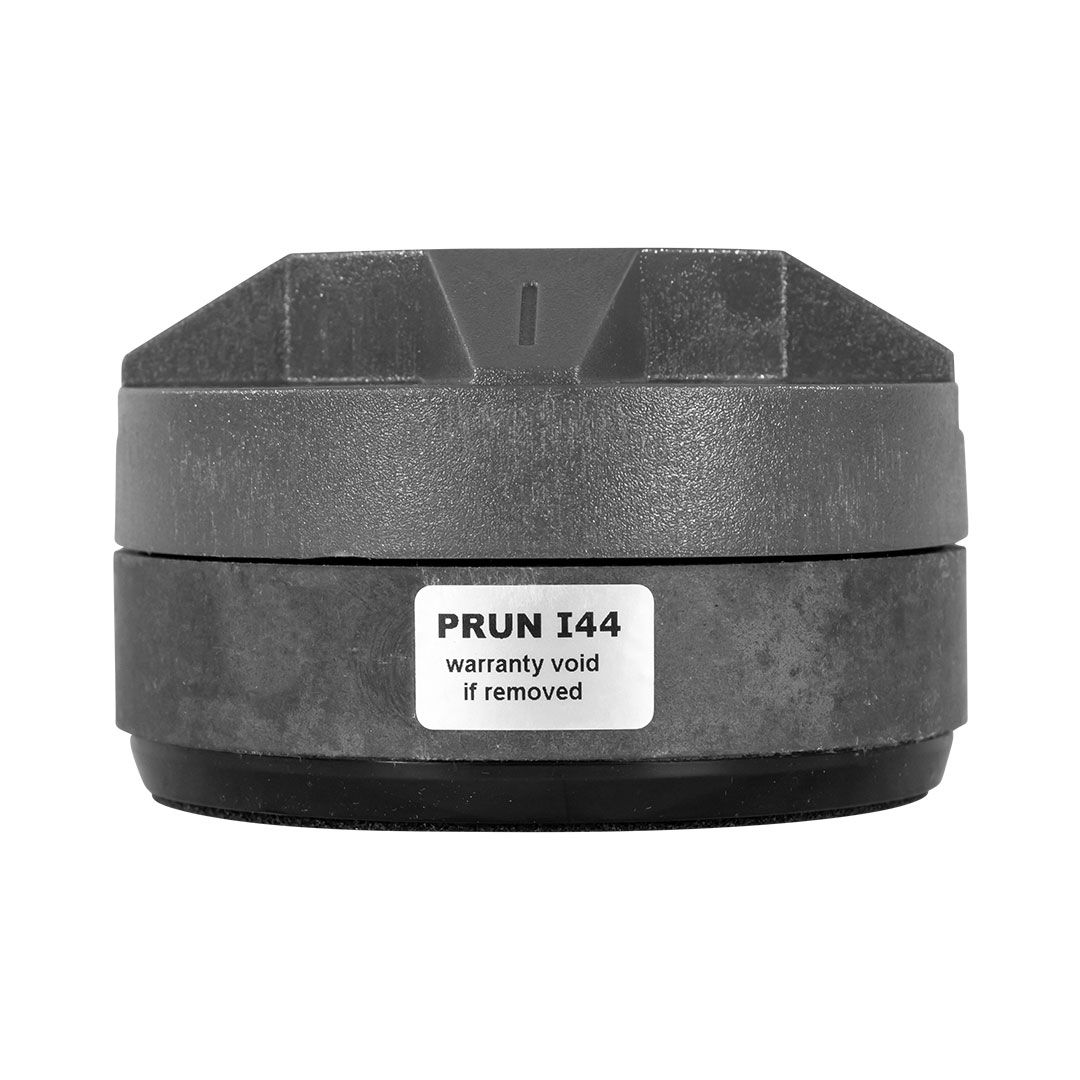

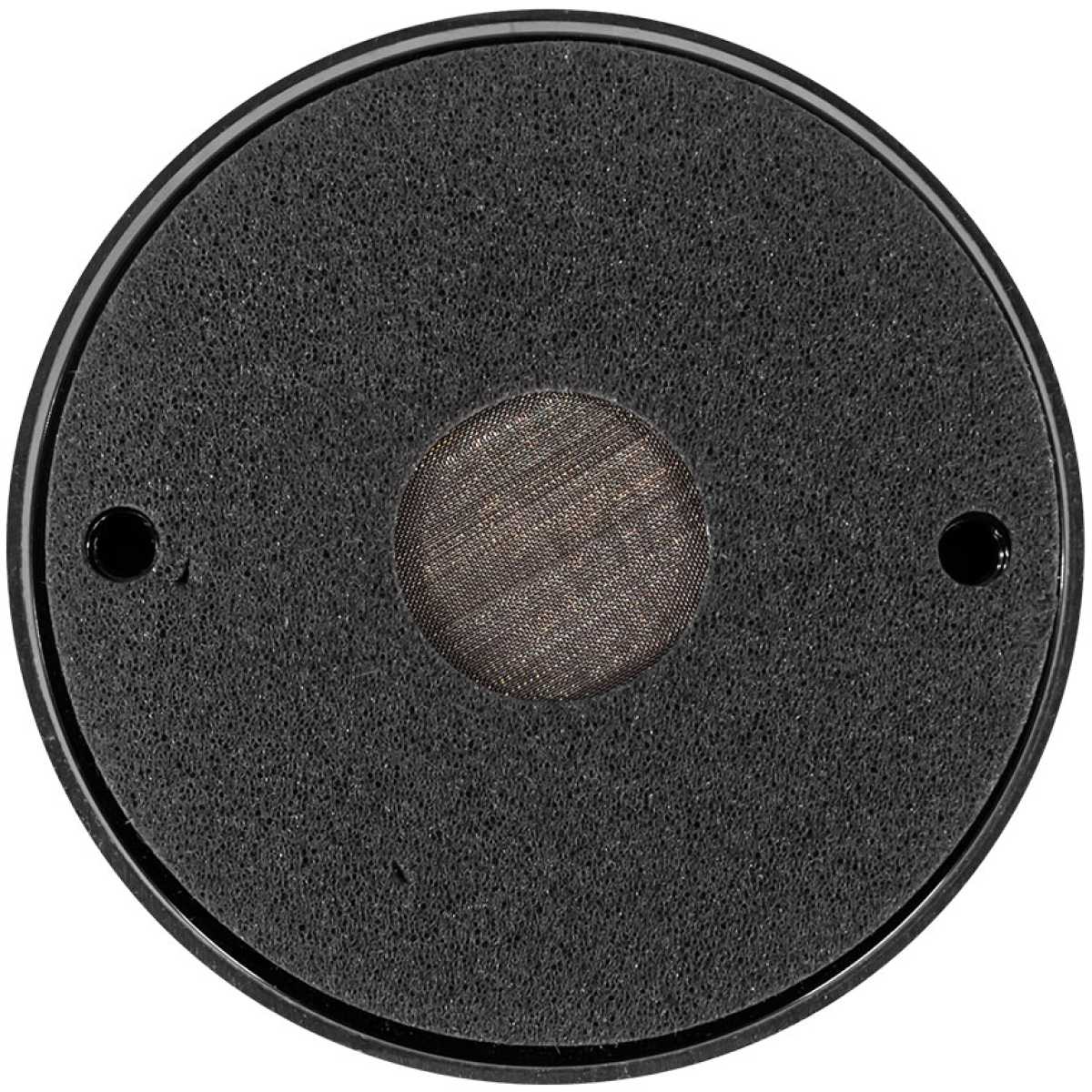

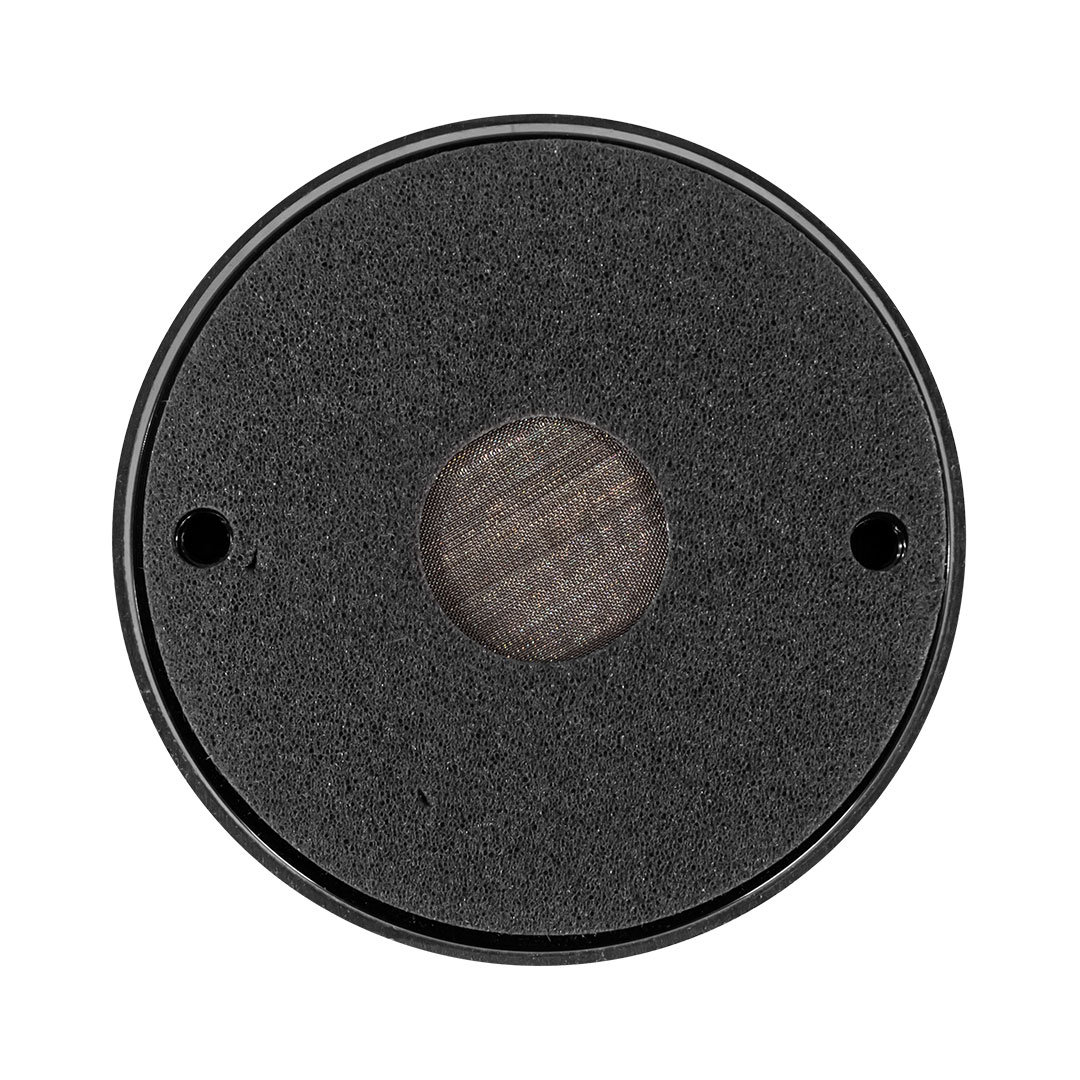

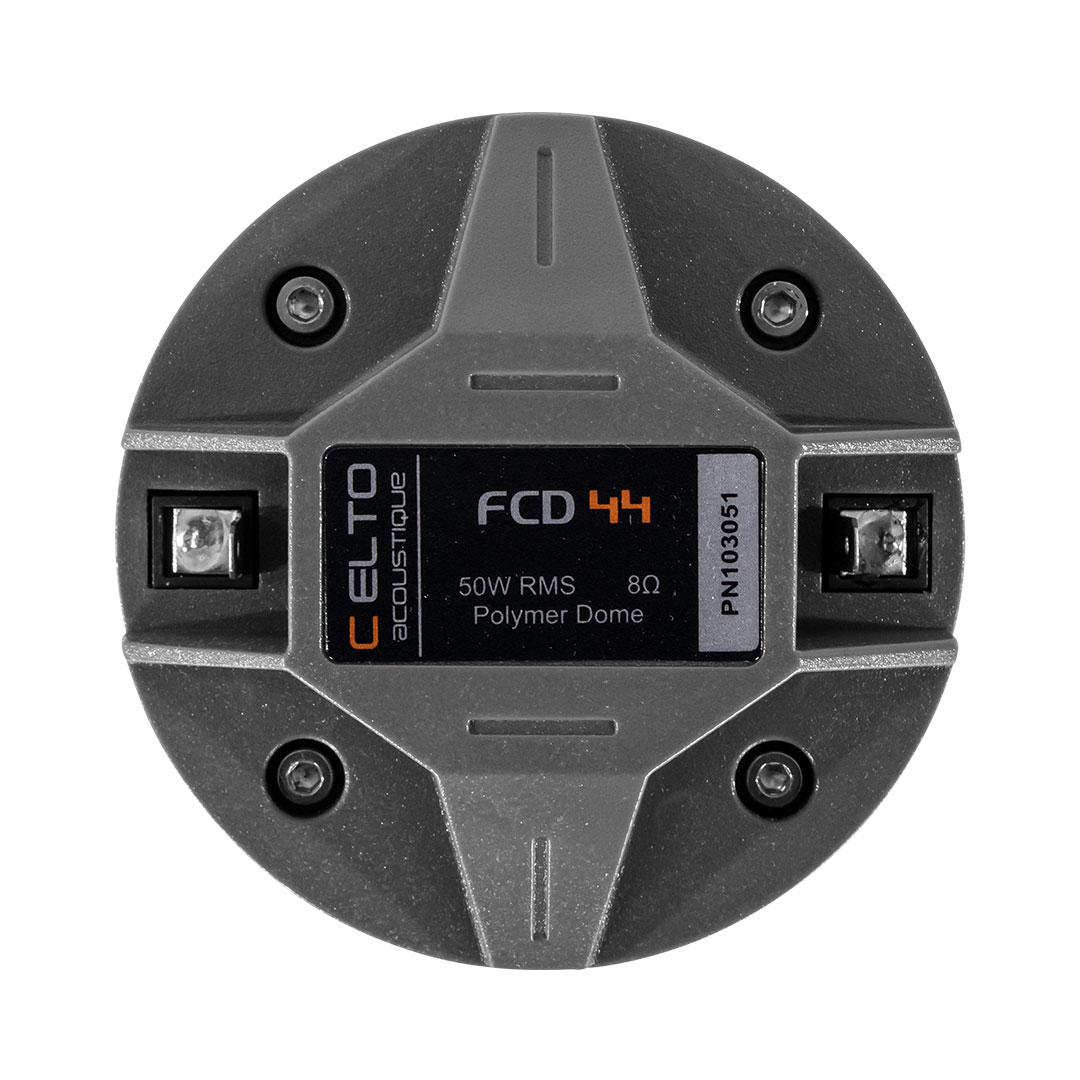

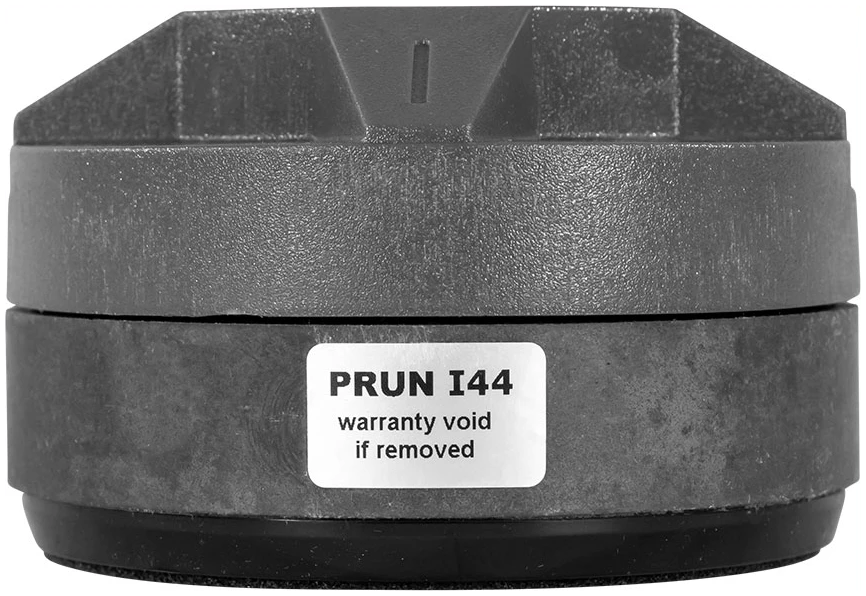

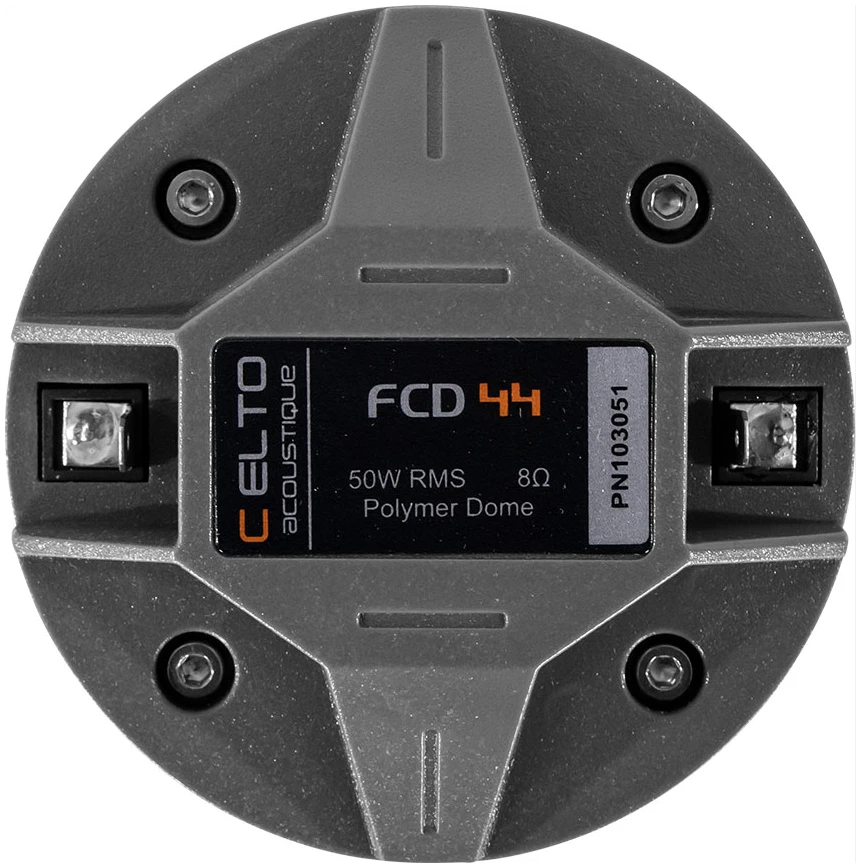

Celto FCD44-8 Tweeter

The Celto FCD44-8 is a professional 1-inch compression driver designed for superior high-frequency clarity, smooth response and reliability. Ideal for premium PA tops, monitors and compact line-array elements, it offers detailed reproduction with excellent sensitivity and low distortion. Engineered with Celto’s advanced acoustic design, this driver is suitable for both OEM manufacturers and high-performance replacement applications.

KEY FEATURES
• 1″ exit compression driver
• High-precision diaphragm for clean HF reproduction
• 44 mm (1.75″) high-temperature voice coil
• 8-ohm impedance
• High sensitivity and smooth frequency response
• Ferrite magnet assembly
• Suitable for horn-loaded PA systems, monitors and line arrays
• Long-term durability for professional use

ESTIMATED TECHNICAL SPECIFICATIONS

• Throat Diameter: 1″
• Voice Coil Diameter: 44 mm (1.75″)
• Impedance: 8 ohm
• RMS Power: approx. 60–80W
• Program Power: approx. 120–160W
• Sensitivity: approx. 107–109 dB
• Frequency Response: approx. 1.5 kHz – 18 kHz
• Recommended Crossover: 1.6–2 kHz (24 dB/oct)
• Magnet Type: Ferrite
• Diaphragm: Polymer/PEN composite (typical Celto spec)
