Highlights
- Flexible DMX splitter provides up to 8 outputs from dual inputs
- Each input can be used simultaneously and sent to any output
- Master 3-position switch quickly sends A or B input to all 8 outputs
- Individual 2-position switches send data from either the A or B input
- Optically isolated outputs provide protection in the event of a short
- Threaded insert safely secures to overhead truss
Specifications
- DMX Connectors:3-pin XLR
- Rackmount:1U
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:2 W, 0.04 A @ 120 V, 60 Hz
2 W, 0.03 A @ 230 V, 50 Hz - Weight:4.6 lbs (2.1 kg)
- Size:19 x 5.2 x 1.7 in (483 x 132 x 44 mm)
- Approvals:CE
What’s Included

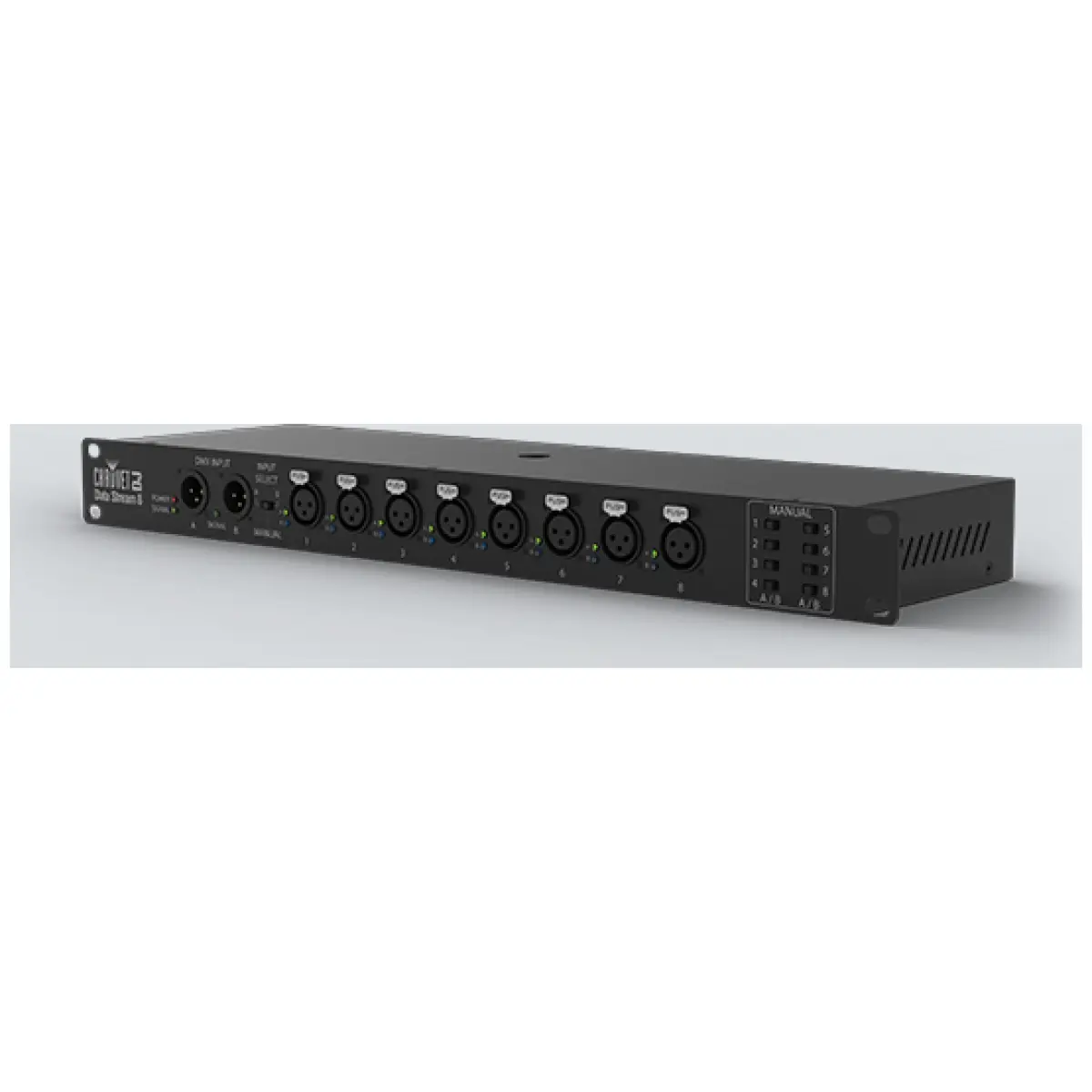

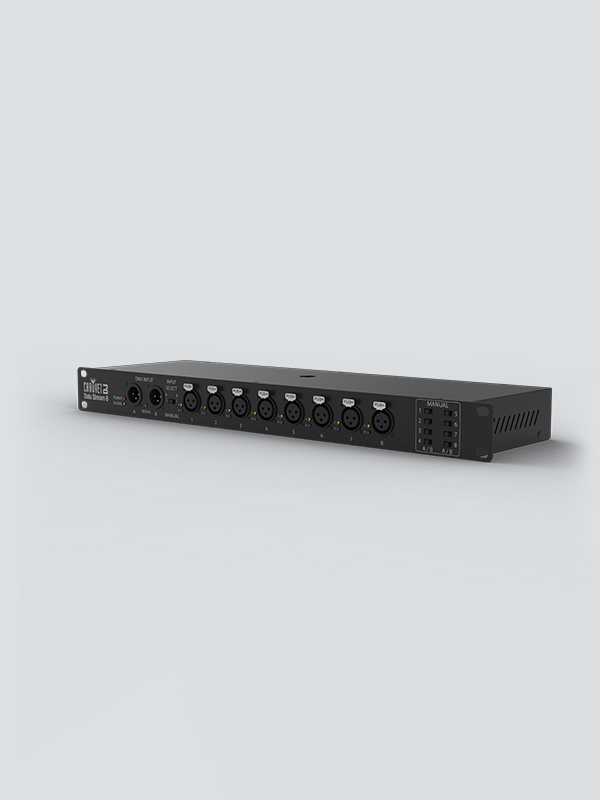

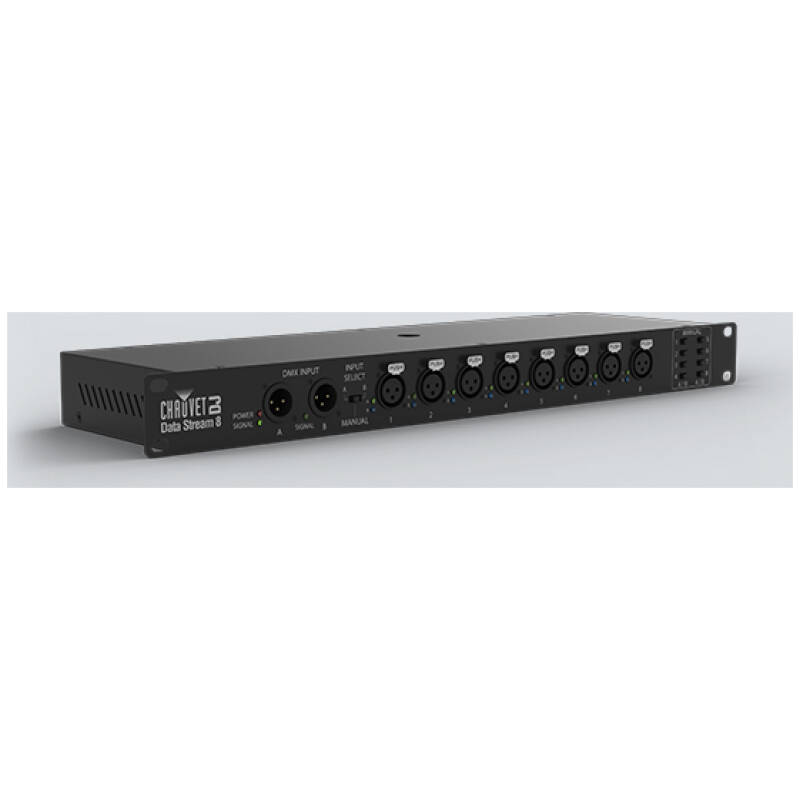

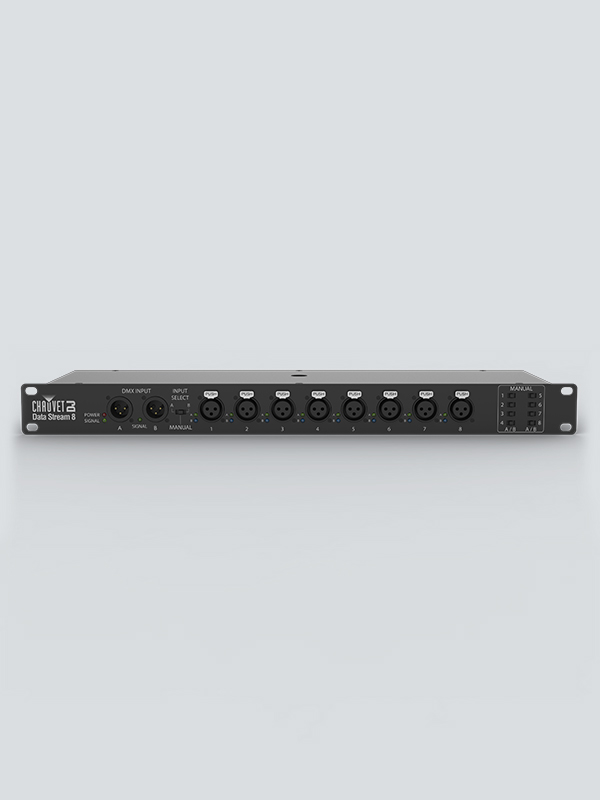

- Data Stream 8
- Power cord
- Warranty card
- Quick Reference Guide
