Highlights

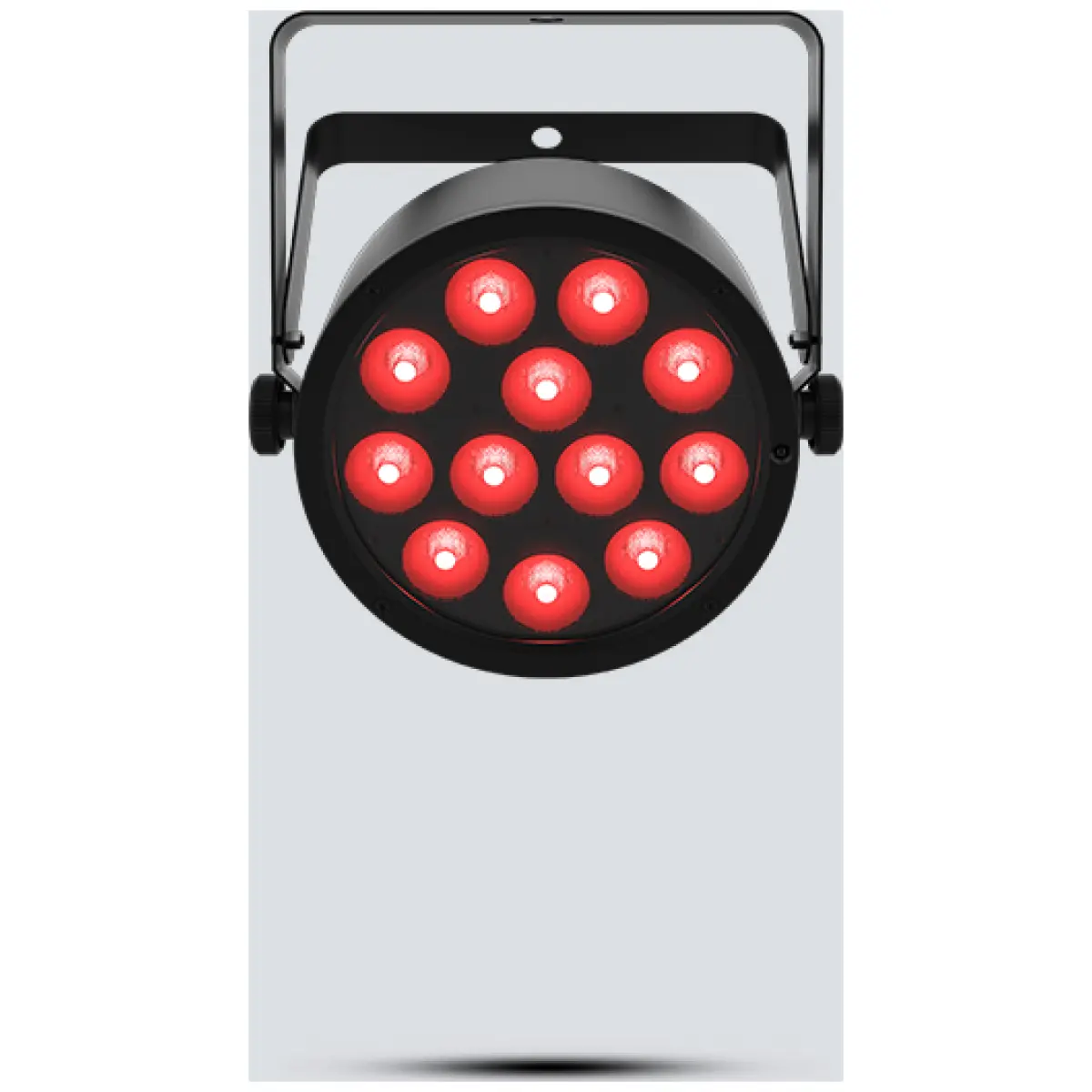

- Low-profile, high-output quad-color (RGBA) LED Par
- ILS compatibility for use in the ILS ecosystem
- D-Fi™ USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Convenient access to RGBA color mixing and static colors with or without DMX
- Flicker-free operation suitable for on-camera use
- Increase standalone versatility with multiple user-configurable settings
- Save time running cables and extension cords by power linking multiple units
- Easily control static colors and automated programs with the optional IRC-6 remote
- Fits best in the CHS-30 VIP gear bag
- Compact design easily fits inside sticks of TRUSST®
Specifications
- DMX Channels:4 or 9
- DMX Connectors:3-pin XLR
- Light Source:12 LEDs (quad-color RGBA) 6 W, (2.3 A), 50,000 hours life expectancy
- Strobe Rate:0 to 17 Hz
- Beam Angle:17°
- Field Angle:29°
- Illuminance:2,684 lux @ 2 m
- Power Linking:10 units @ 120 V; 18 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
55 W, 0.8 A @ 120 V, 60 Hz
54 W, 0.5 A @ 230 V, 50 Hz - Weight:3.6 lb (1.6 kg)
- Size:9.7 x 3.6 x 11.5 in (247 x 92 x 293 mm)
- Approvals:CE, RoHS, UKCA
- Optional Controllers: IRC6, D-Fi USB
What’s Included
- SlimPAR Q12 ILS
- Power cord
- Quick Reference Guide
