Chord Handheld Microphone Uhf 864.1MHZ

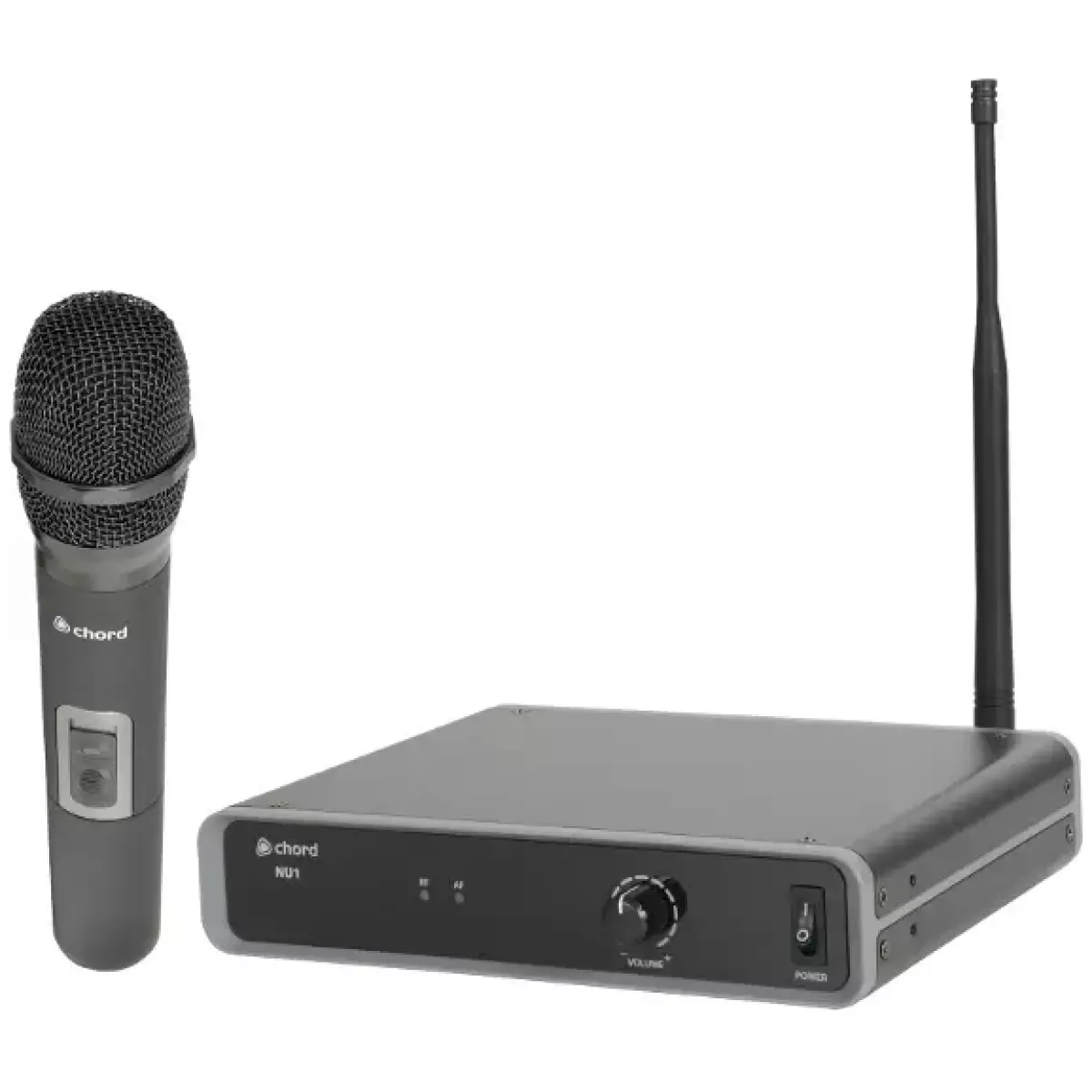

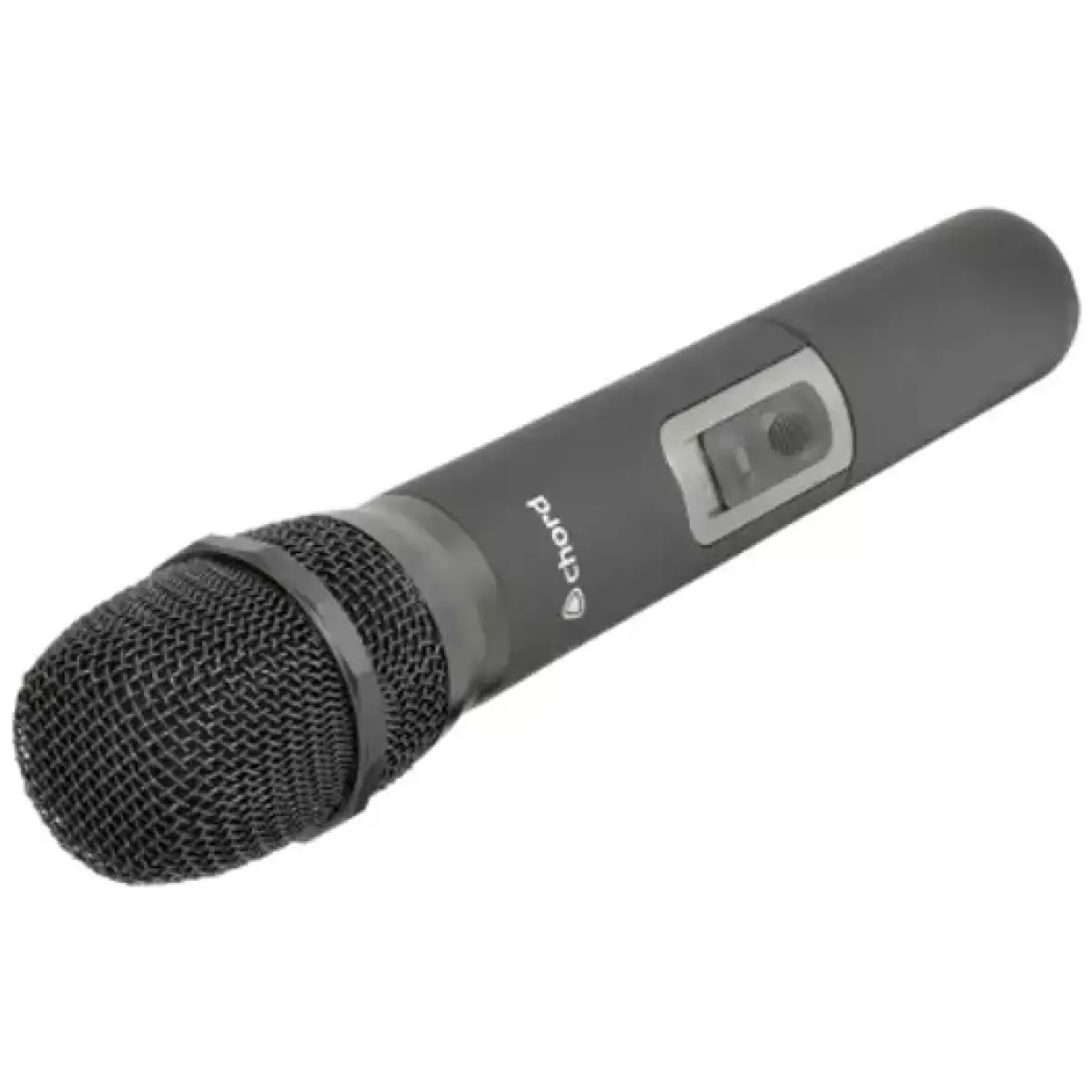

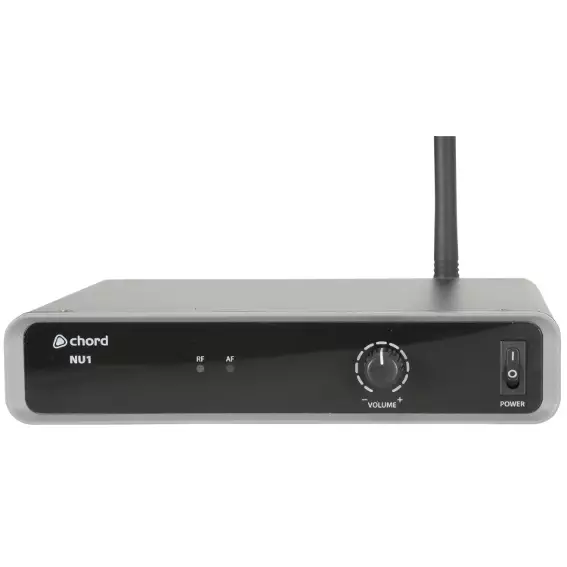

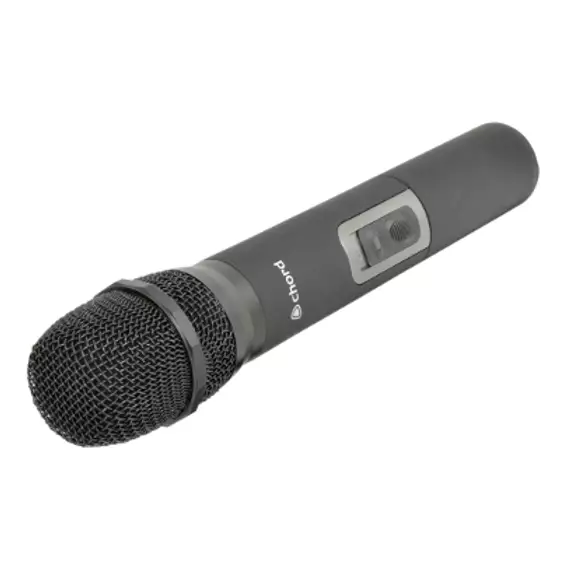

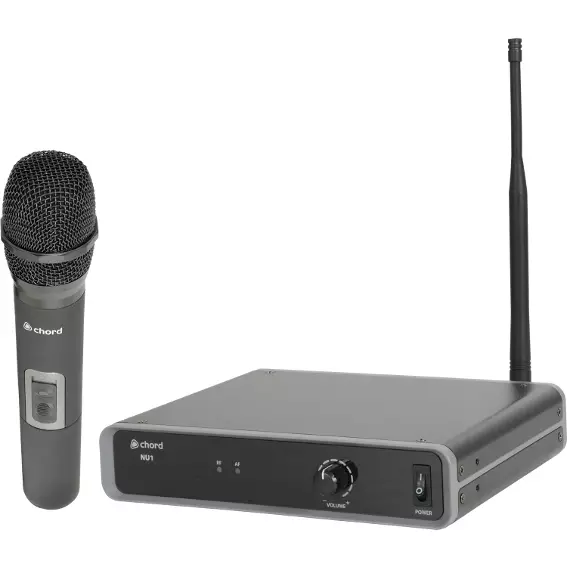

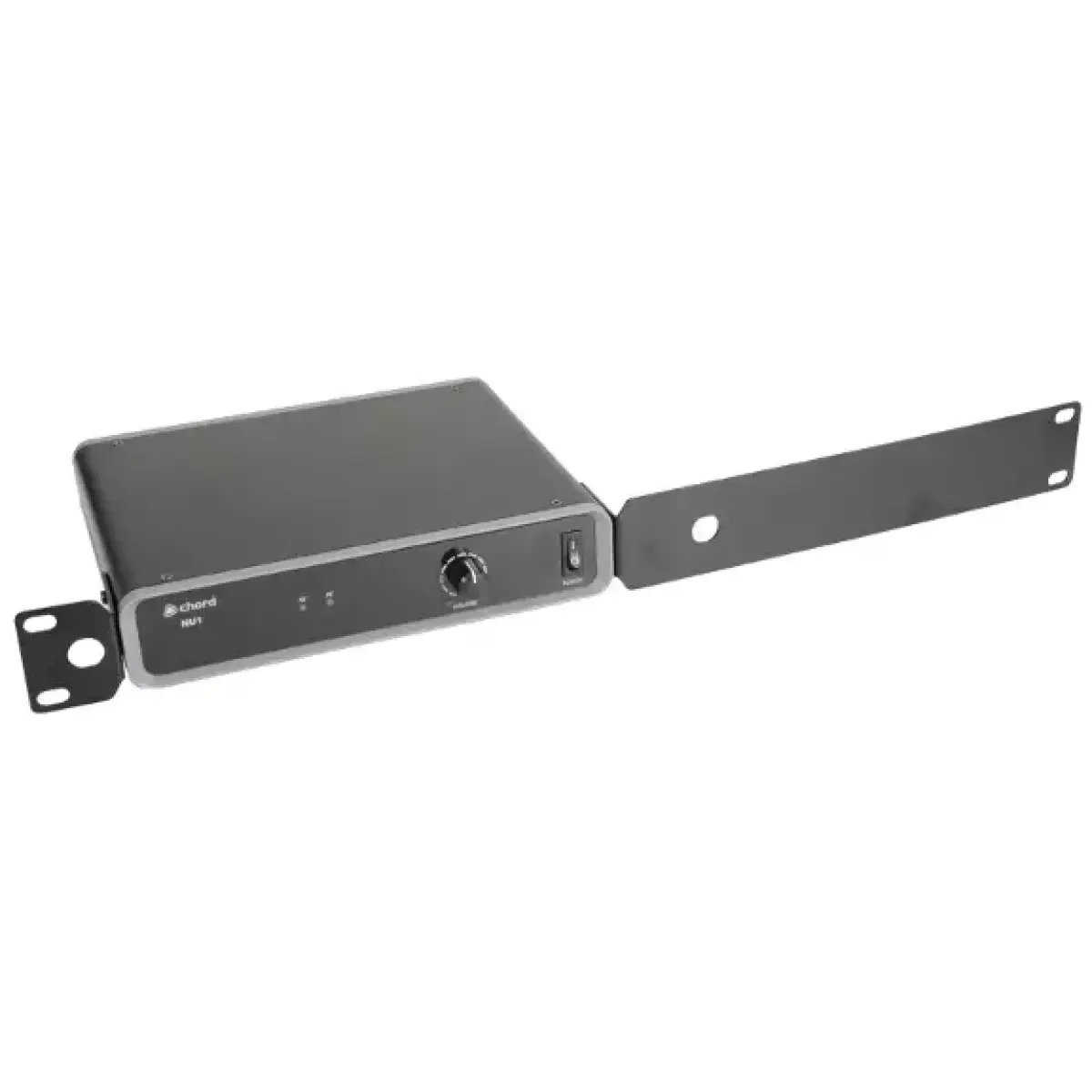

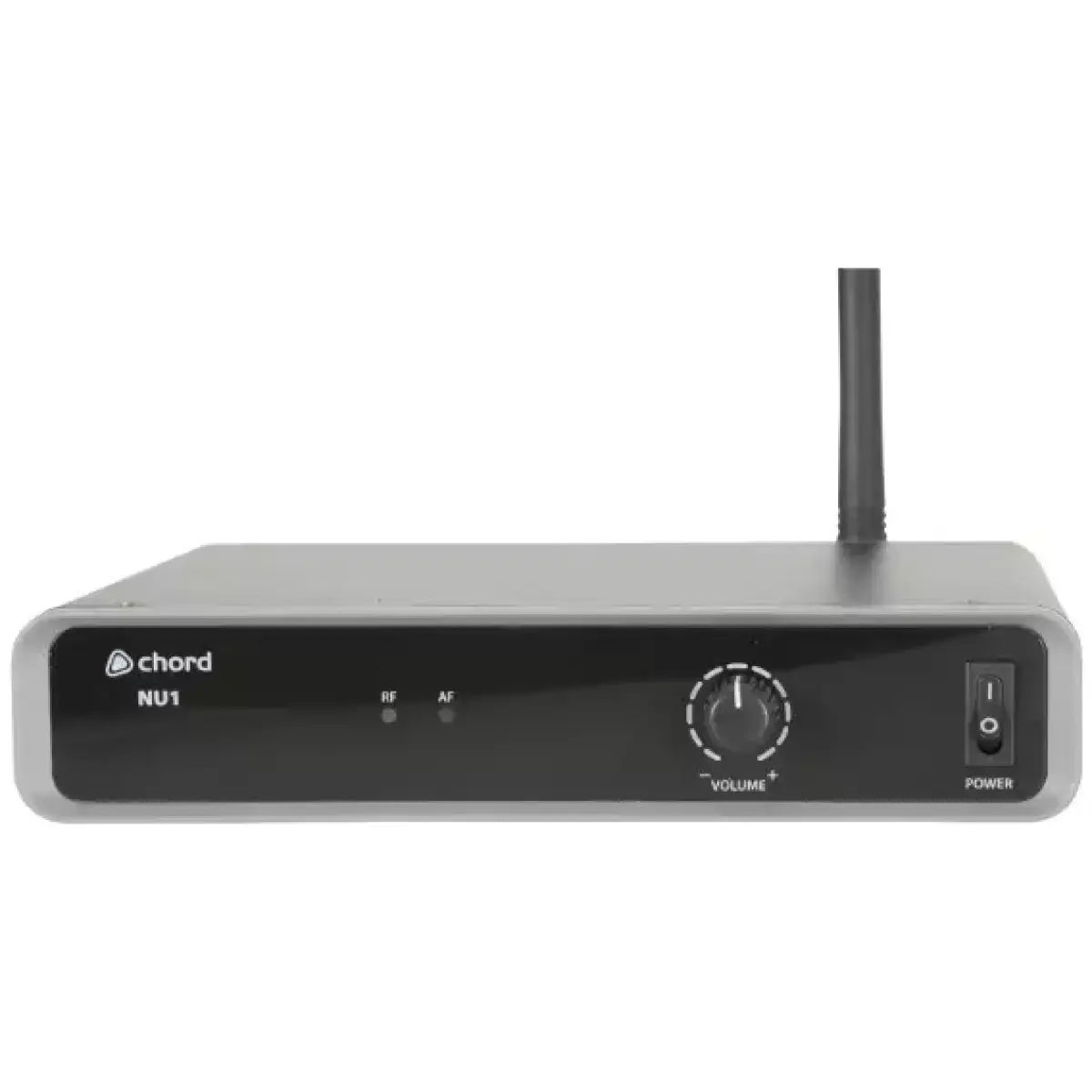

Wireless microphone system with fixed UHF handheld transmitter and half rack-width receiver. The receiver unit is compatible with standard 19″ racks using the included rack ears and front mounting antenna accessories.

Features:

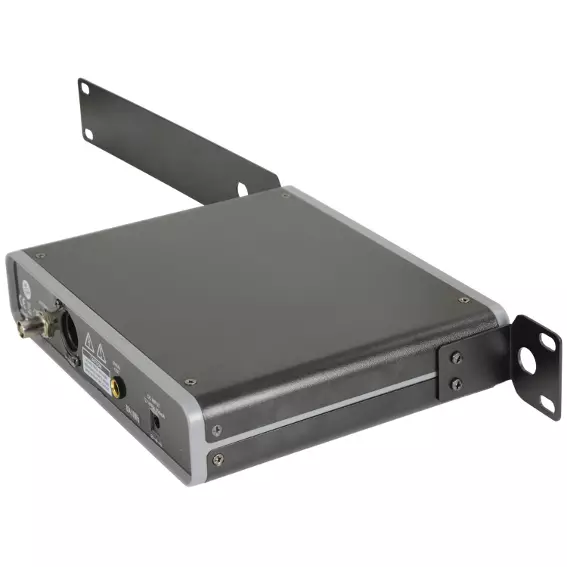

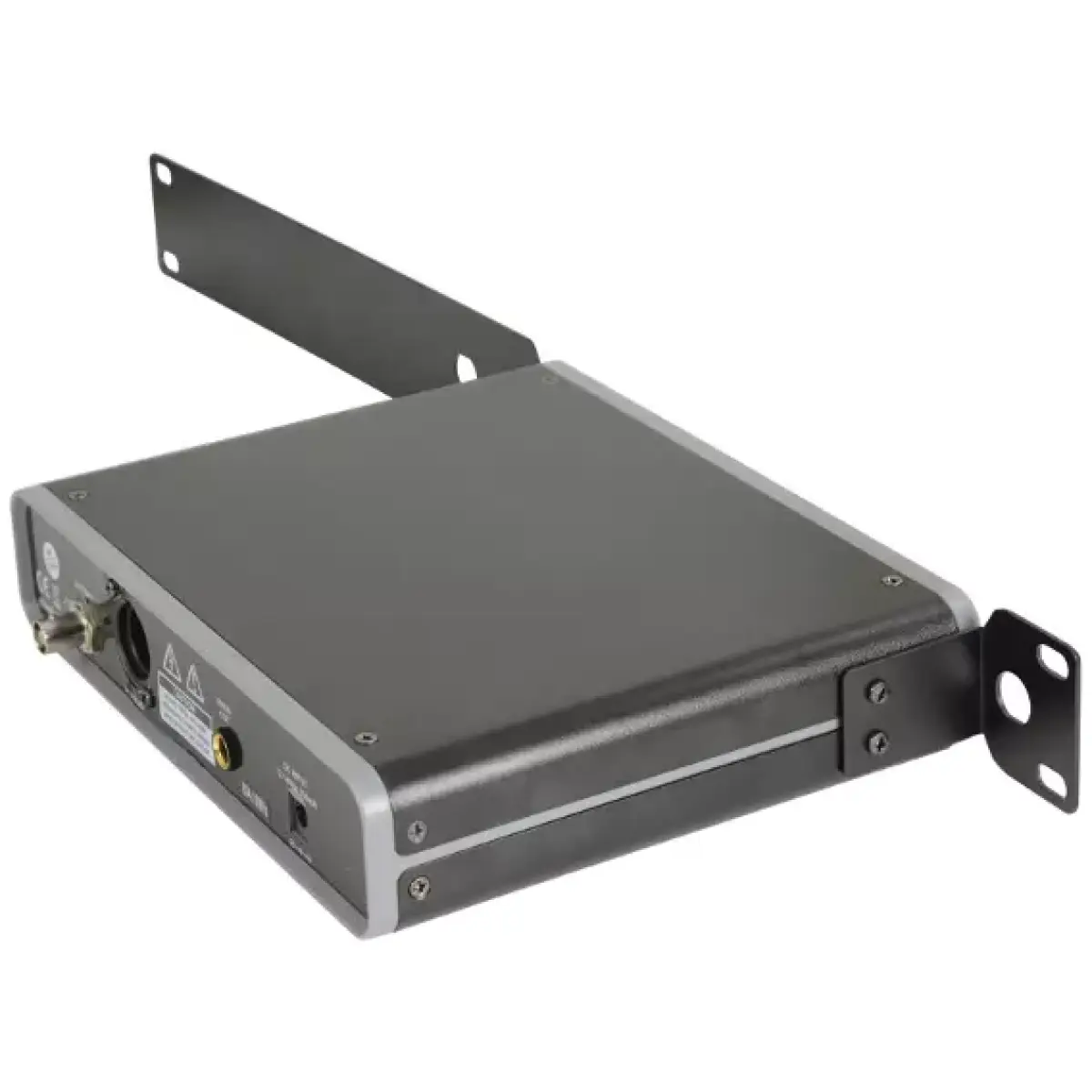

• Rack-mounting accessories included
• Supplied with mains adaptor and 2 x AA batteries
• Pilot tone & mute circuit for stable signal
• Licence free operation in EU

Specifications:

• Power supply: 12-18Vdc, 350mA (mains adaptor included)
• Batteries: 2 x AA (for transmitter – included)
• Range: 60m
• Signal to noise ratio: >105dB
• THD: <0.5% @ 1kHz
• Frequency response: 50Hz-18KHz ±1 dB
• Image rejection: >85dB
• Output impedance: 2.2k Ohms
• Dimensions : receiver: 44 x 198 x 190mm
• Weight : receiver: 710g

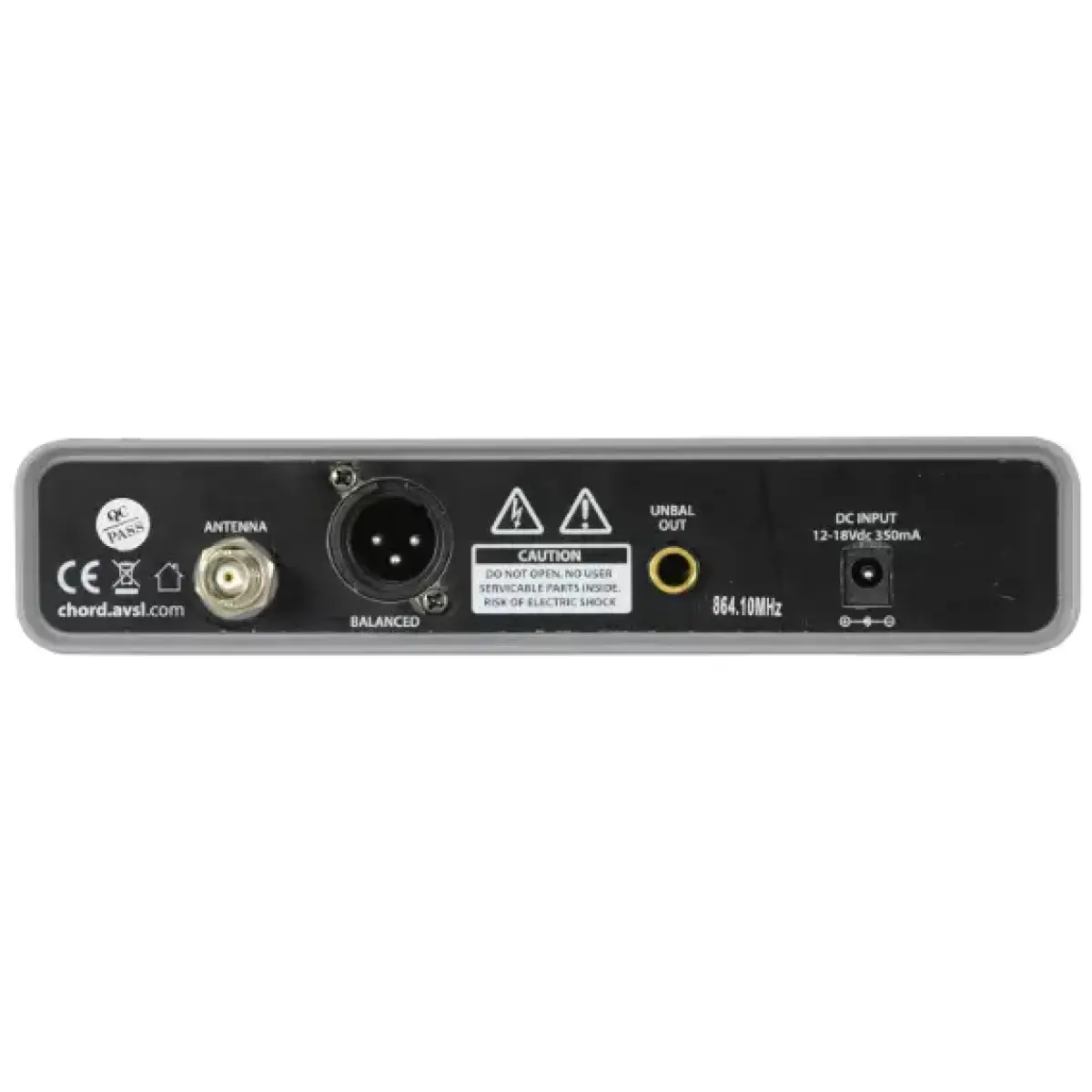

• Output level: 400mV (balanced), 200mV (unbalanced)
• Dimensions : transmitter: 243 x 48mmØ
• Weight : transmitter: 238g (no battery)
• Carrier frequency: 864.1MHz
