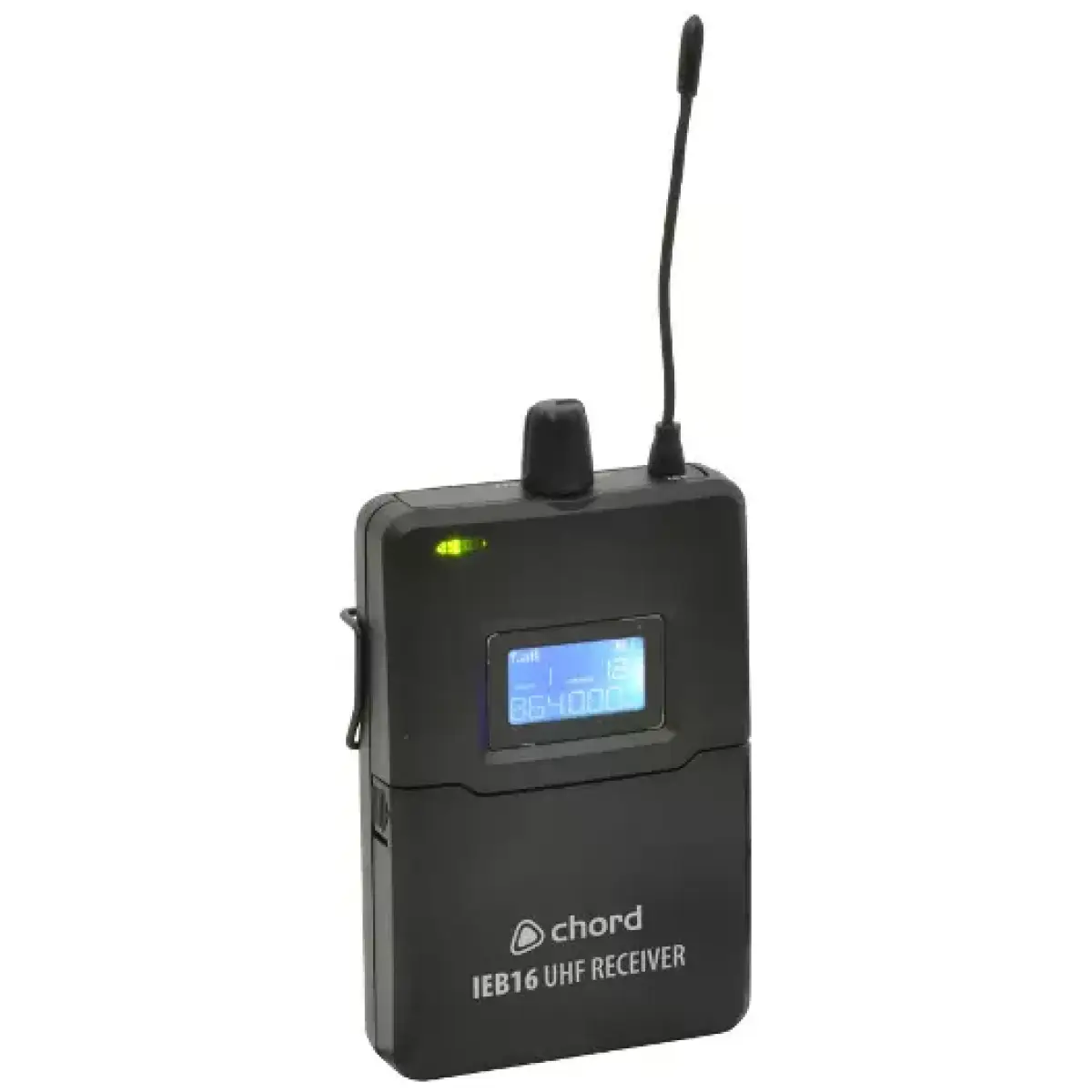

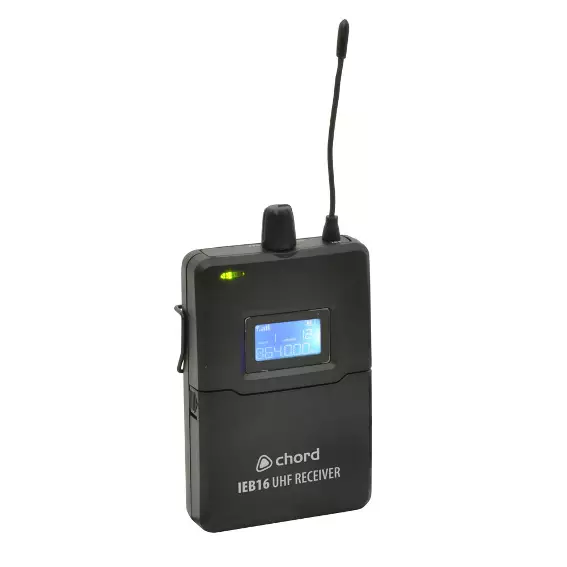

Chord In – Ear Monitoring System Receiver For IEM16 Uhf 863.1 – 864.9MHZ

Additional or replacement beltpack for the Chord IEM16 UHF in-ear monitoring system. Supplied with professional quality in-ear headphones. Unlimited beltpacks can be used to receive the signal from a single IET16 transmitter, making the IEM16 system expandable and useful for performing groups, lectures, conference translation and many other applications.

Features:

• Backlit LCD display
• UHF 16 channel PLL synthesized
• Professional in-ear monitors included
• Multiple belt packs (171.893) may be used.

Specifications:

• Power supply: 3Vdc (2 x AA batteries included)
• Controls: On/volume, Esc, Up/down, Set
• Settings: Balance, Group (1), Channel, Lock
• Connection: 3.5mm stereo jack
• Dimensions: 110 x 65 x 25mm
• Weight: 98g (without batteries)
• Carrier frequencies: 863.1 – 864.9MHz (16 channels)
• Frequency stability: 0.005% PLL
• Bandwidth: 24MHz
• Max. deviation: ±68KHz
• Frequency response : ±3dB: 40Hz – 16kHz
• Output power max.: 2 x 150mW
• Battery life: Up to 7 Hours
