Chord – Jack – Usb Converter Lead

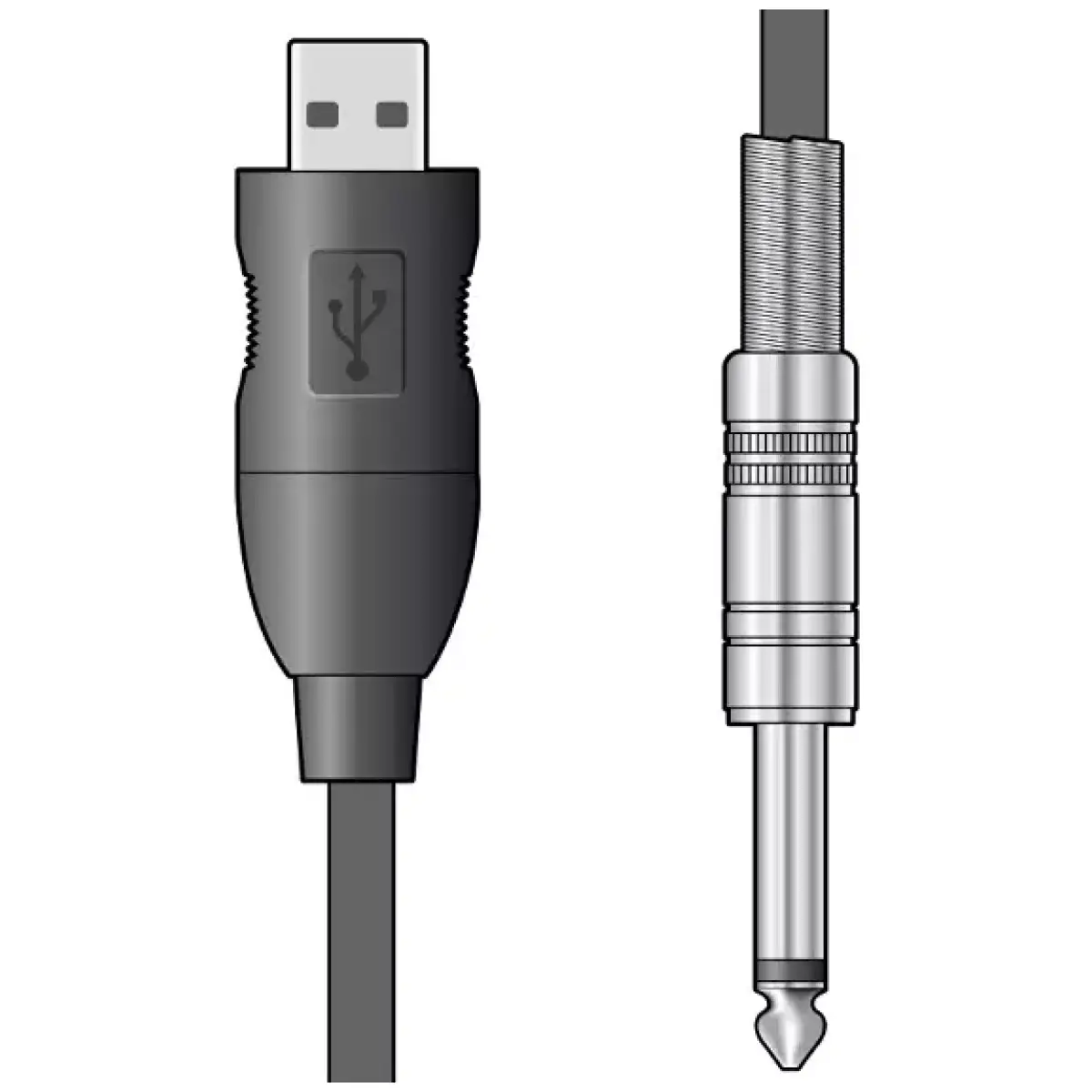

Analogue to digital conversion lead with 6.3mm jack connector at one end and USB type A connector at the other, for connecting a line input, instrument or dynamic microphone directly to a PC or Mac computer. An easy and efficient solution for digital recording of vocal lines, instruments and podcasts.

Features:

• Plug-and-play solution
• Up to 48kHz A/D conversion
• USB bus powered
• Compatible with Windows 2000/XP/7/8 or Mac OS X 10.1 and above

Specifications:

• Sampling format: 16bit @ 48/44.1kHz
• THD +N: -76dB (-3dBr)
• S/N ratio: 83dB
• Dynamic range: 80dB
• Input impedance: 1M Ohms
• Frequency response: 20Hz-19kHz (@48kHz)
• Input level: 0-2.8Vpp
• Gain: +20dB
• Lead length: 3.0mConnectors 6.3mm mono jack, USB type A
• Weight: 153g
